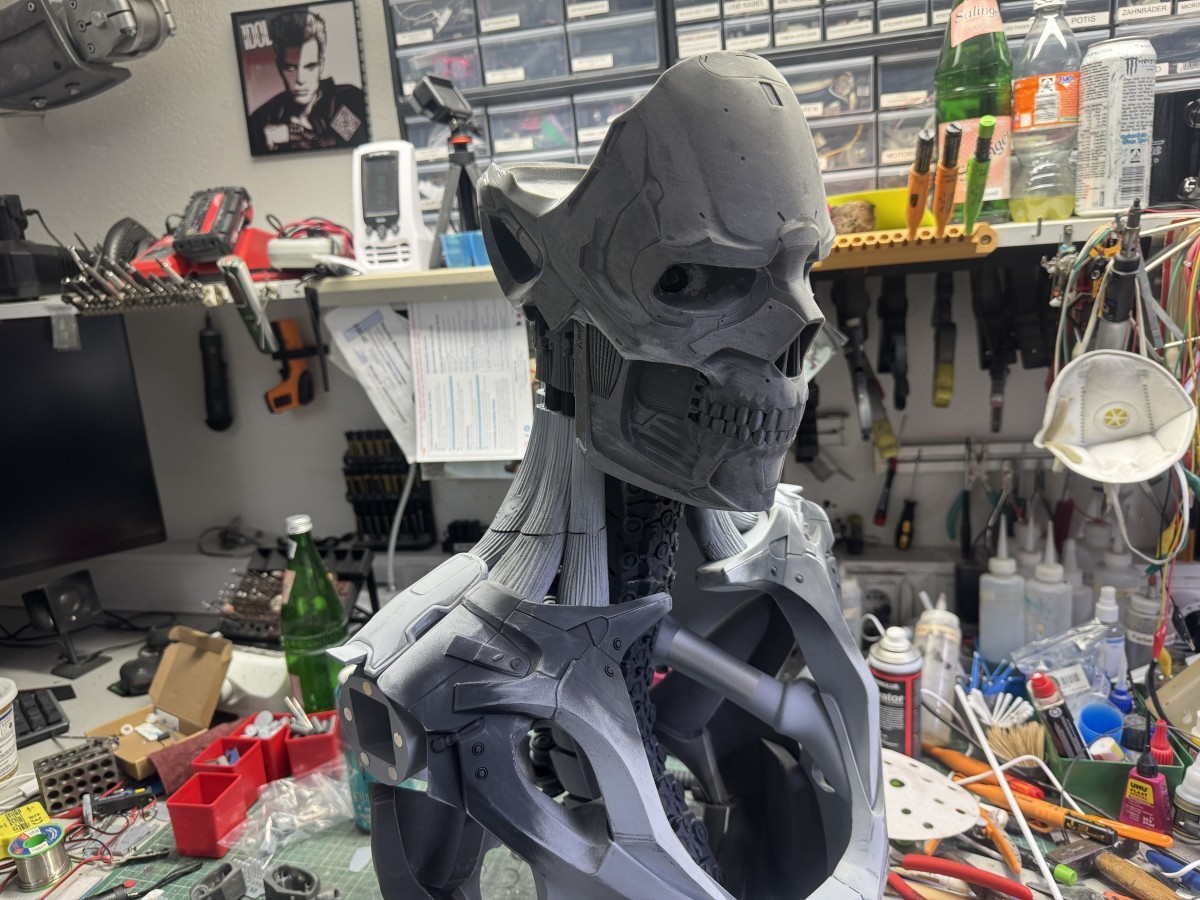

The REV-9 was a challenging but rewarding build. When Terminator: Dark Fate was released, the only thing I truly appreciated about the film was the design of the REV itself. I contacted do3d.com to ask whether they planned to create printable files for it. They agreed to start if I provided reference material—so I shared my complete reference archive and paid $200 upfront to get the project moving.
Over time, a few updates appeared, but eventually communication stopped. When I followed up, they explained that their designer was unhappy with the payment arrangement and they were in negotiations. The model already looked promising at that stage, but I sent them reference images pointing out several inaccuracies.
They eventually refunded my payment, as they couldn’t reach an agreement with the designer. However, a few months later, the same model suddenly appeared on their website for $99.

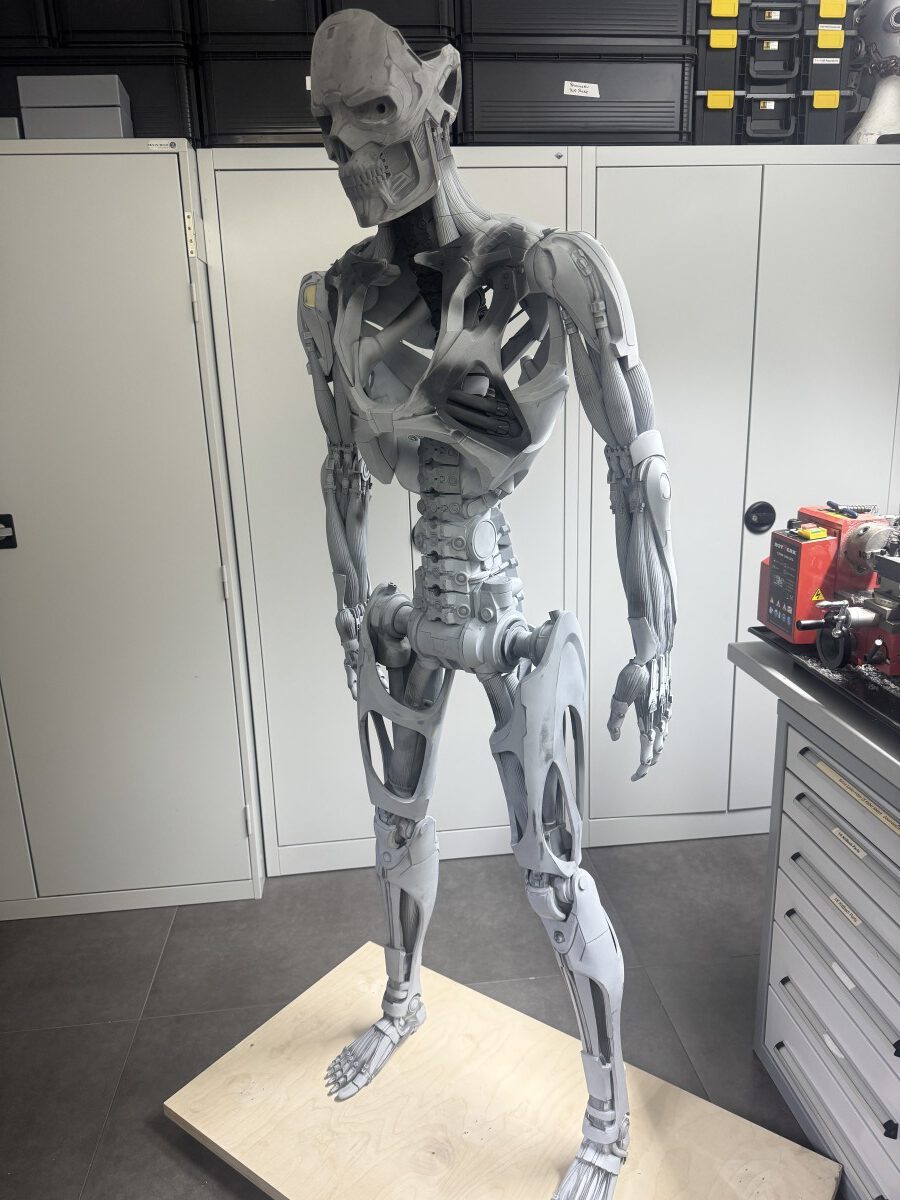

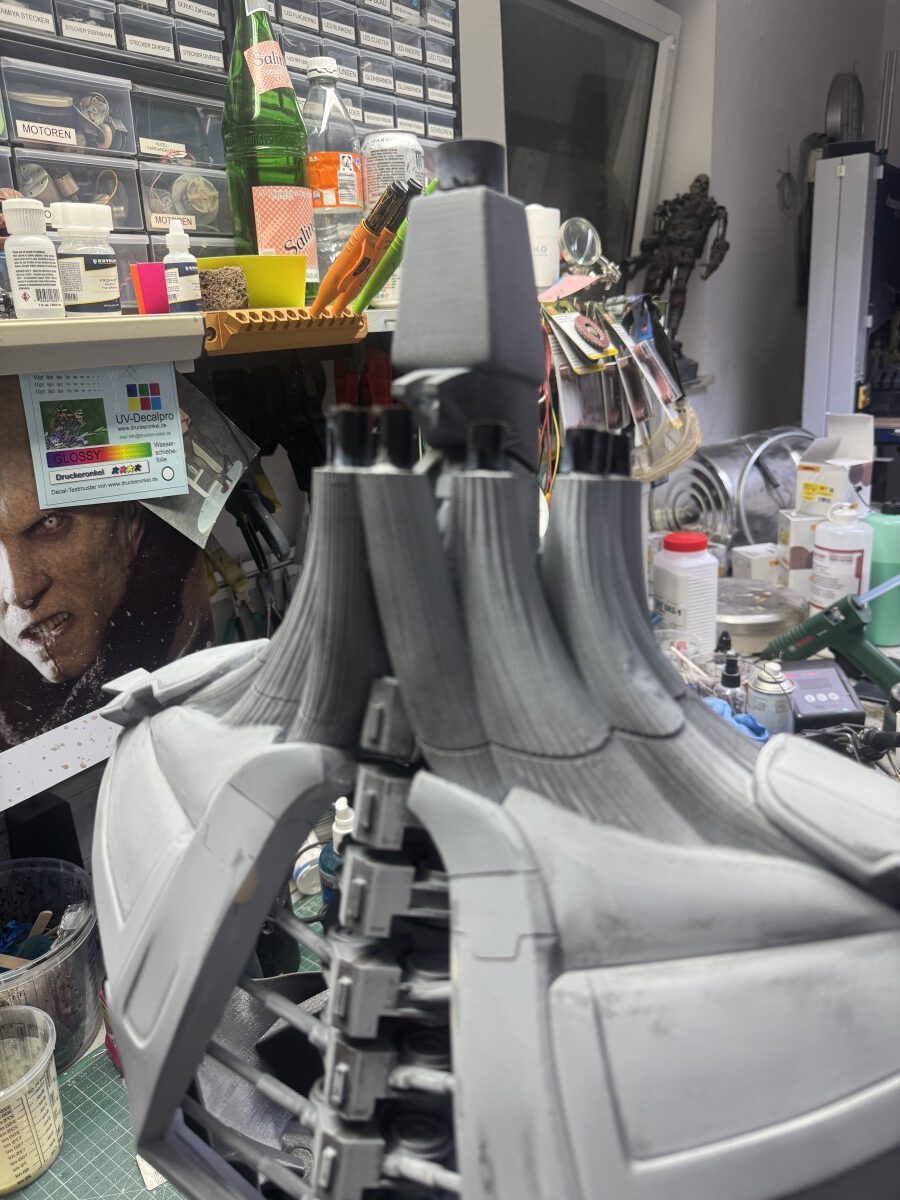

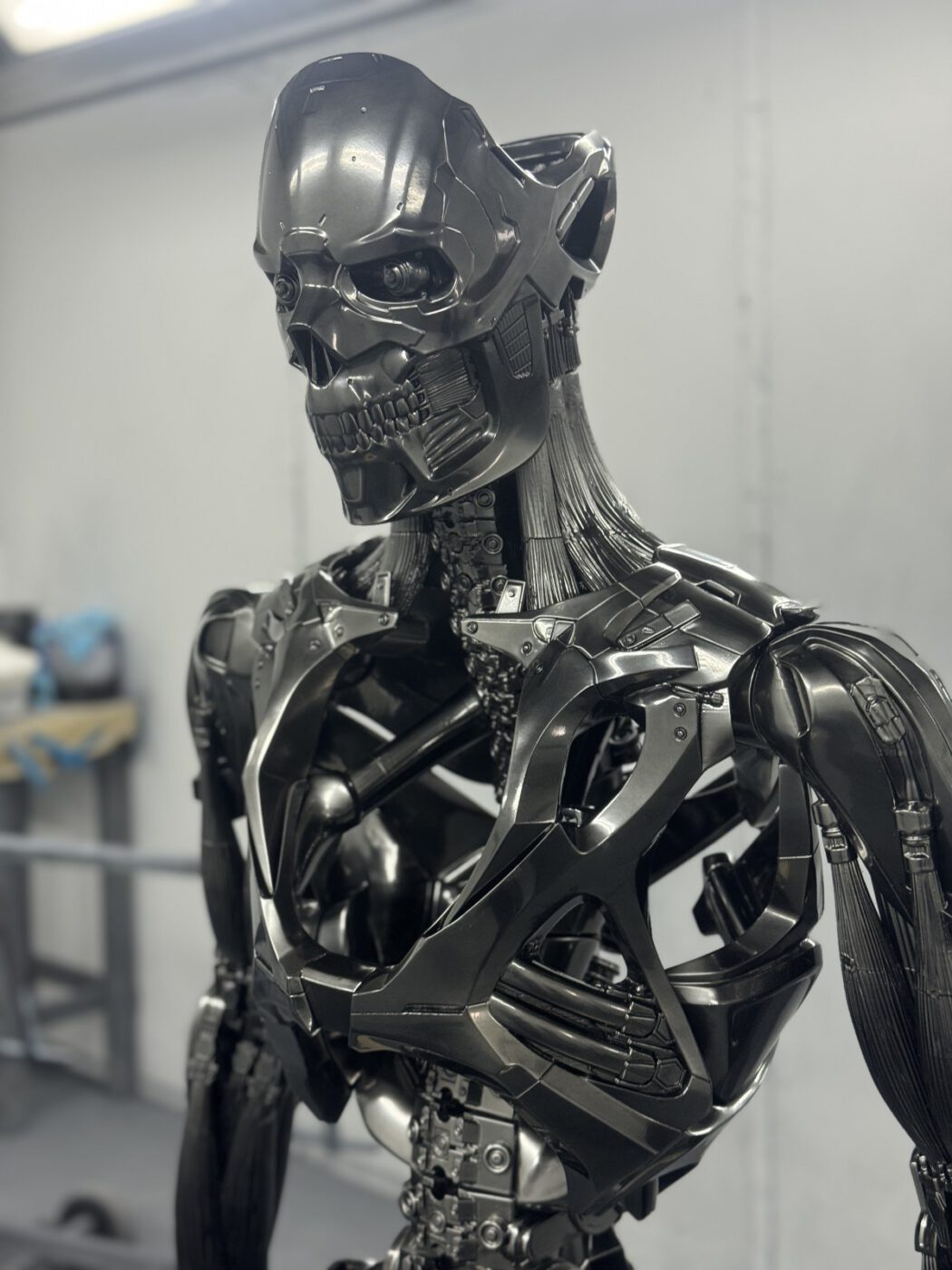

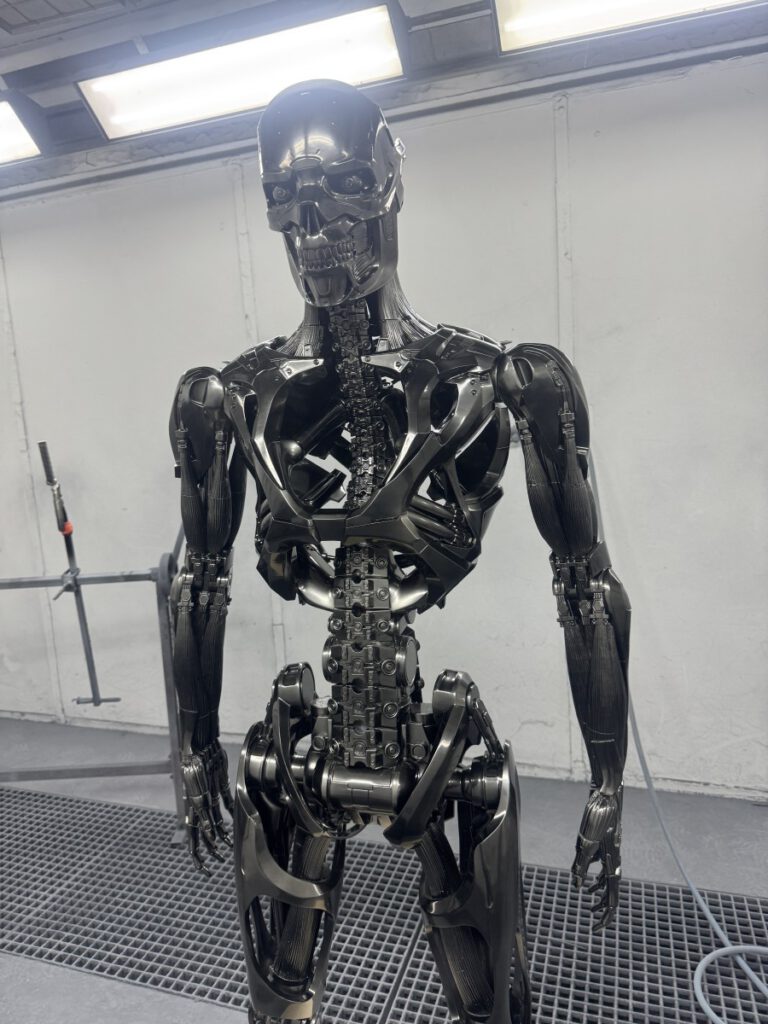

I purchased it immediately. Upon inspection, I realized the designer had abandoned it mid-development. Together with my good friend Nico, we made extensive modifications and improvements:

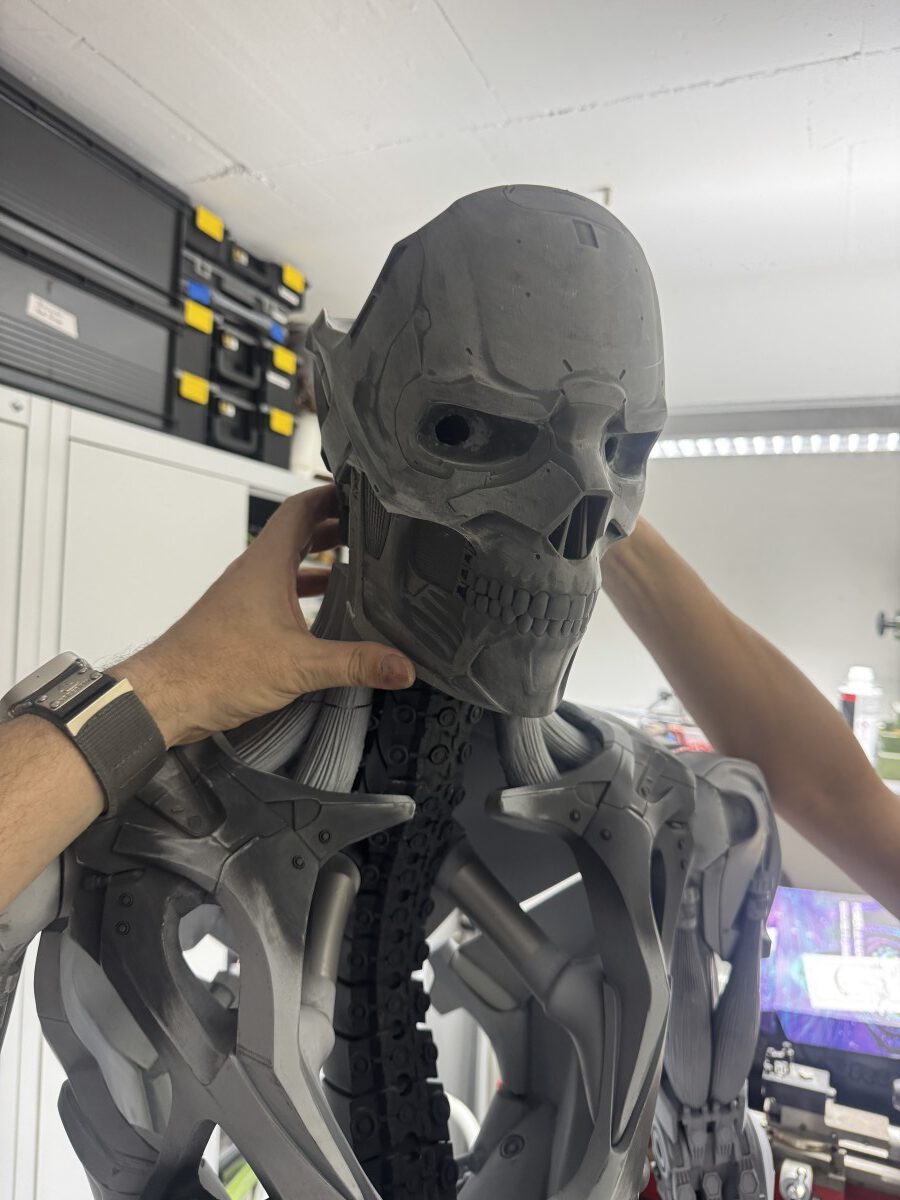

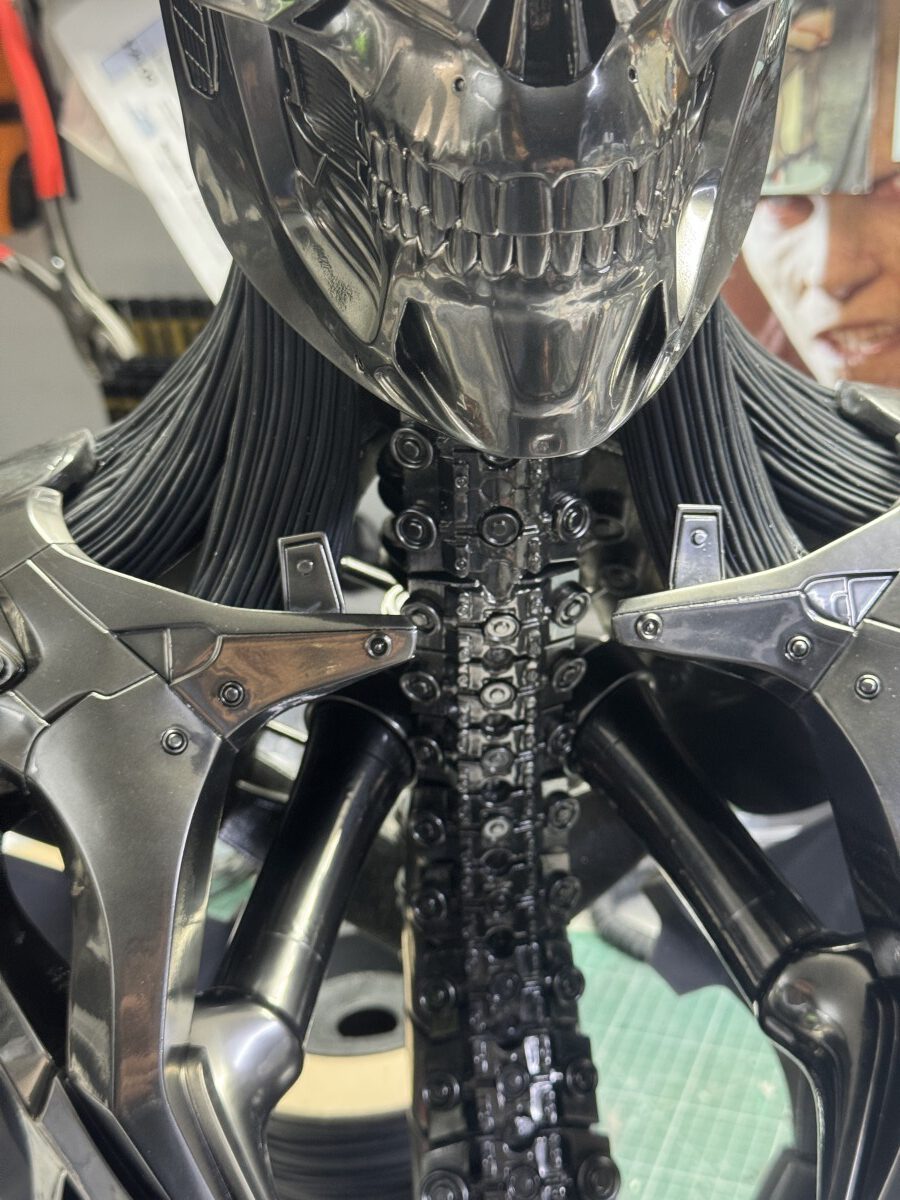

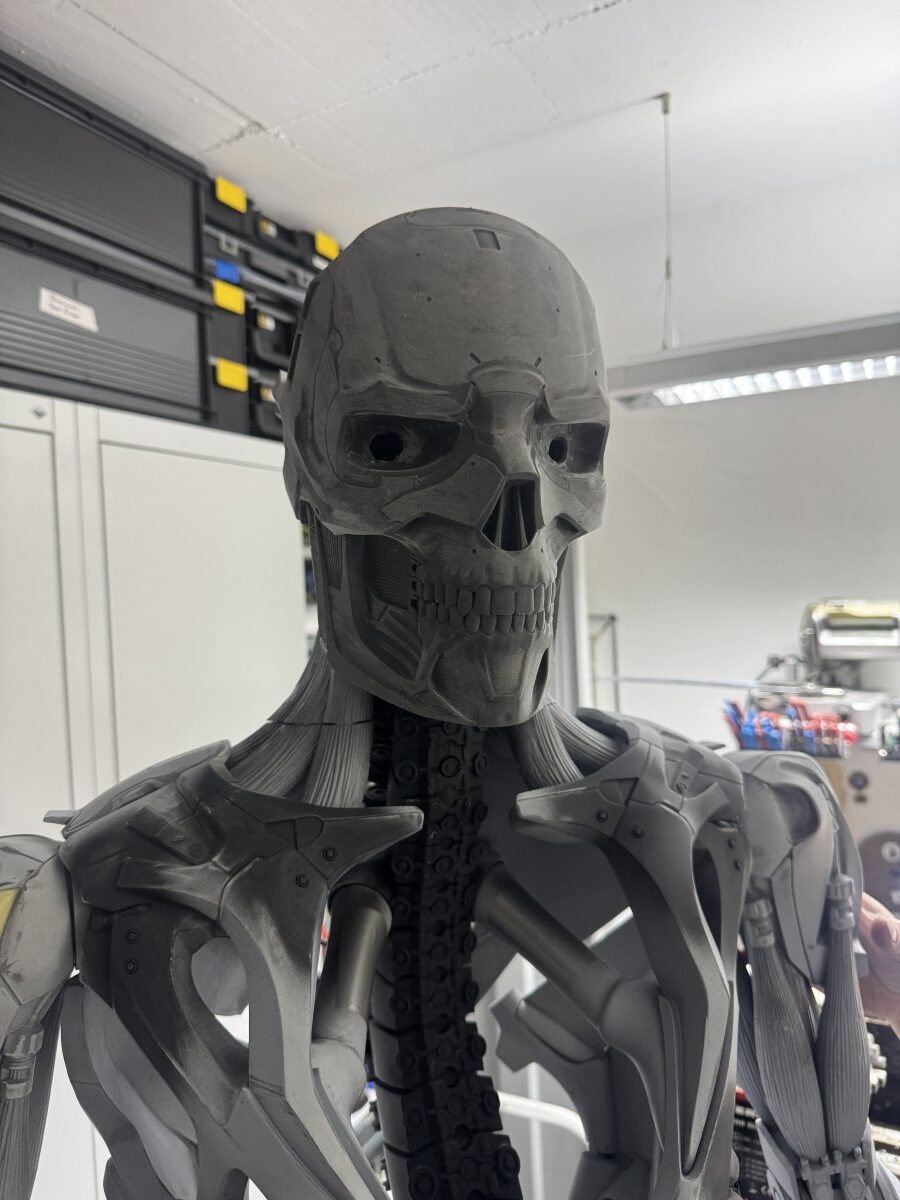

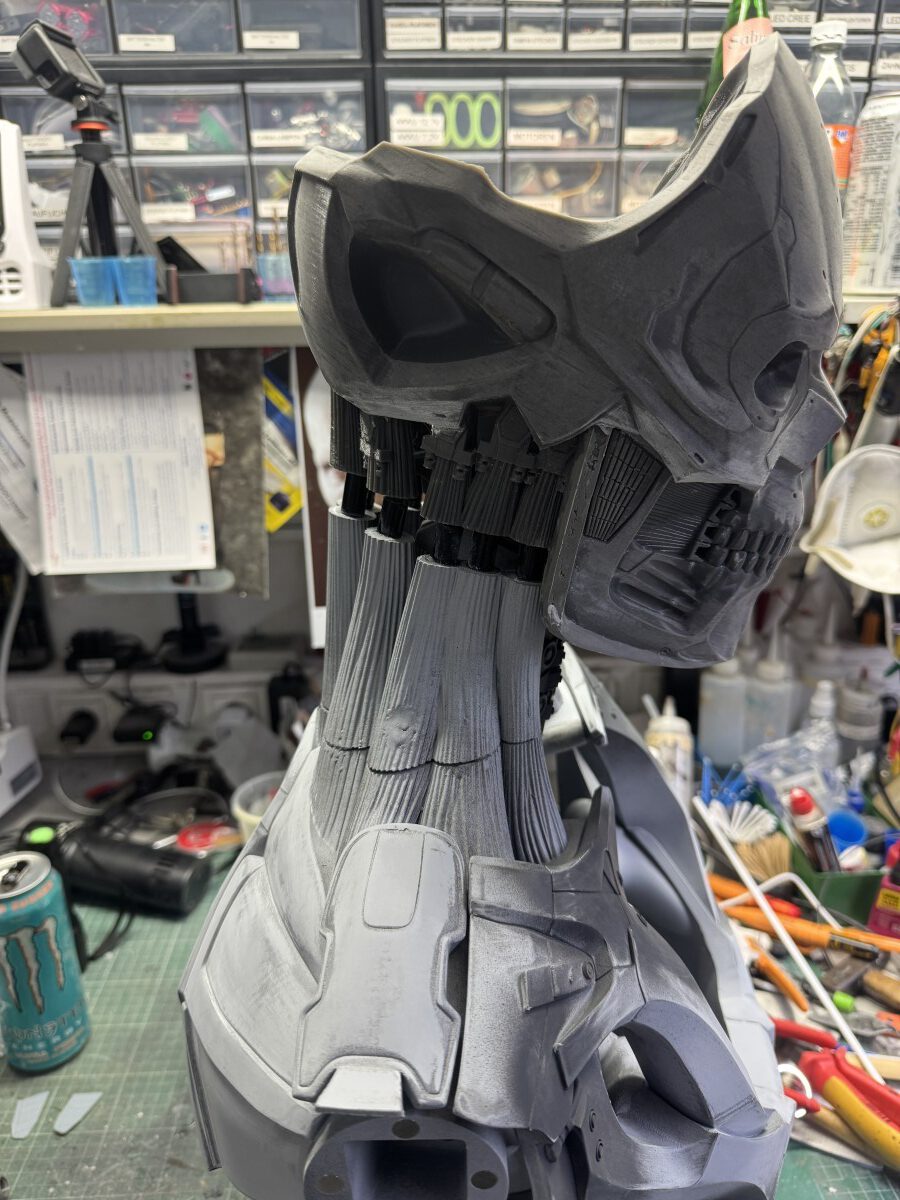

- Lengthened the neck

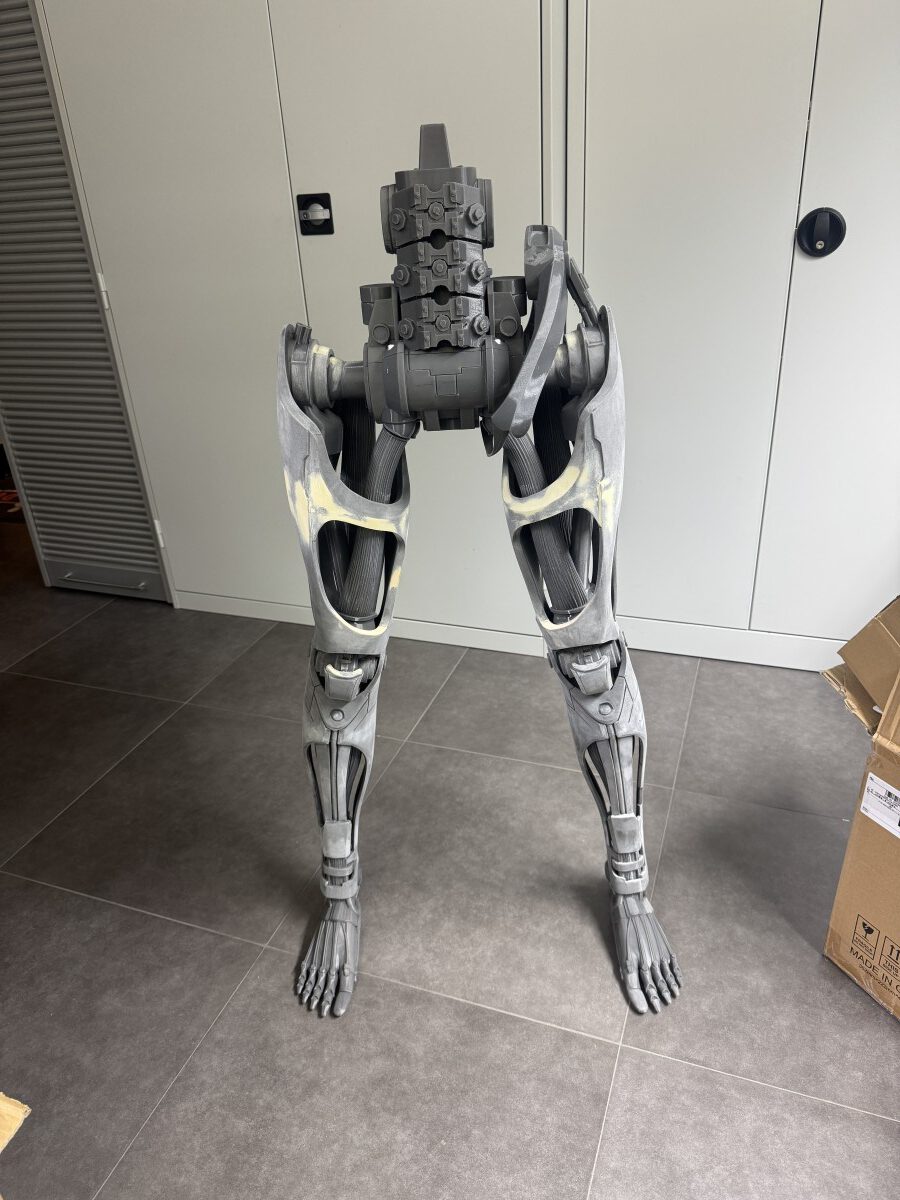

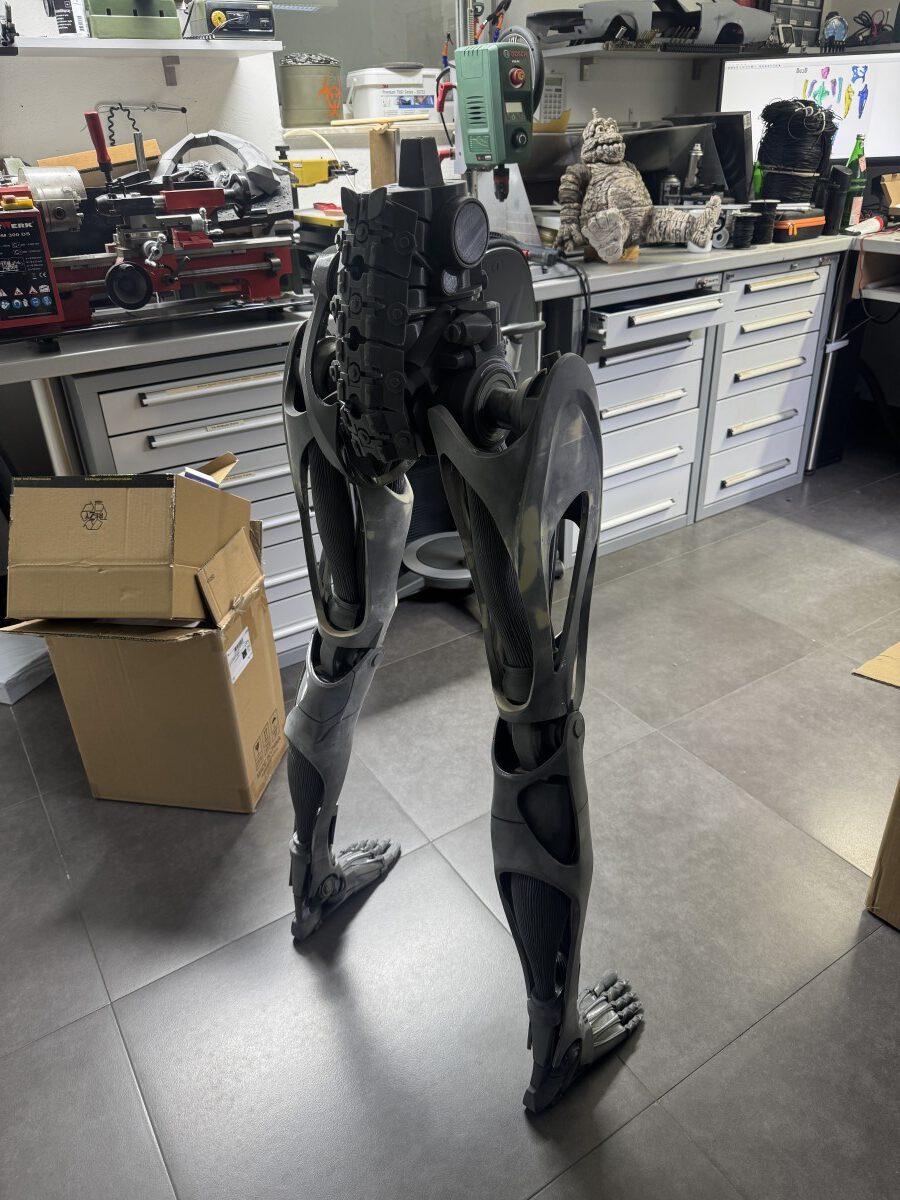

- Adjusted leg positions

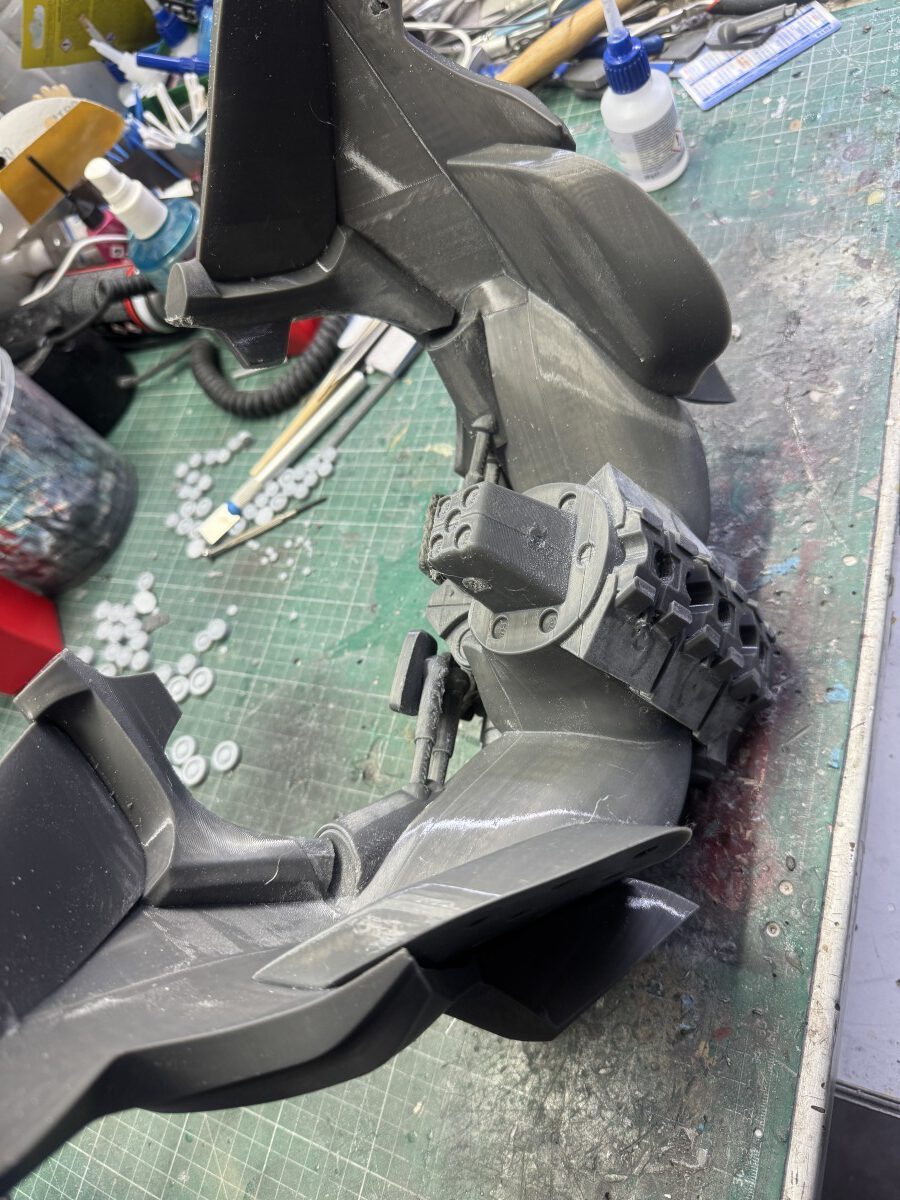

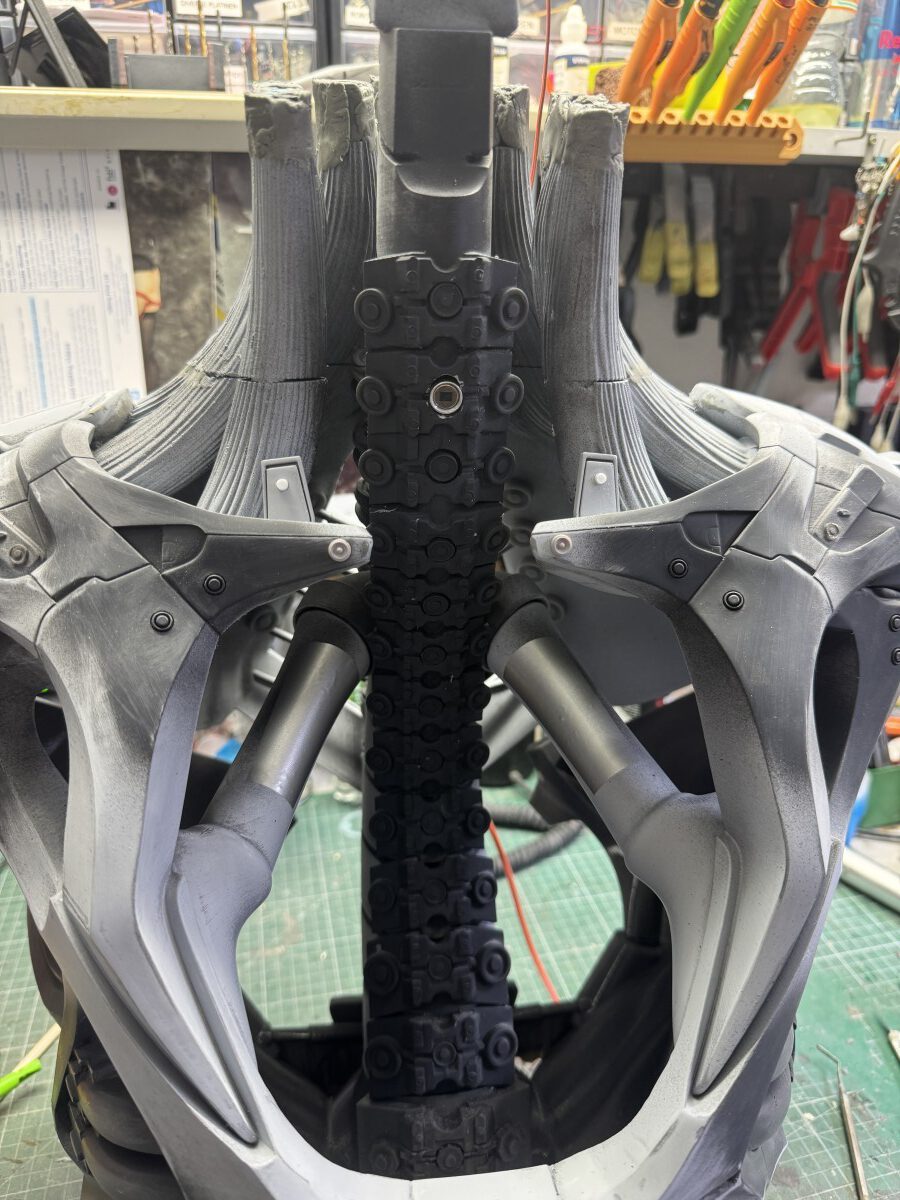

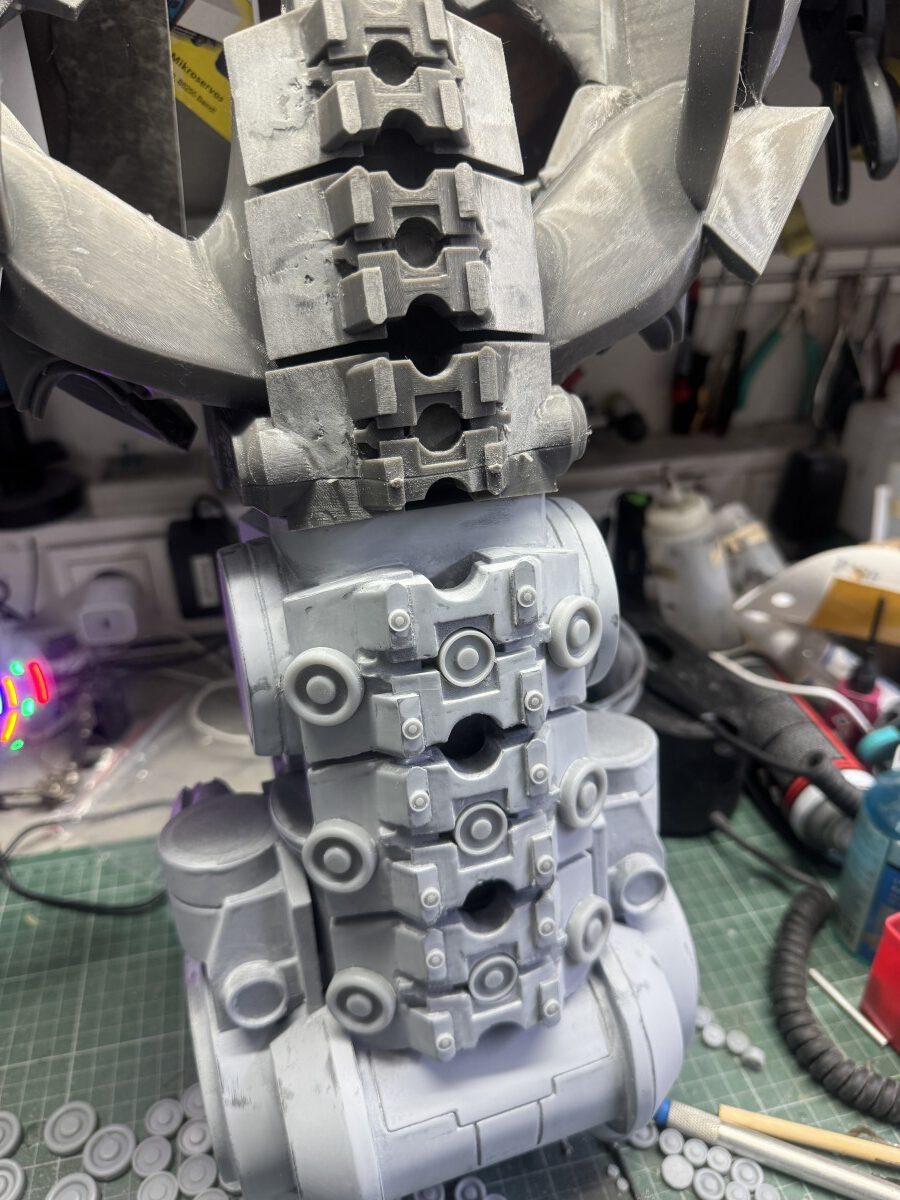

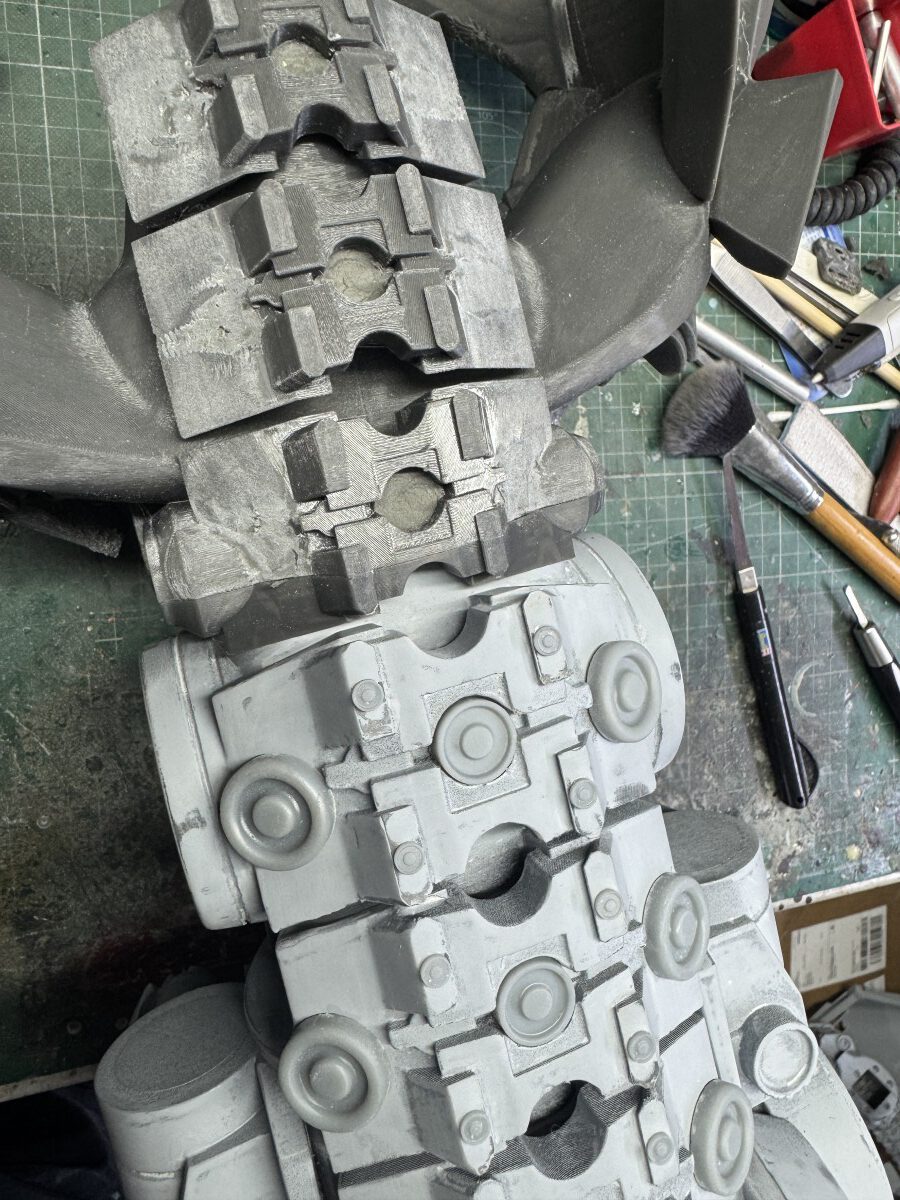

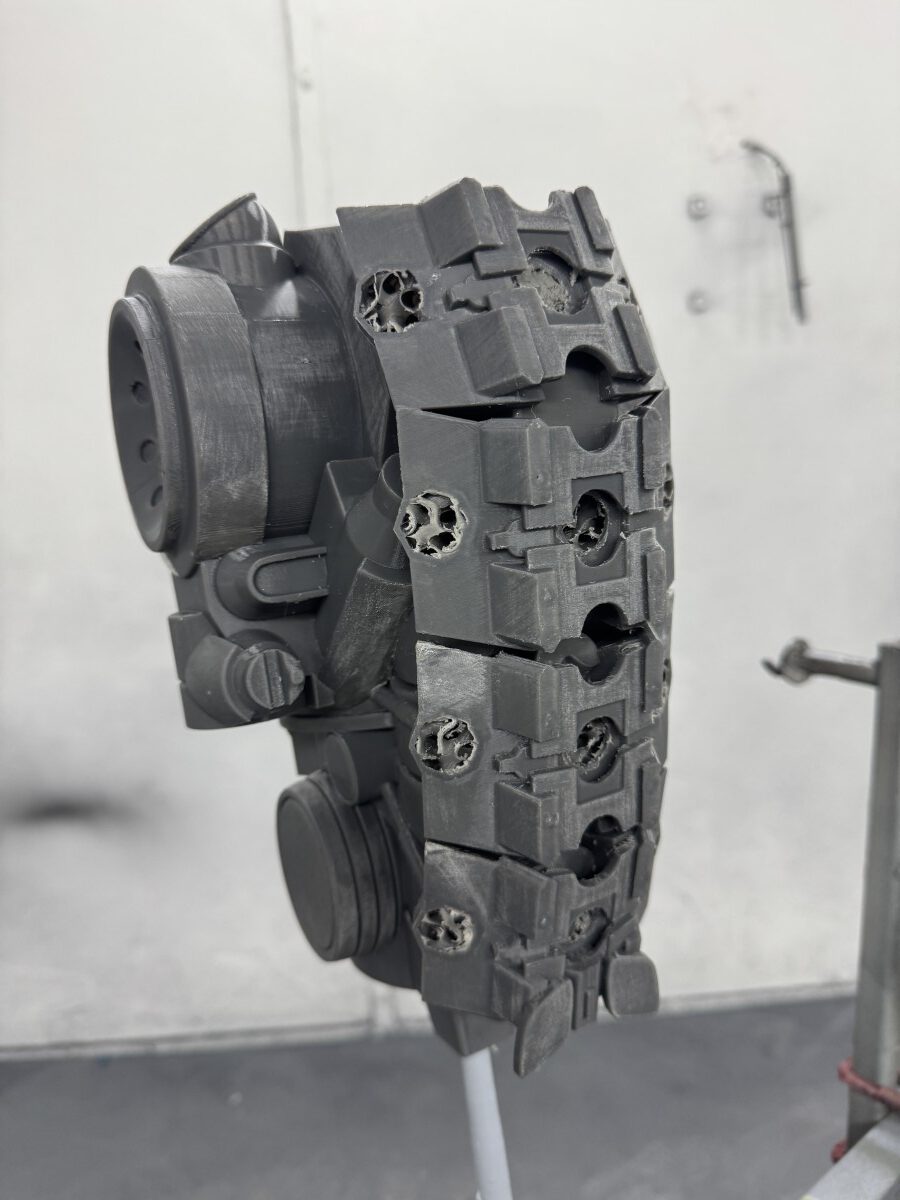

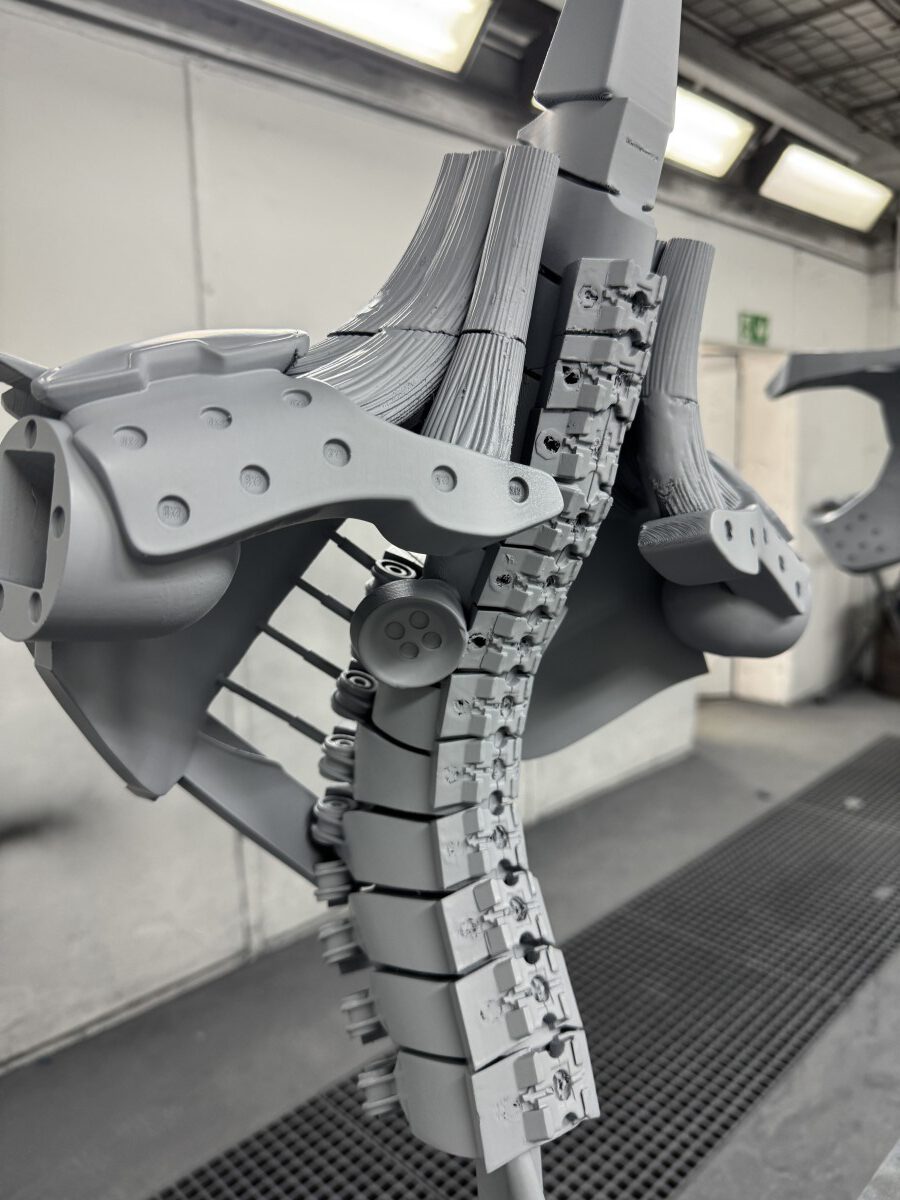

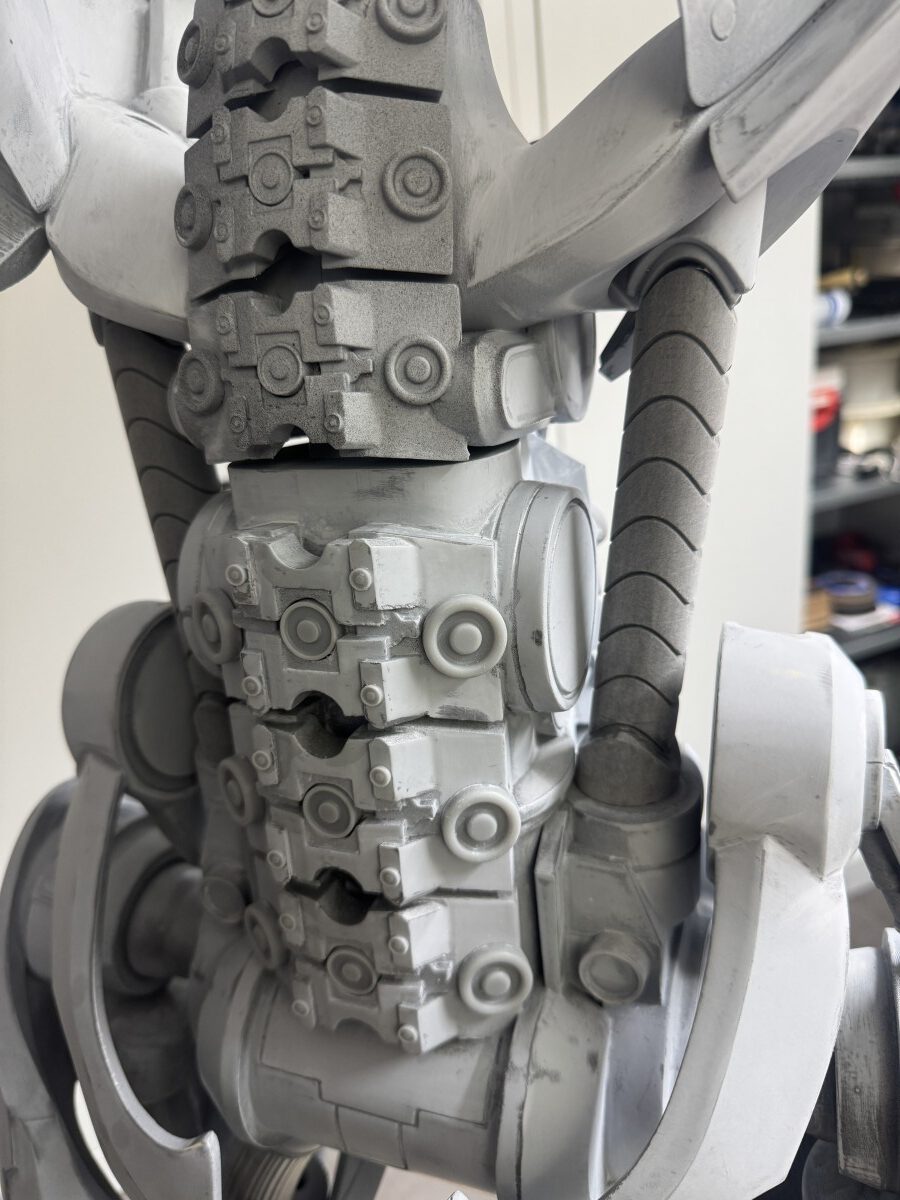

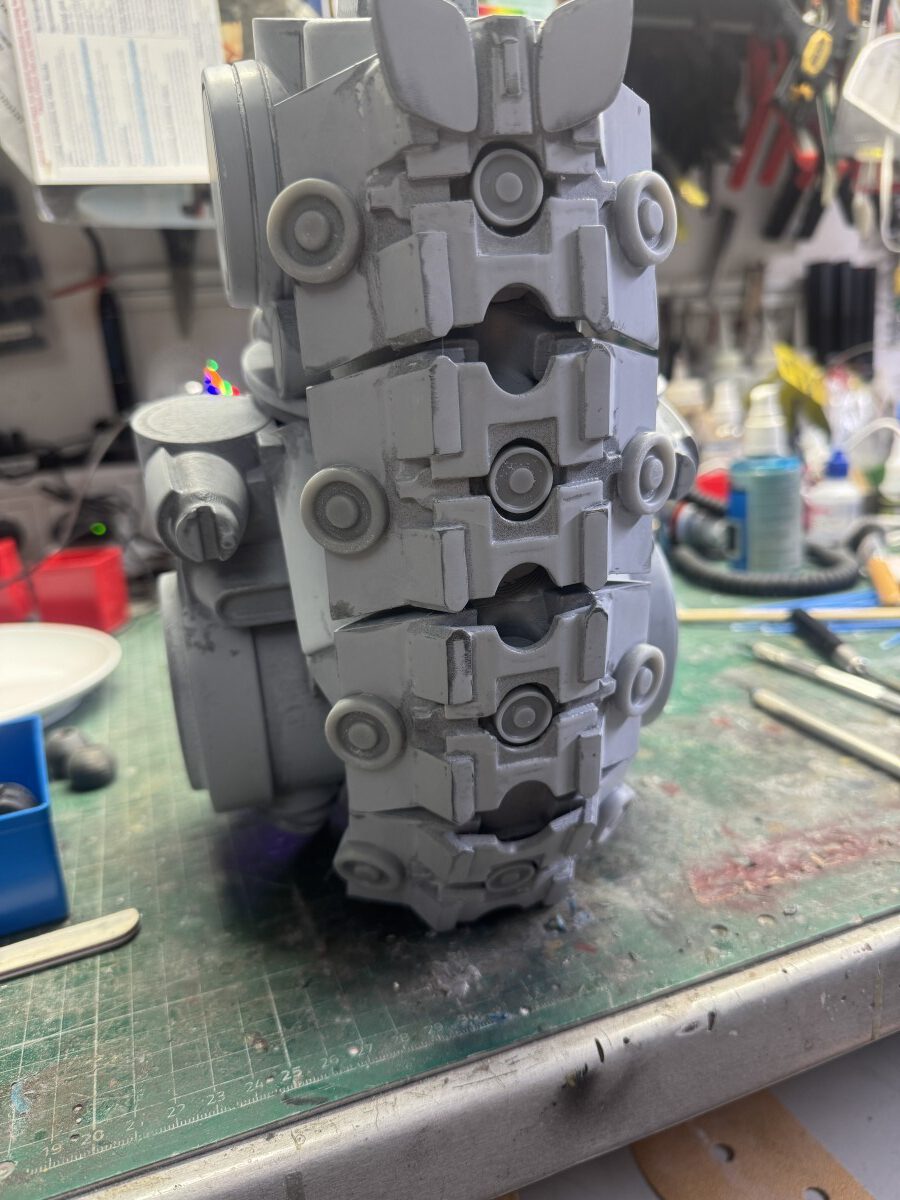

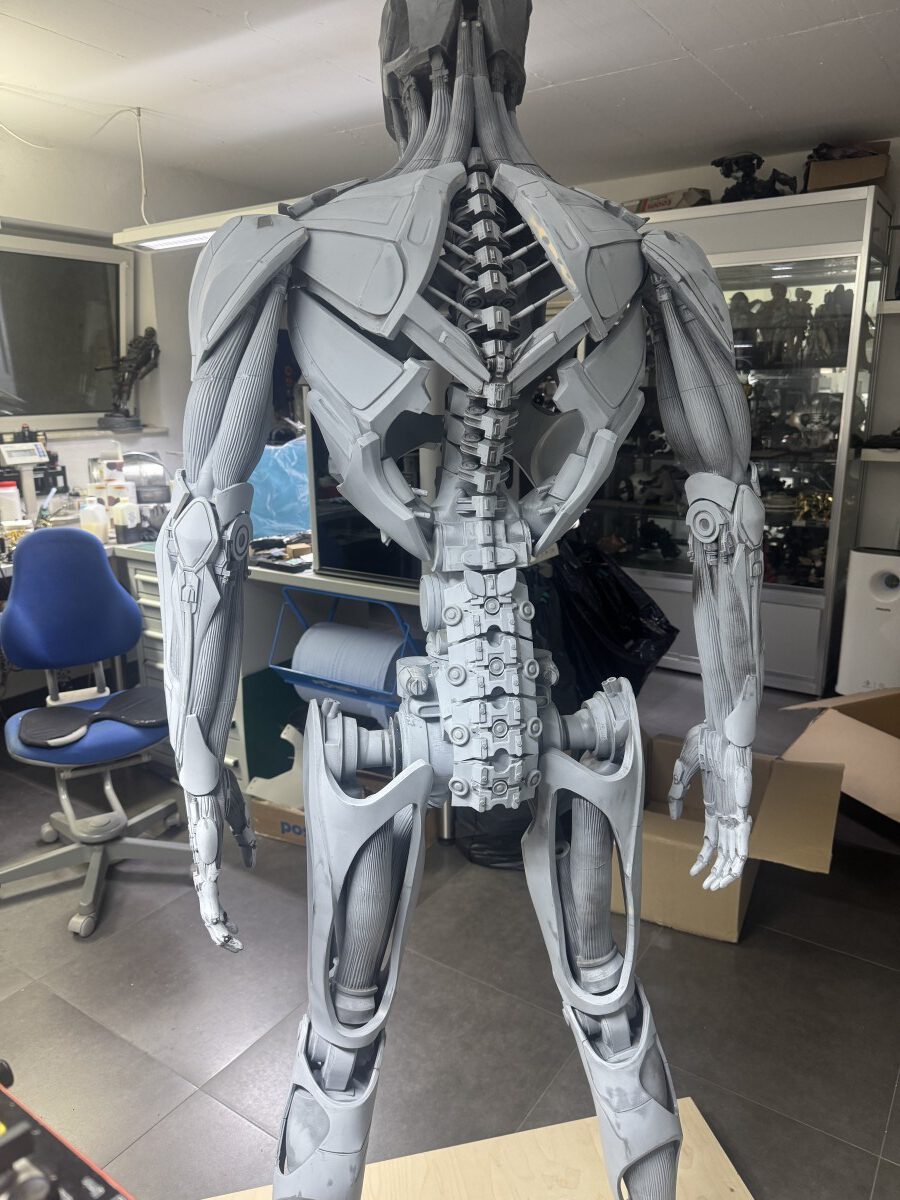

- Corrected the lower spine alignment

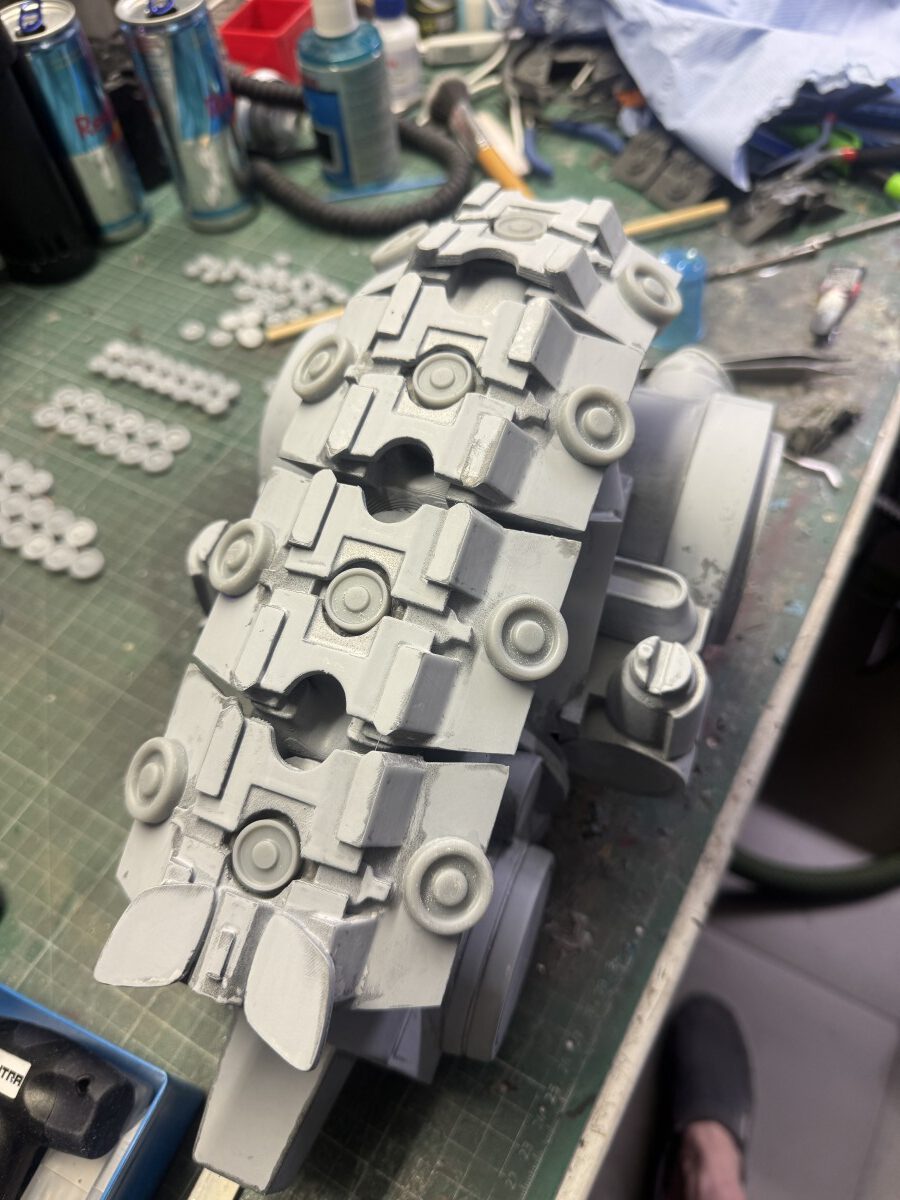

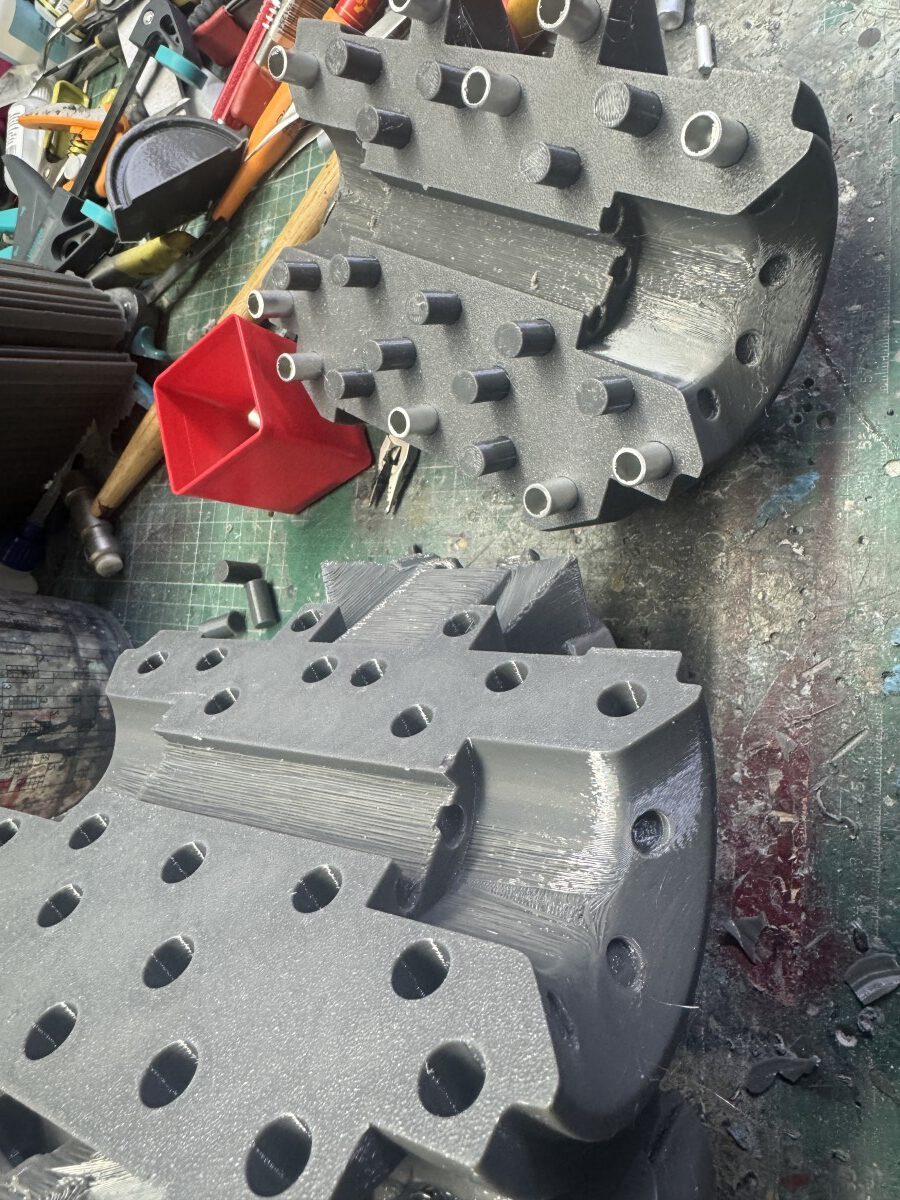

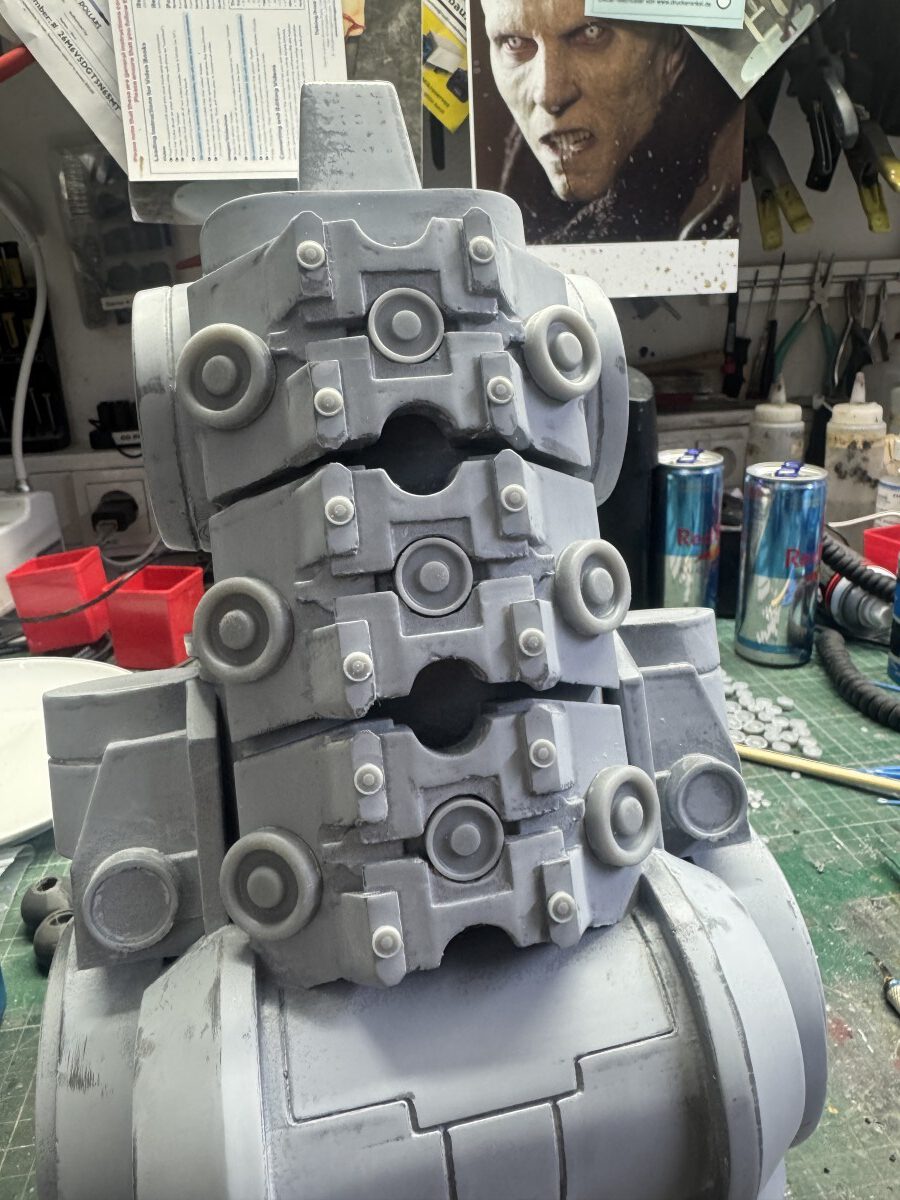

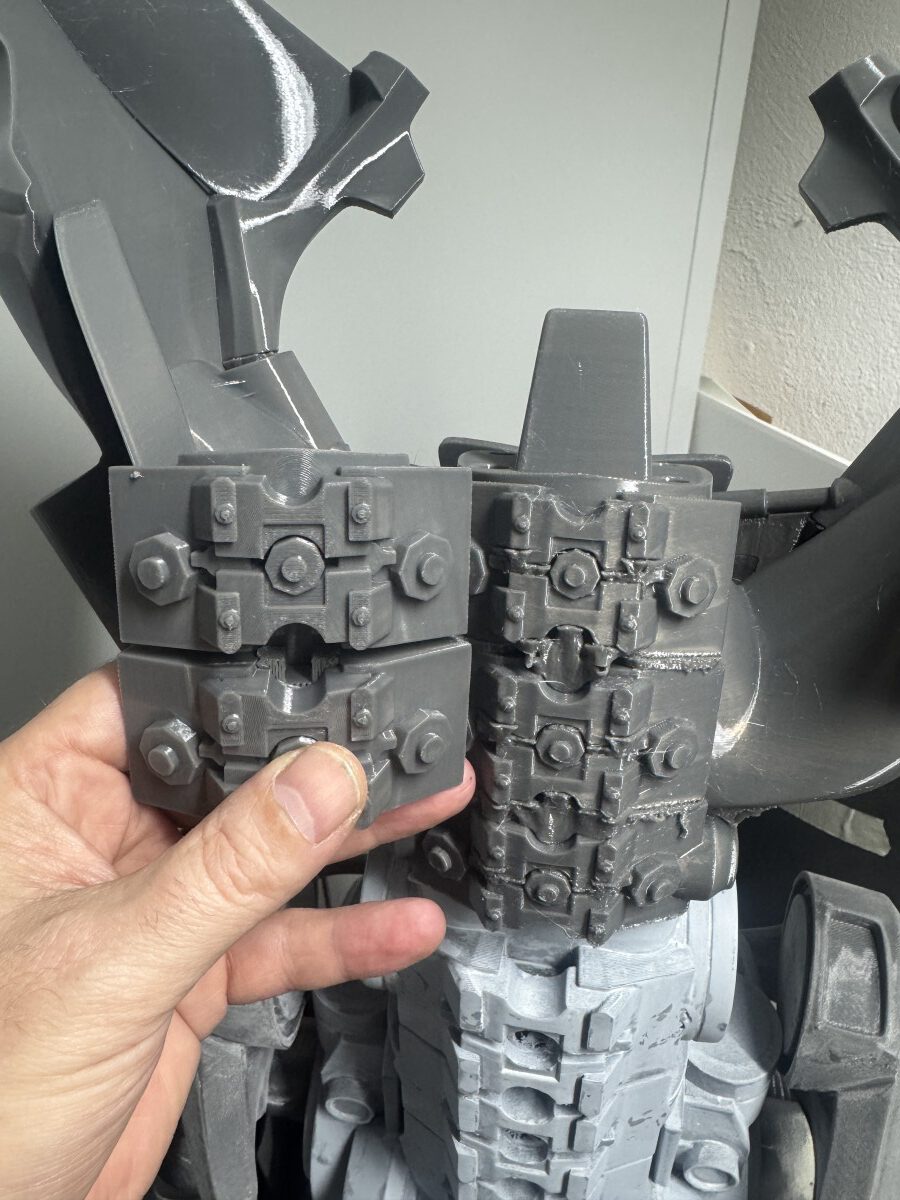

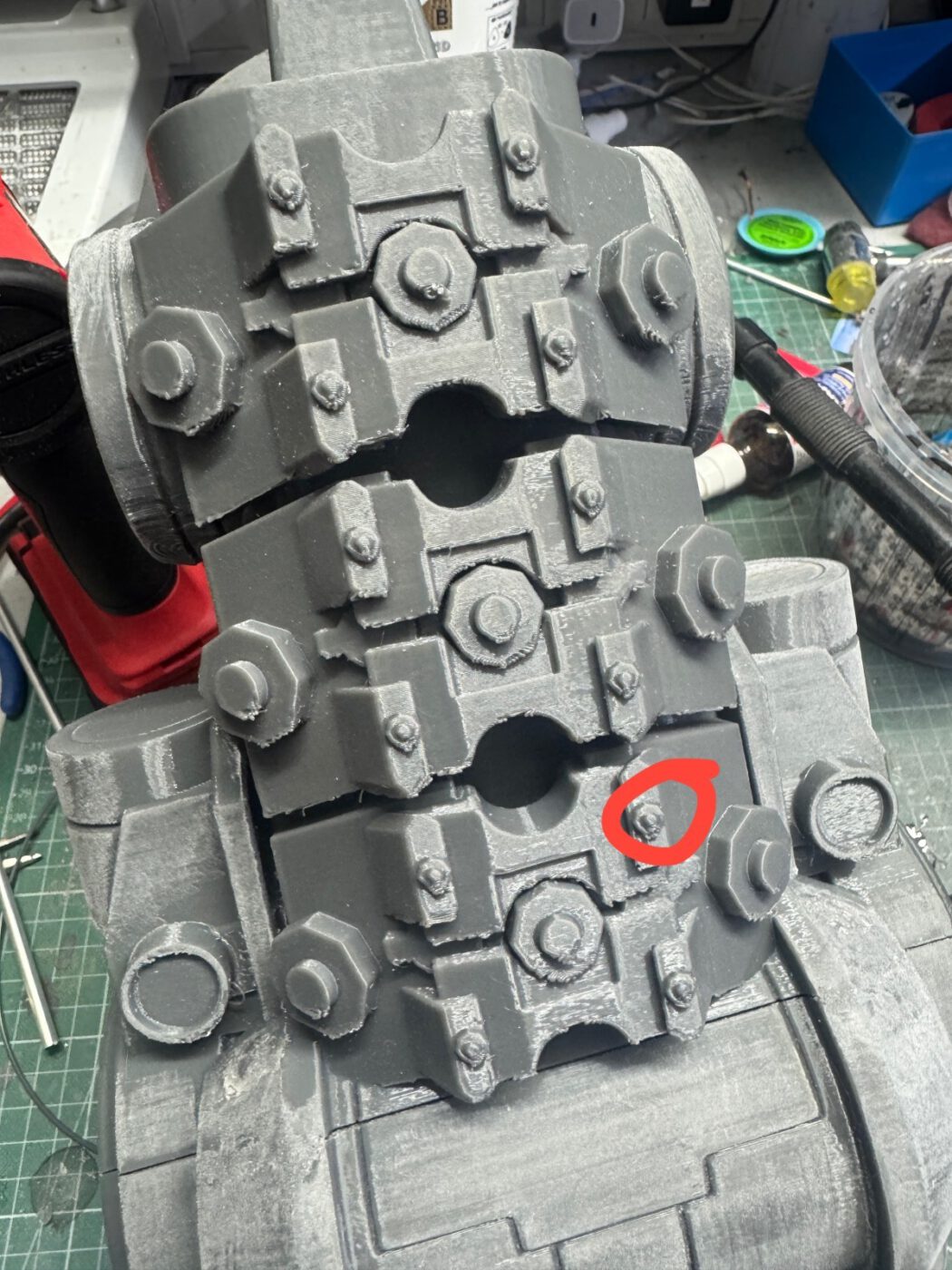

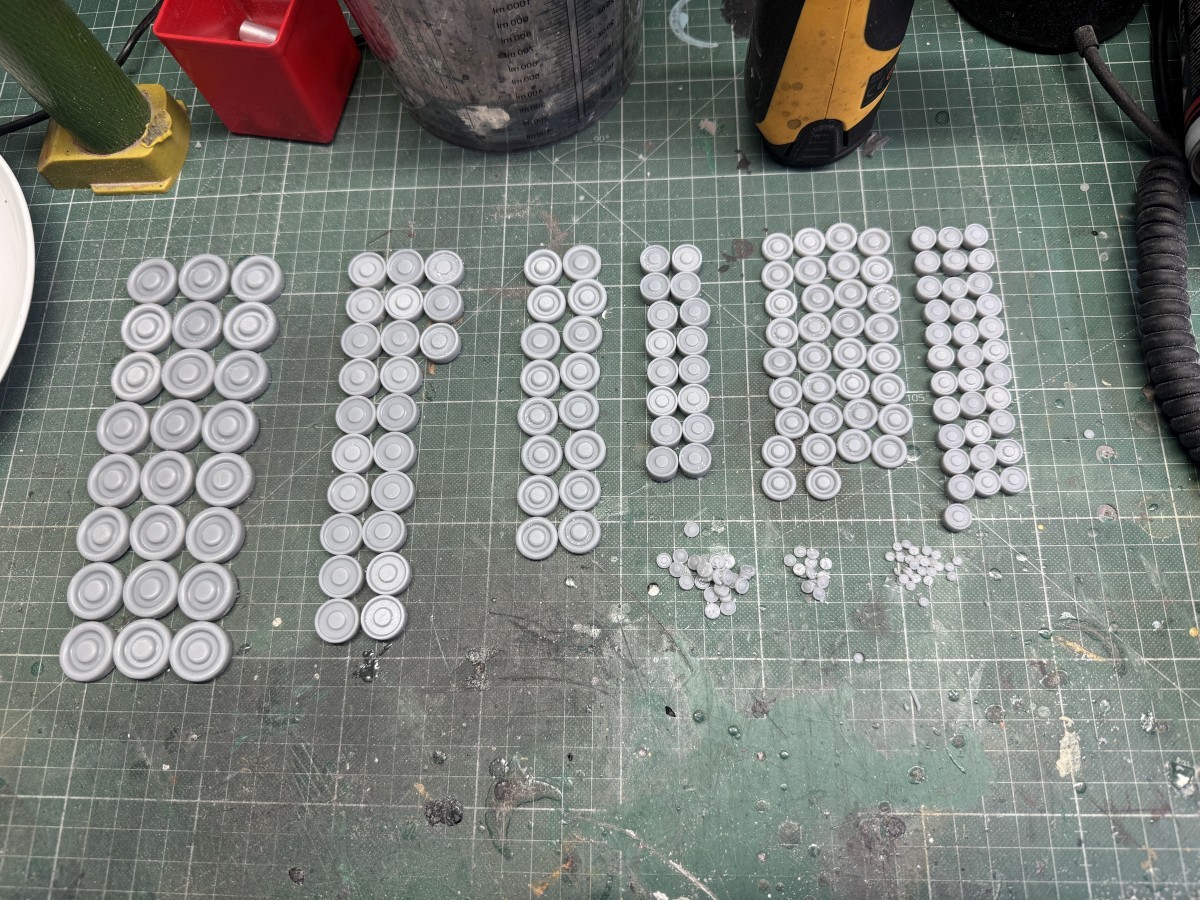

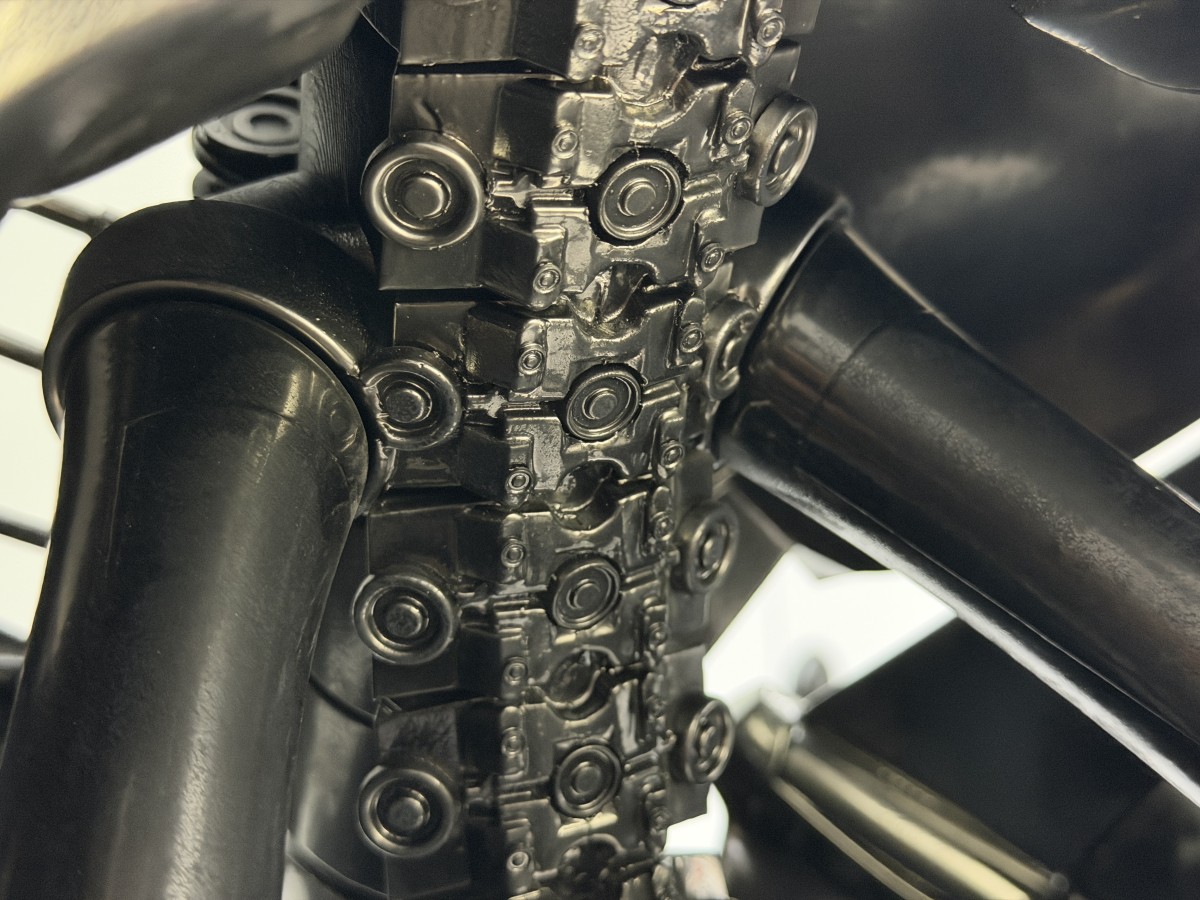

- Replaced all hex screws with riveted bolts
- Changed the thumb position

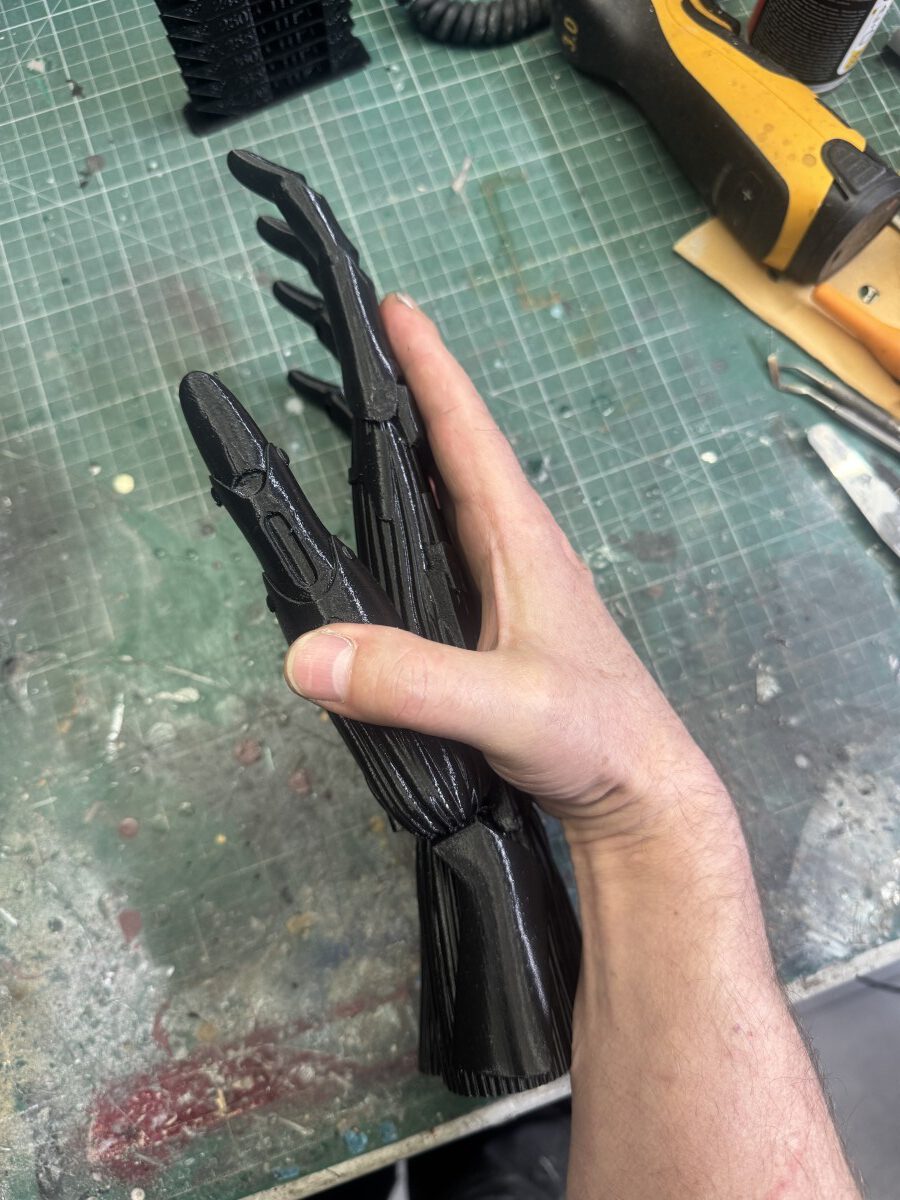

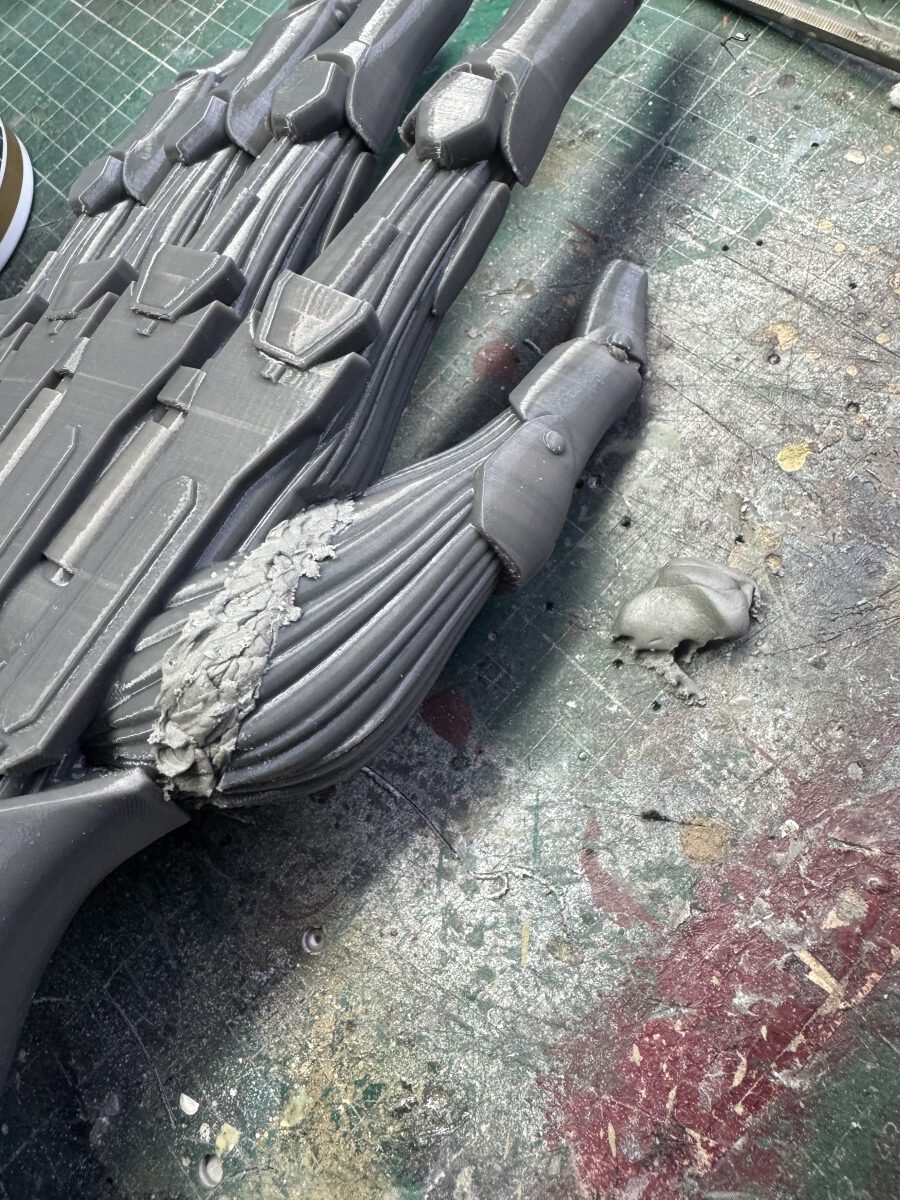

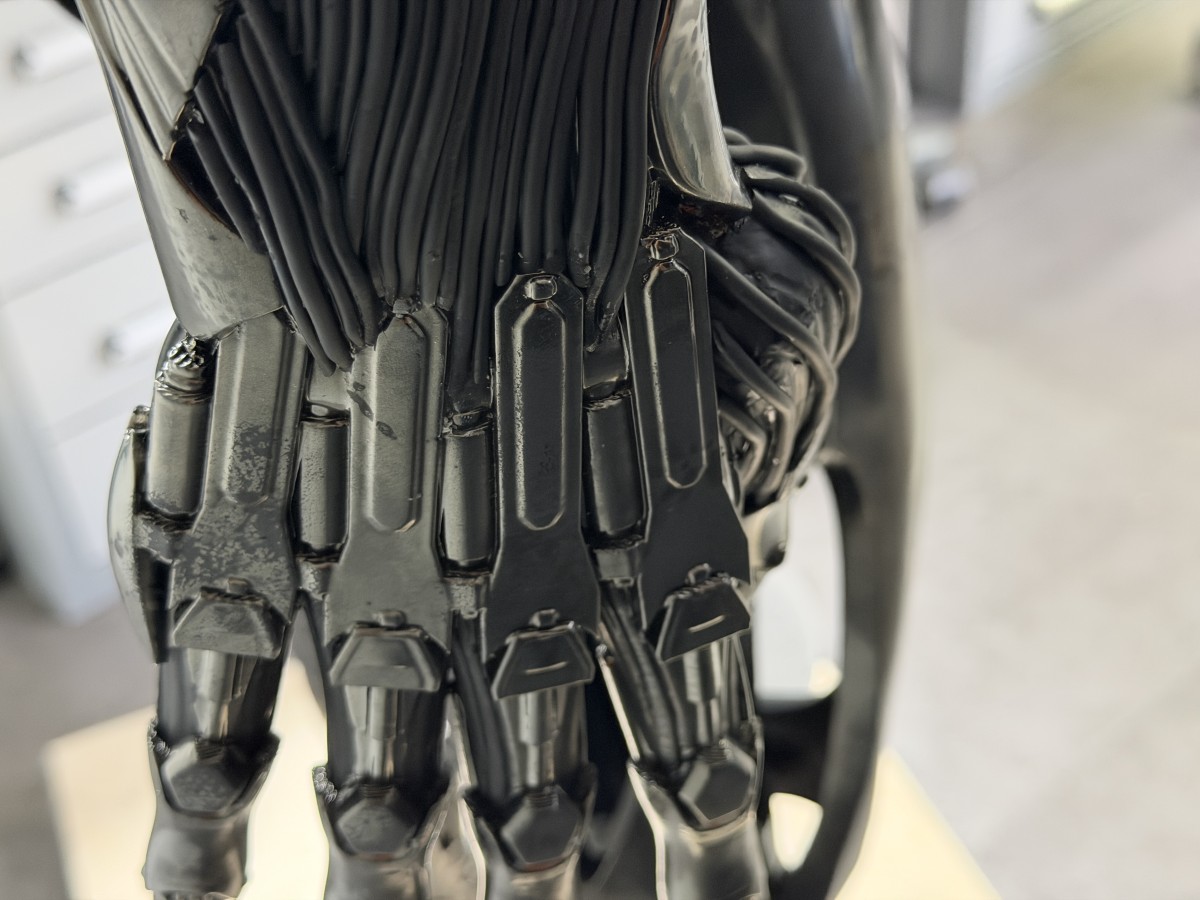

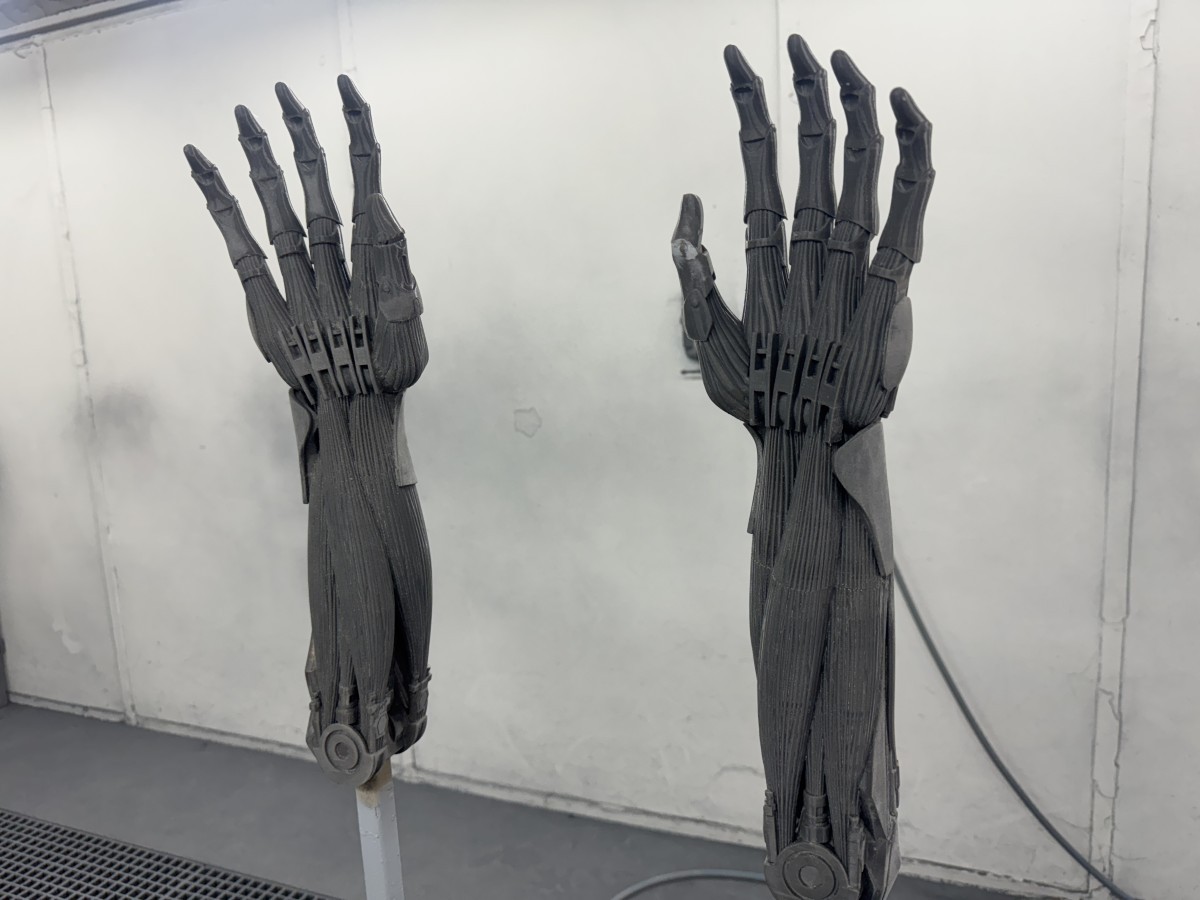

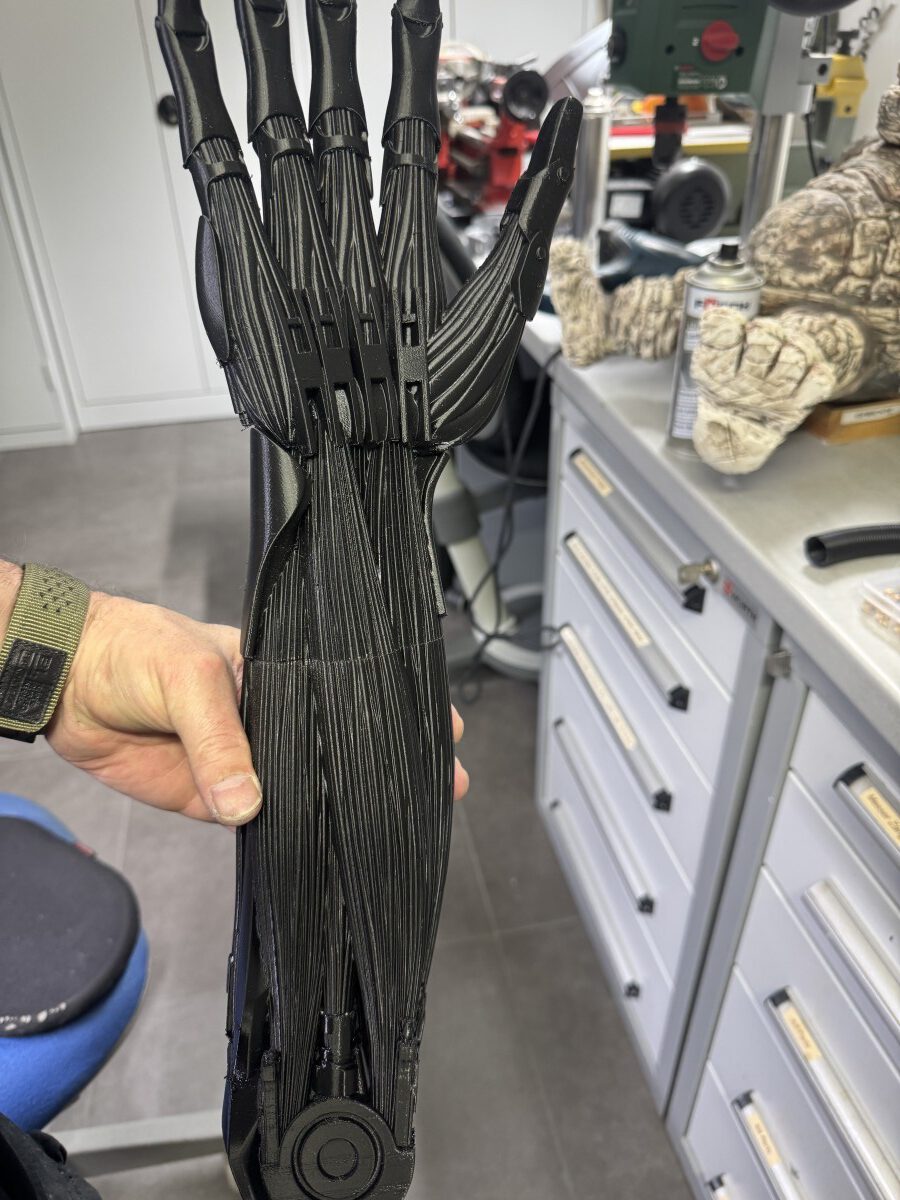

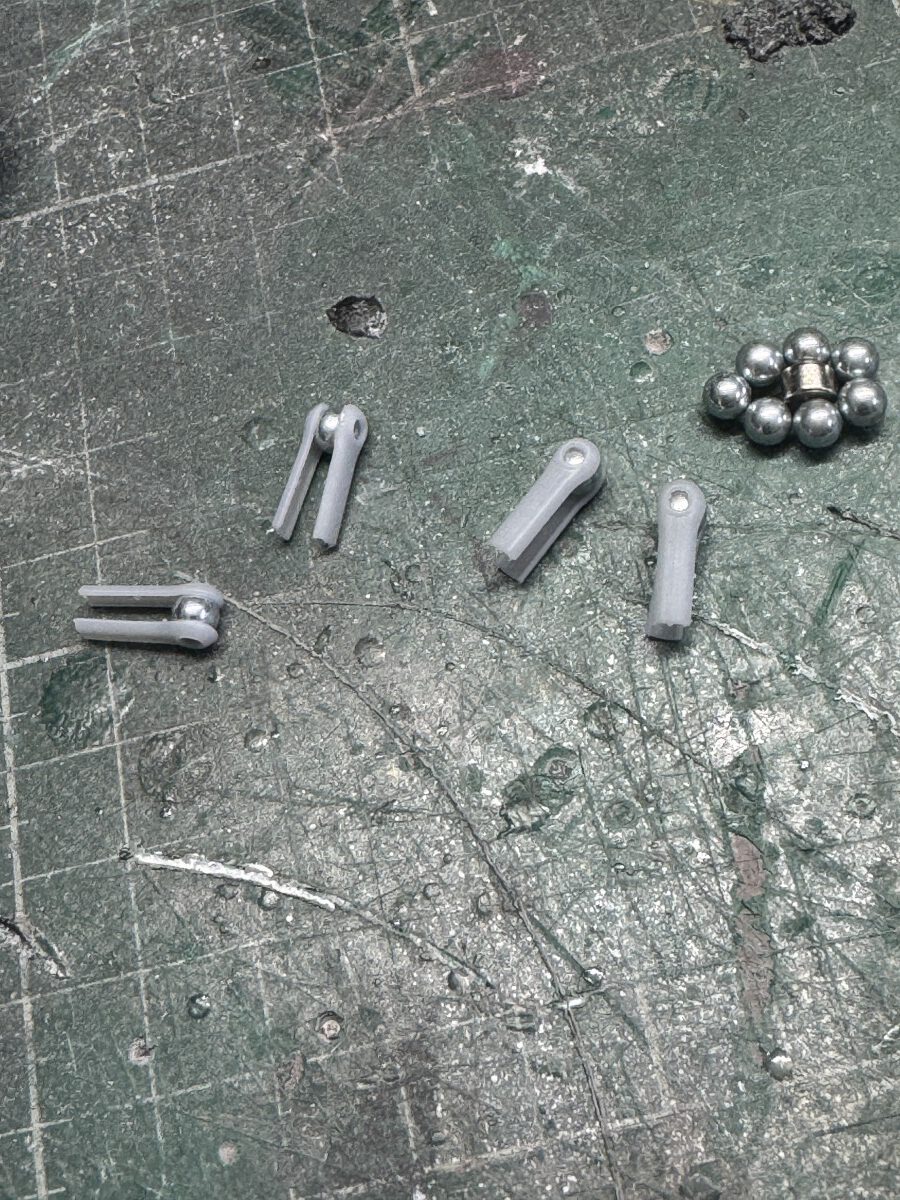

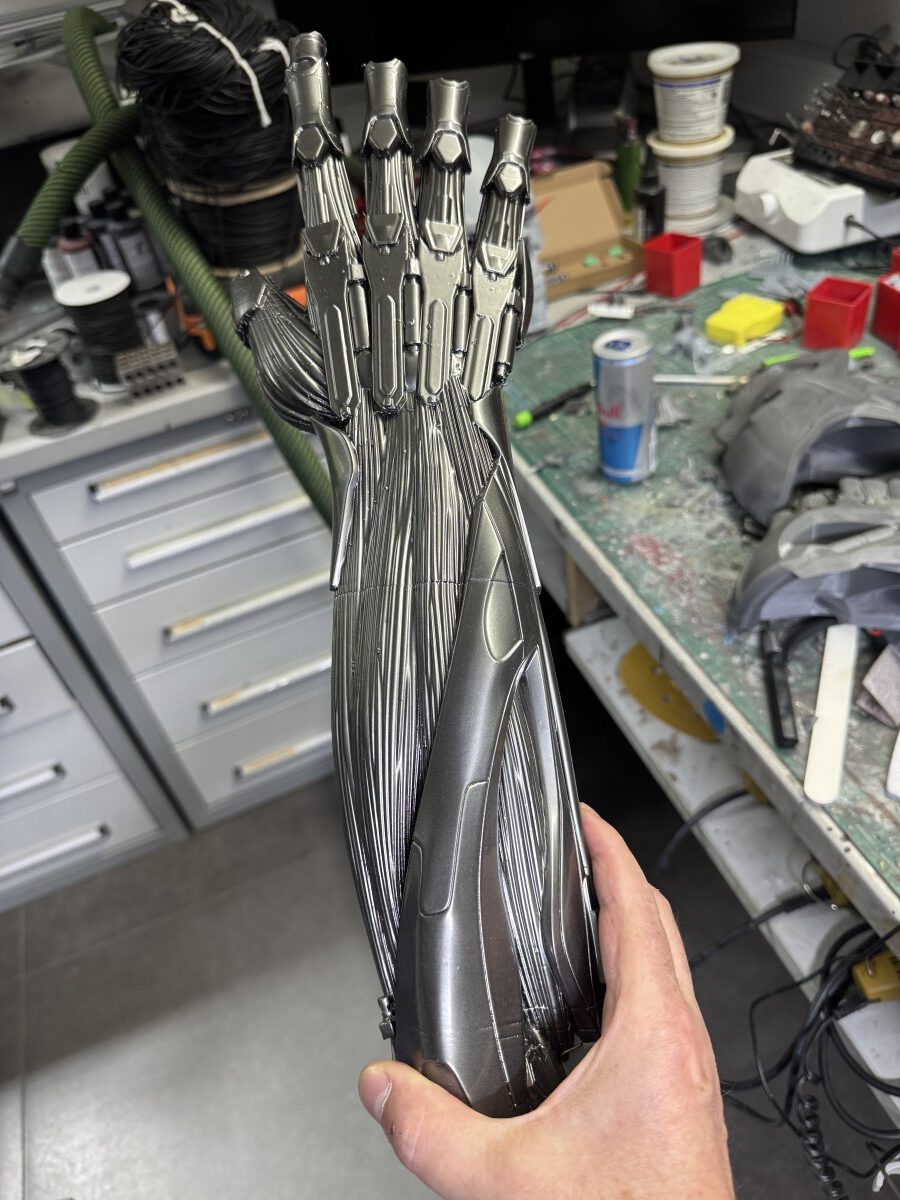

- Added hinges to the fingers

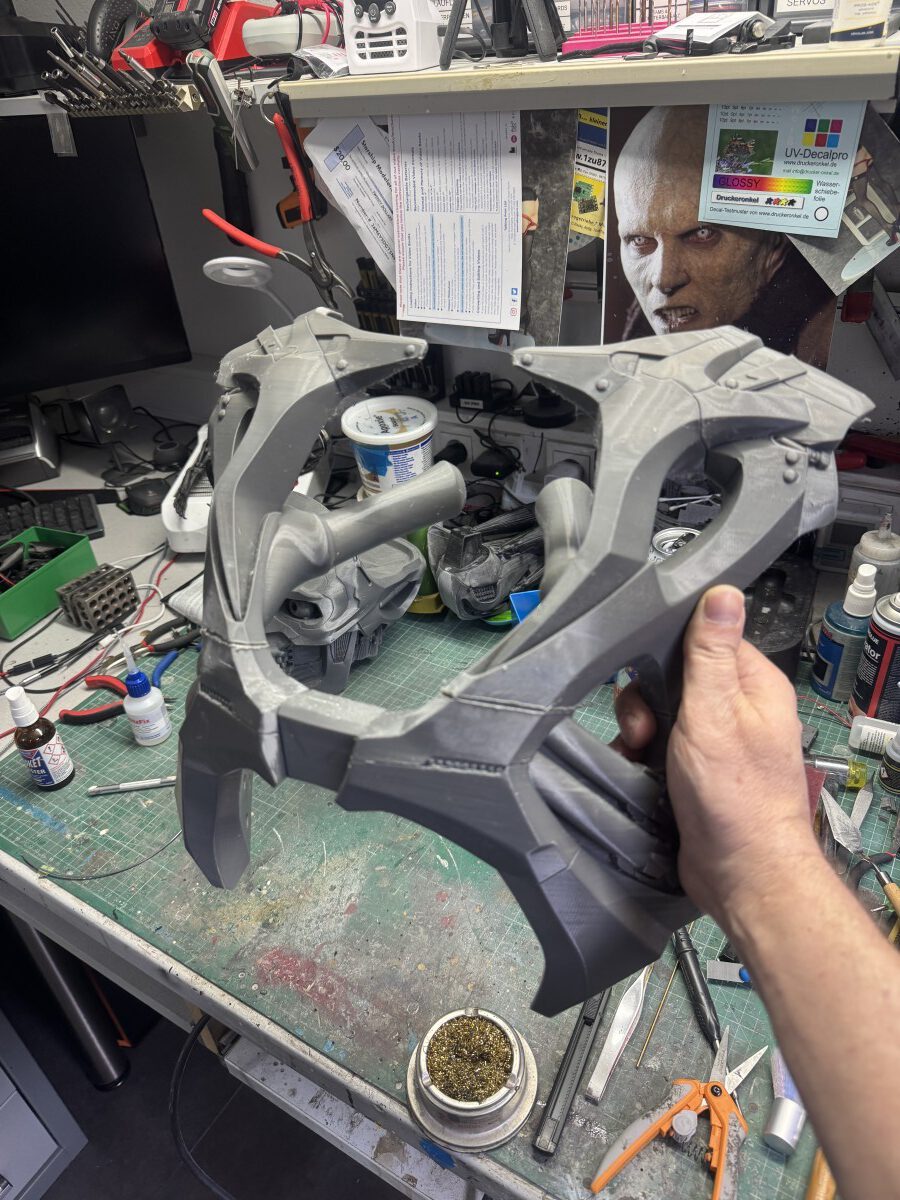

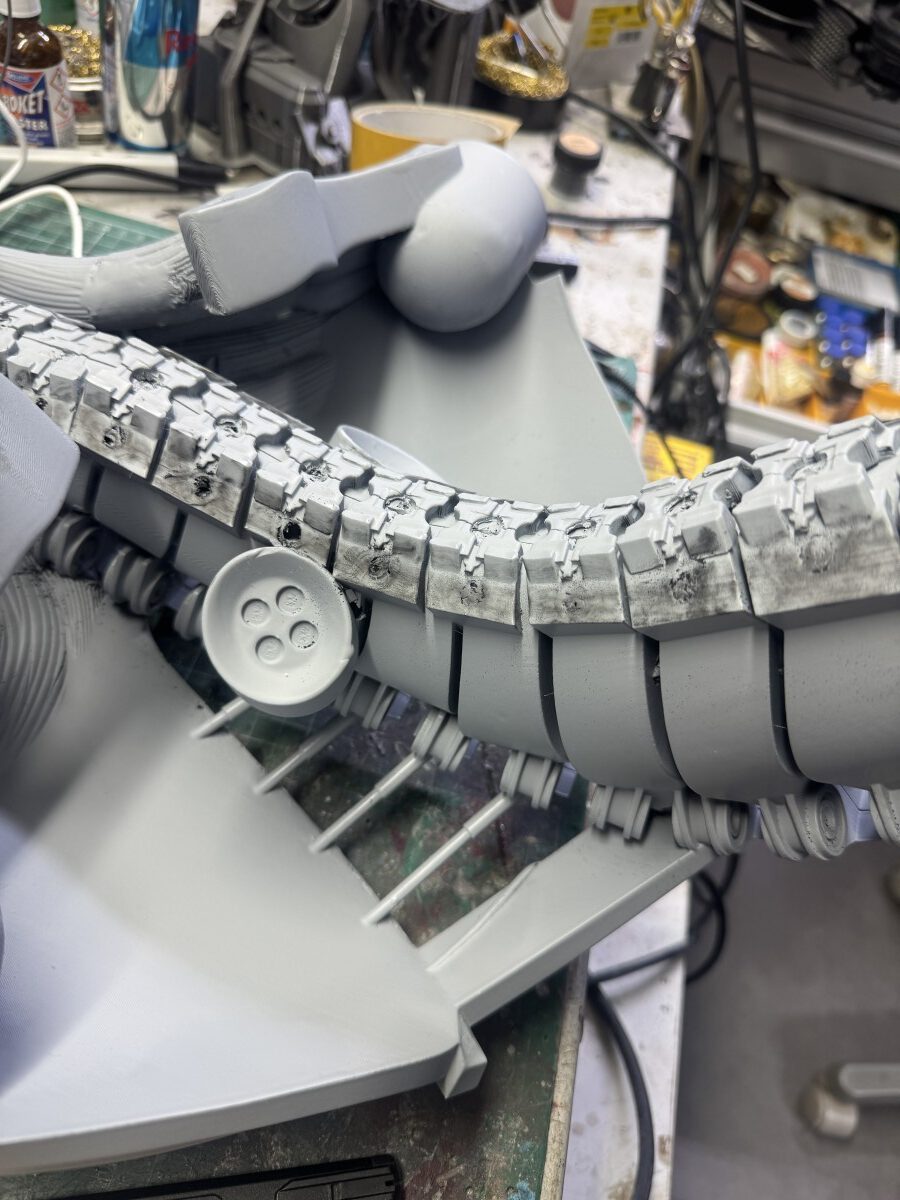

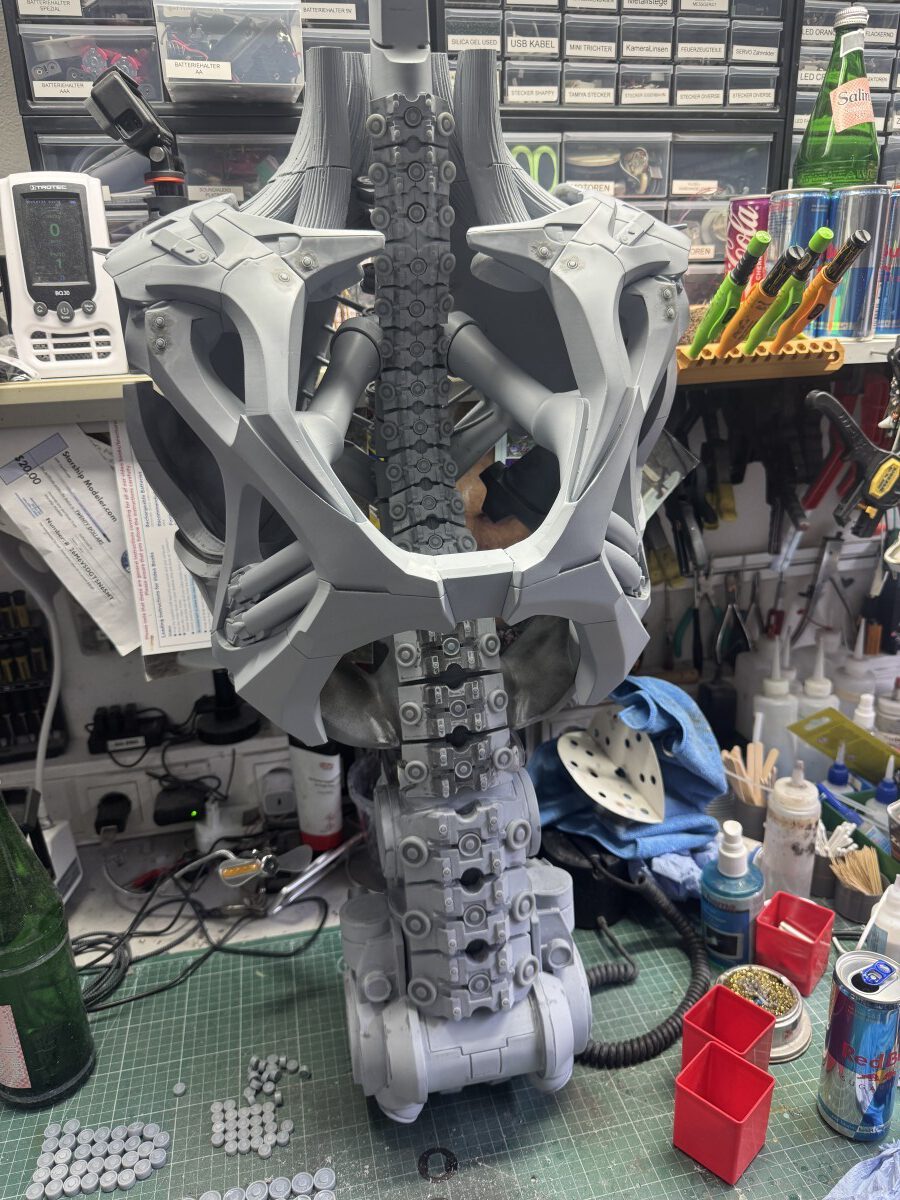

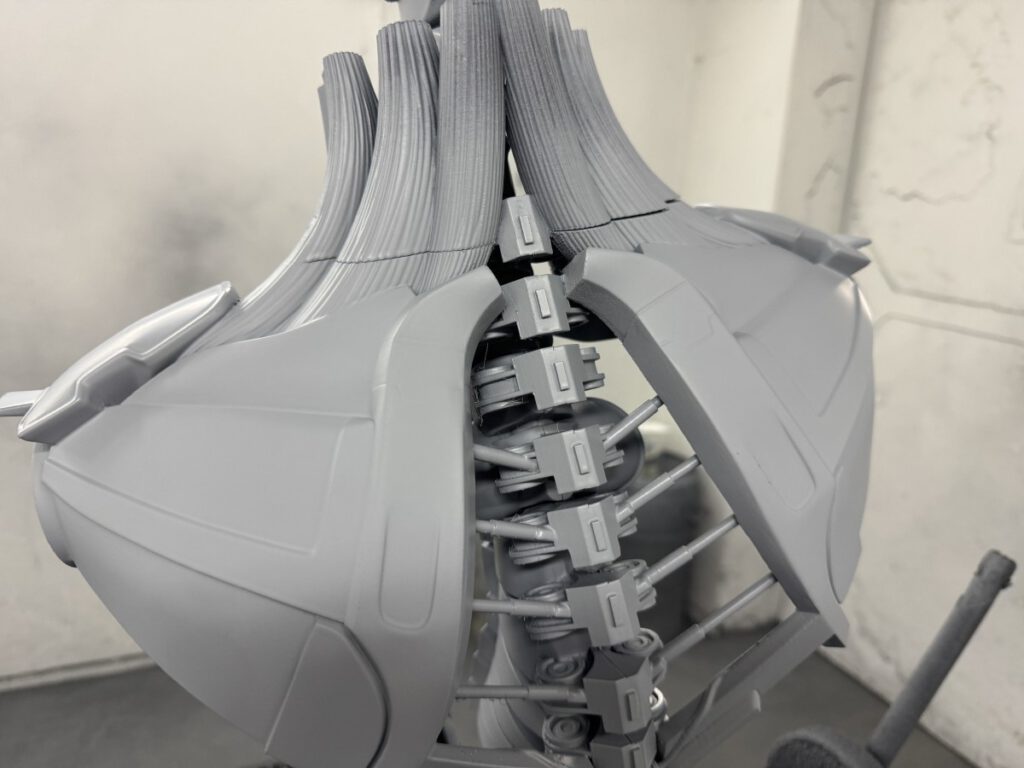

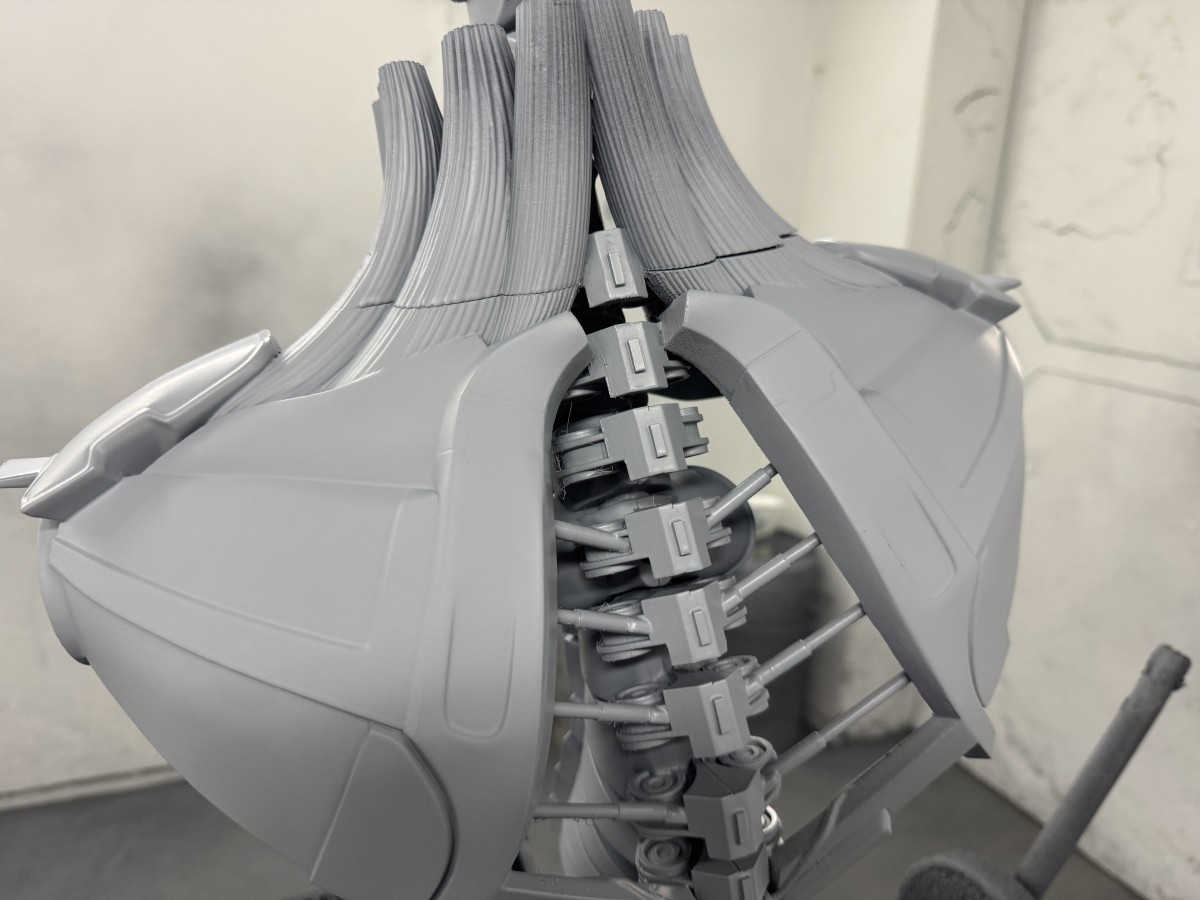

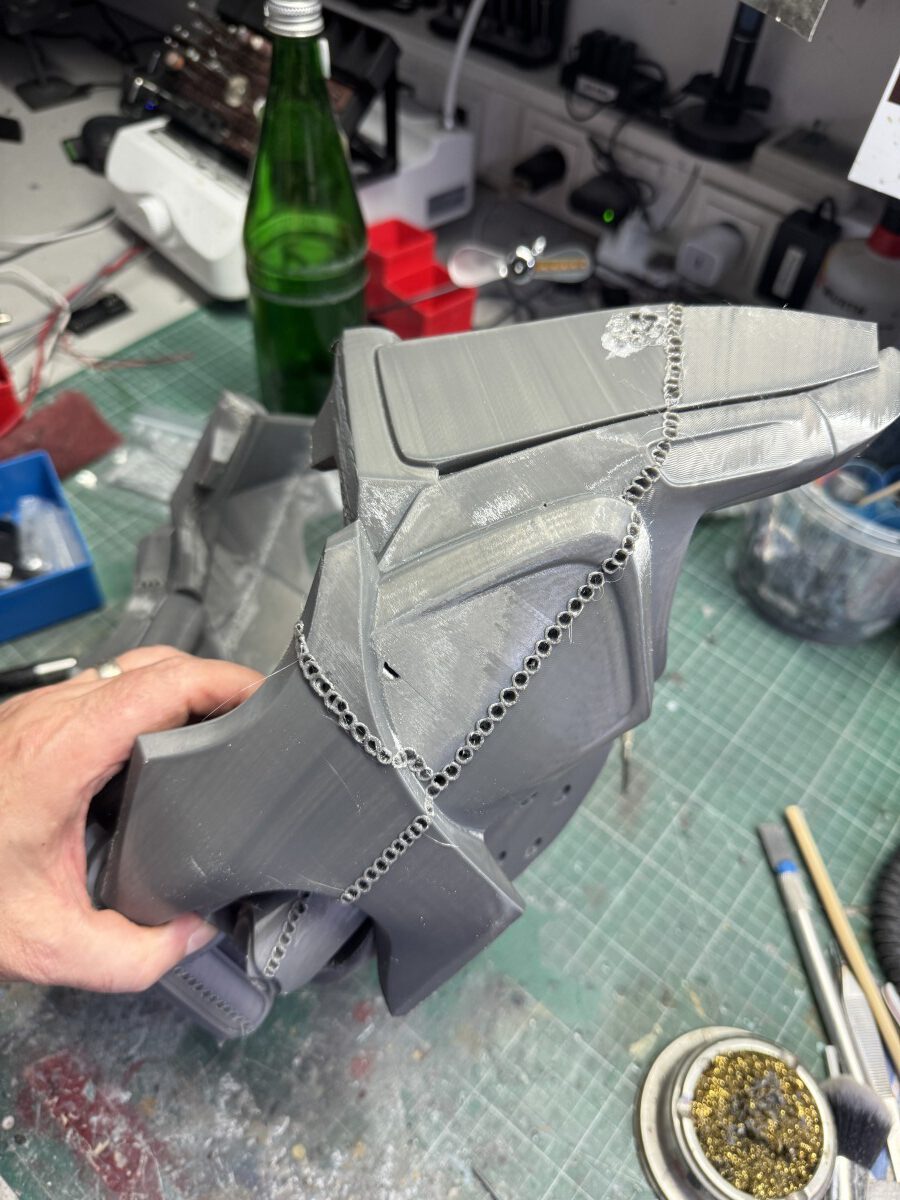

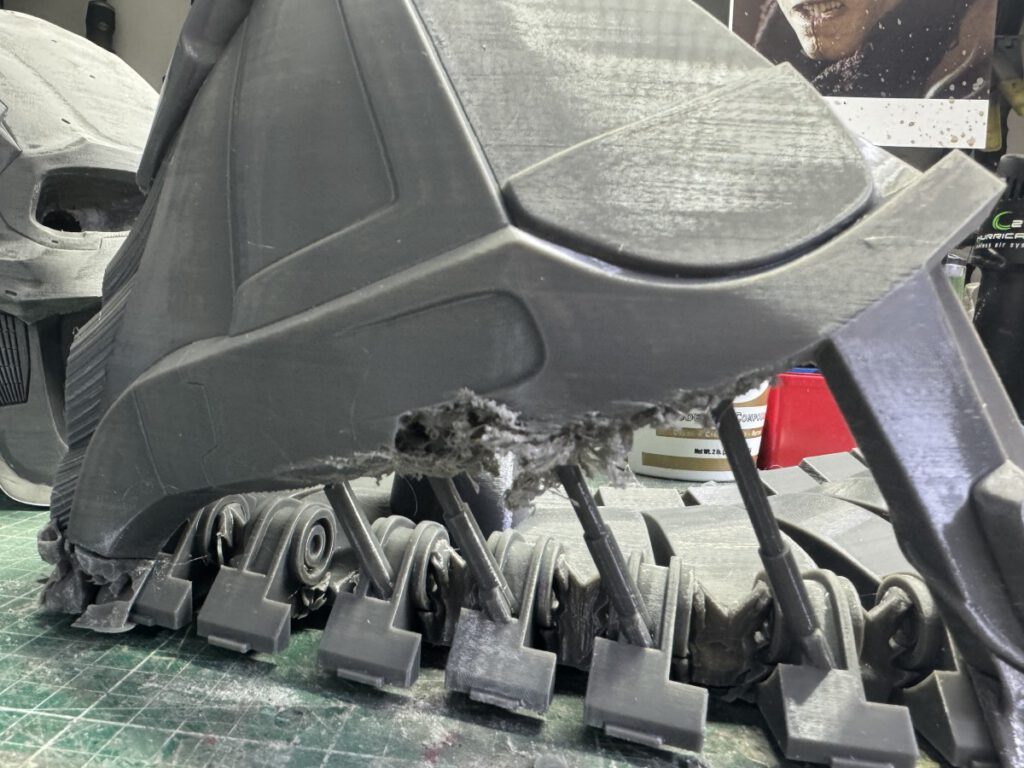

- Added rivets to the rib cage

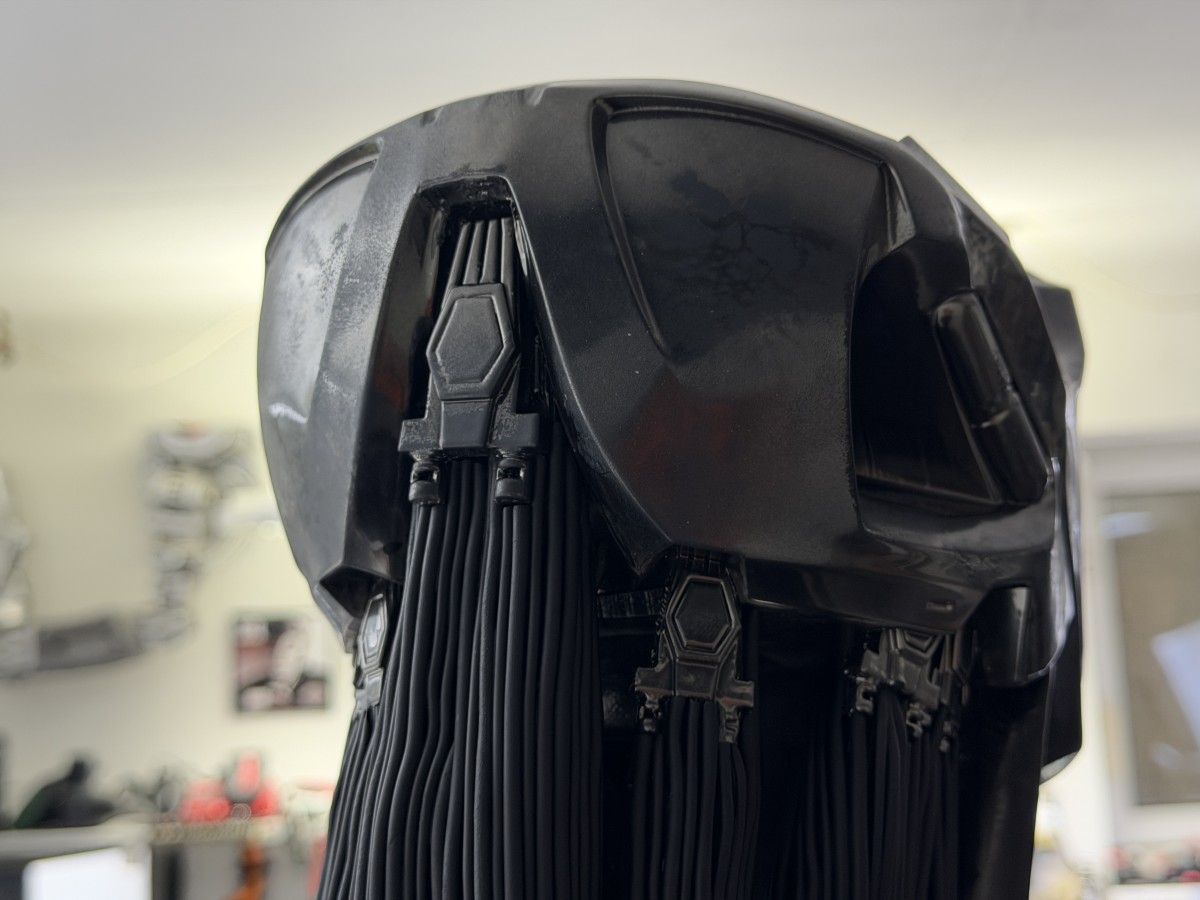

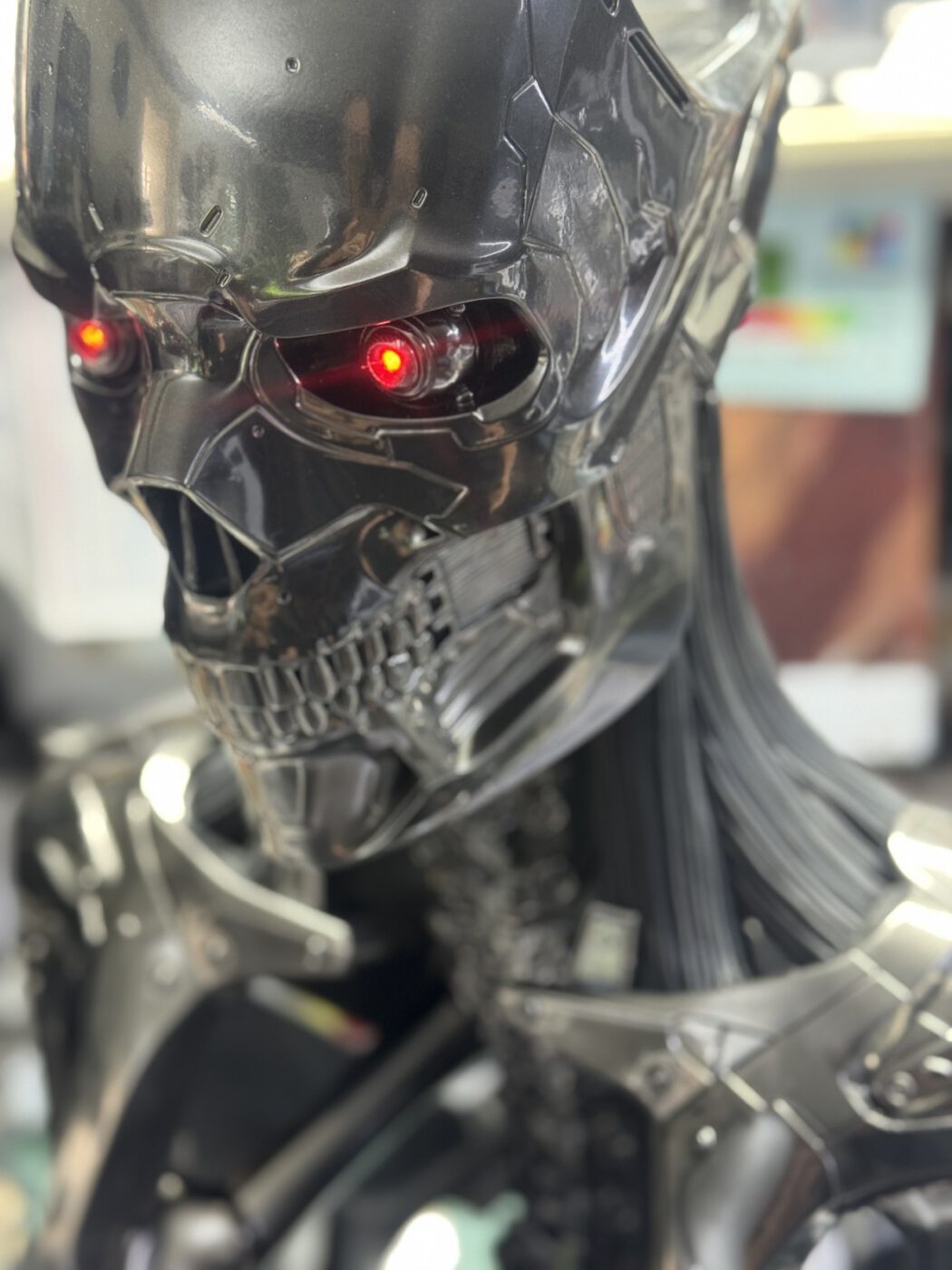

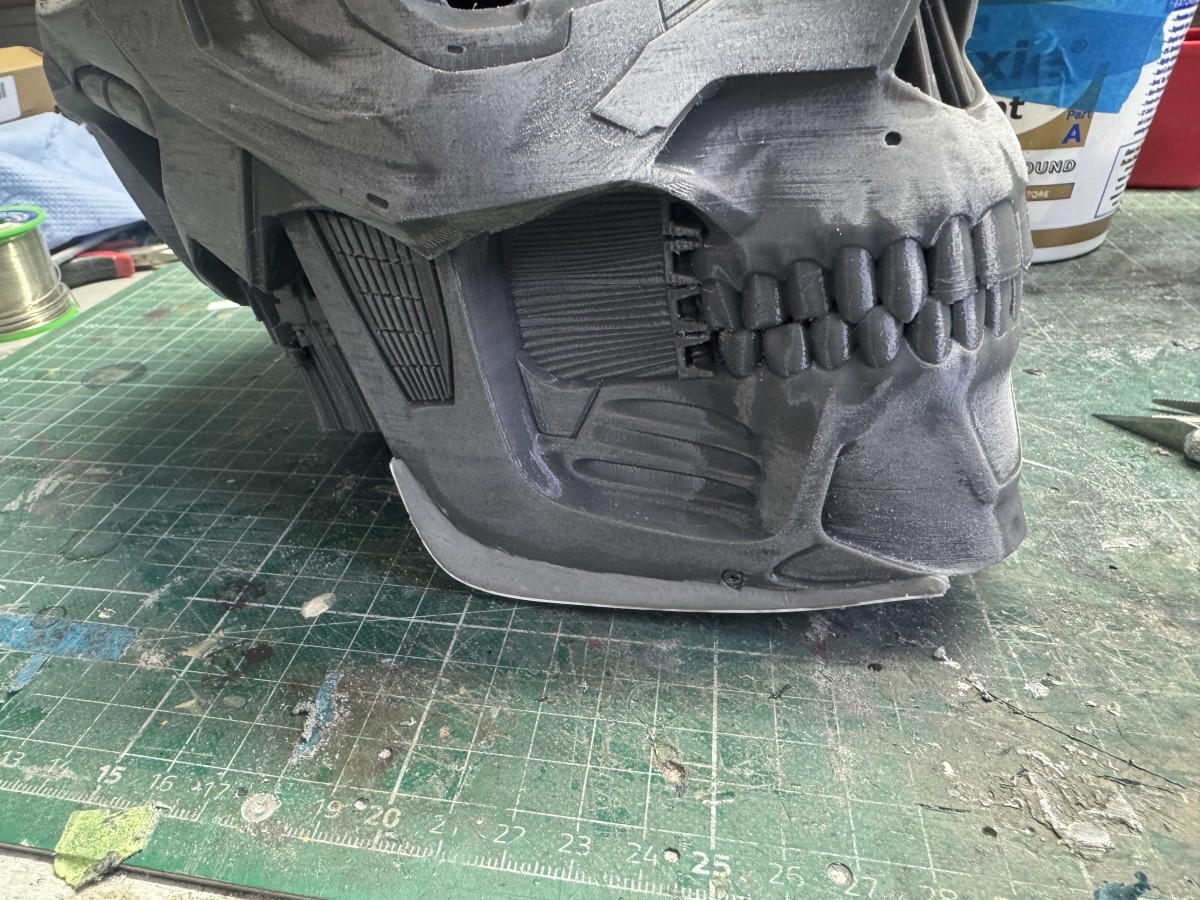

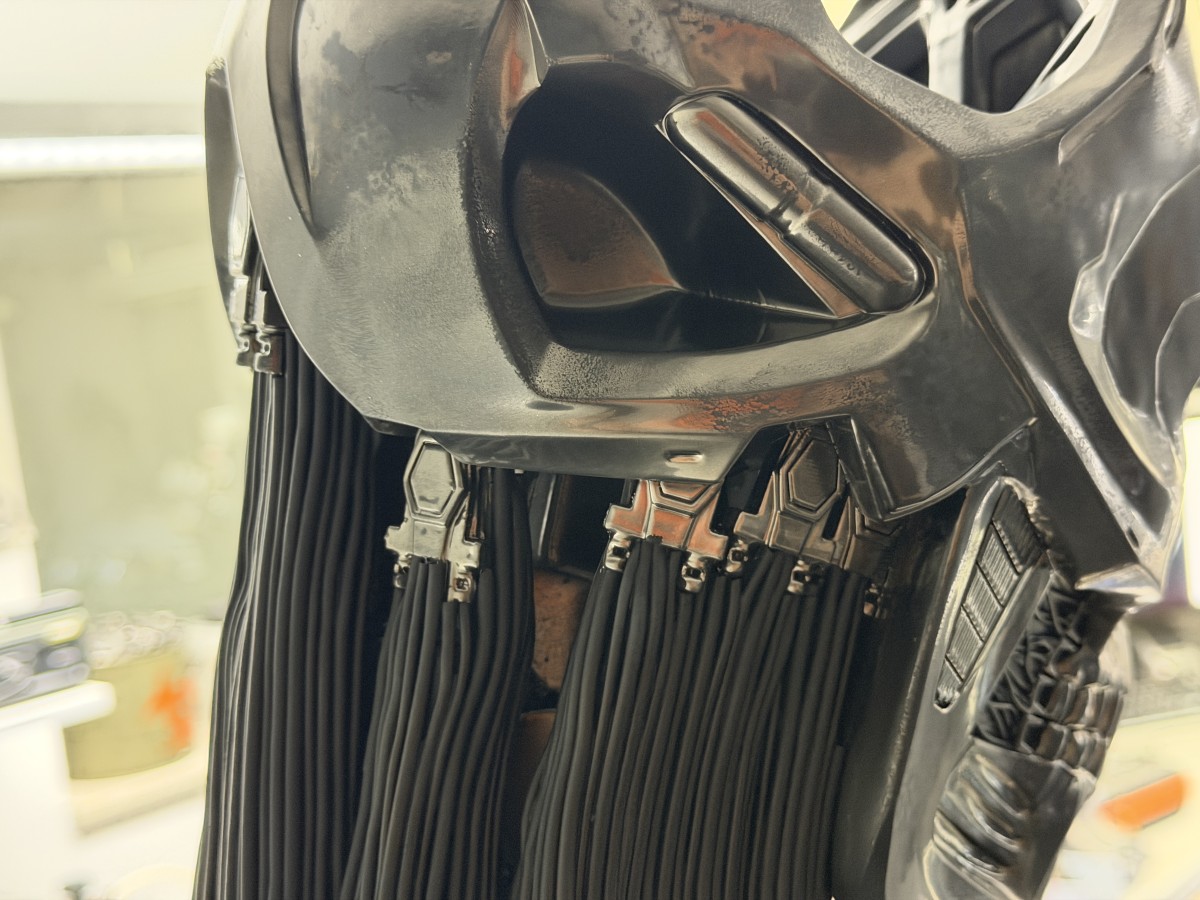

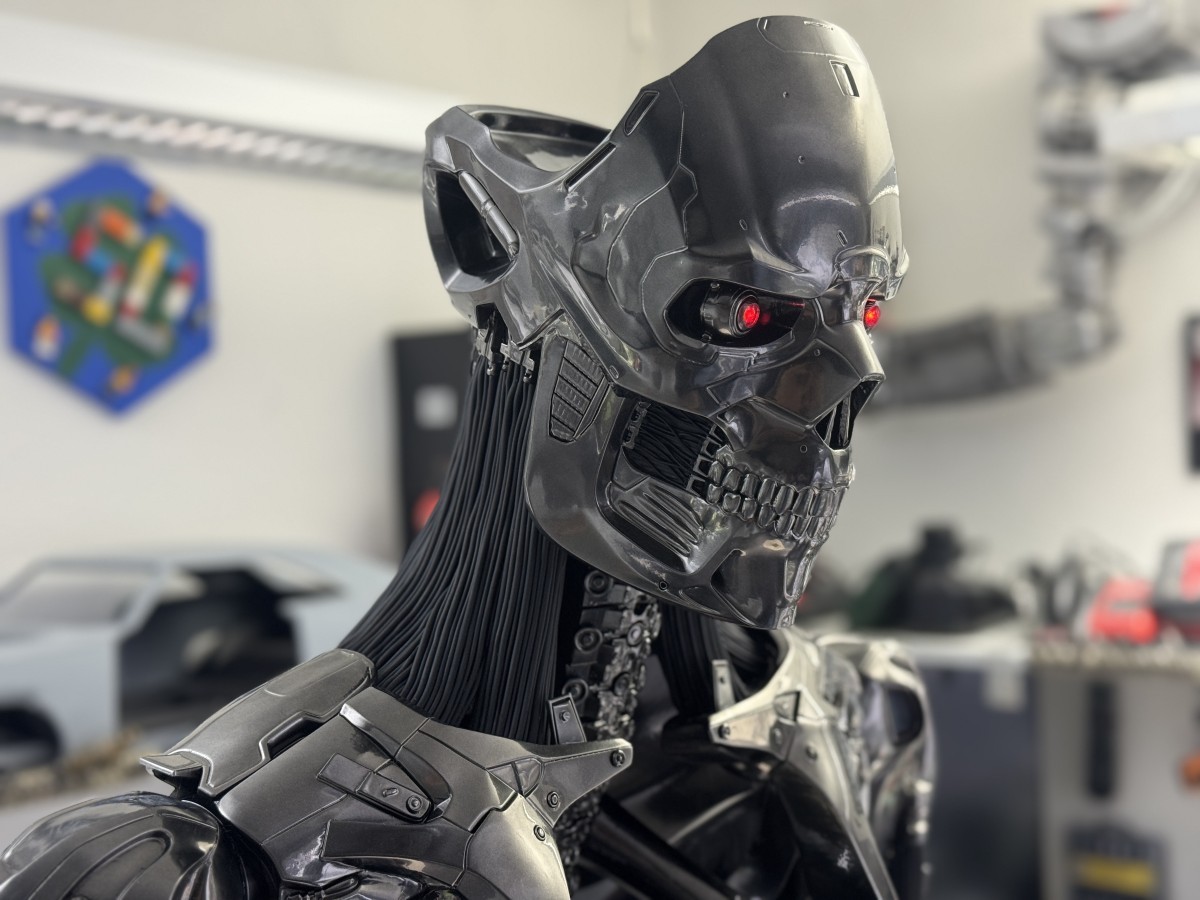

- Installed real wires in the cheek sections
- Reverted several details from the Gears of War version back to the movie-accurate design

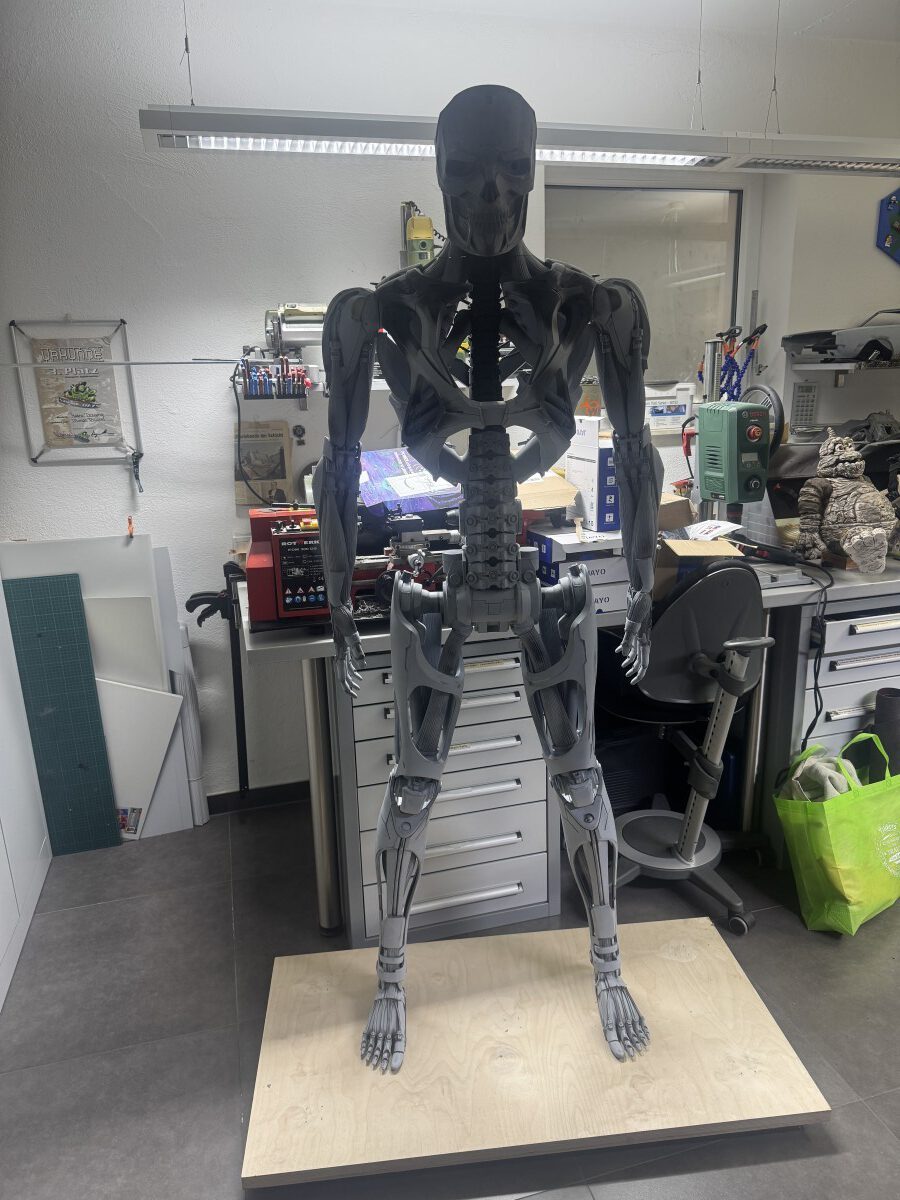

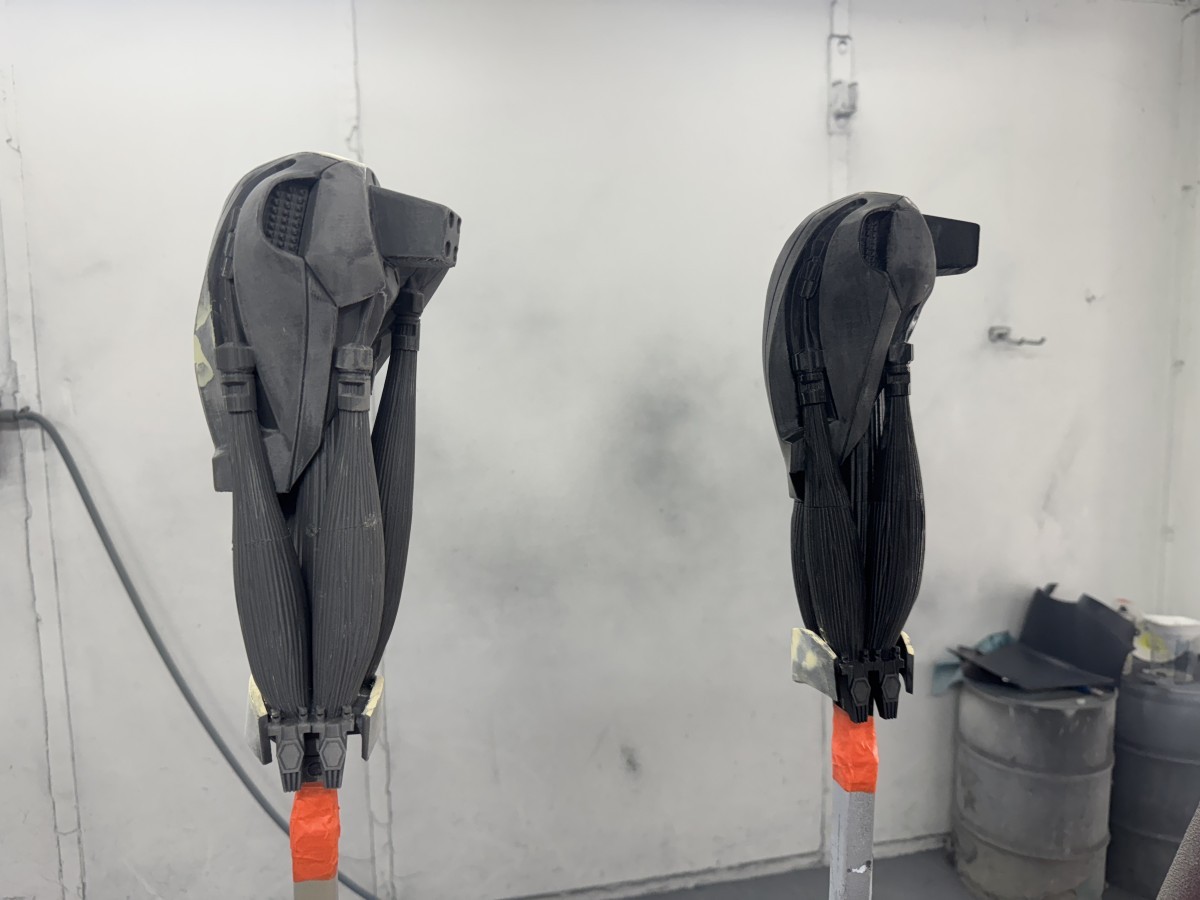

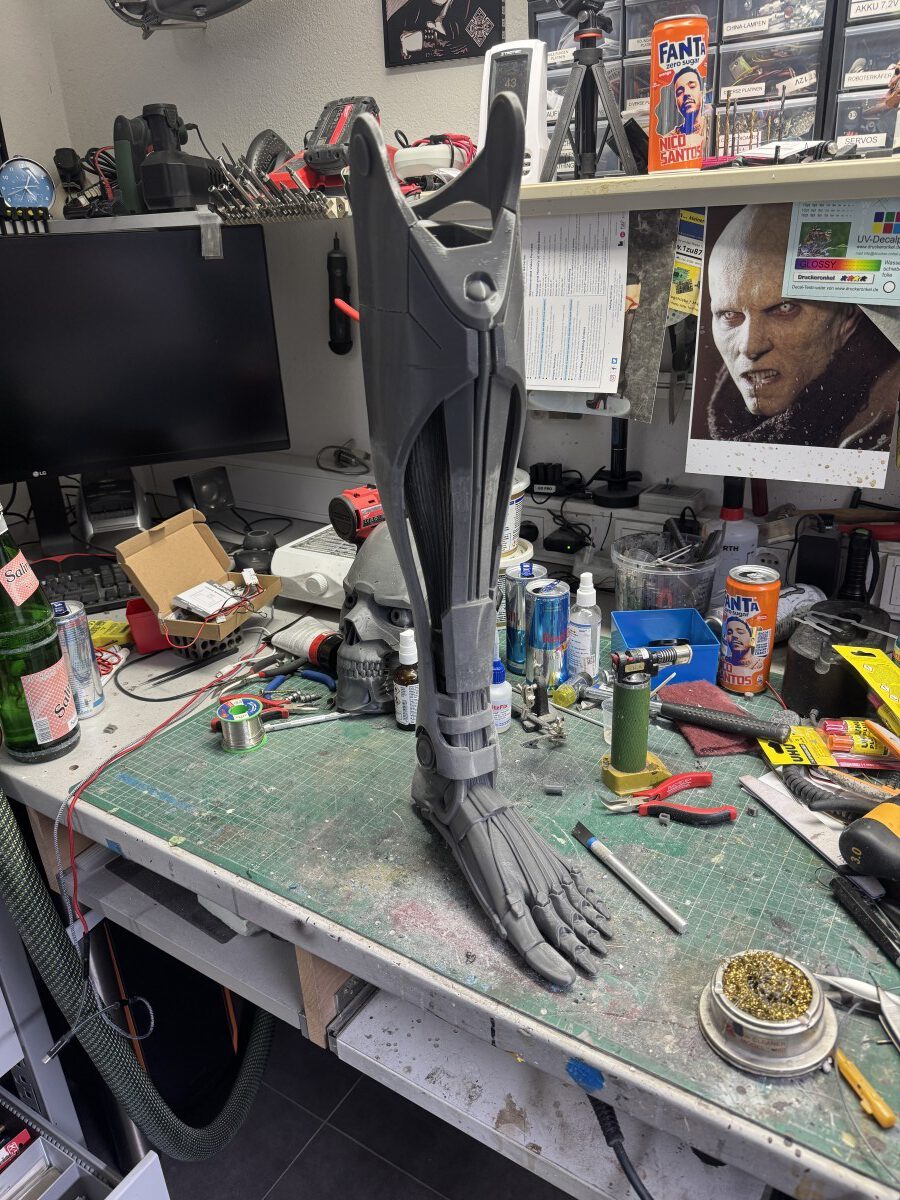

- Added holes for a metal support pole through the lower legs and feet

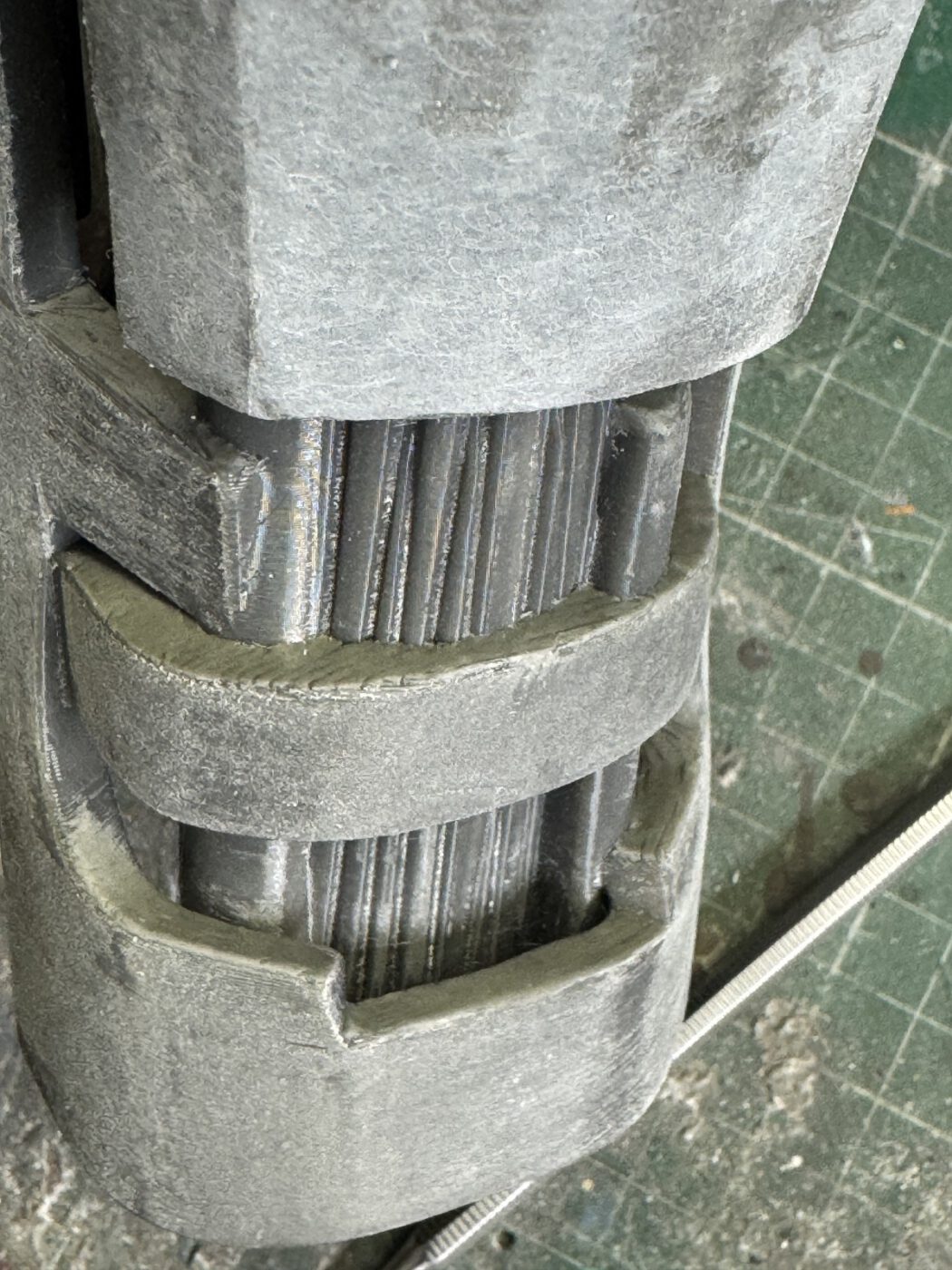

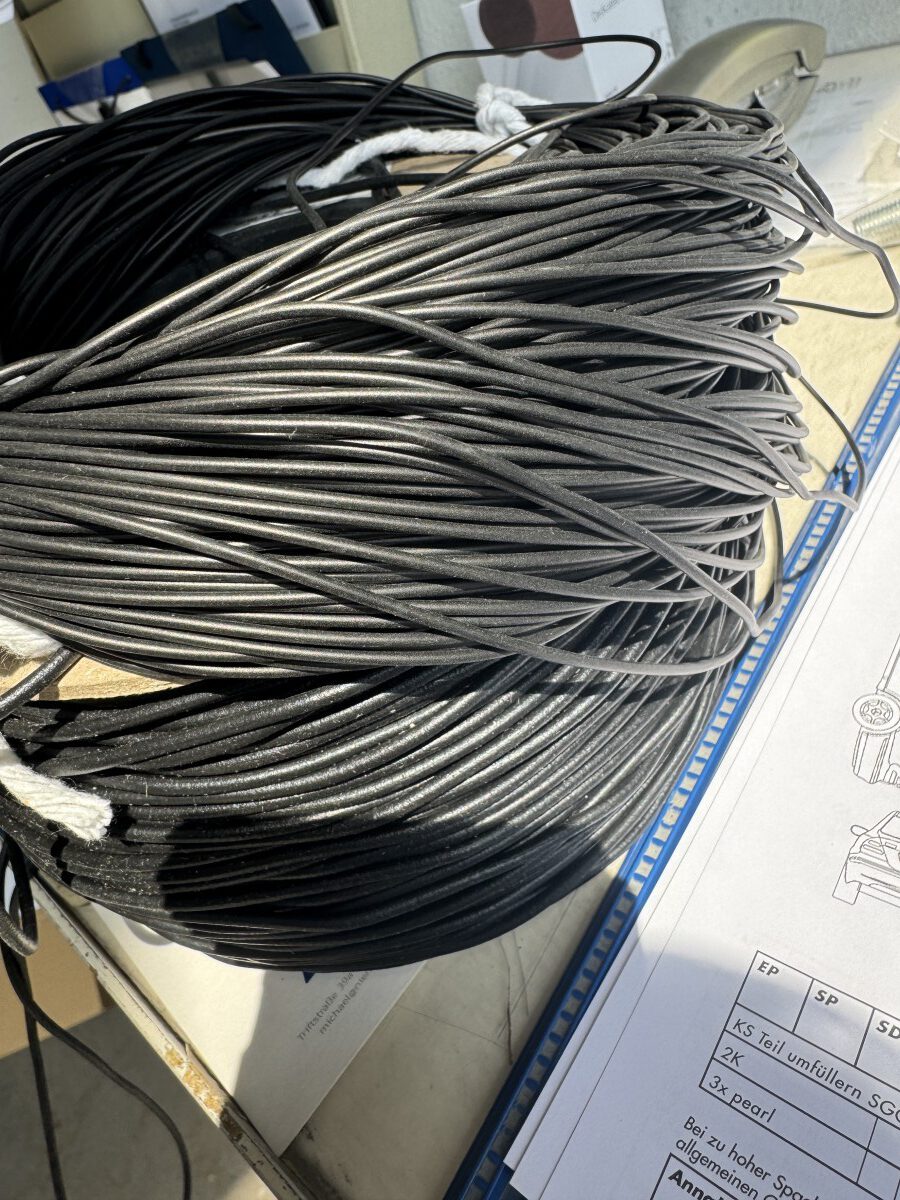

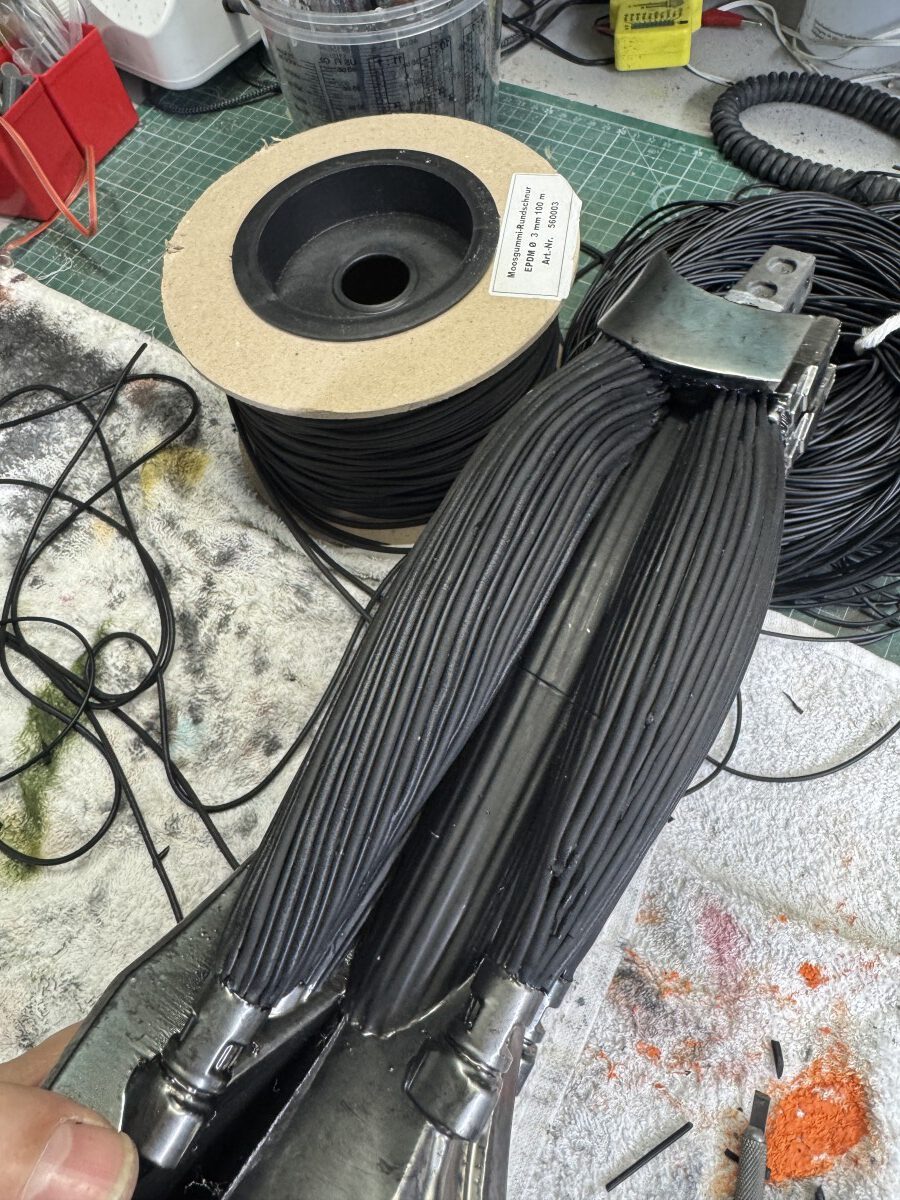

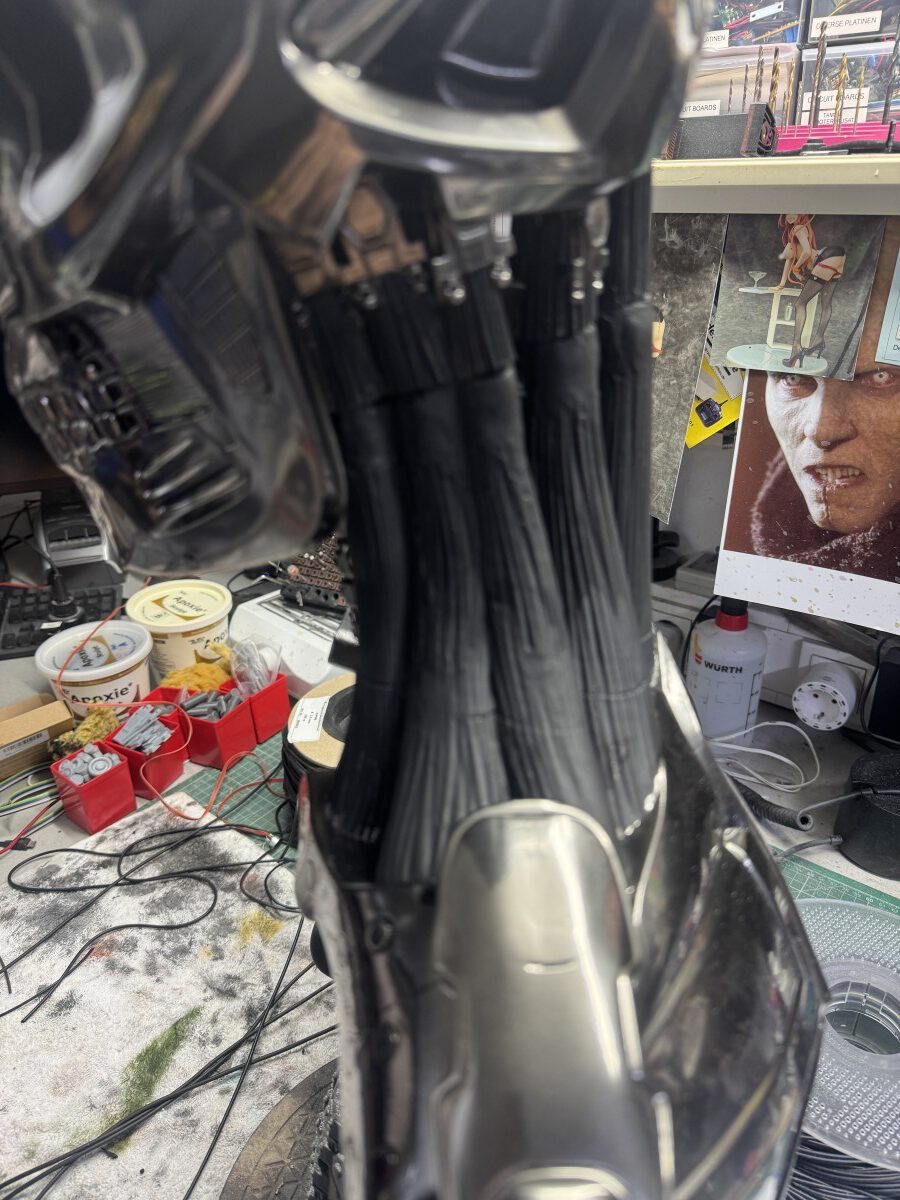

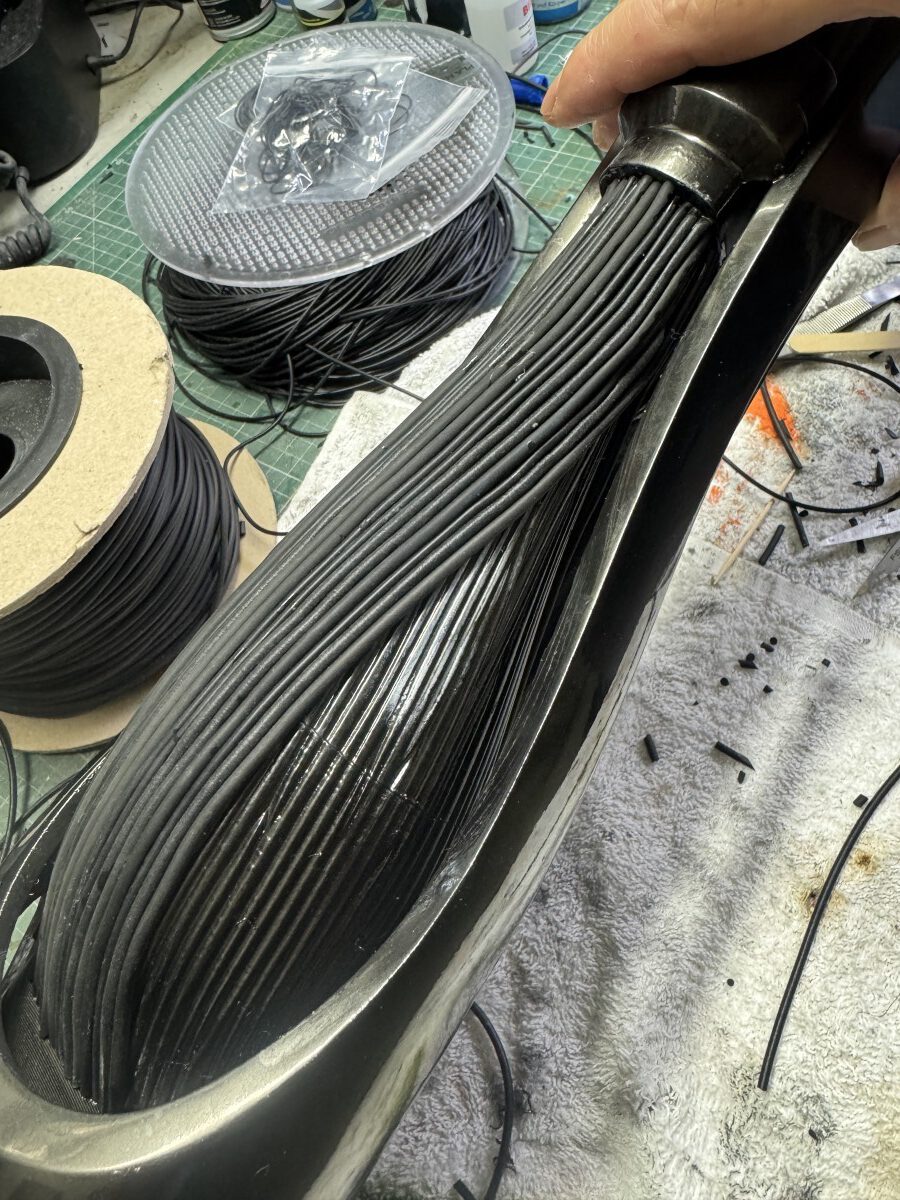

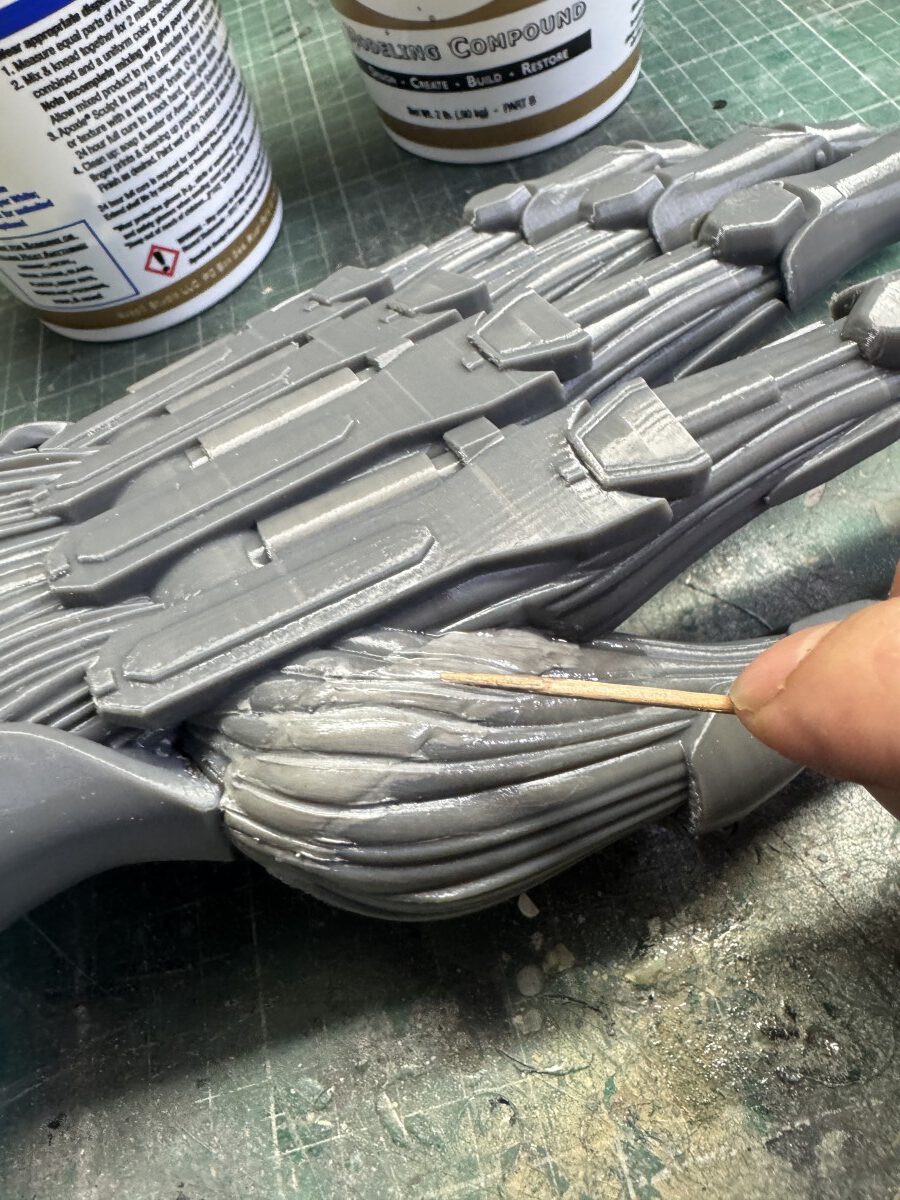

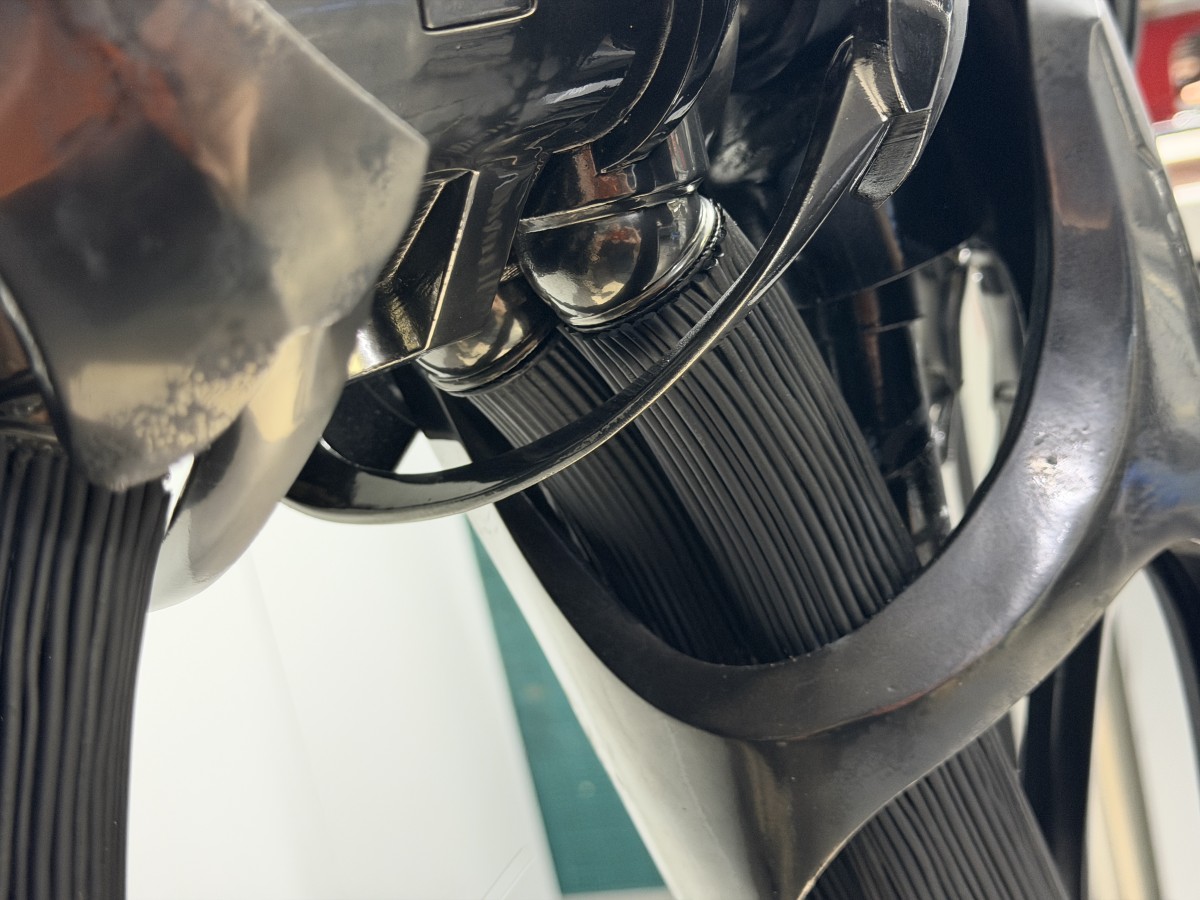

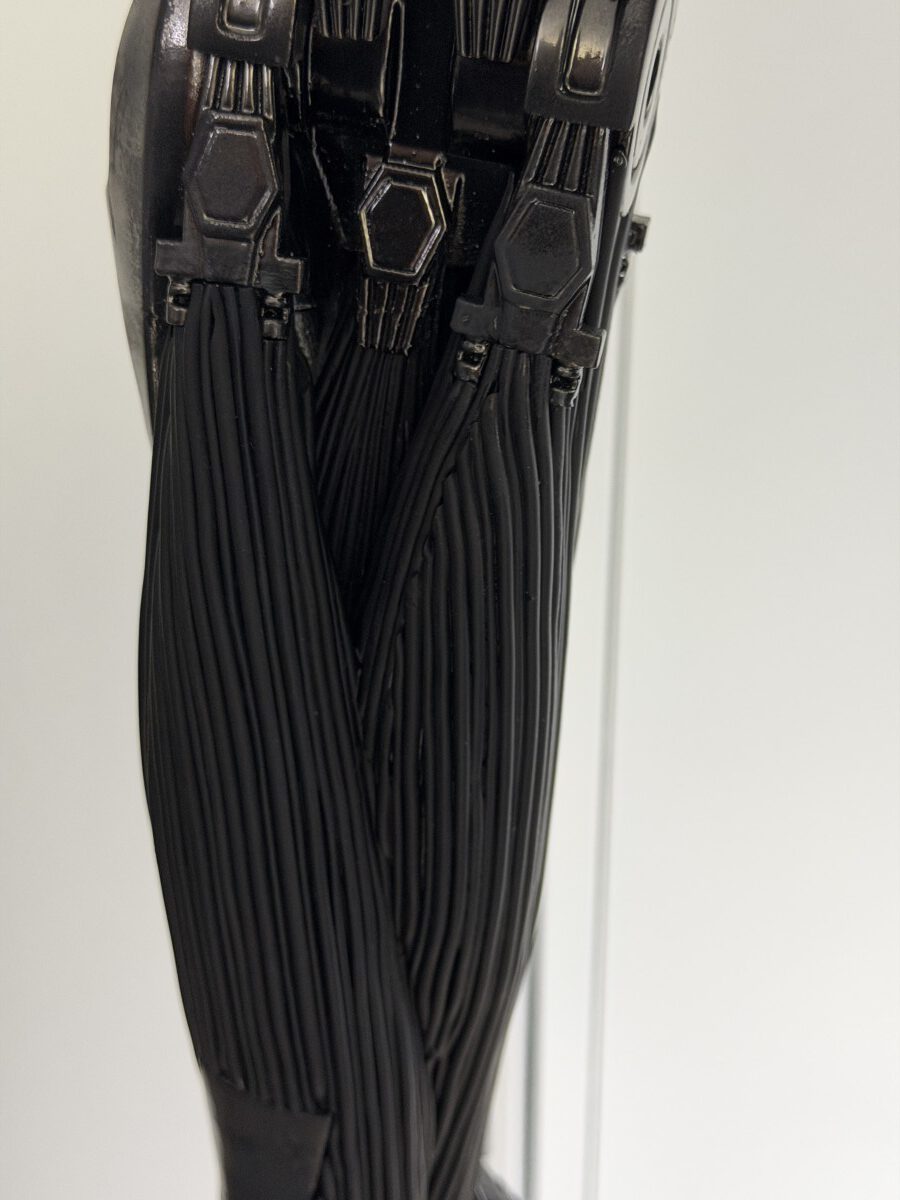

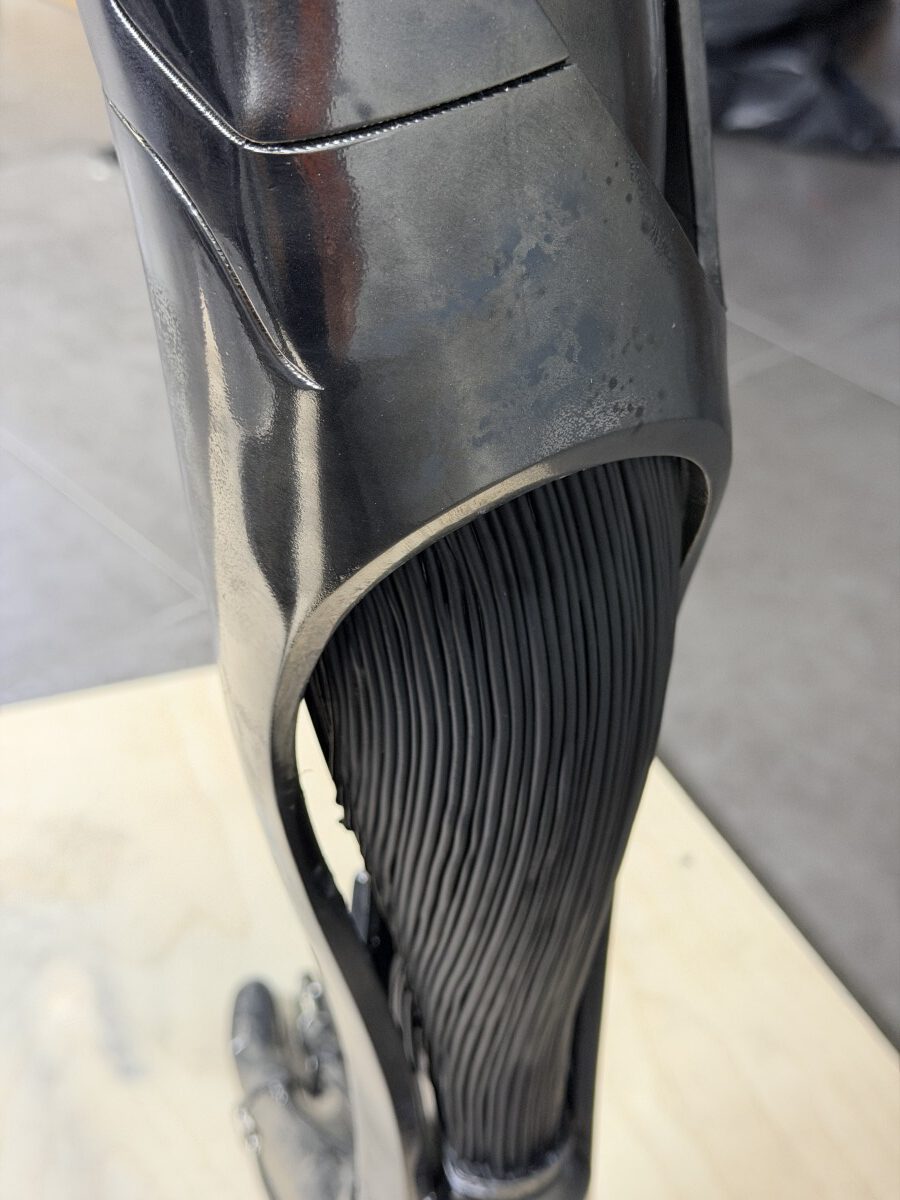

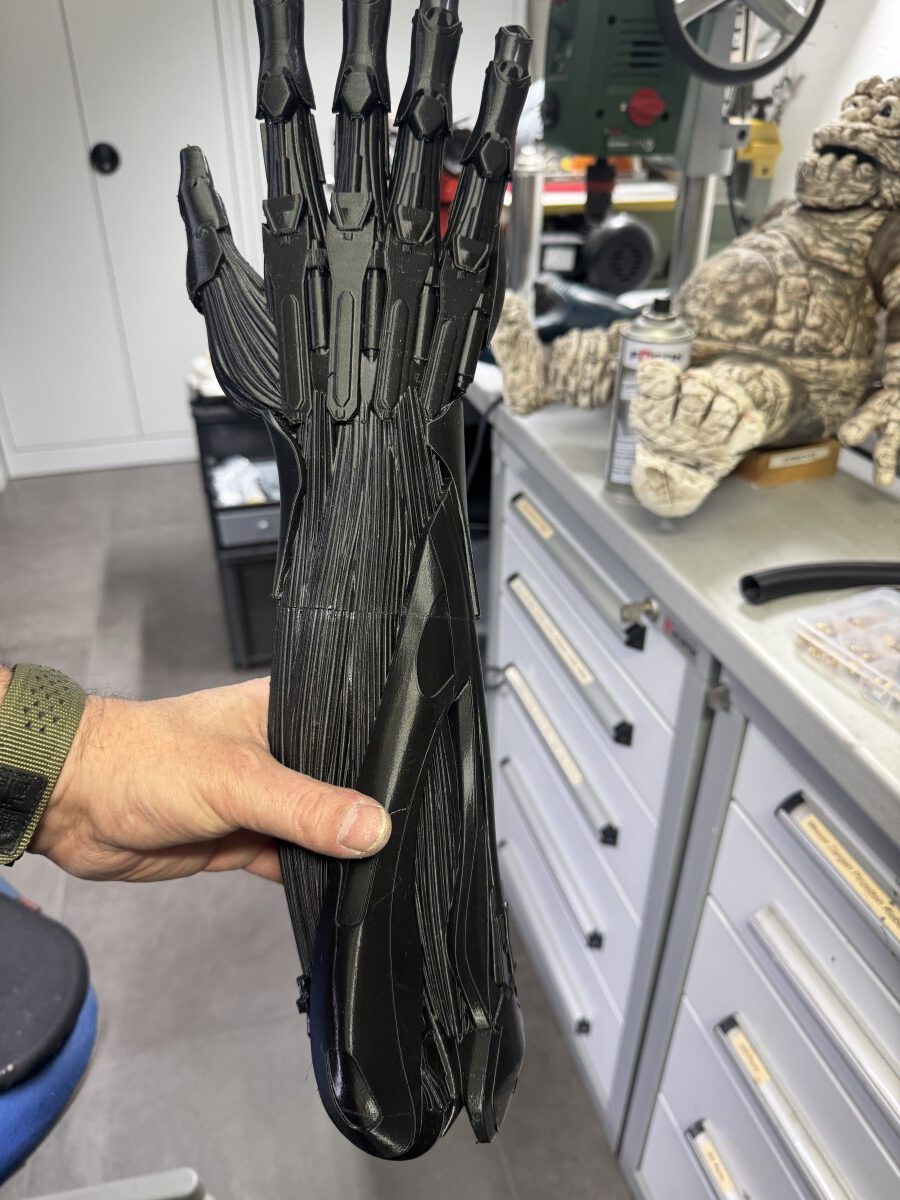

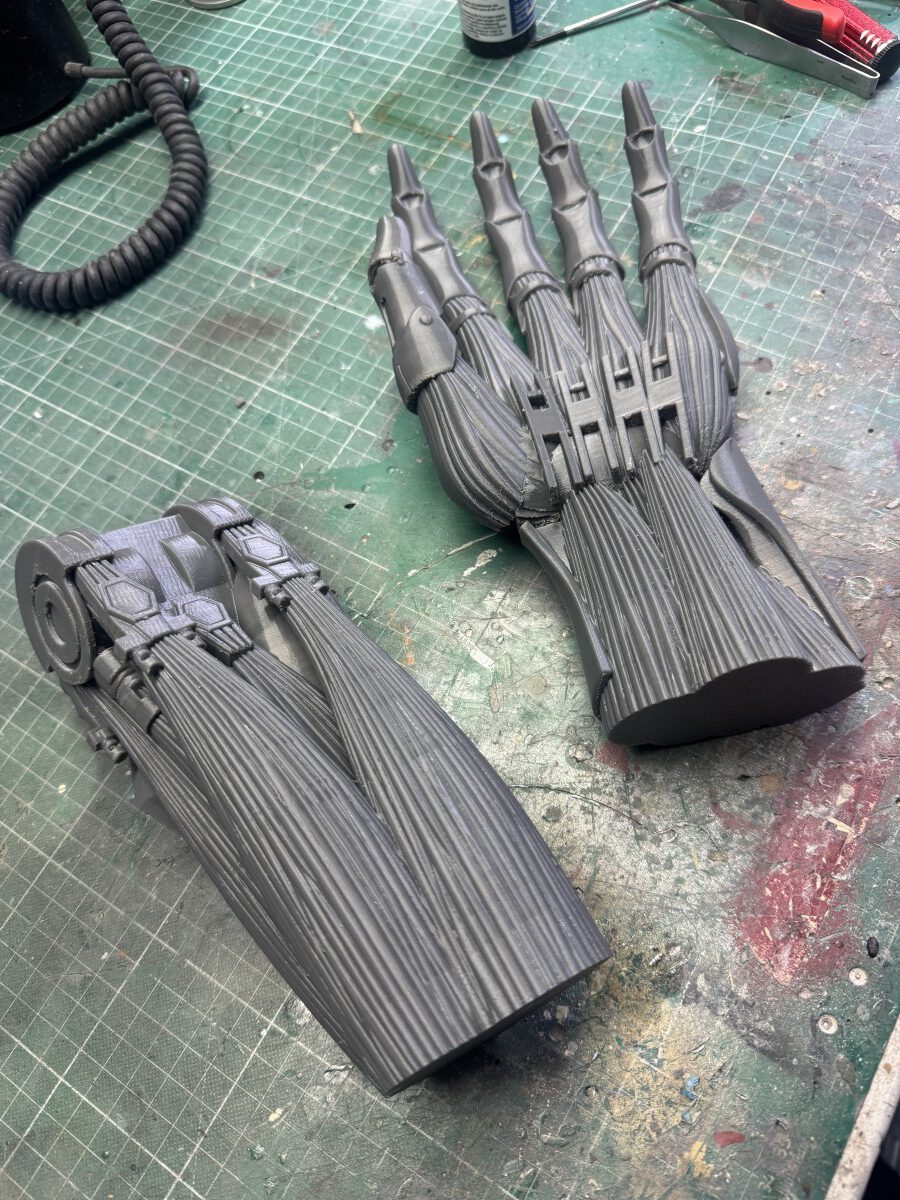

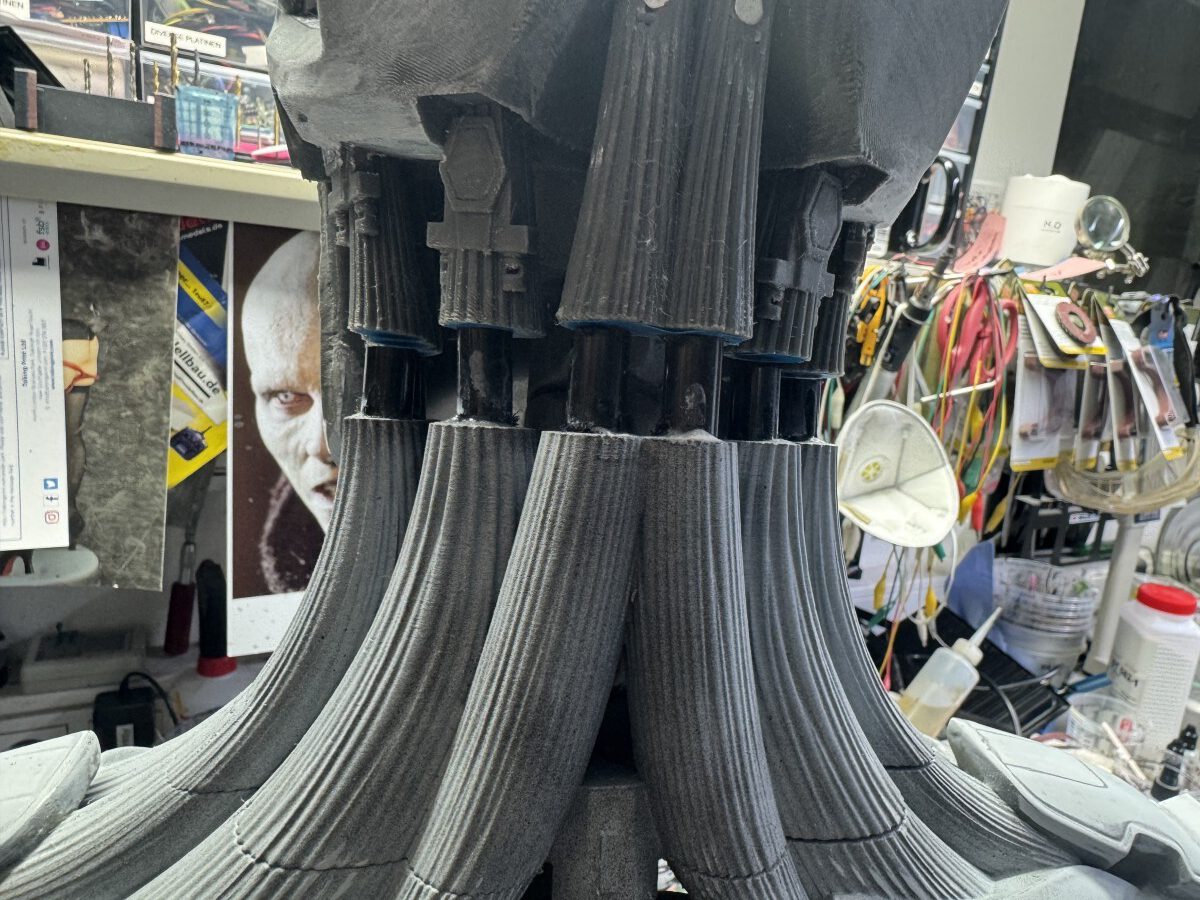

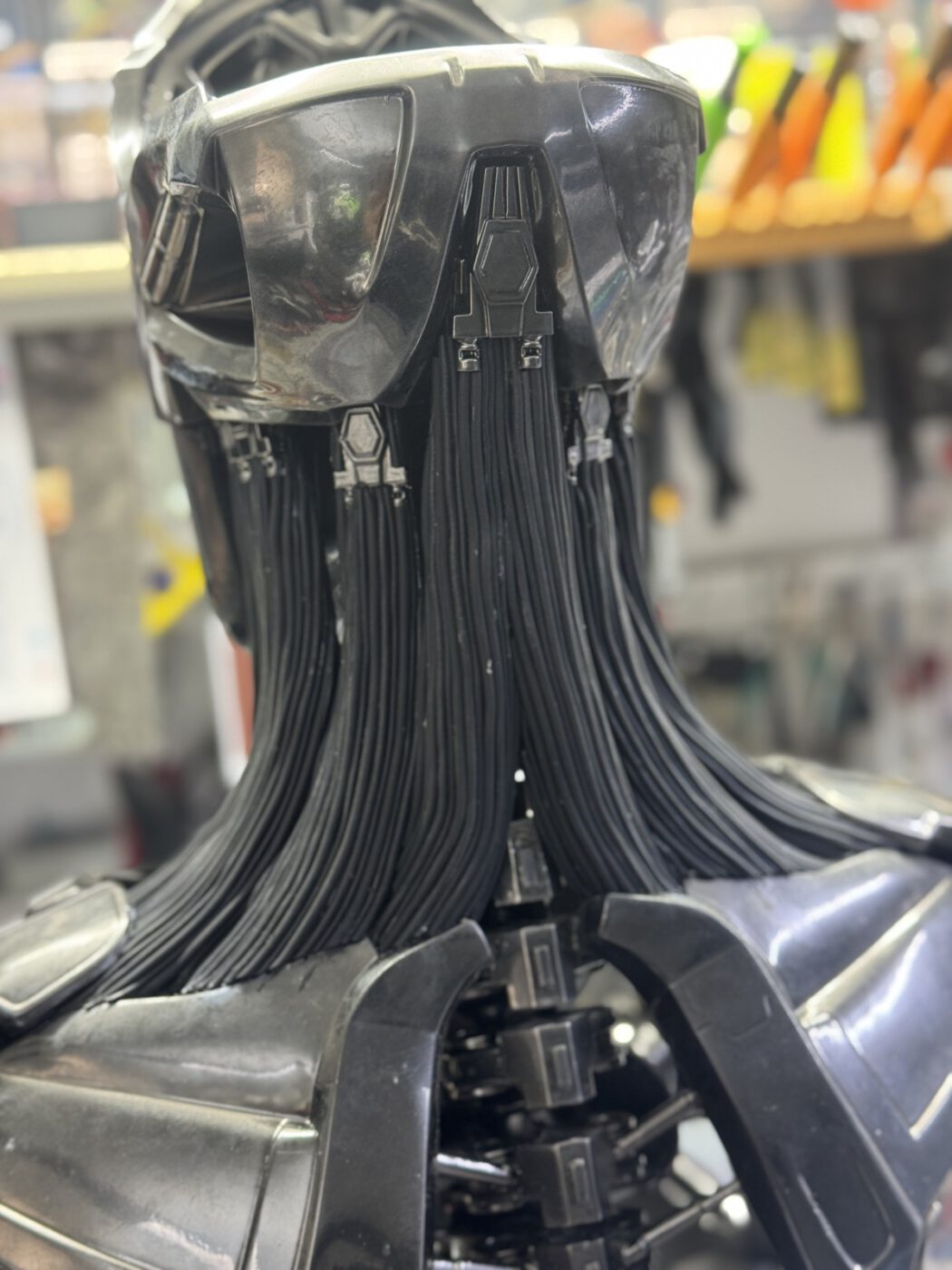

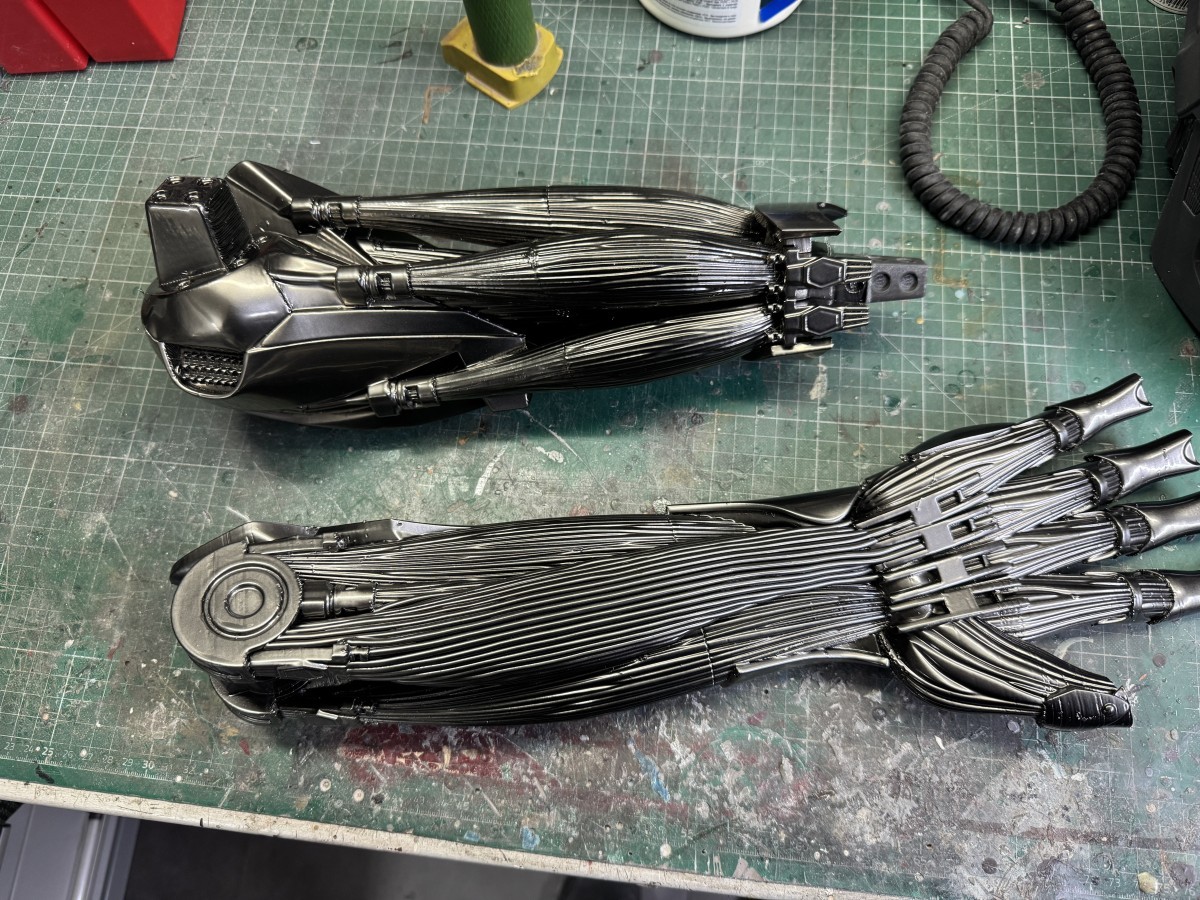

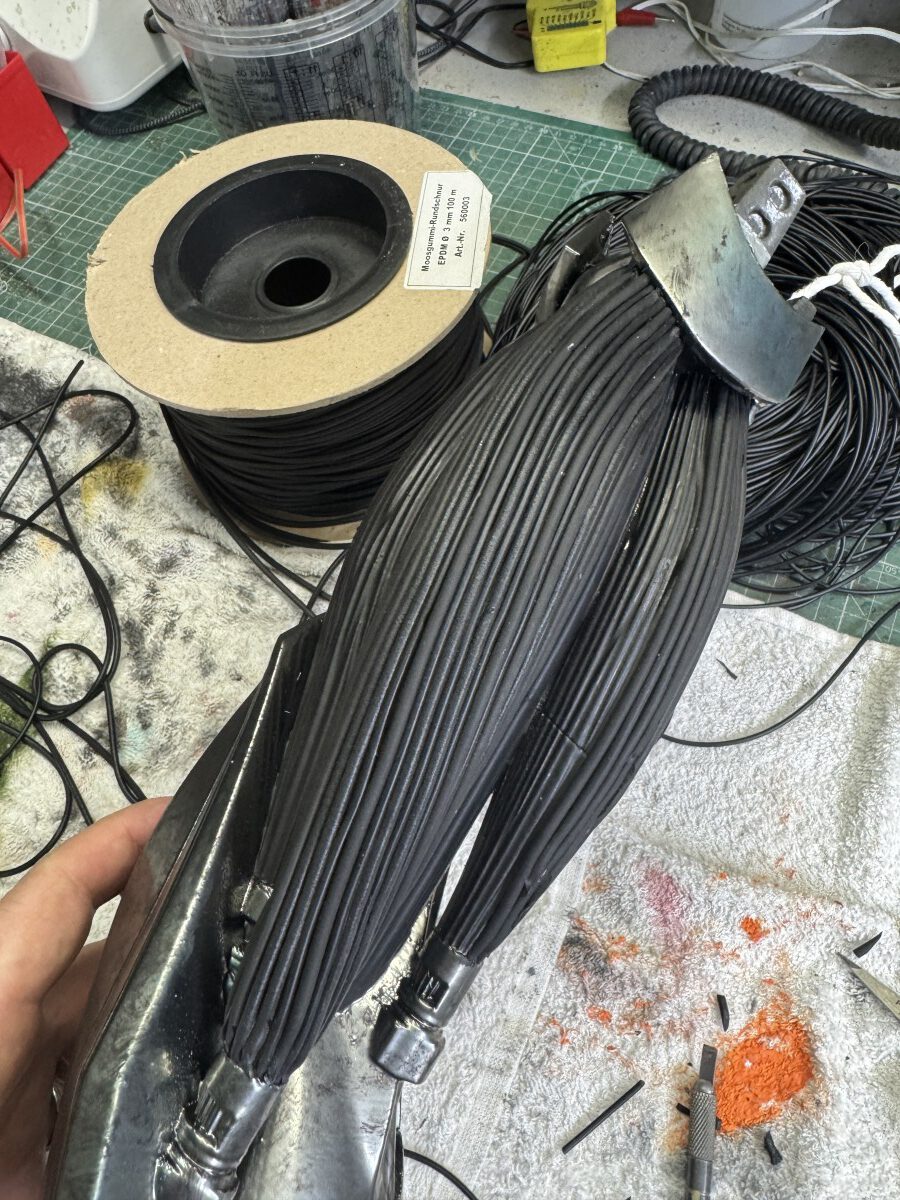

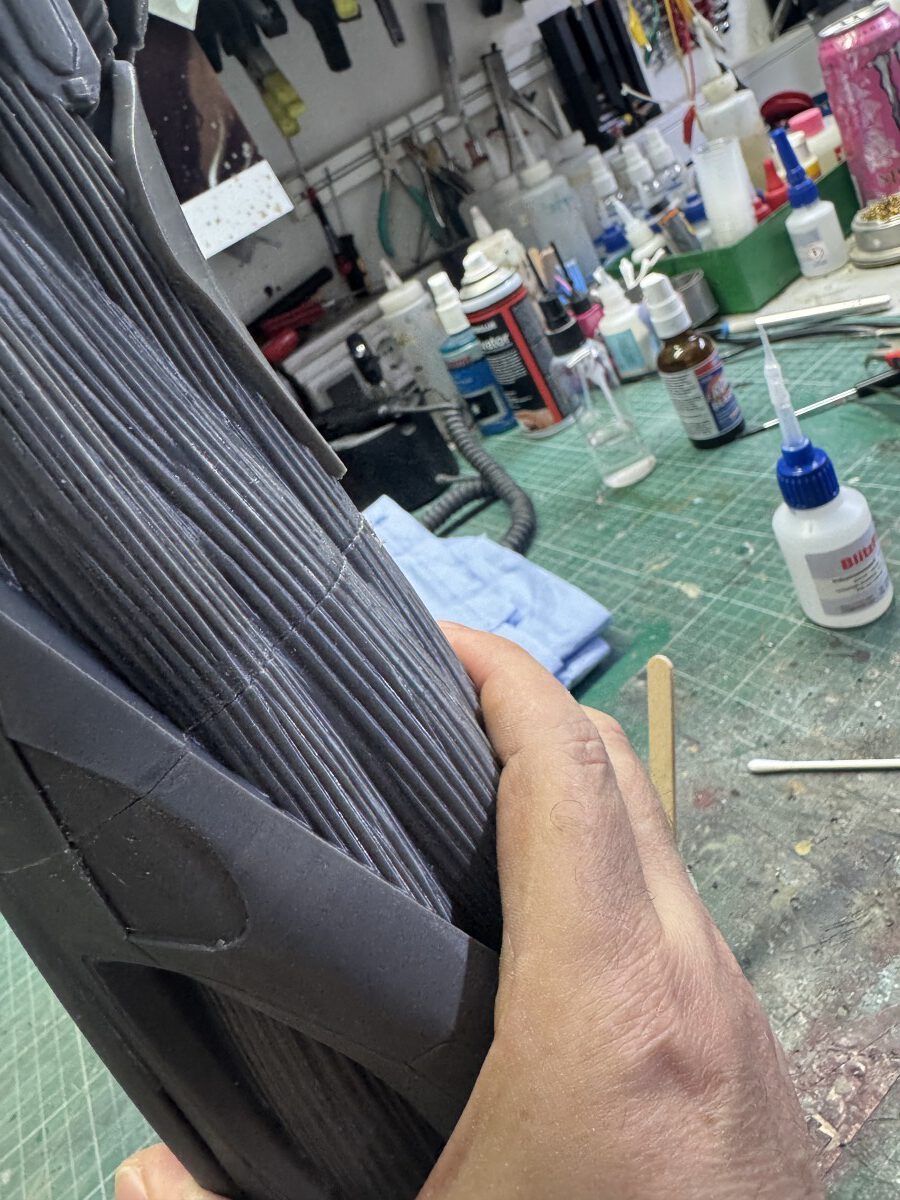

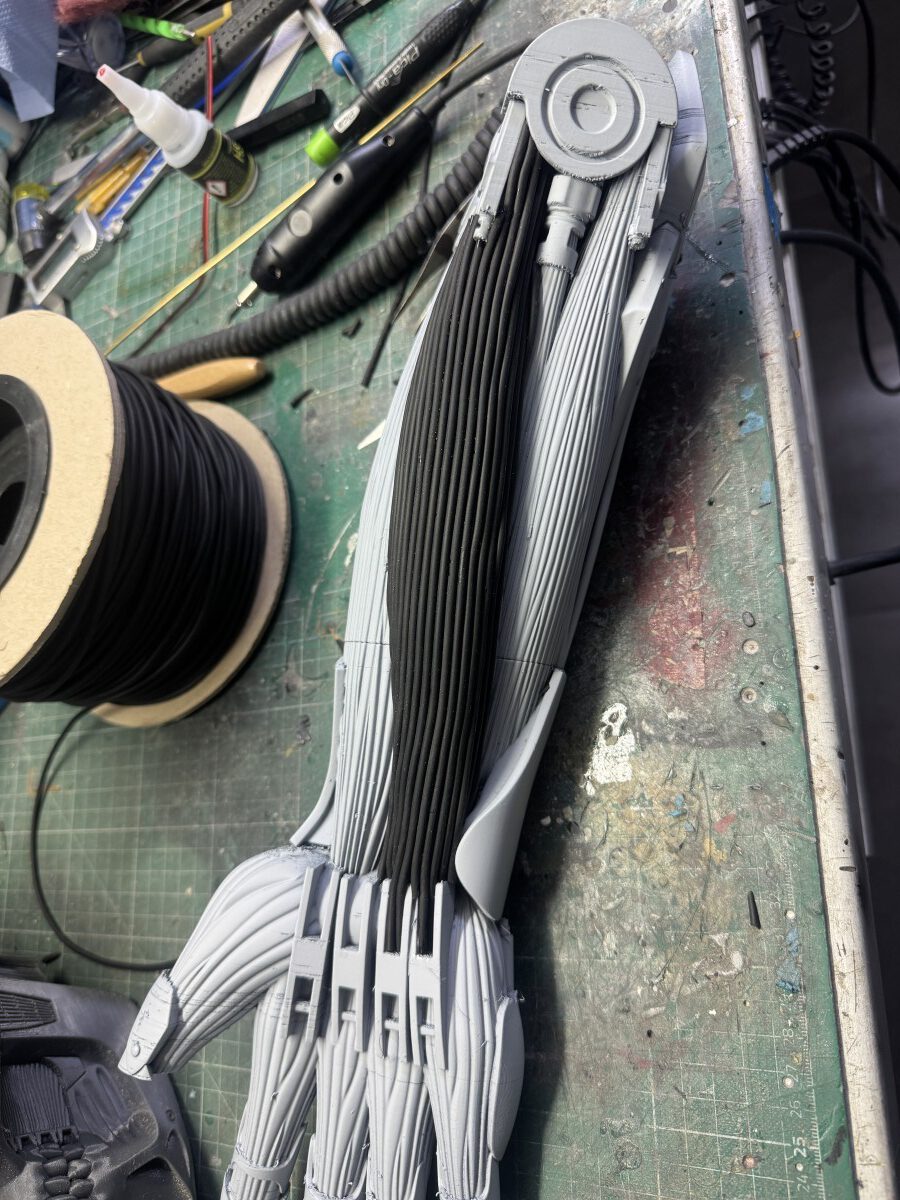

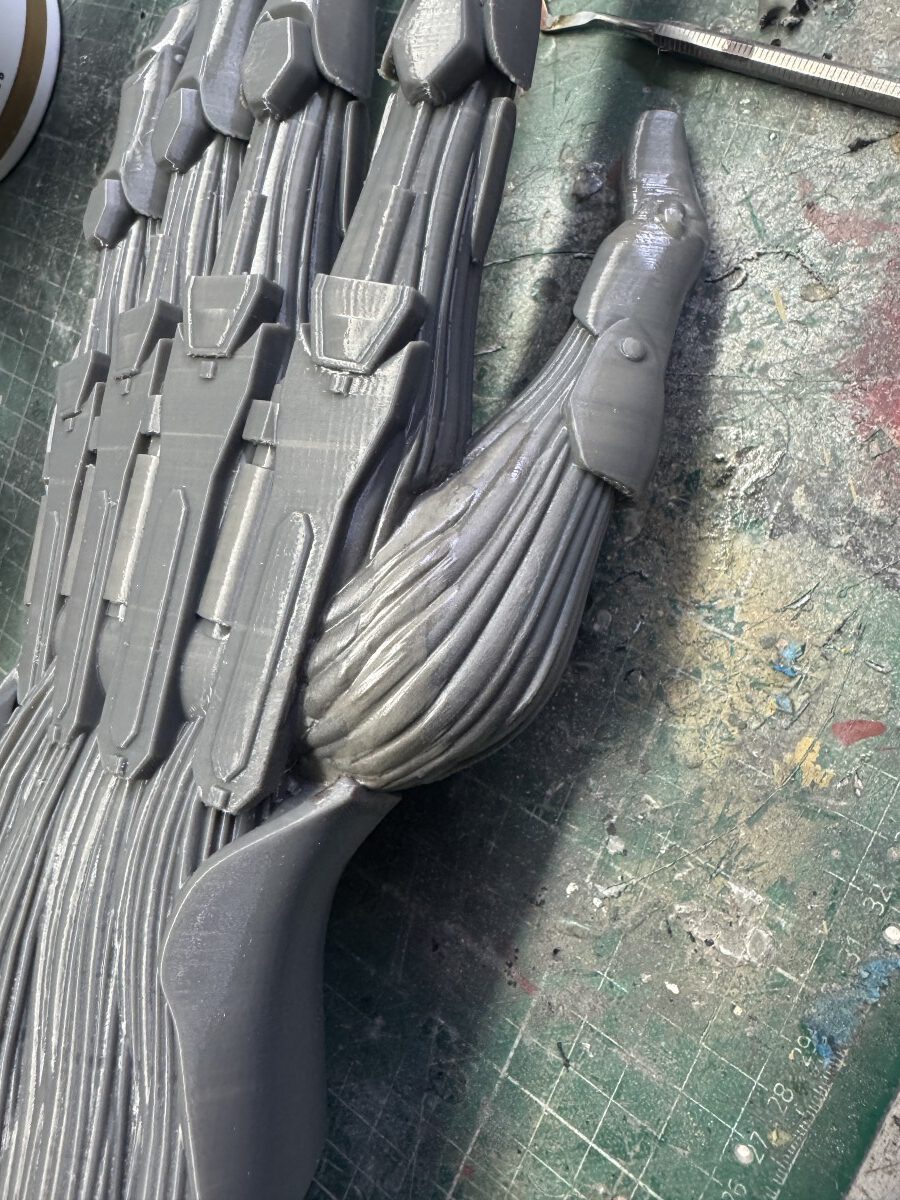

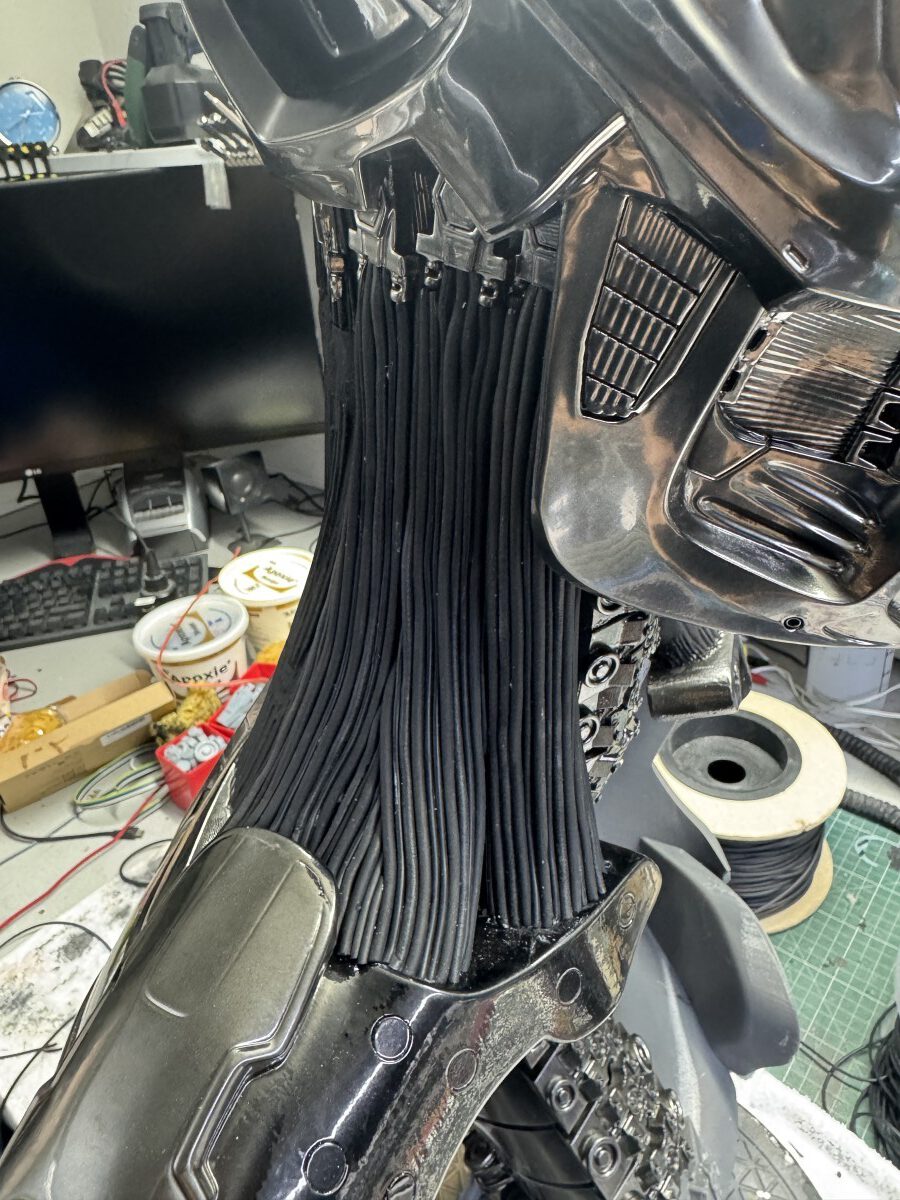

- Created “muscle strands” from polyurethane rubber

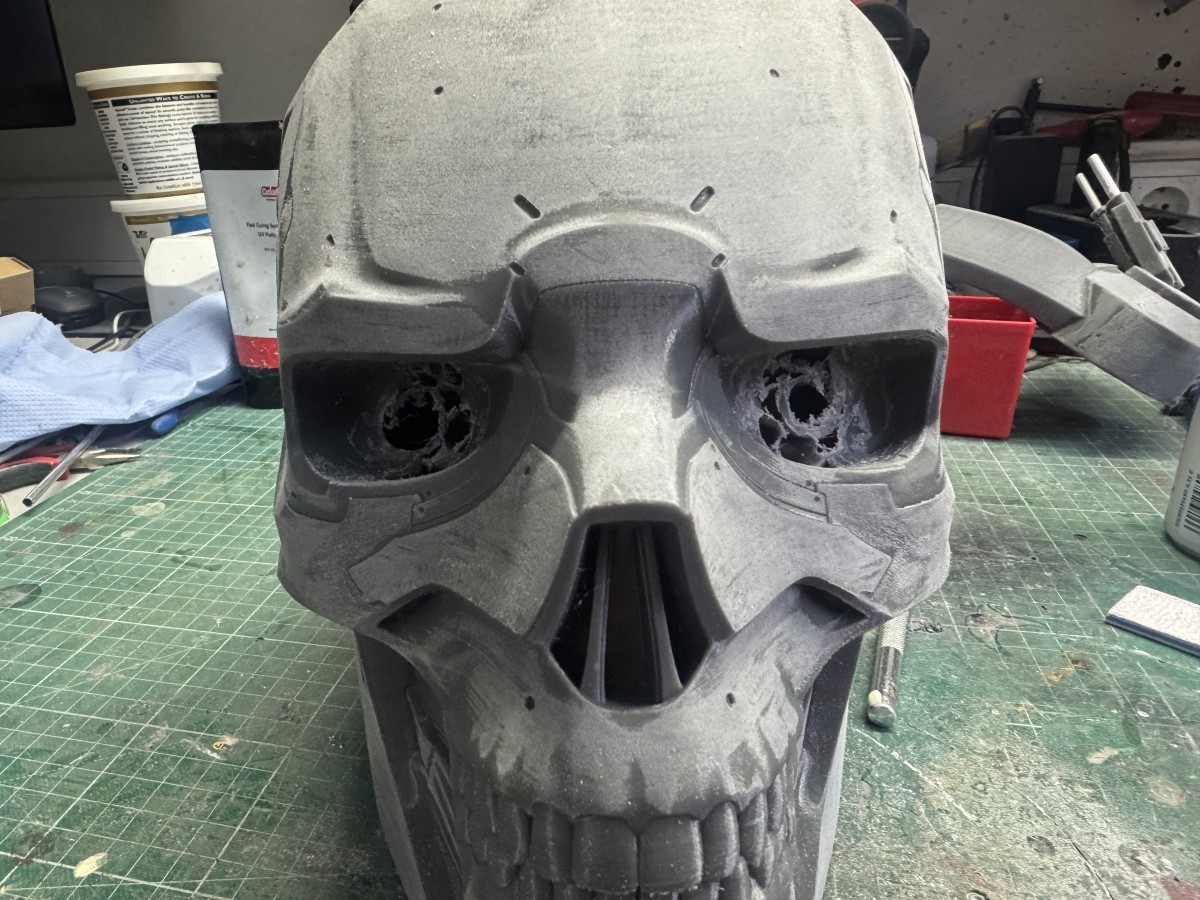

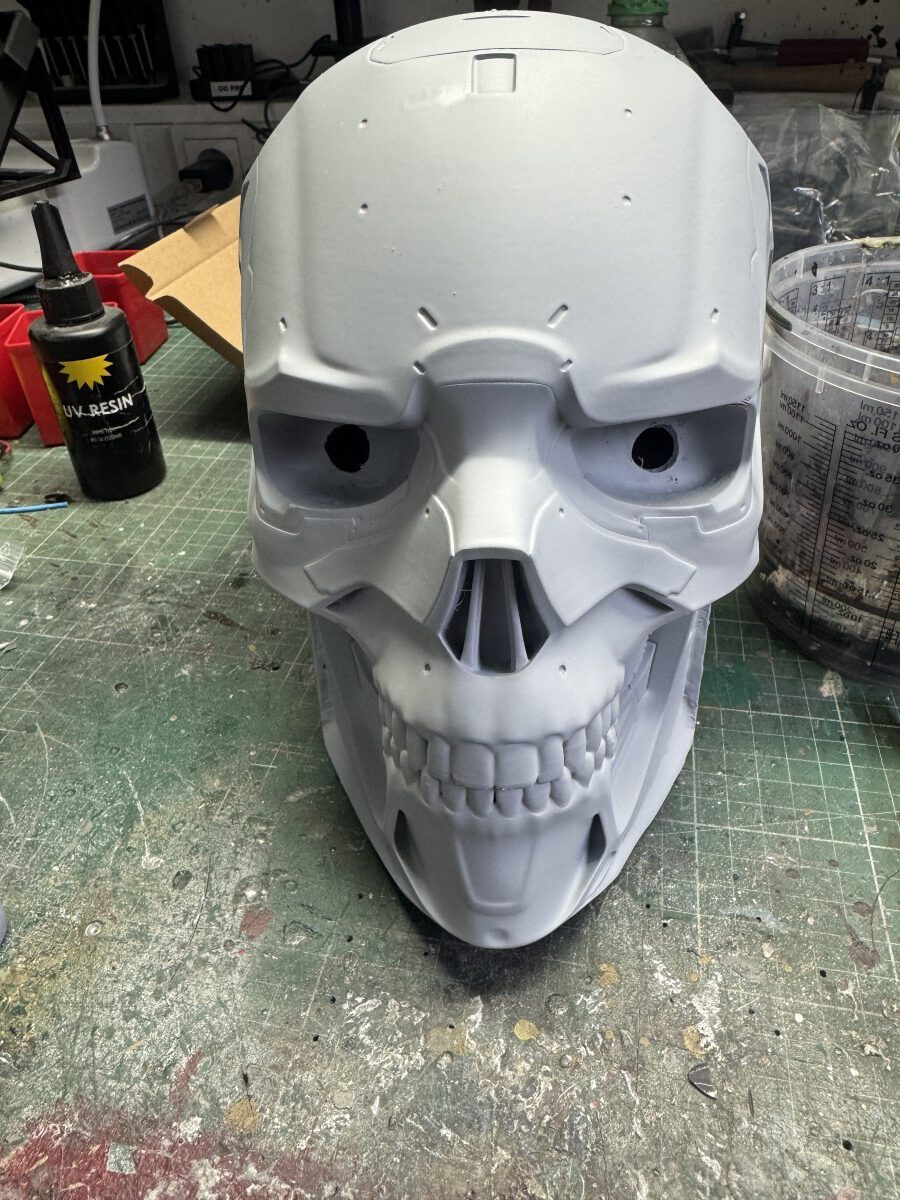

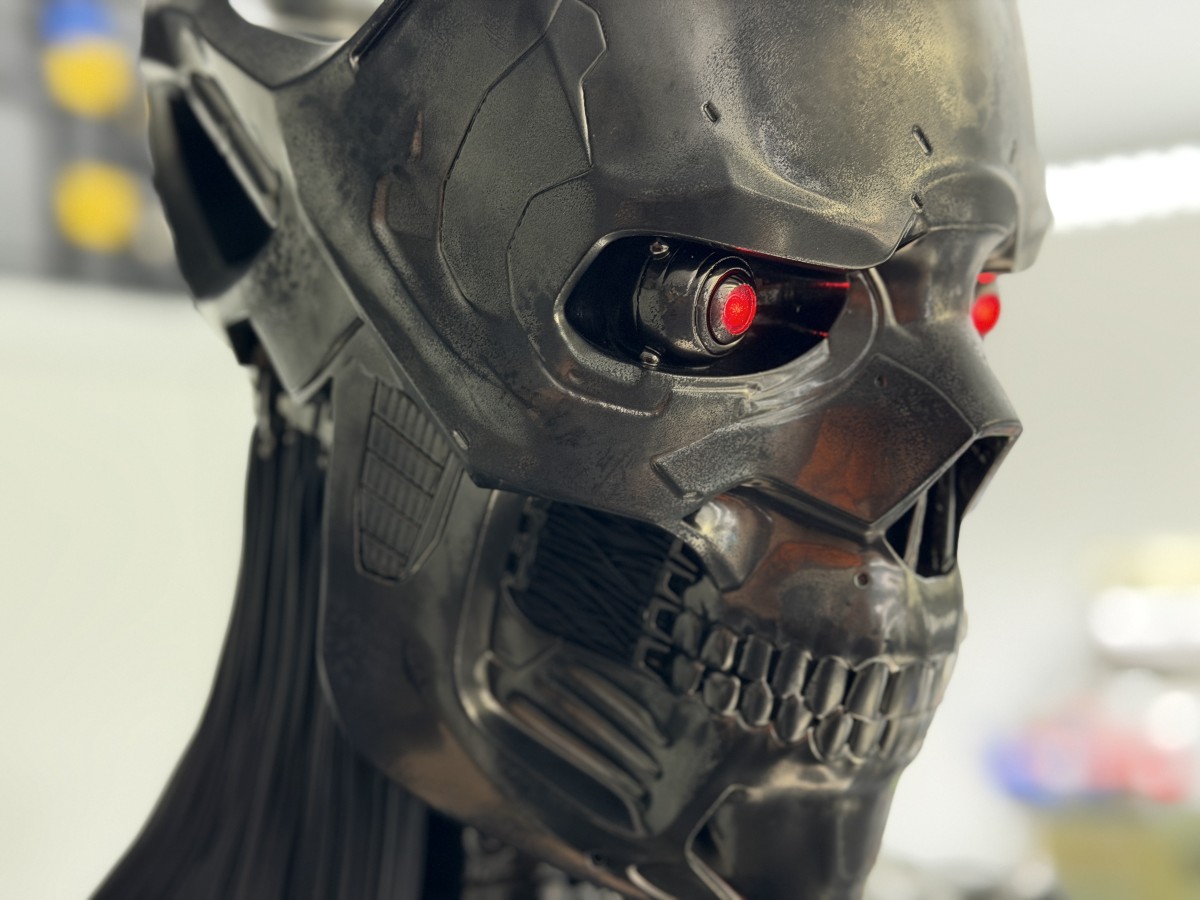

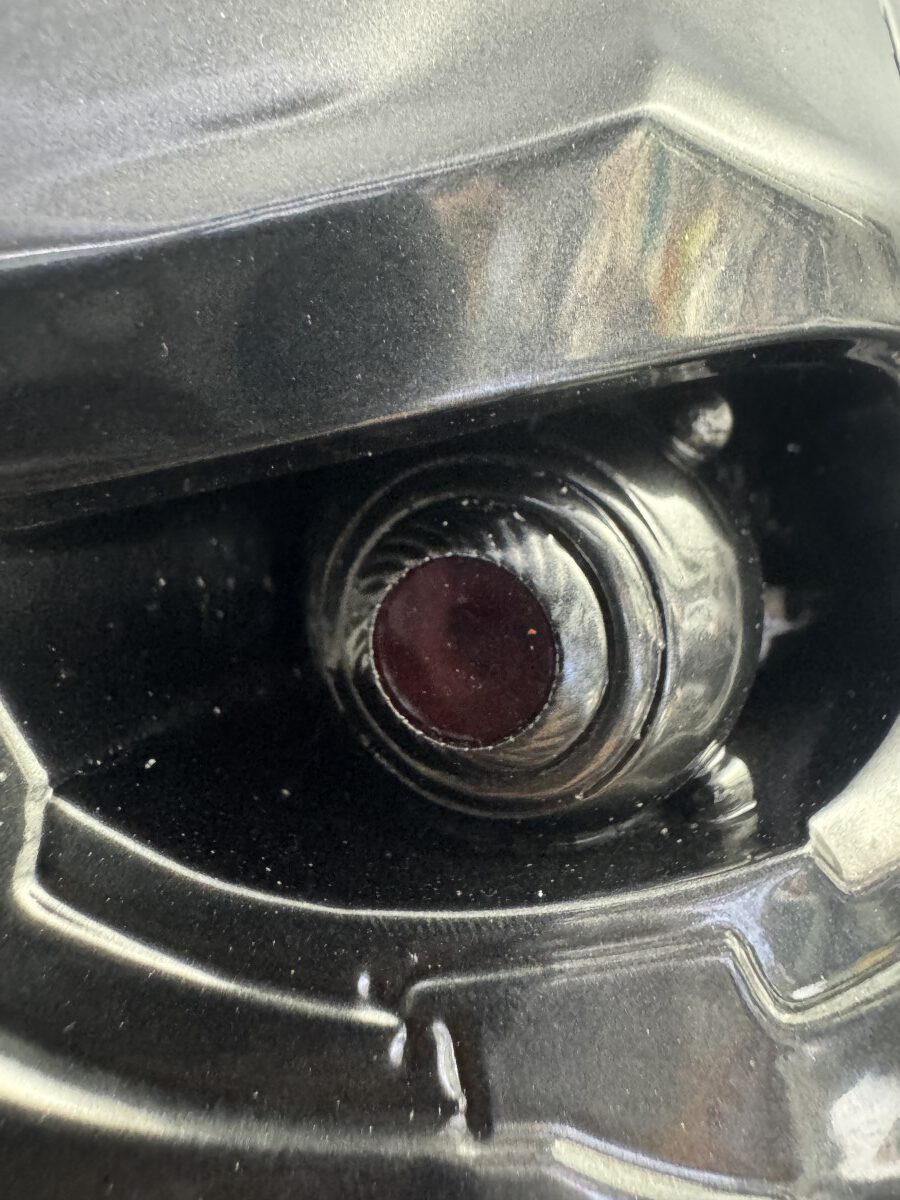

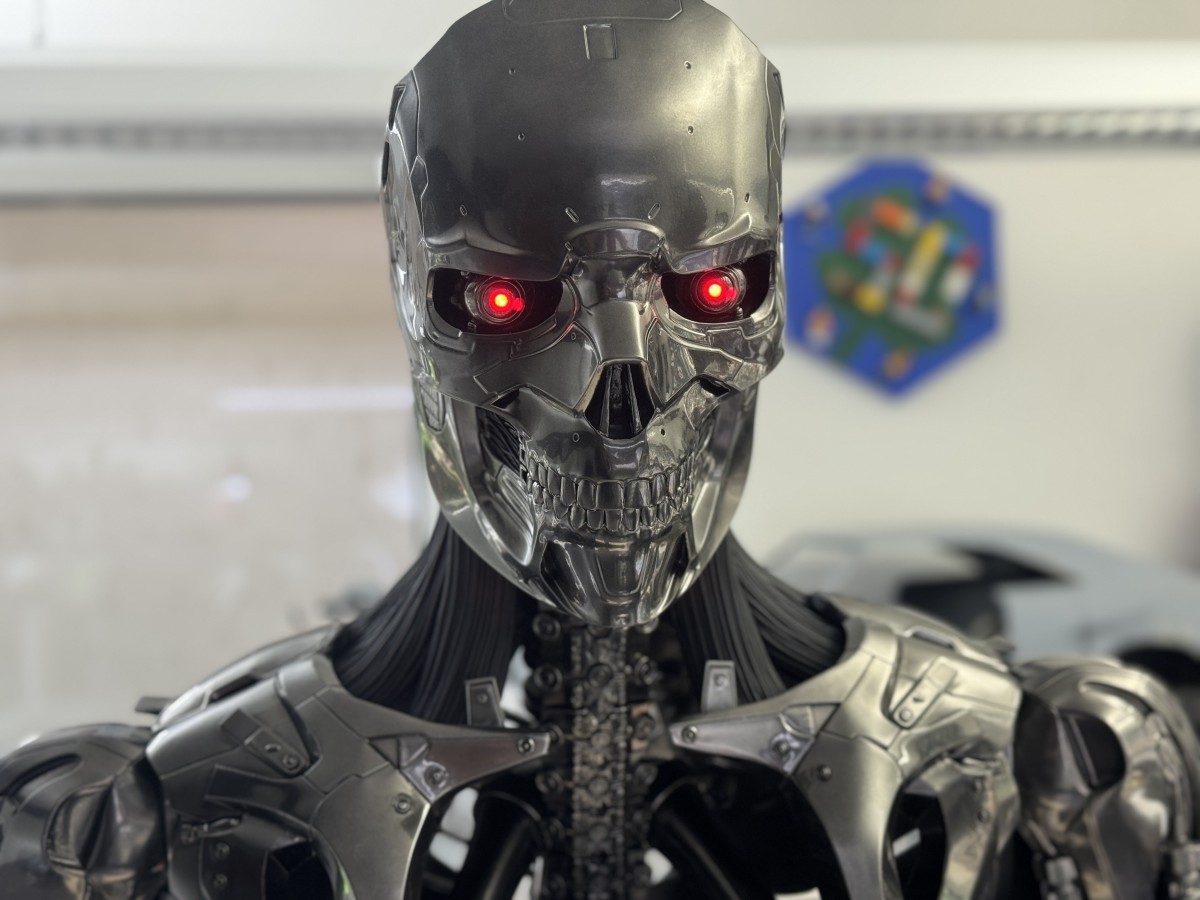

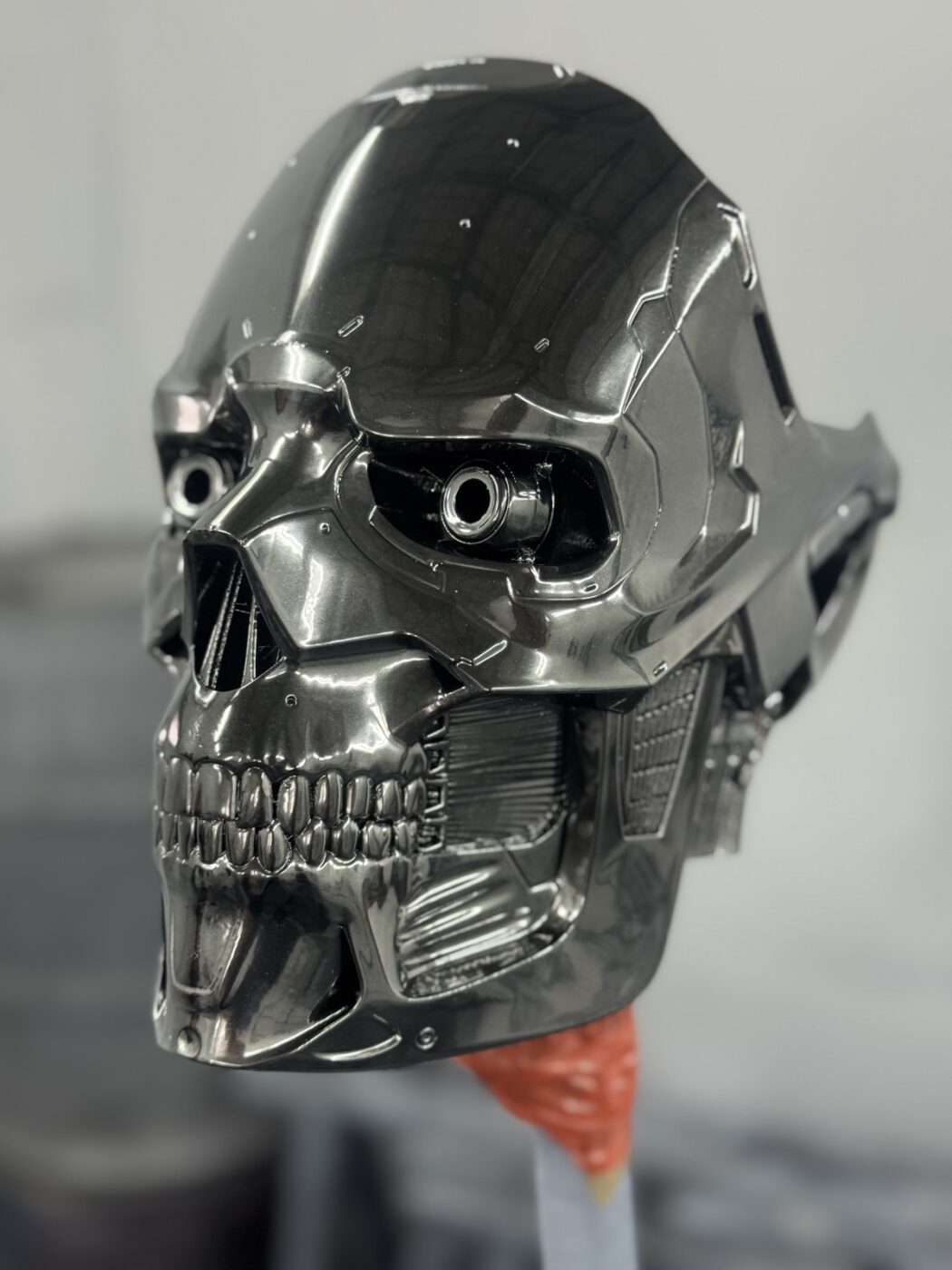

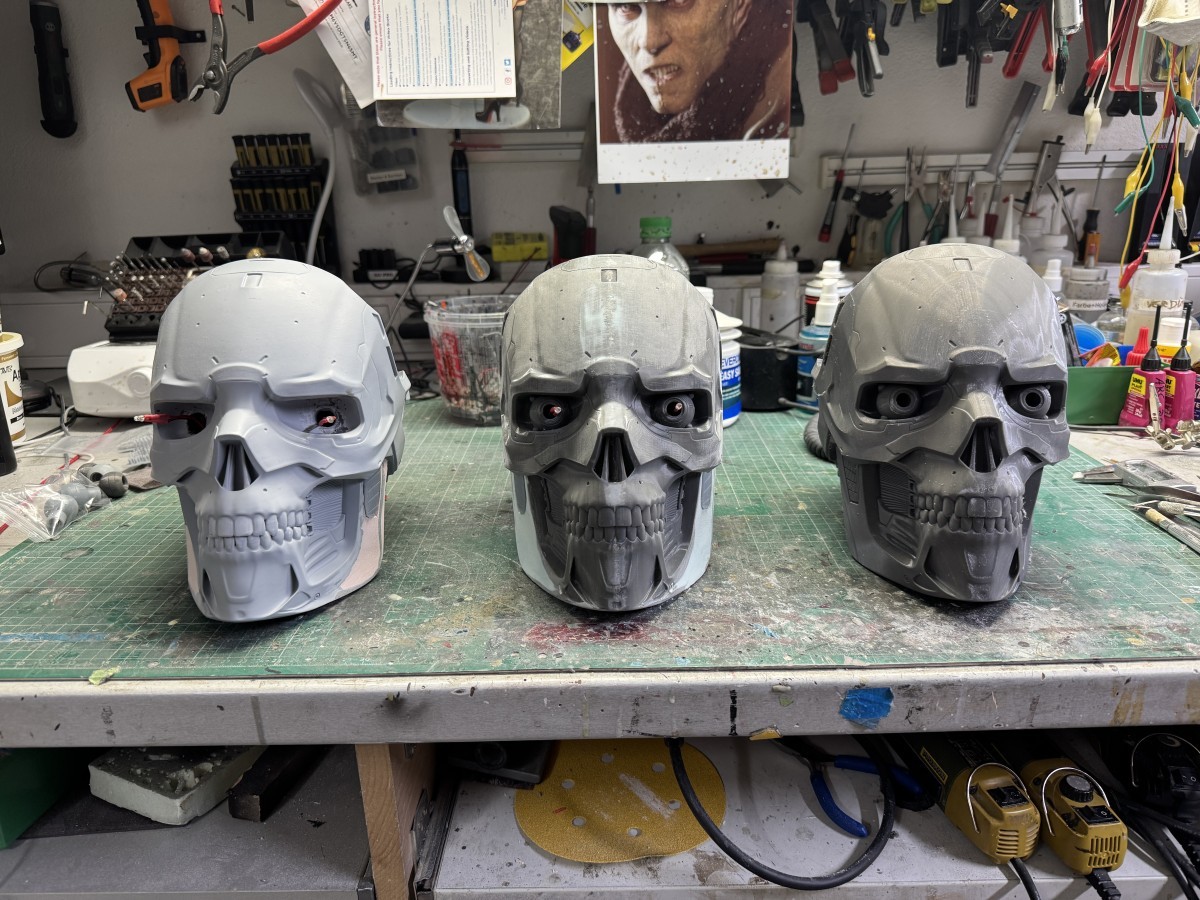

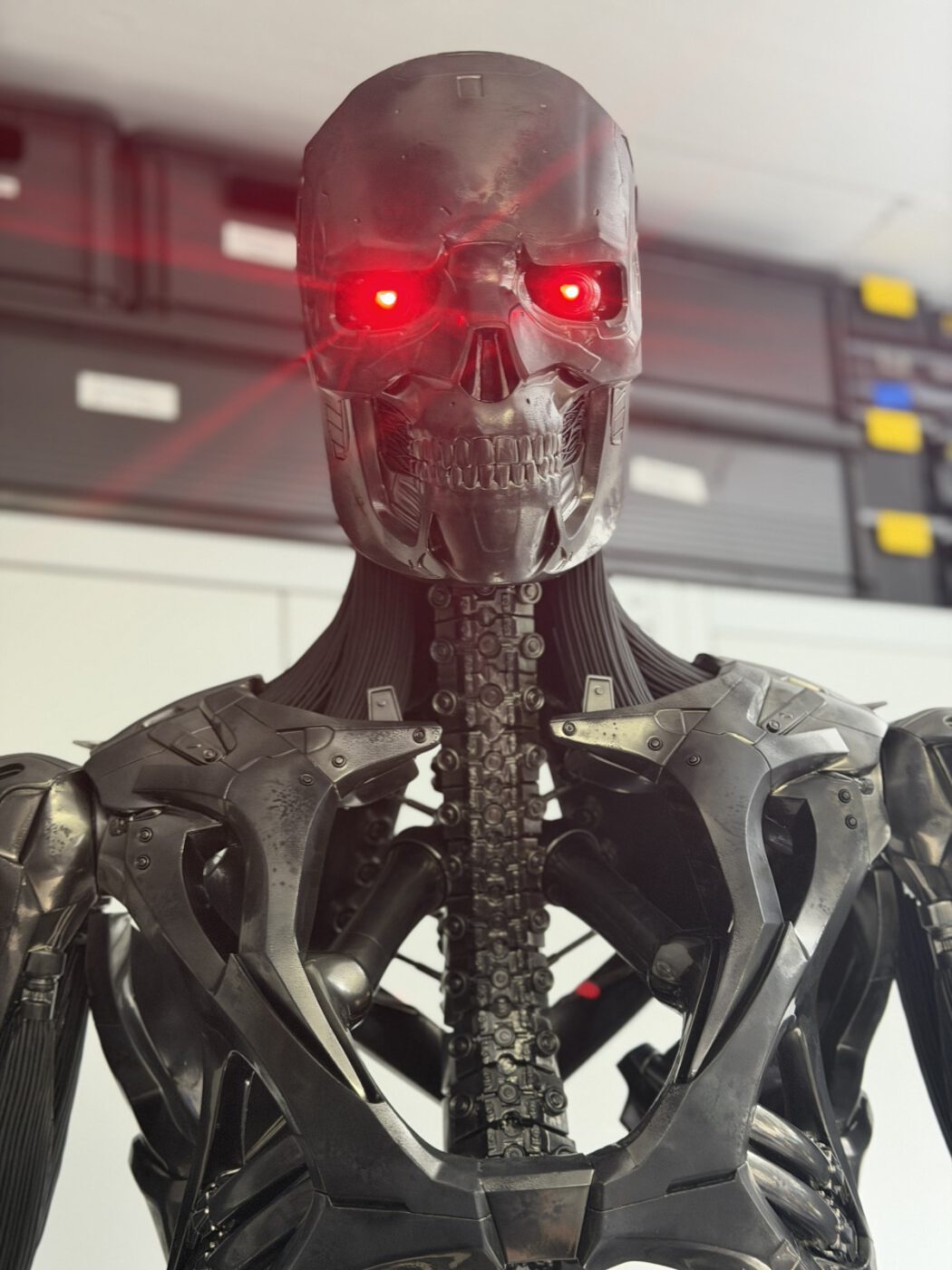

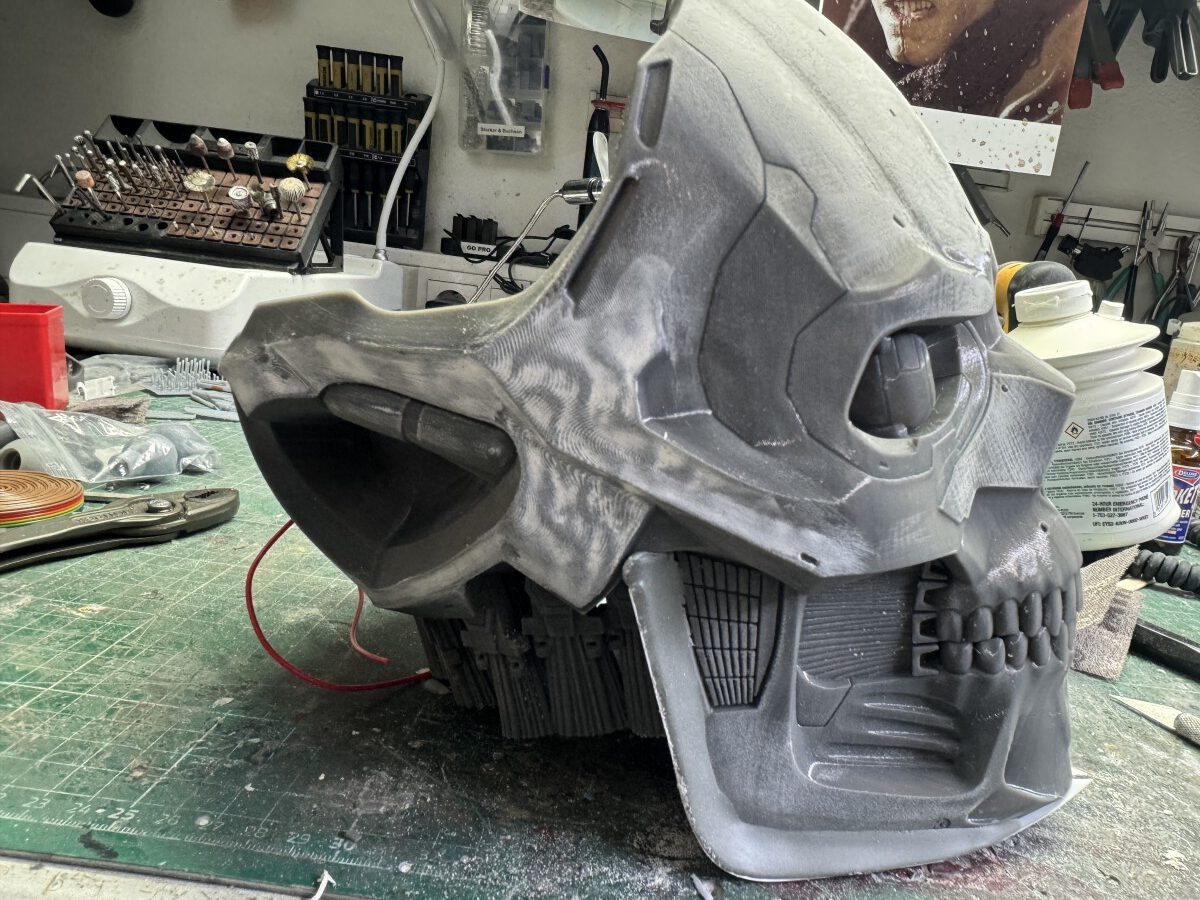

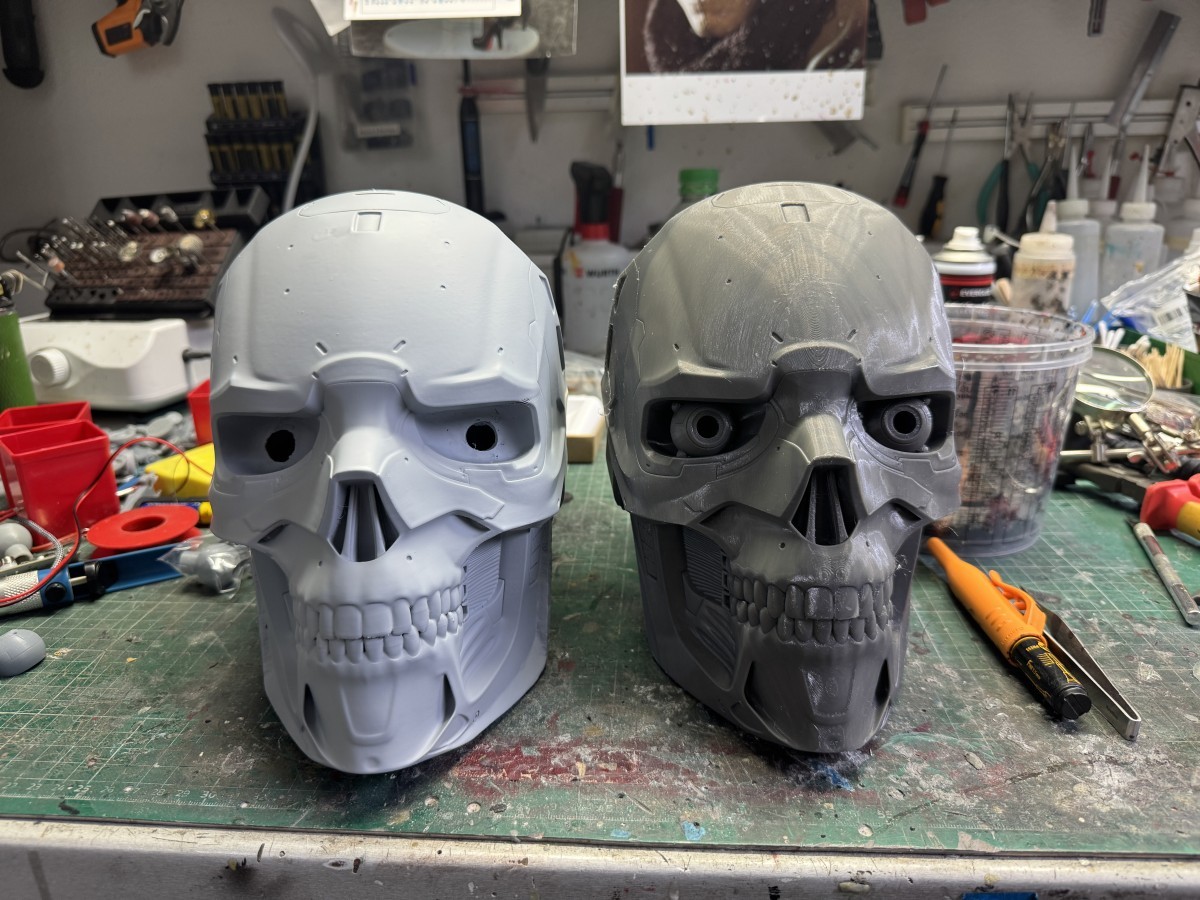

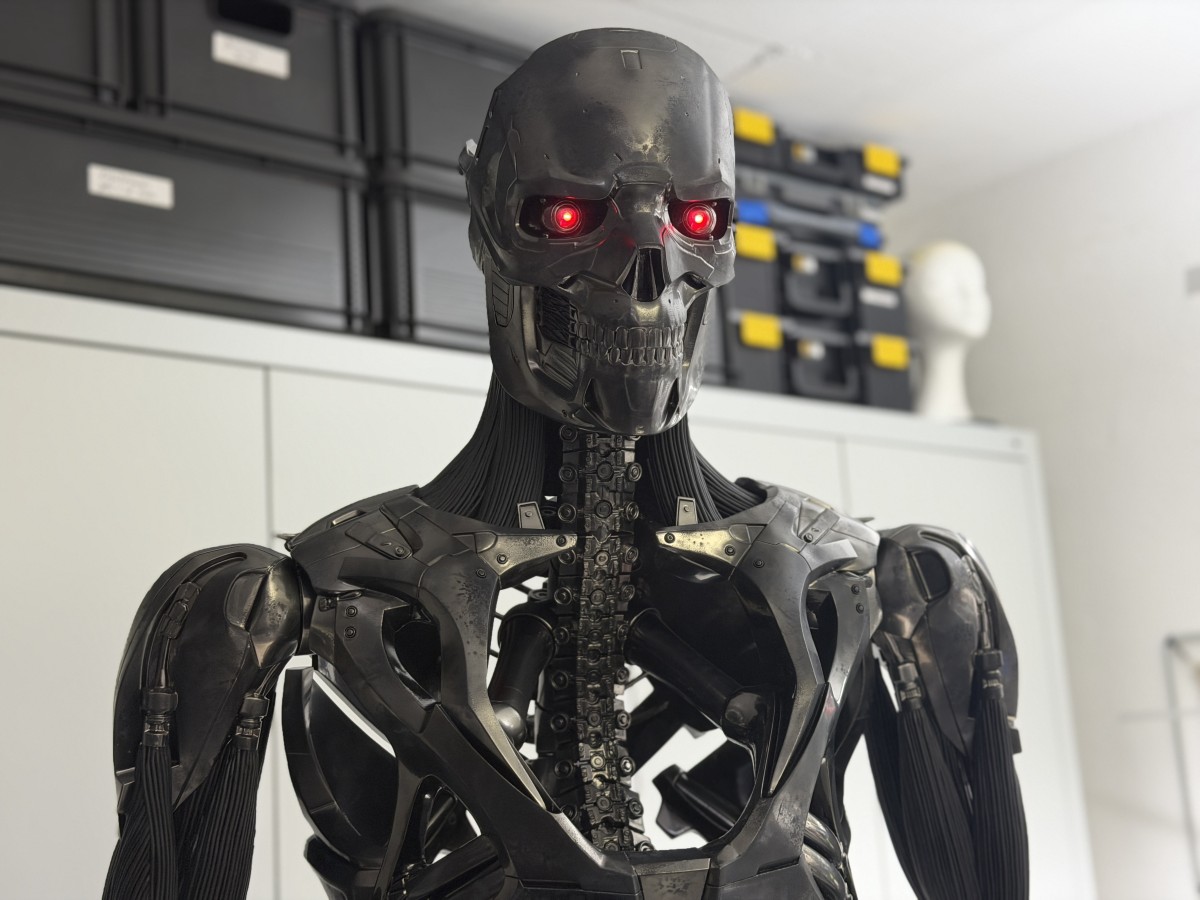

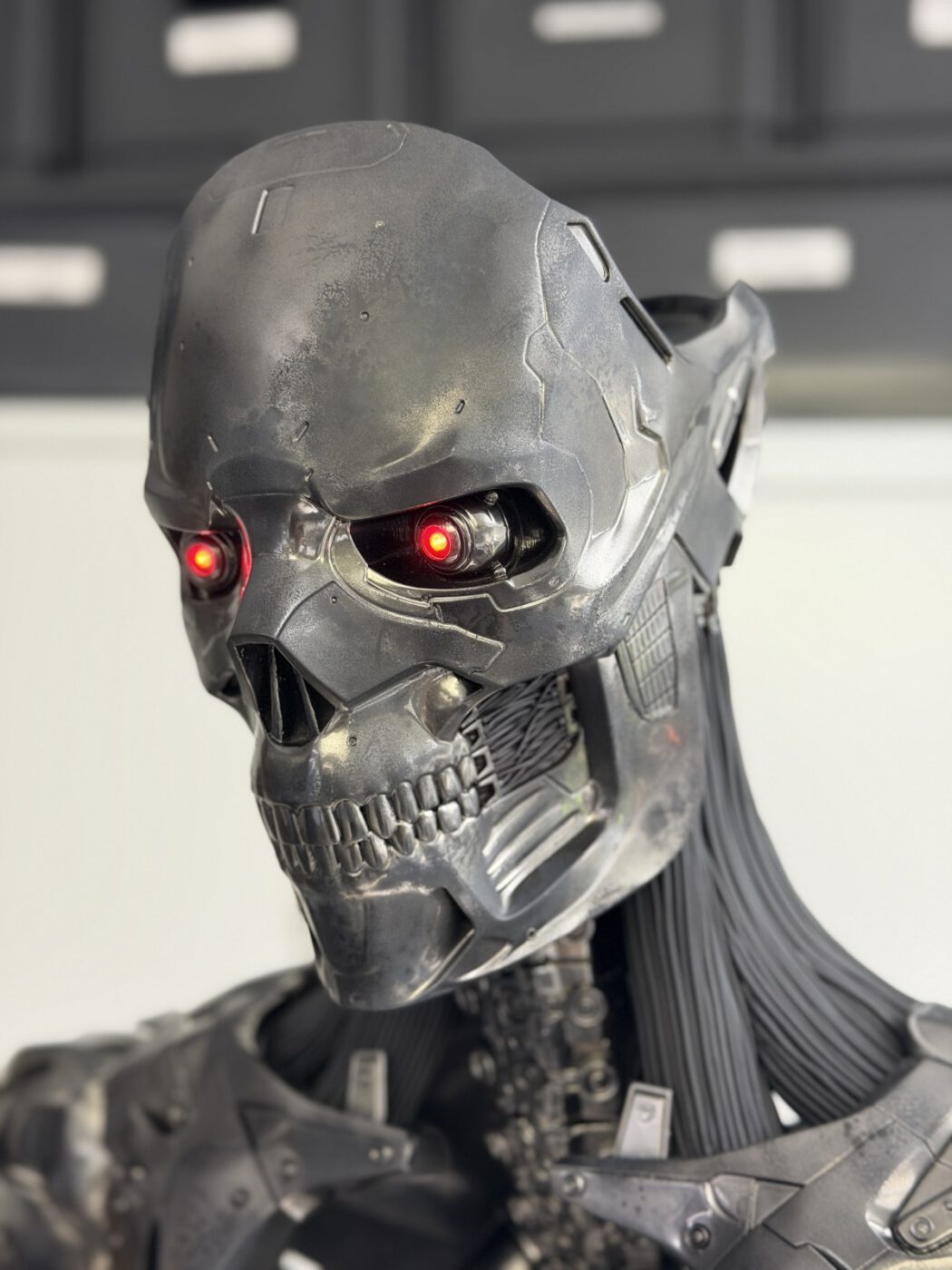

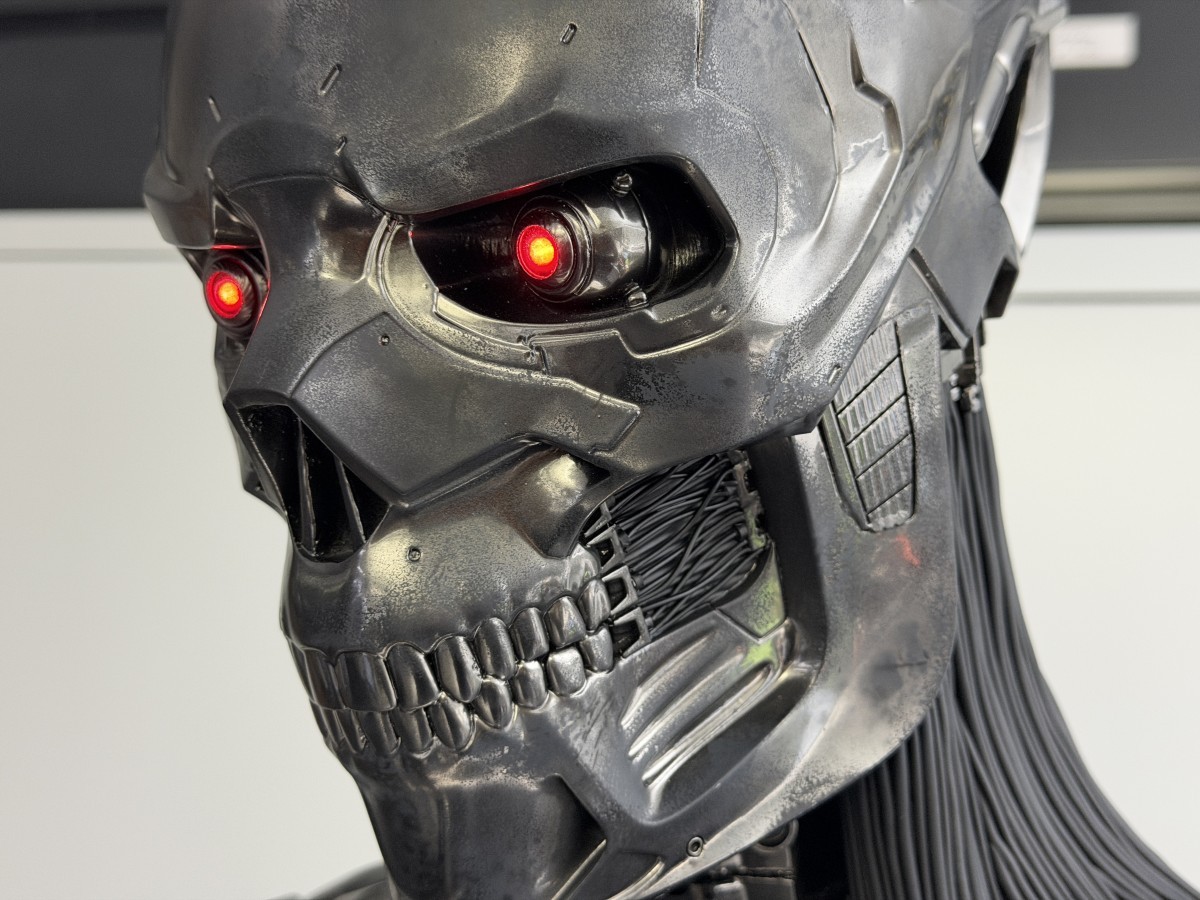

- Completely reworked the eyes

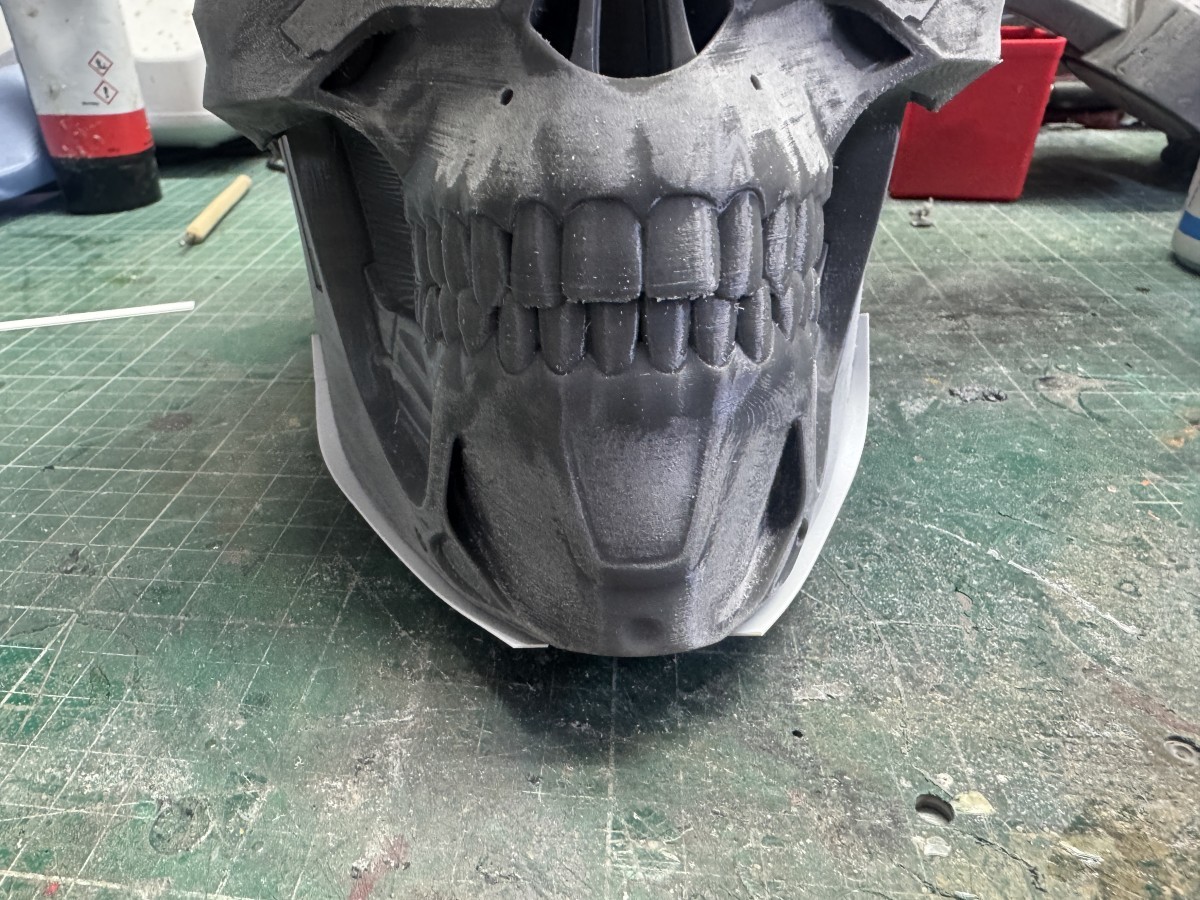

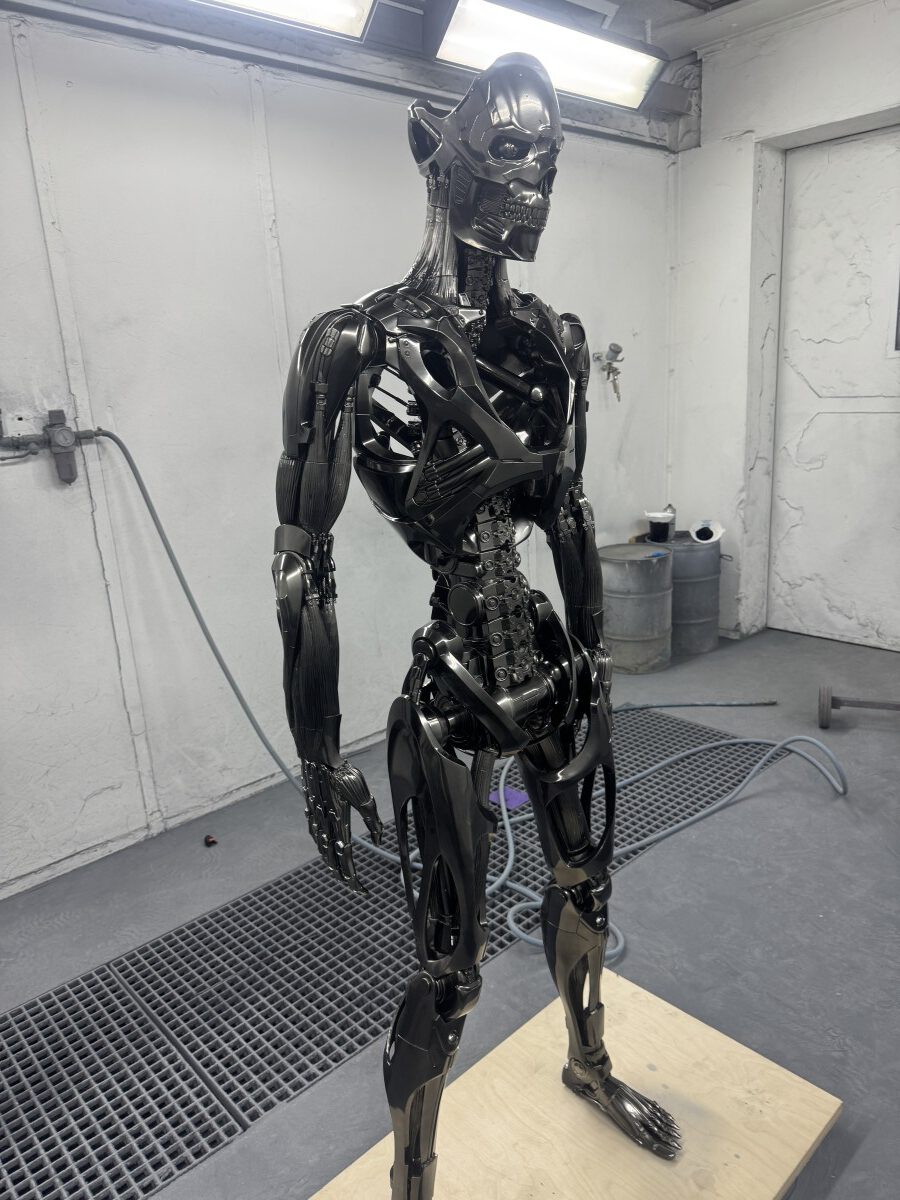

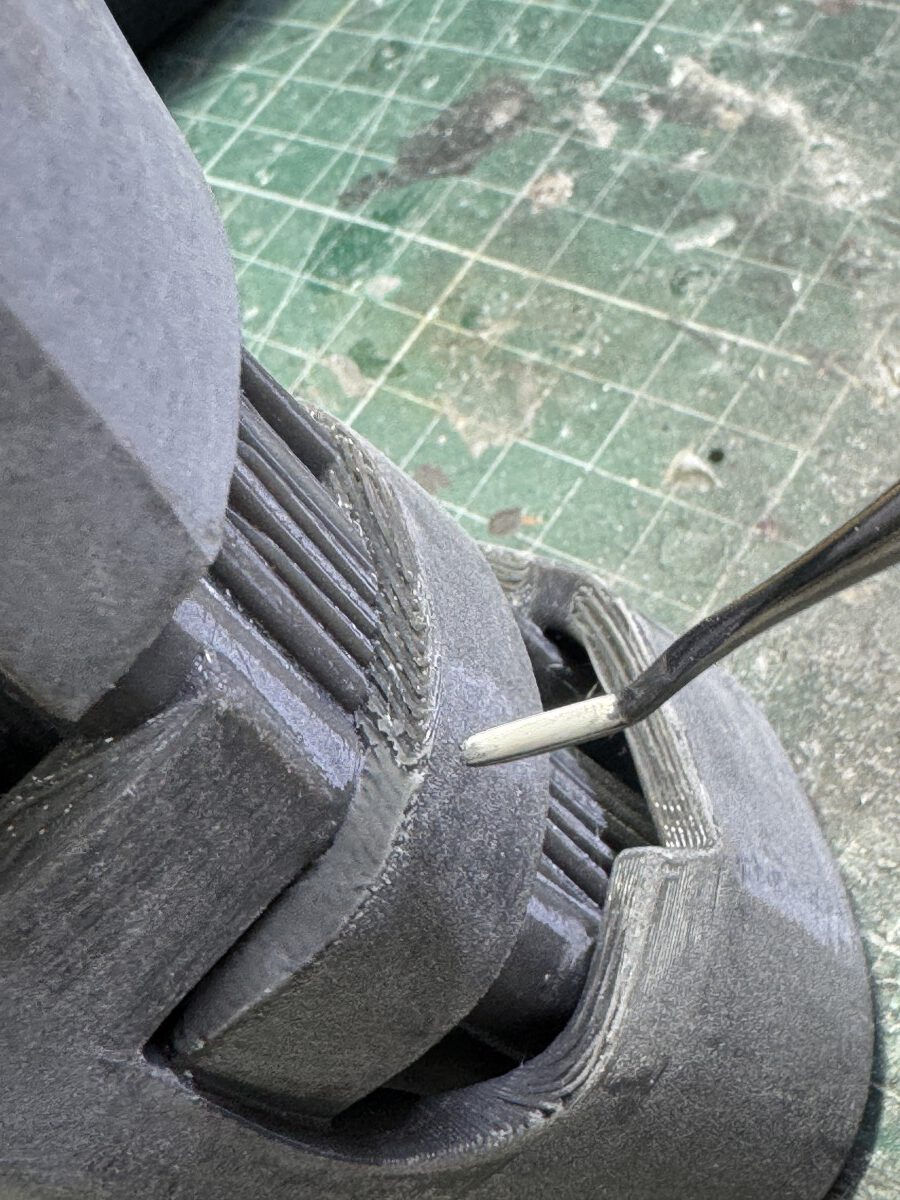

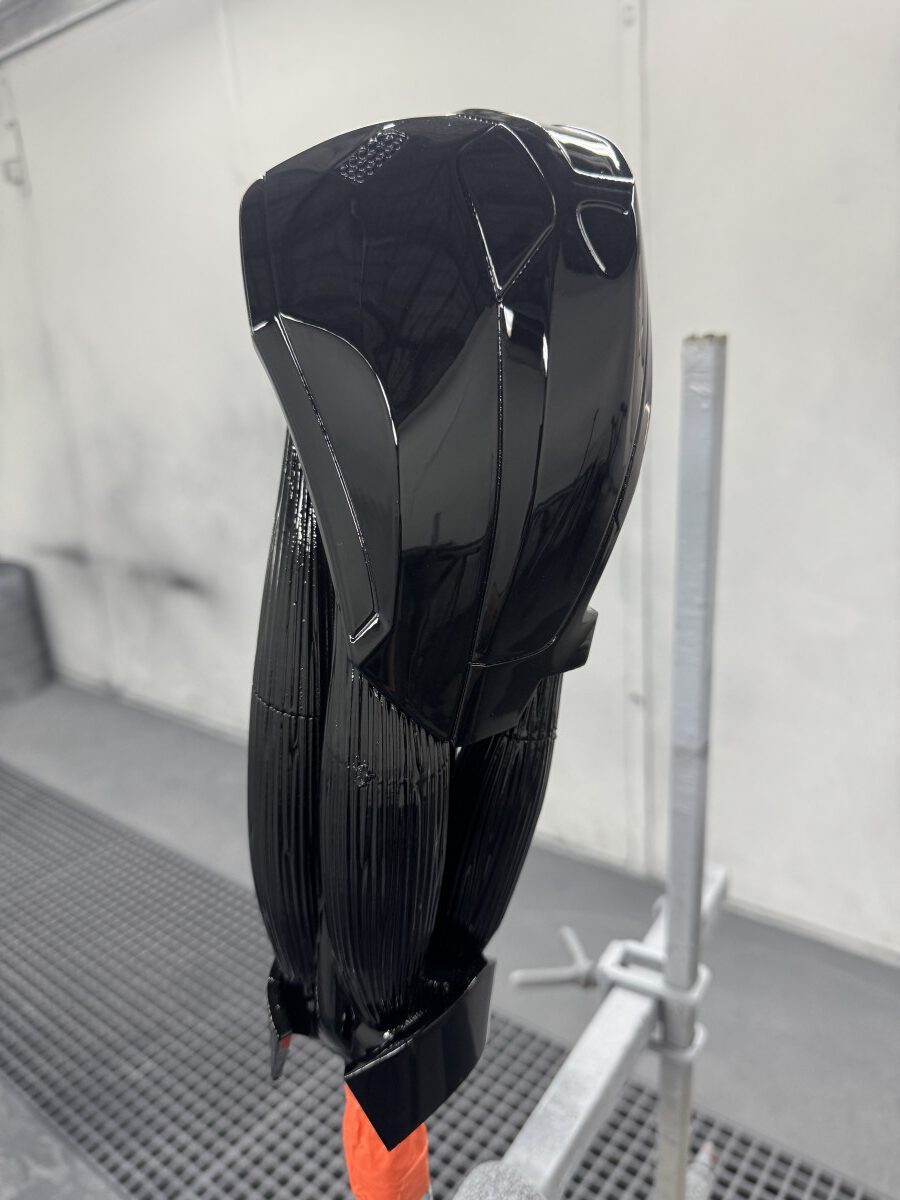

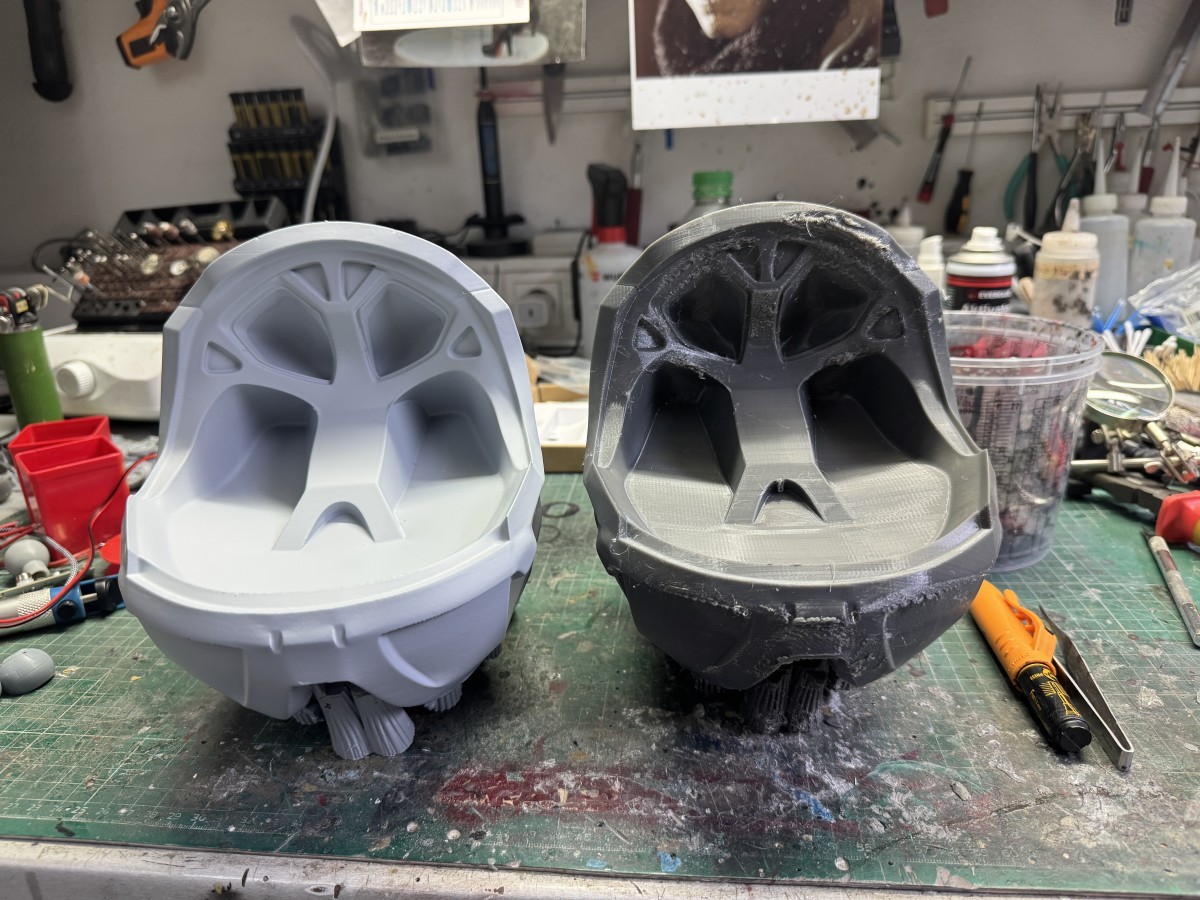

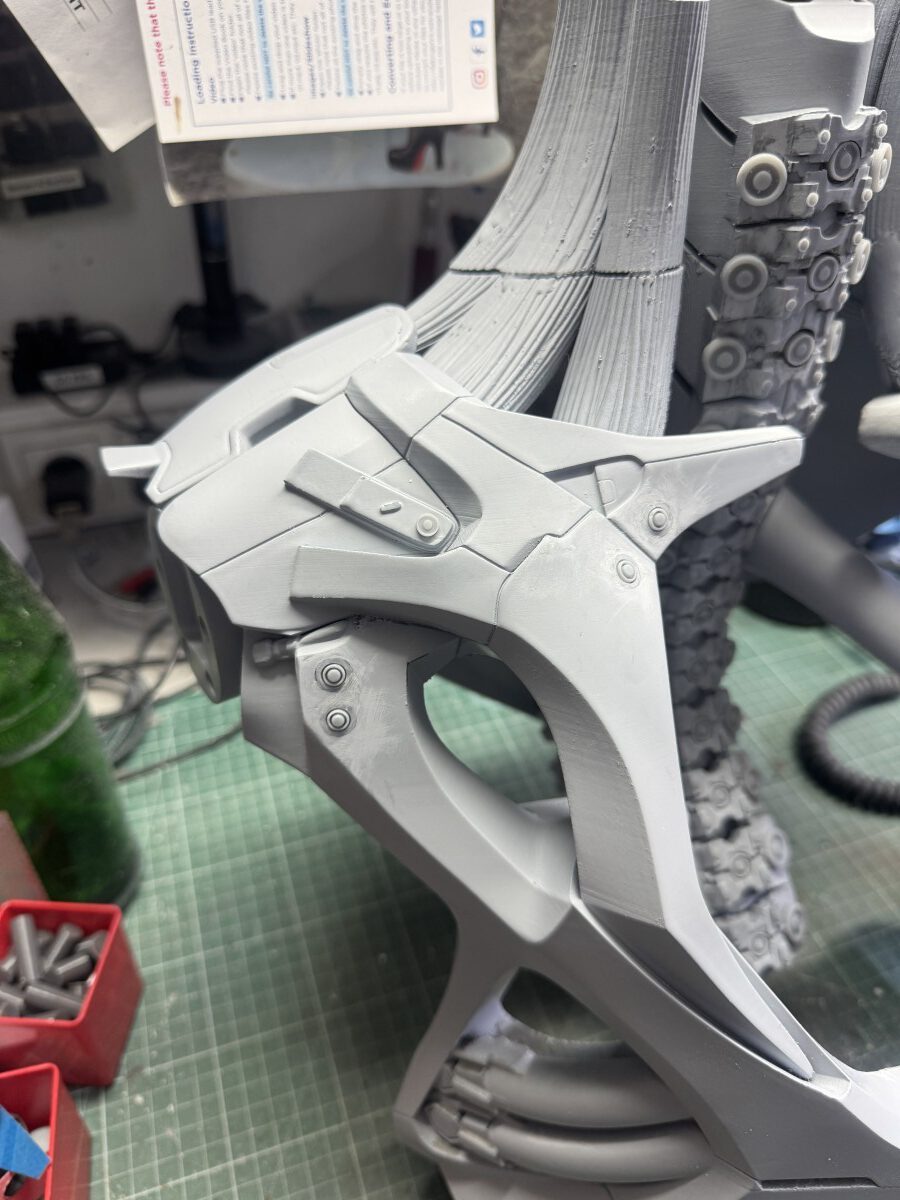

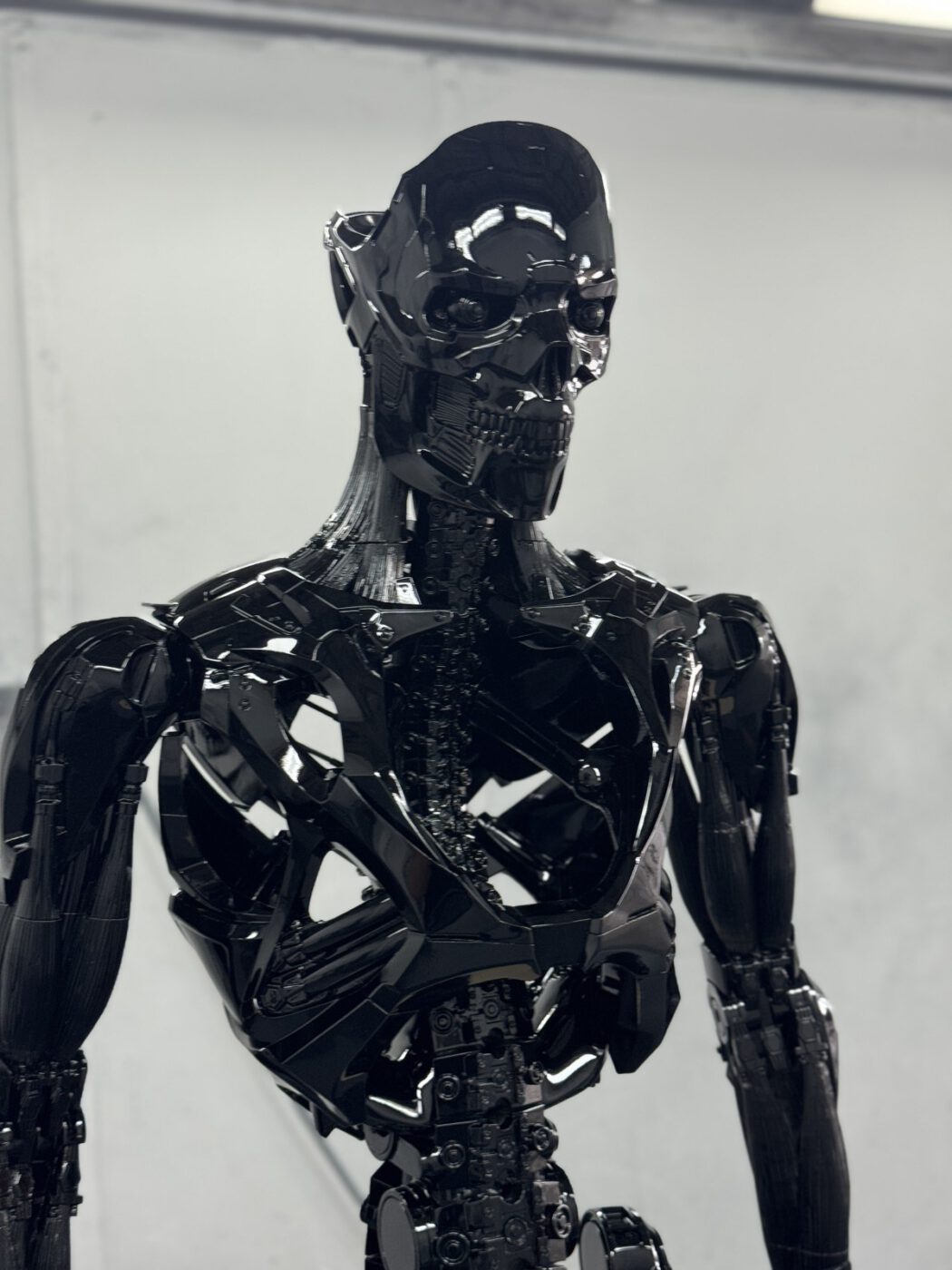

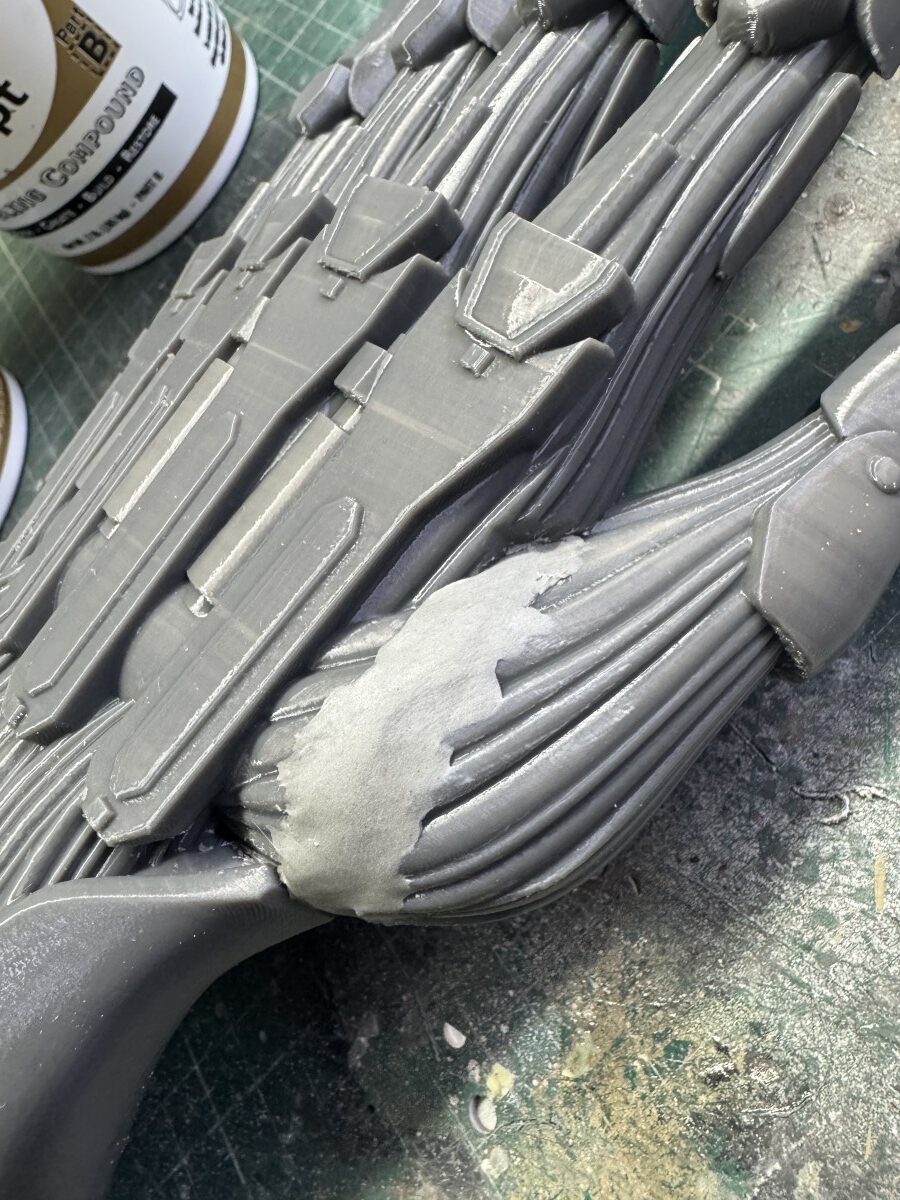

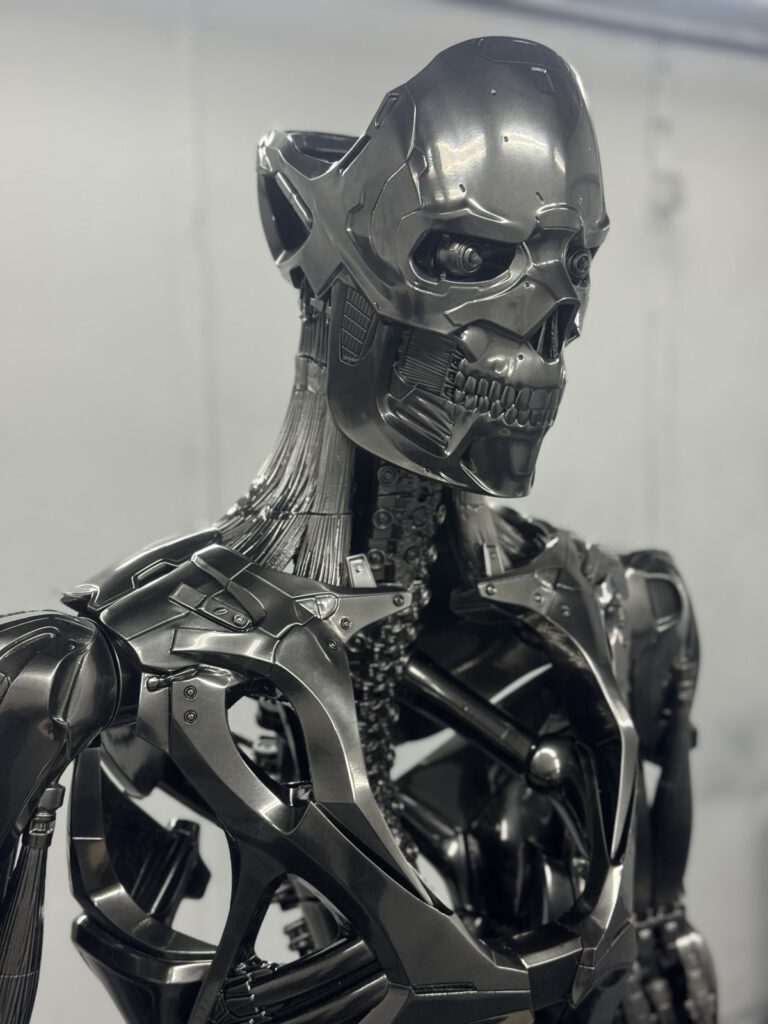

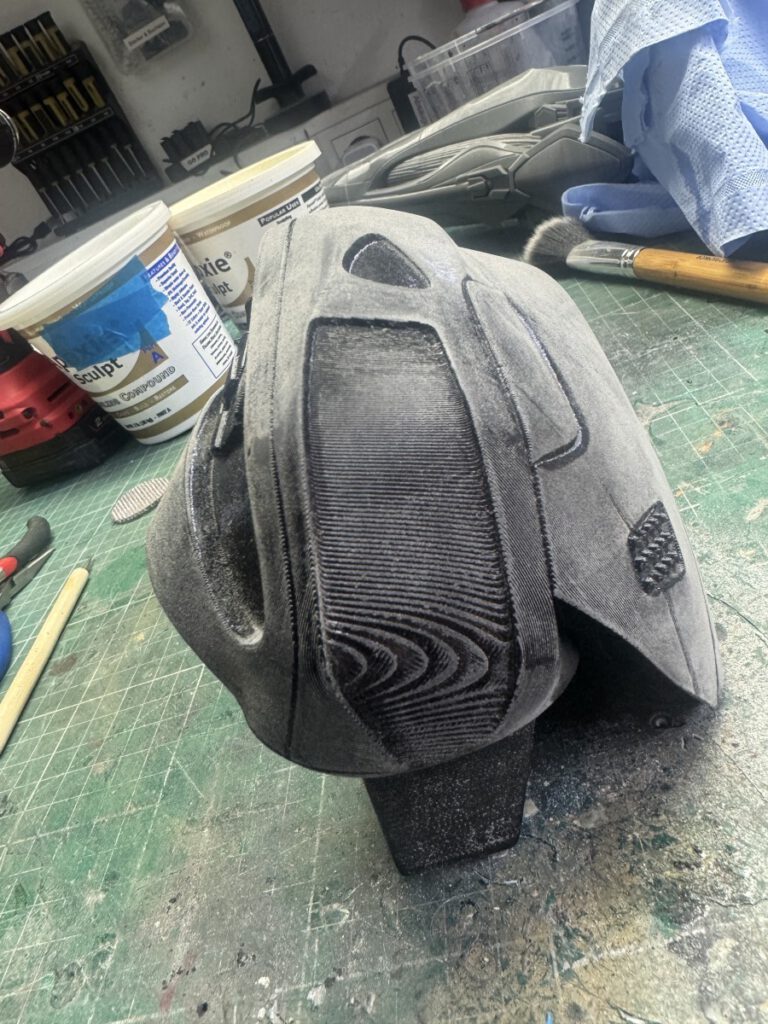

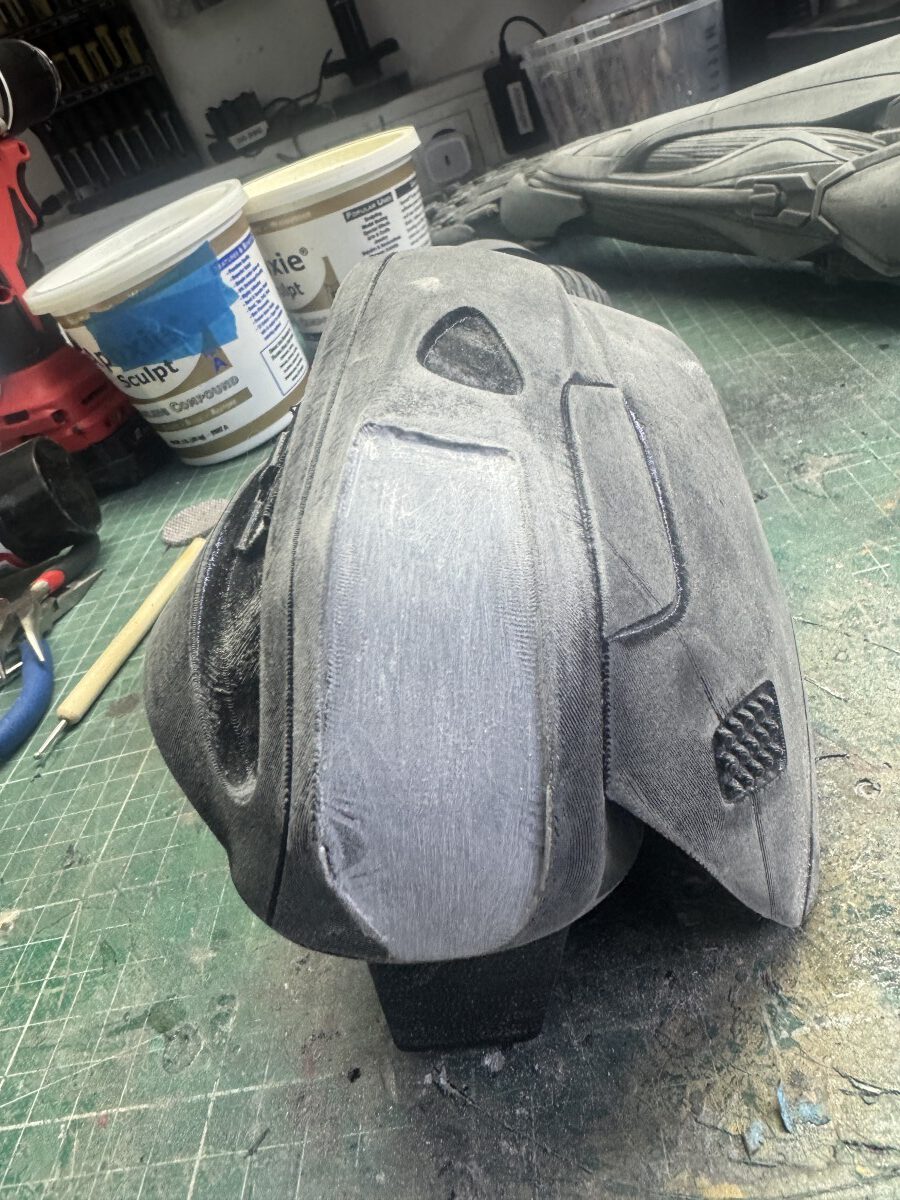

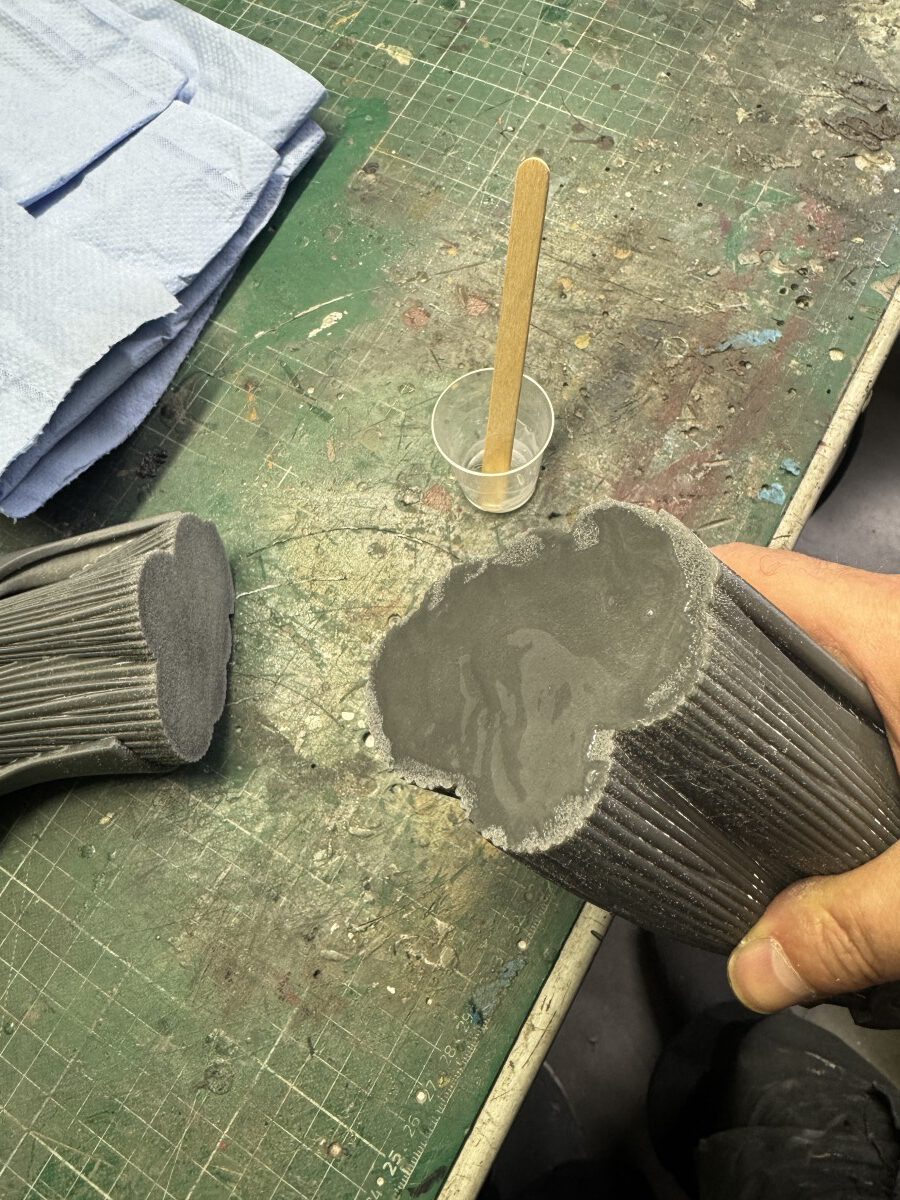

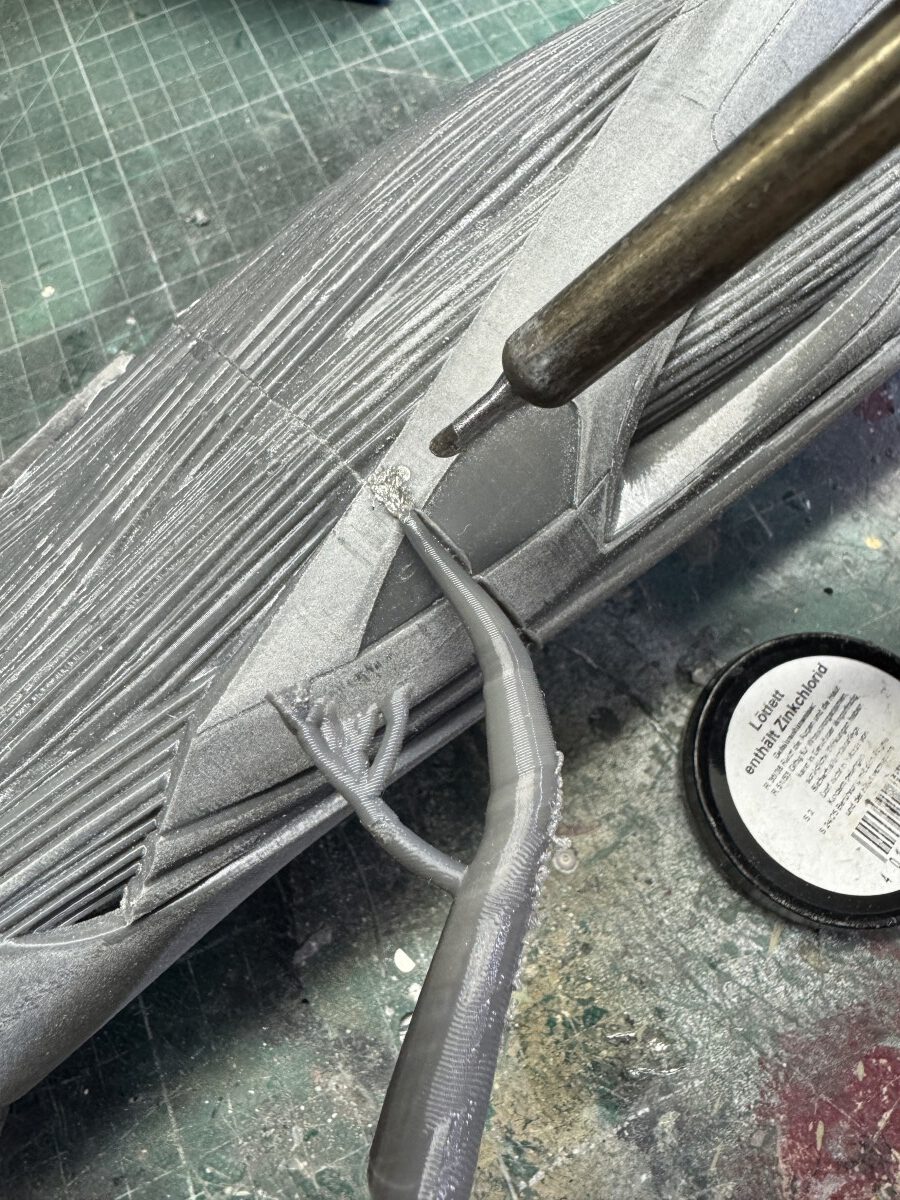

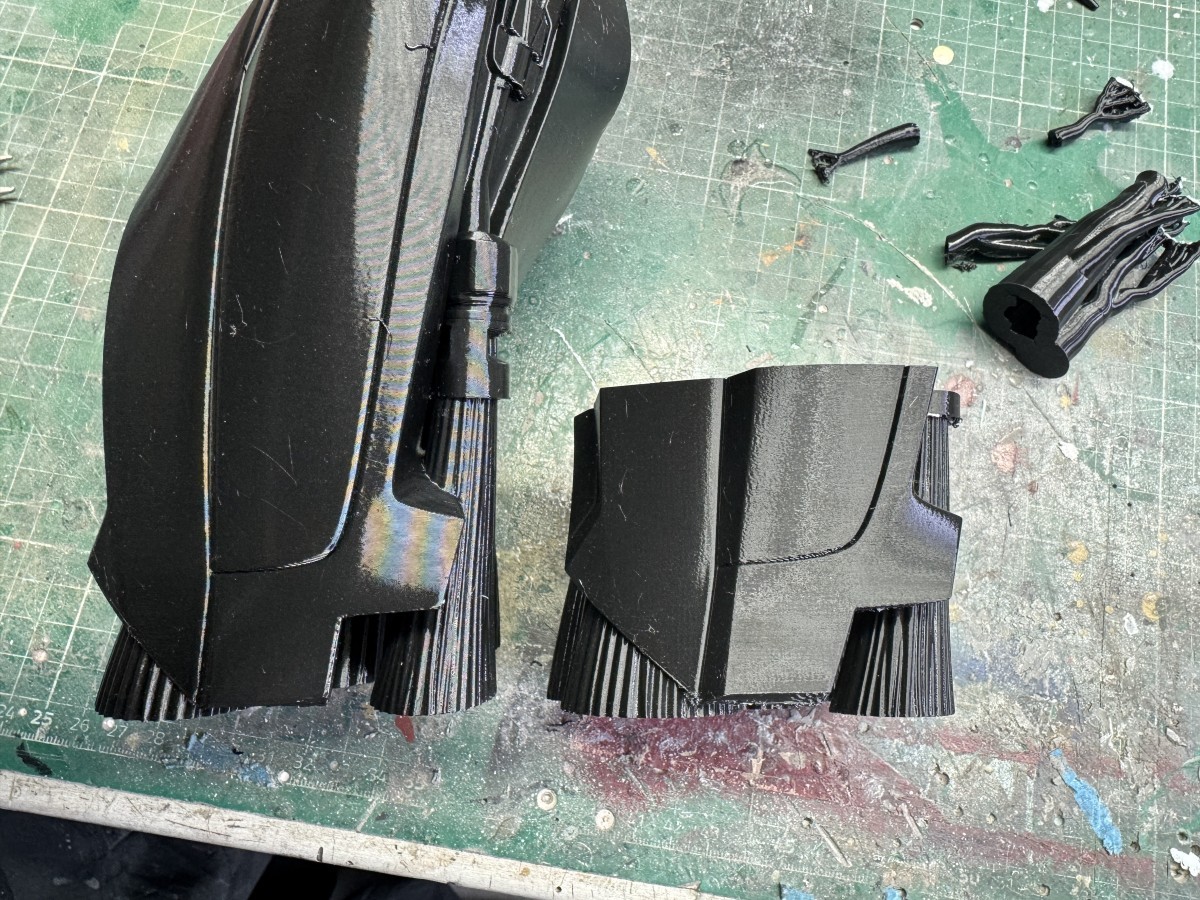

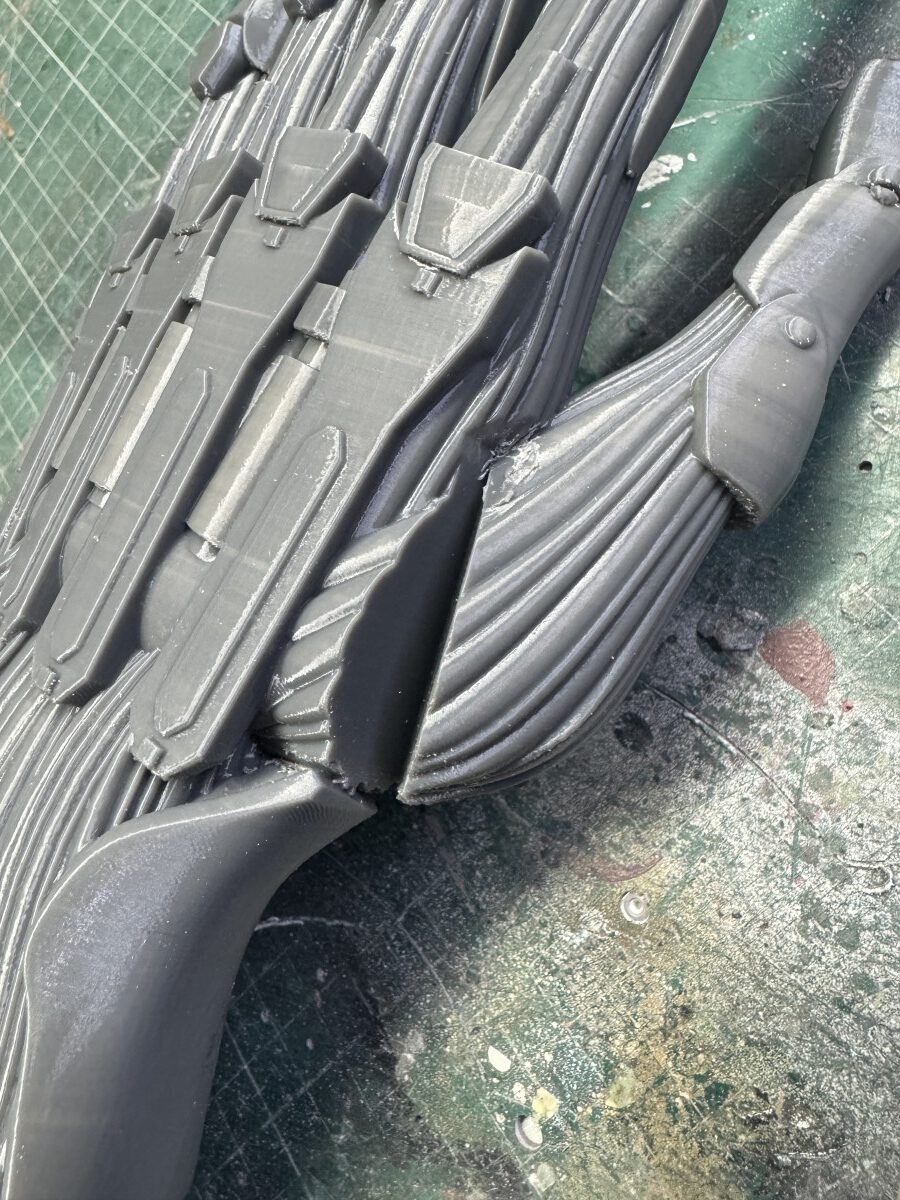

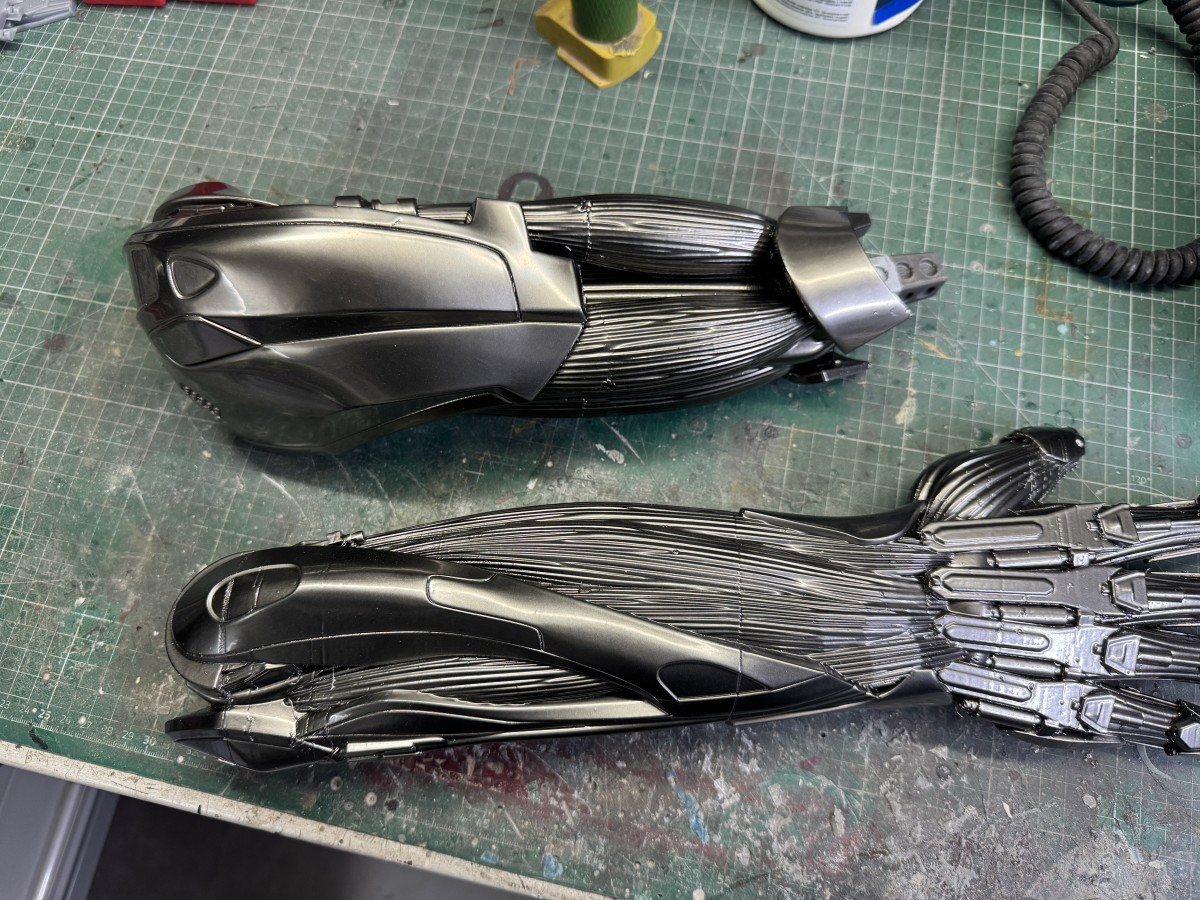

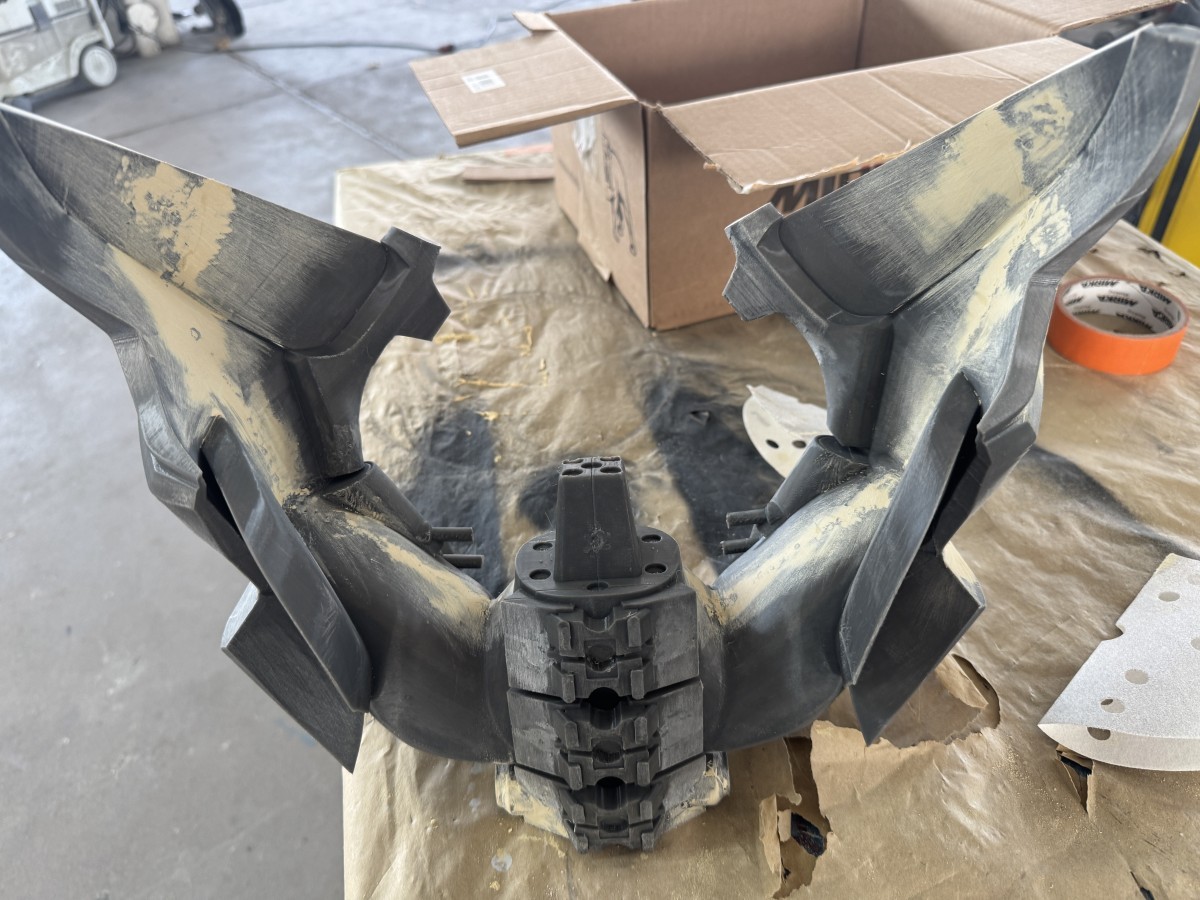

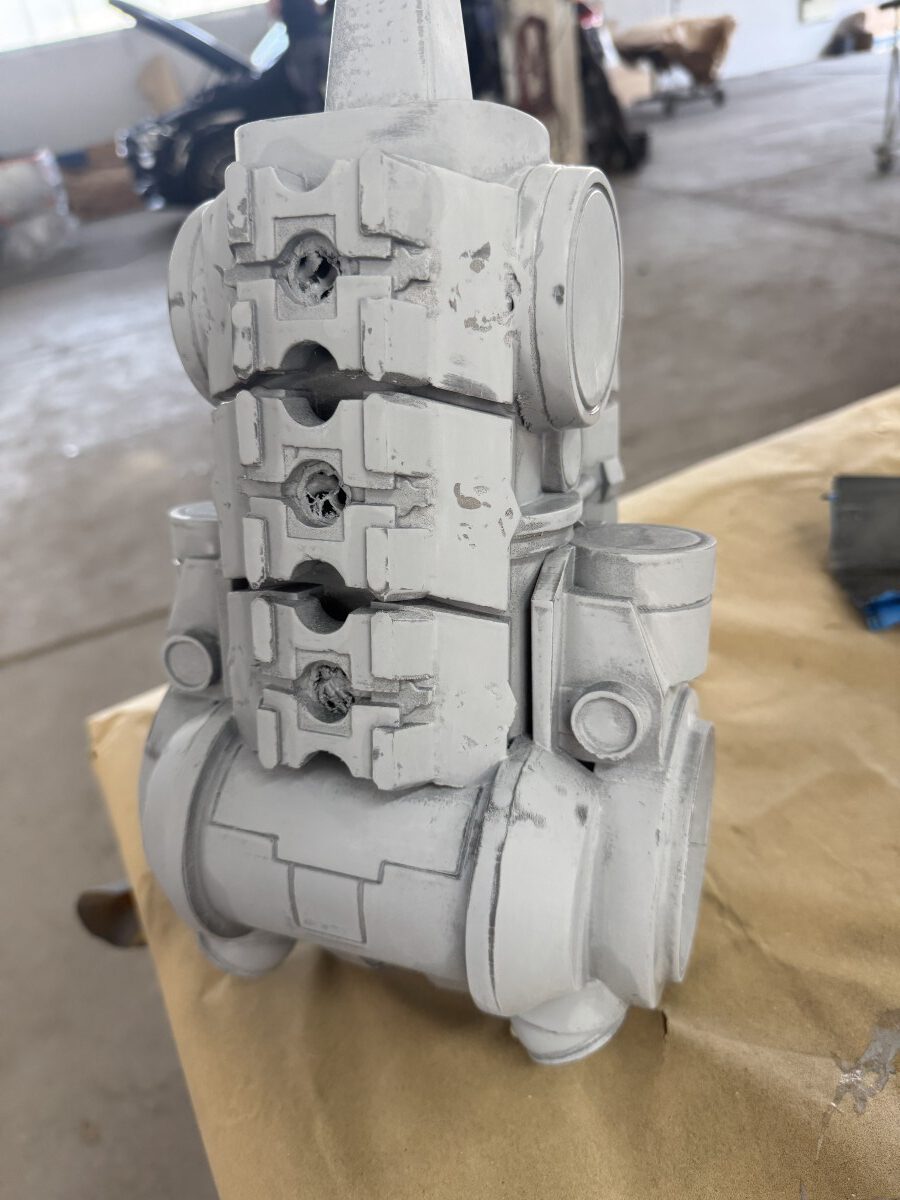

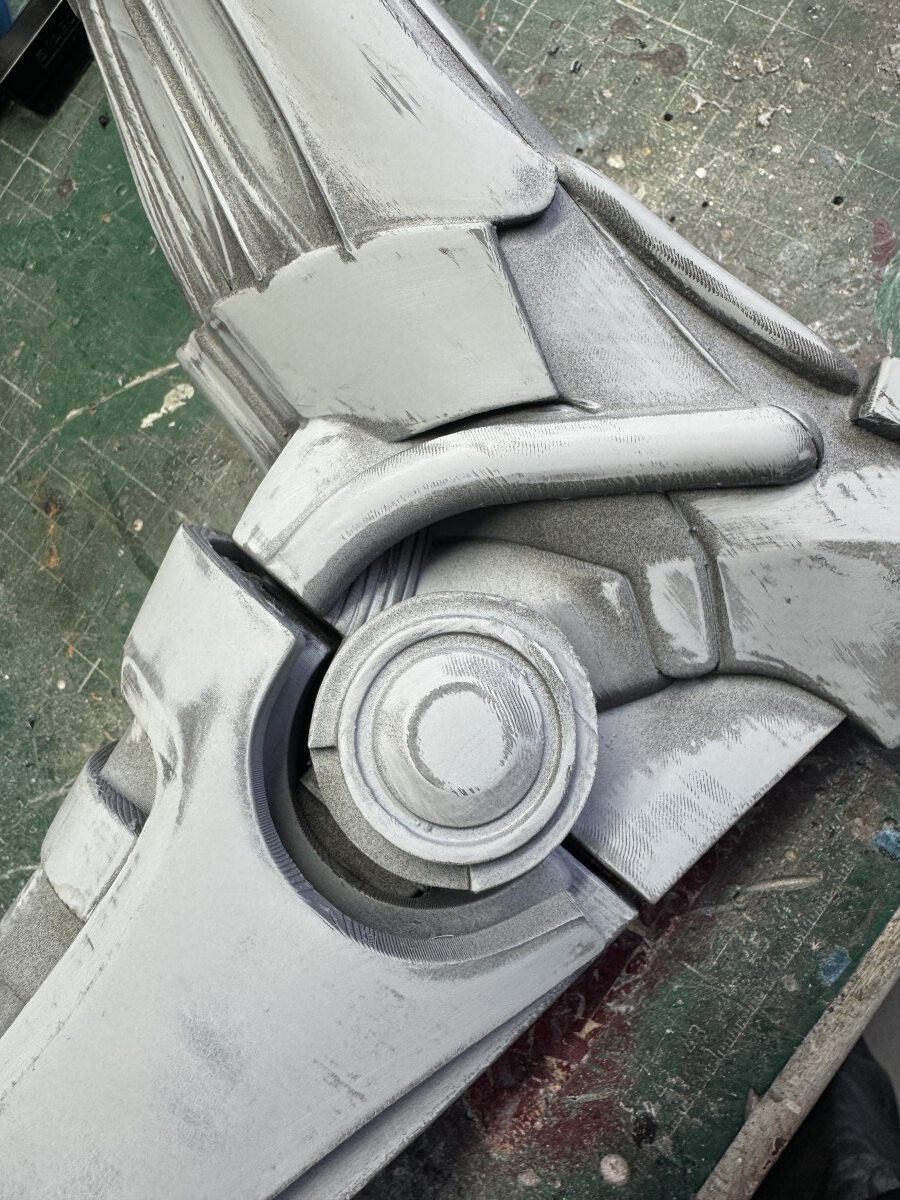

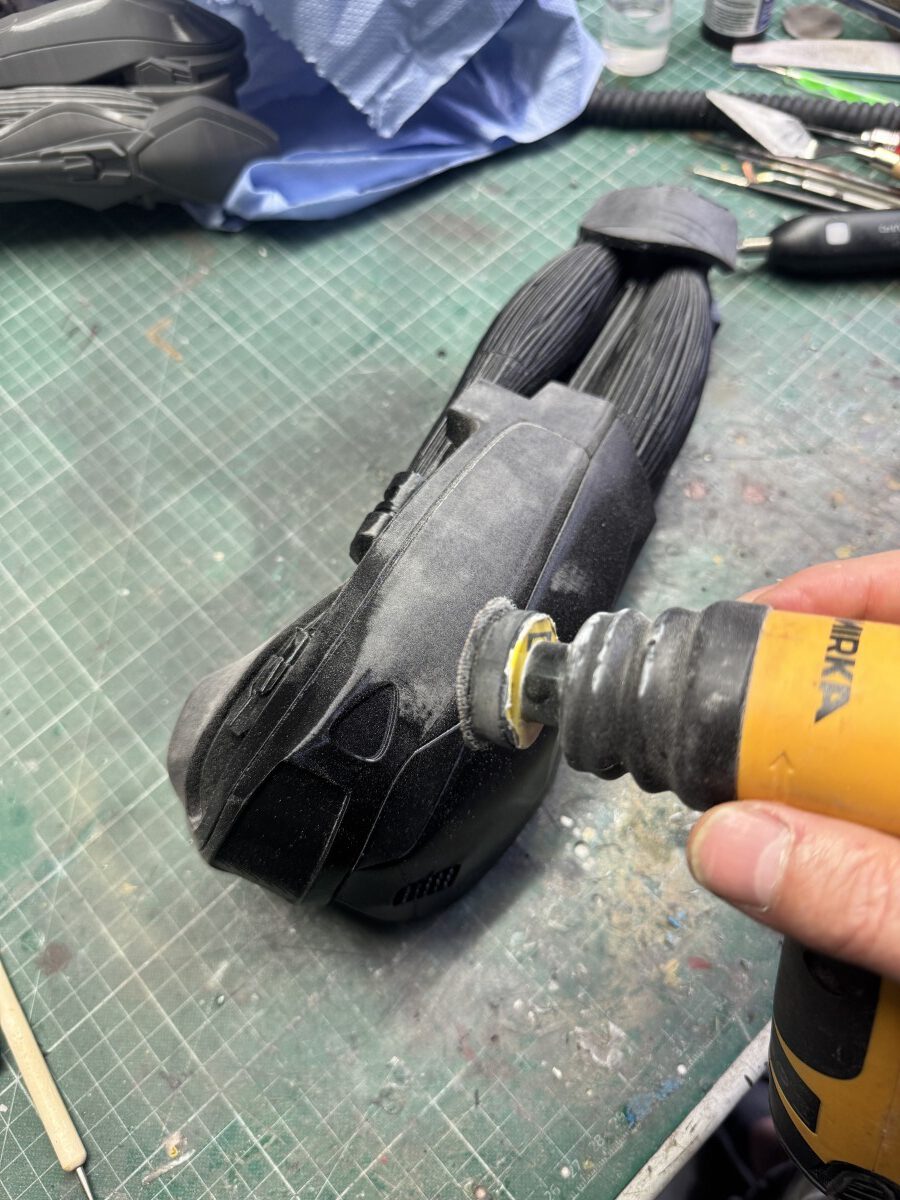

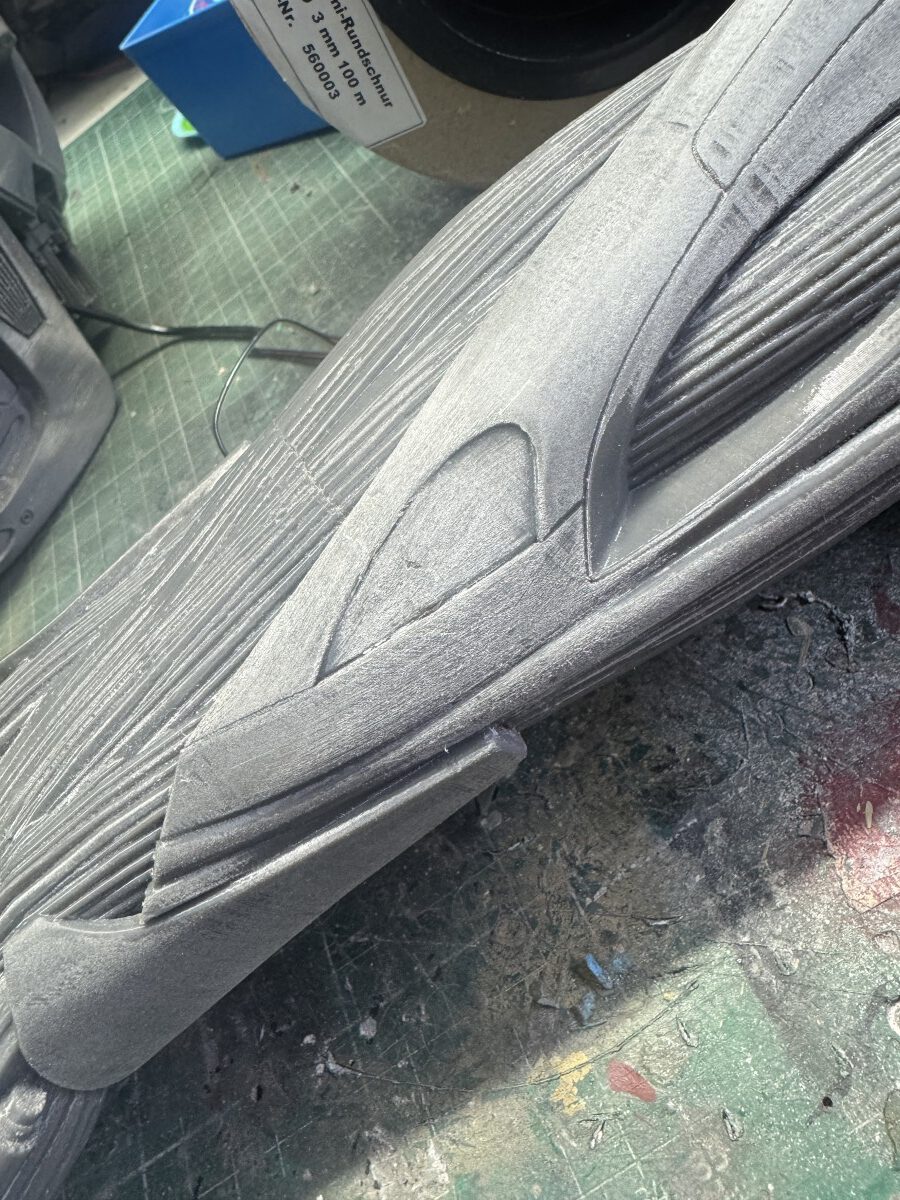

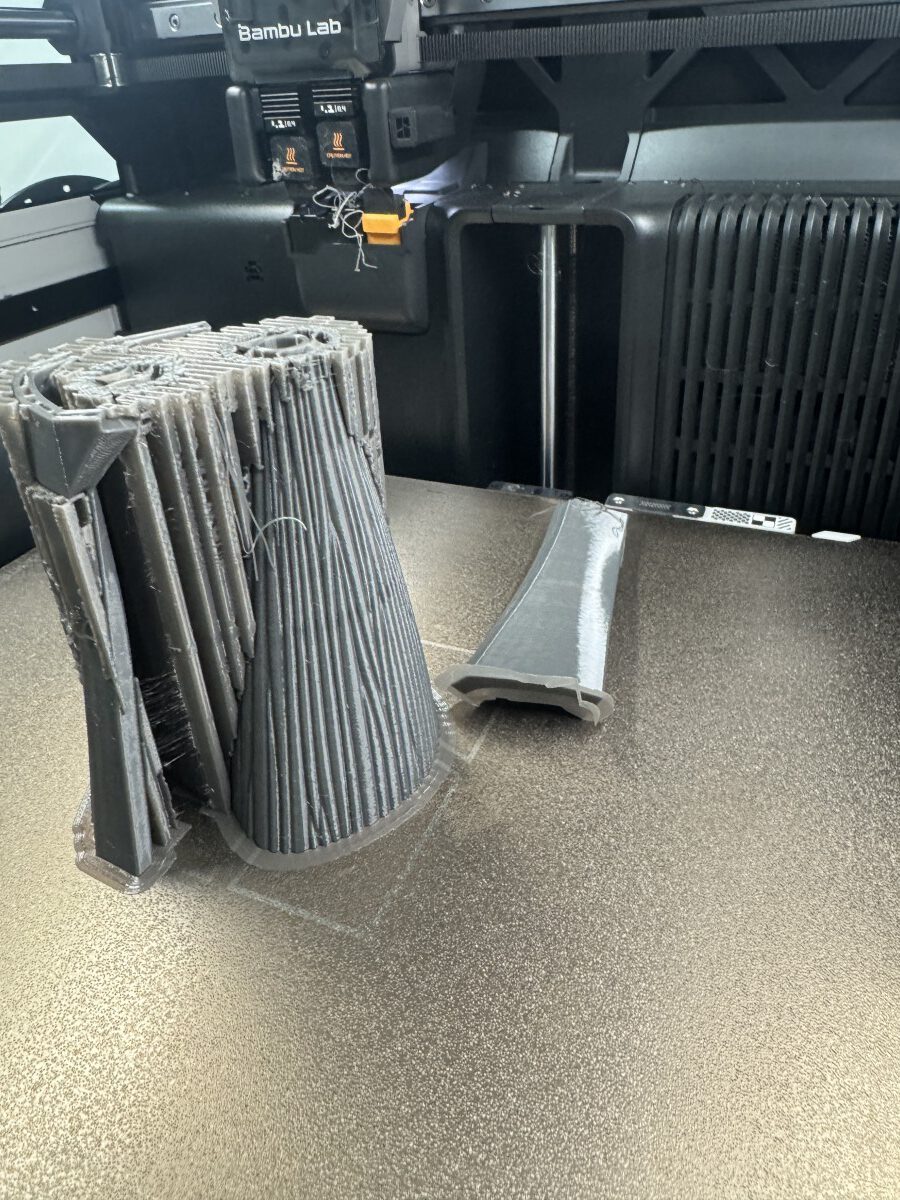

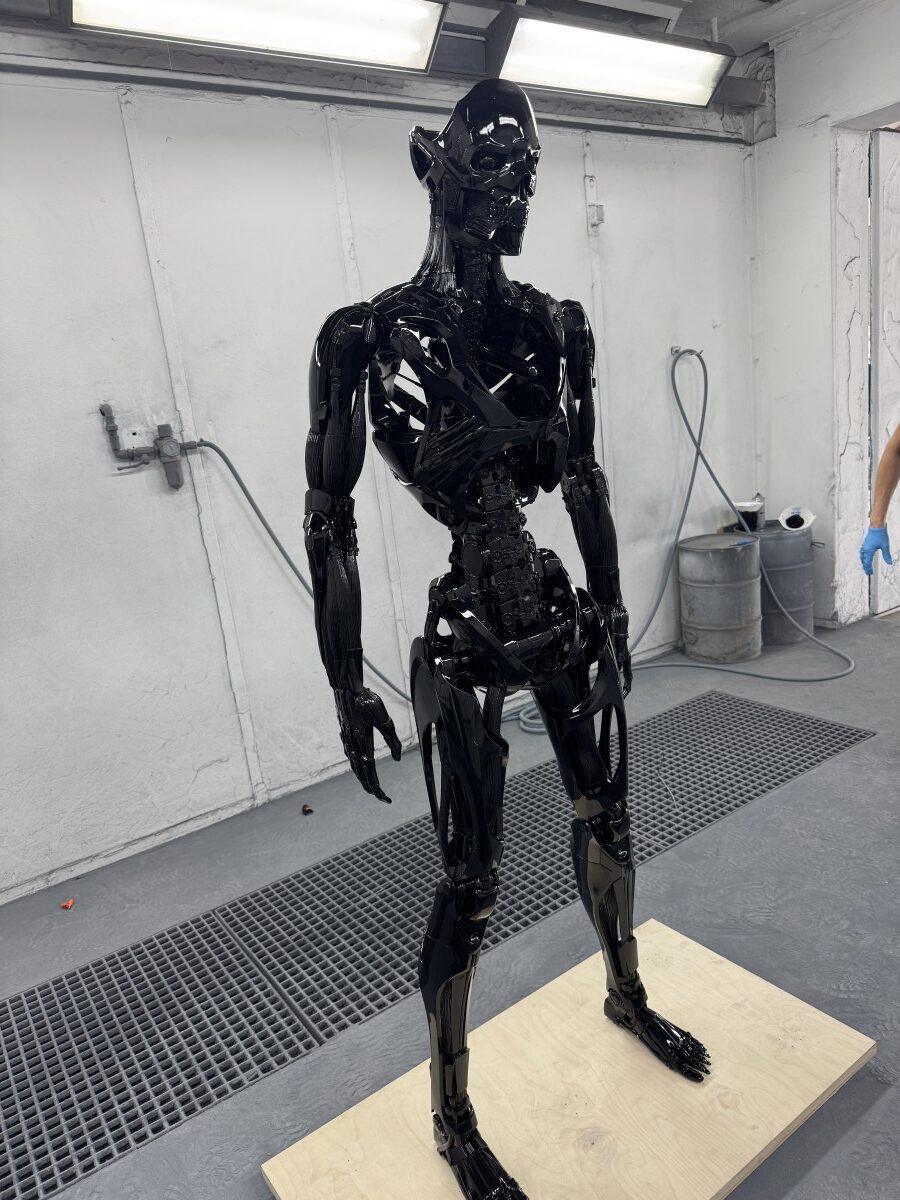

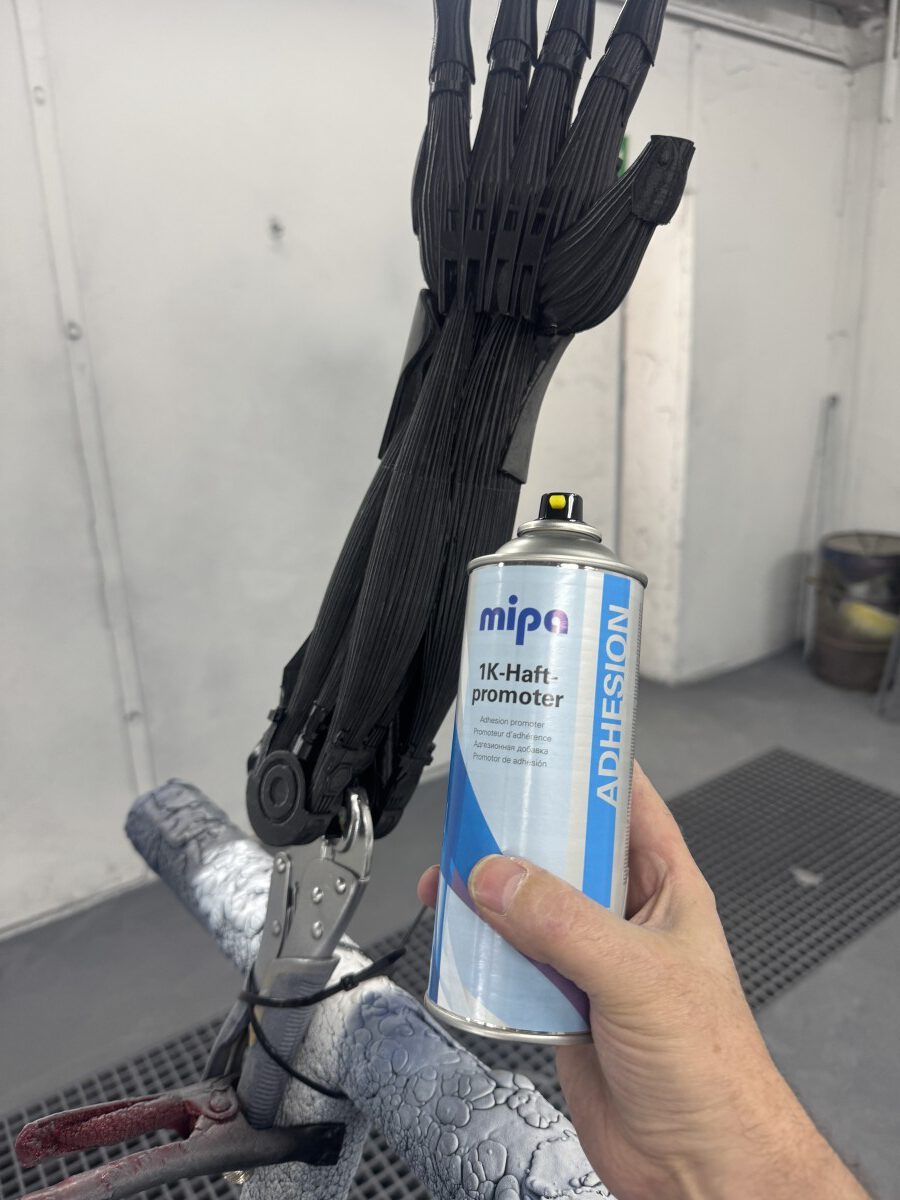

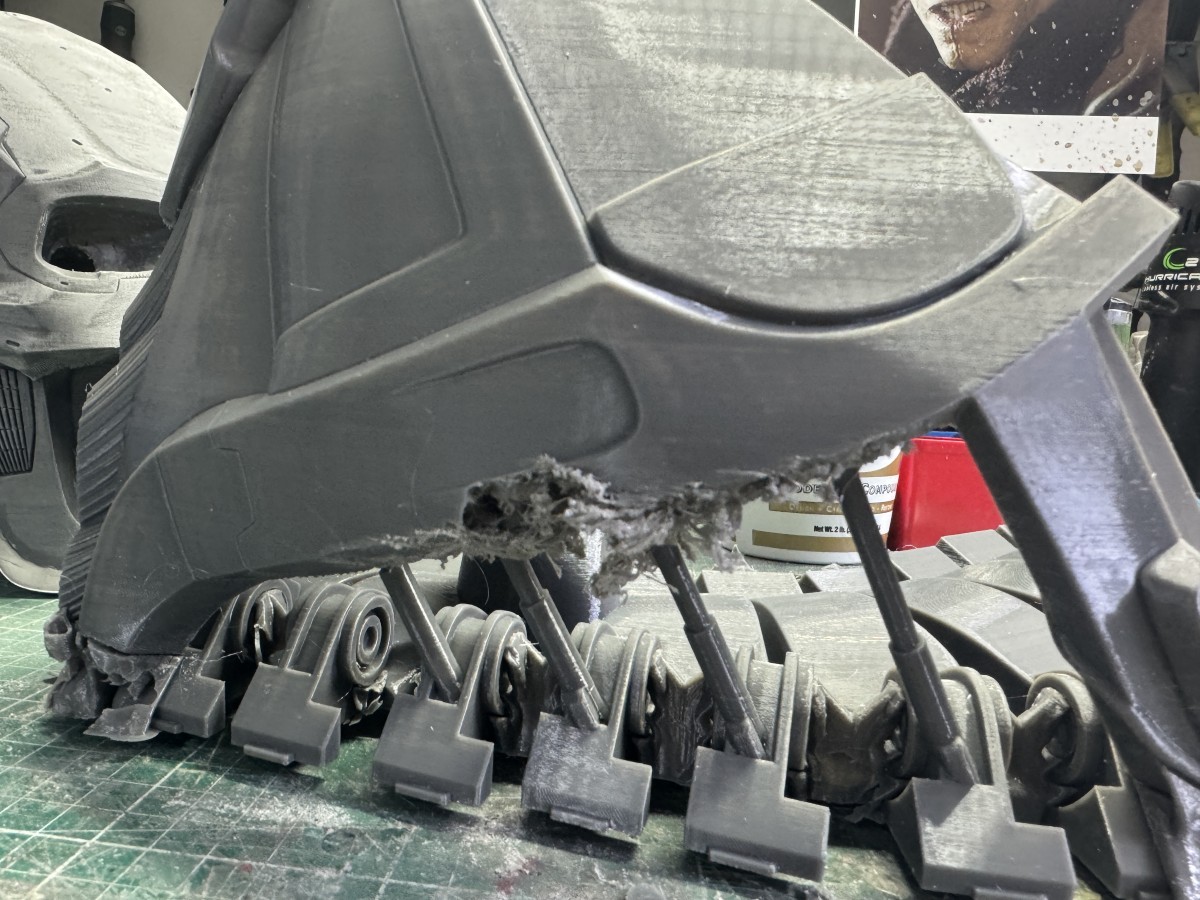

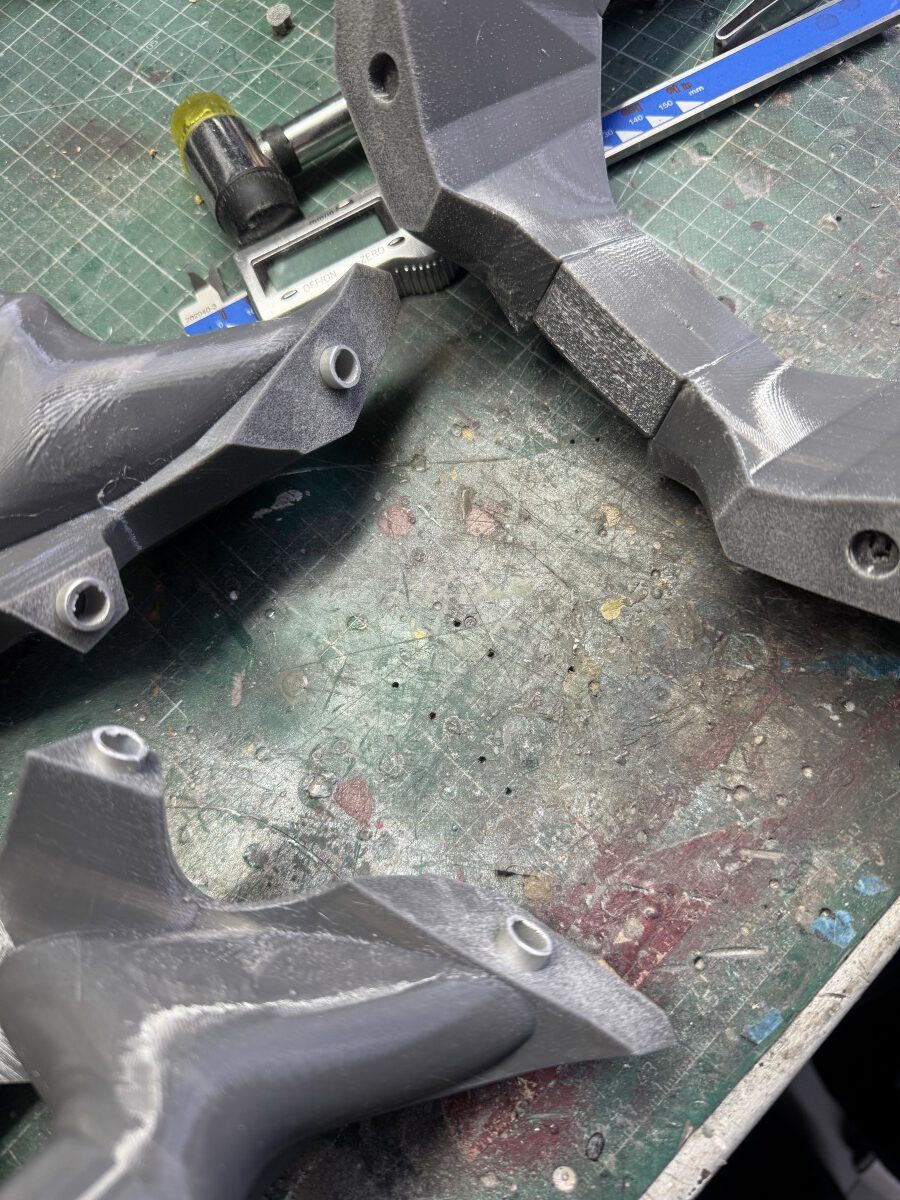

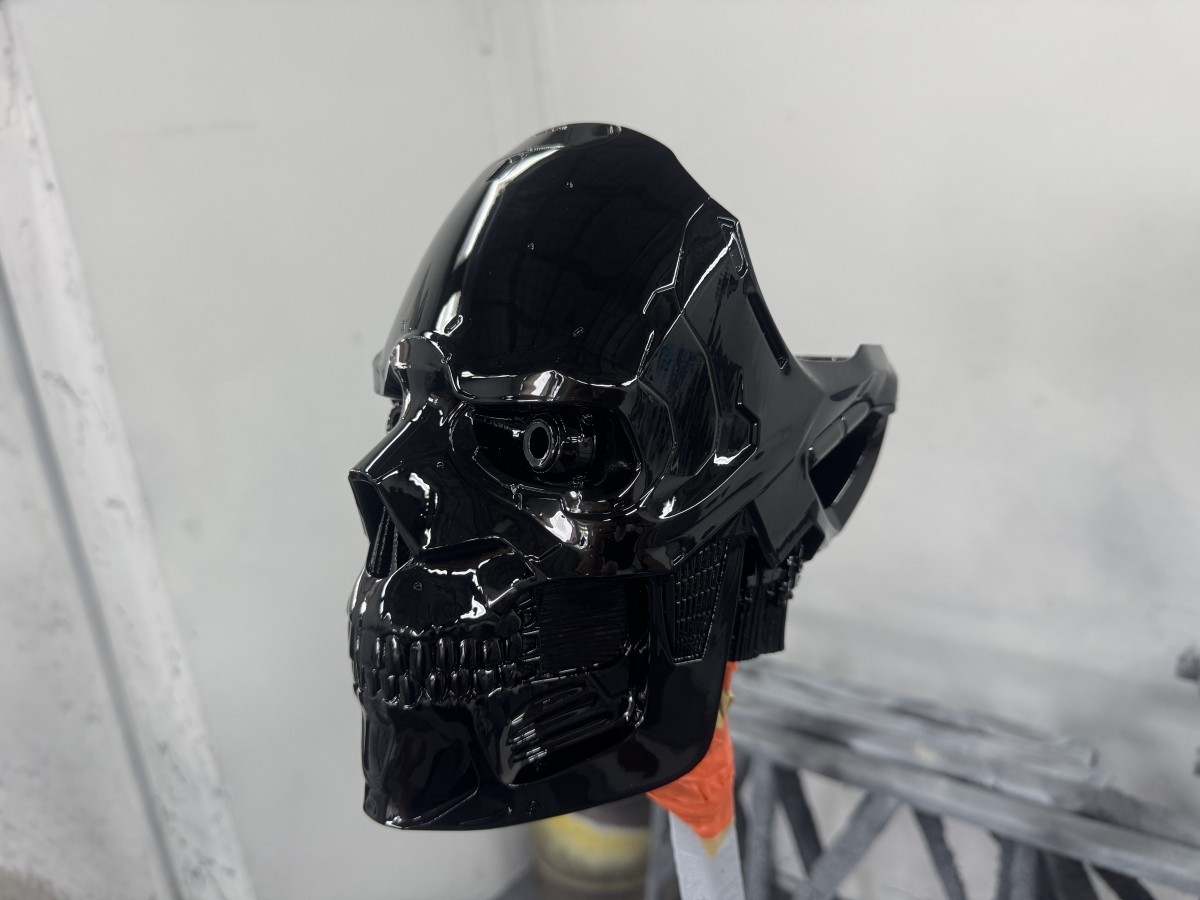

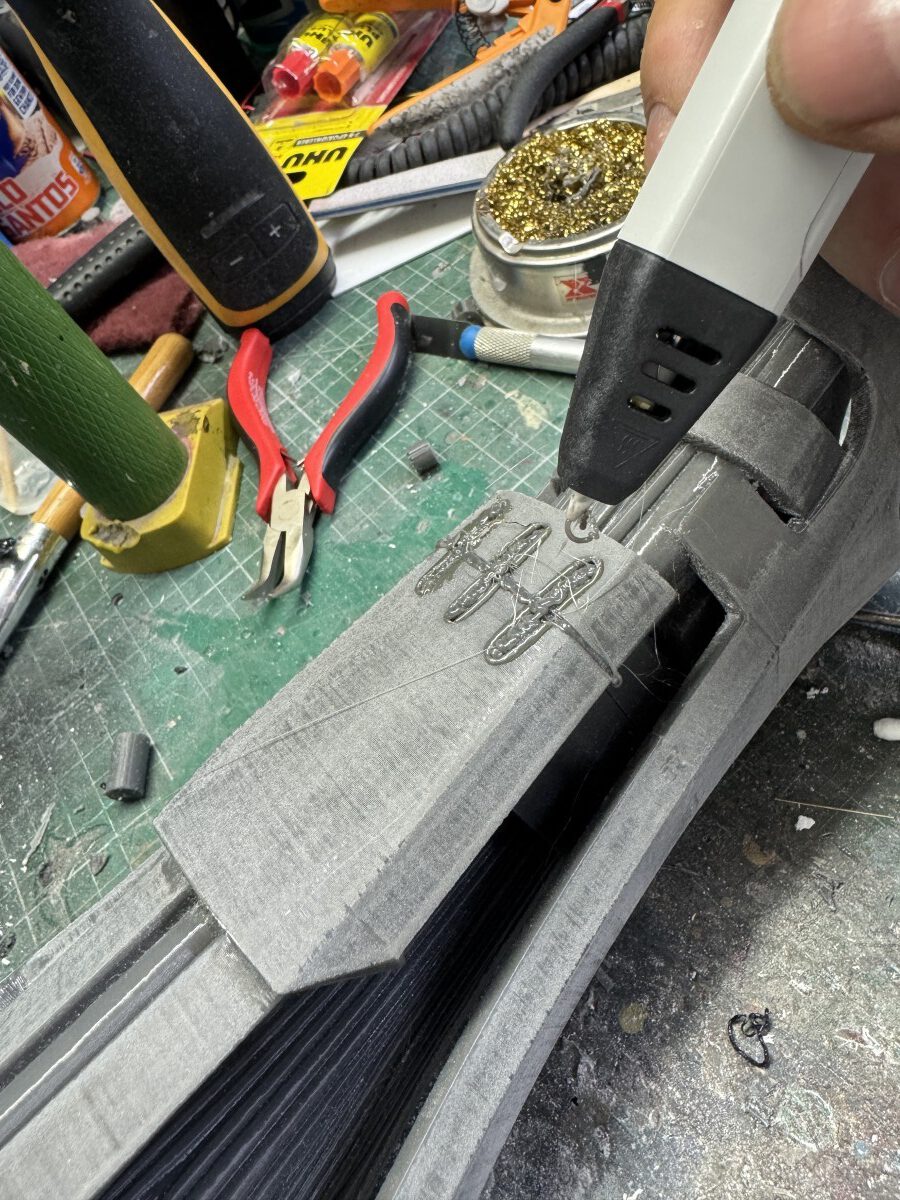

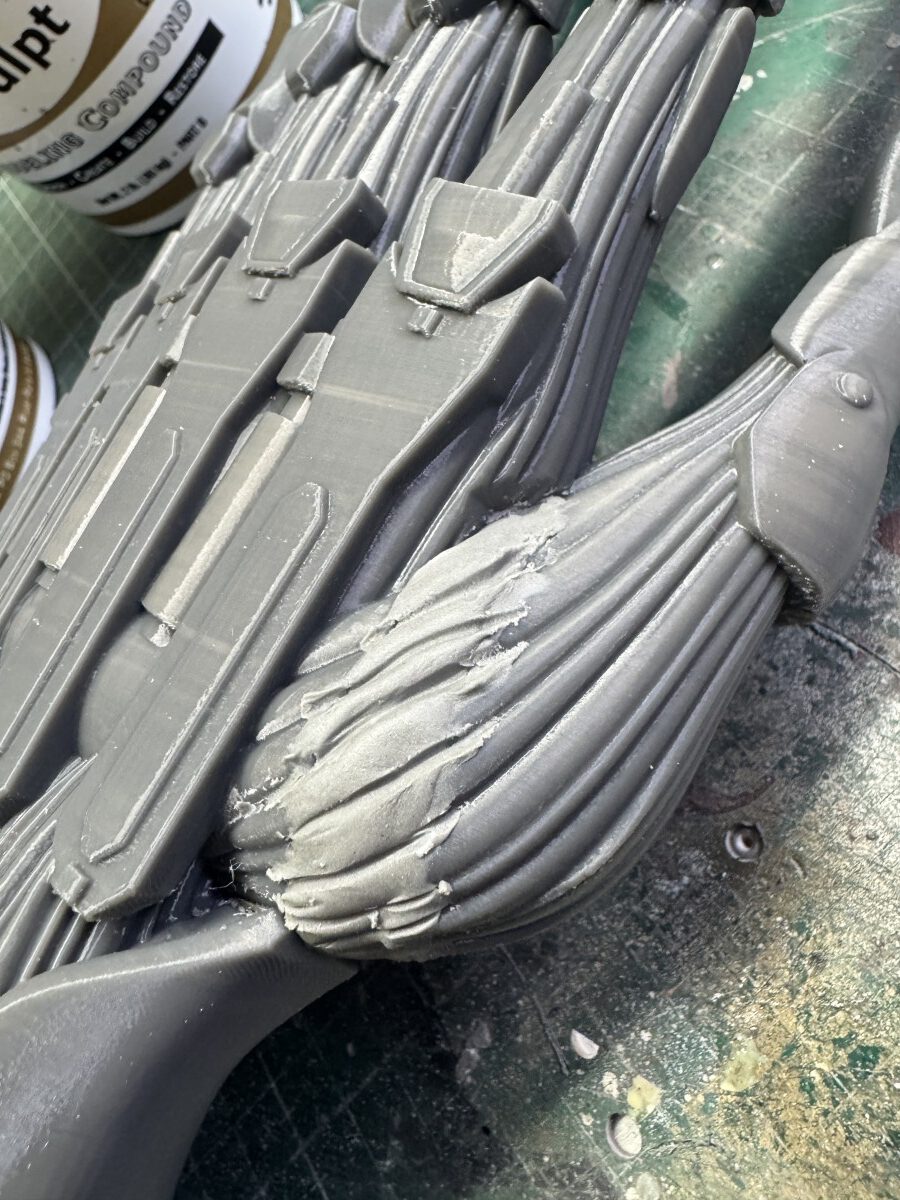

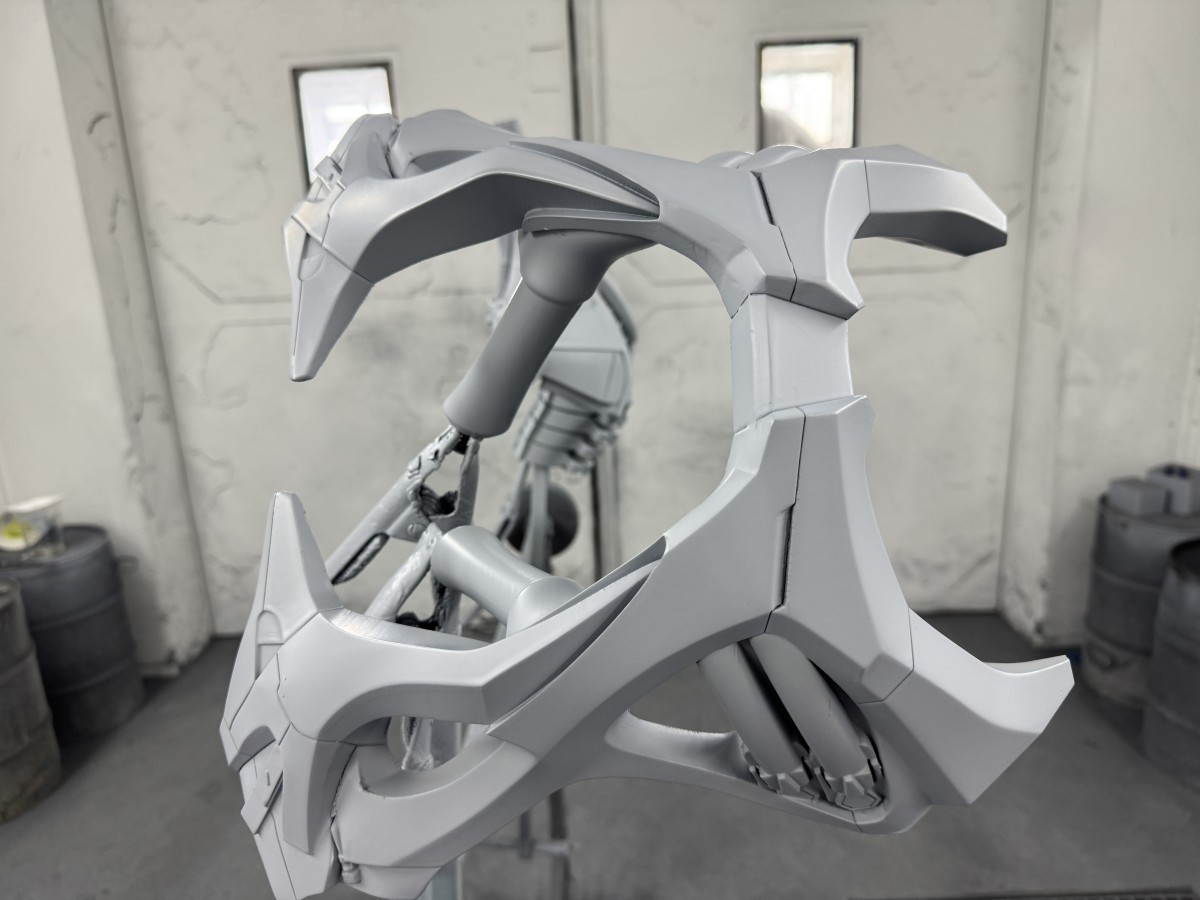

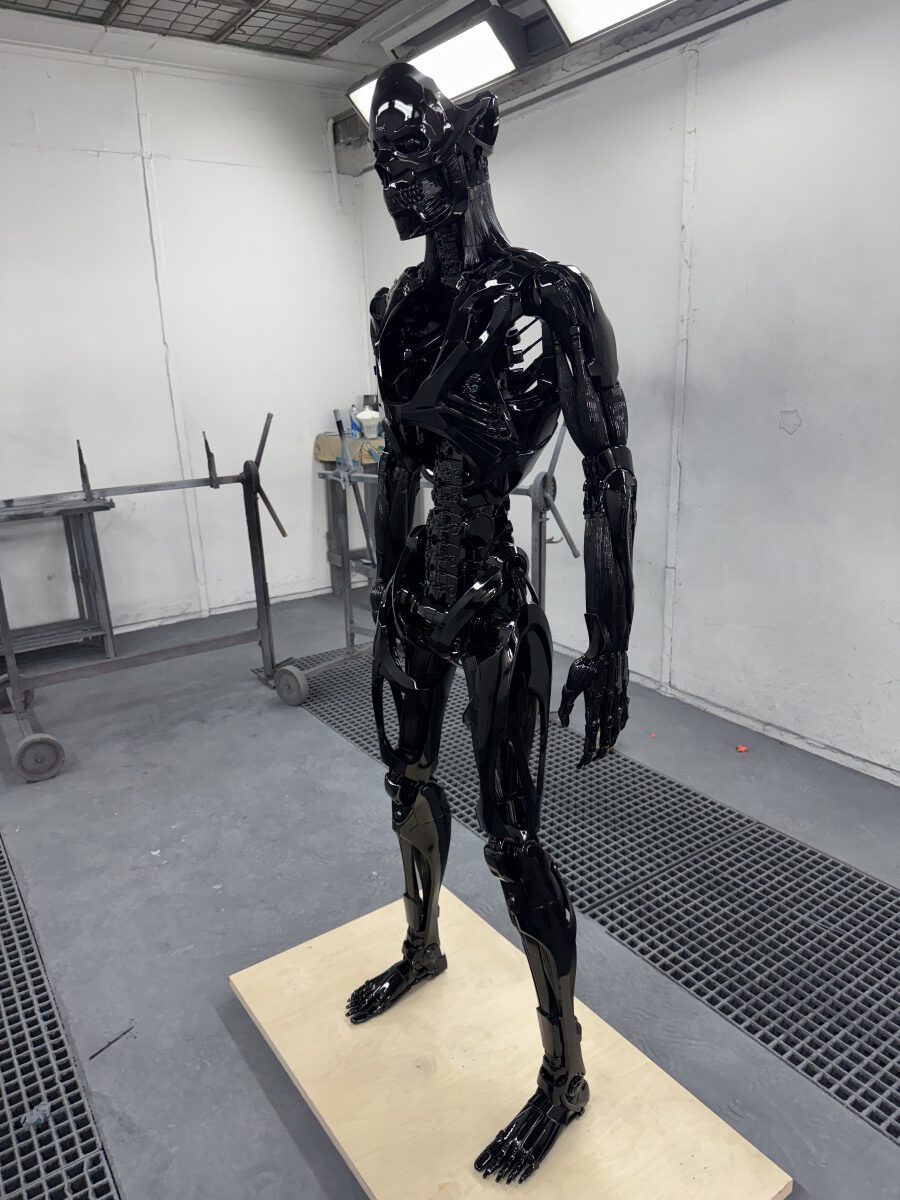

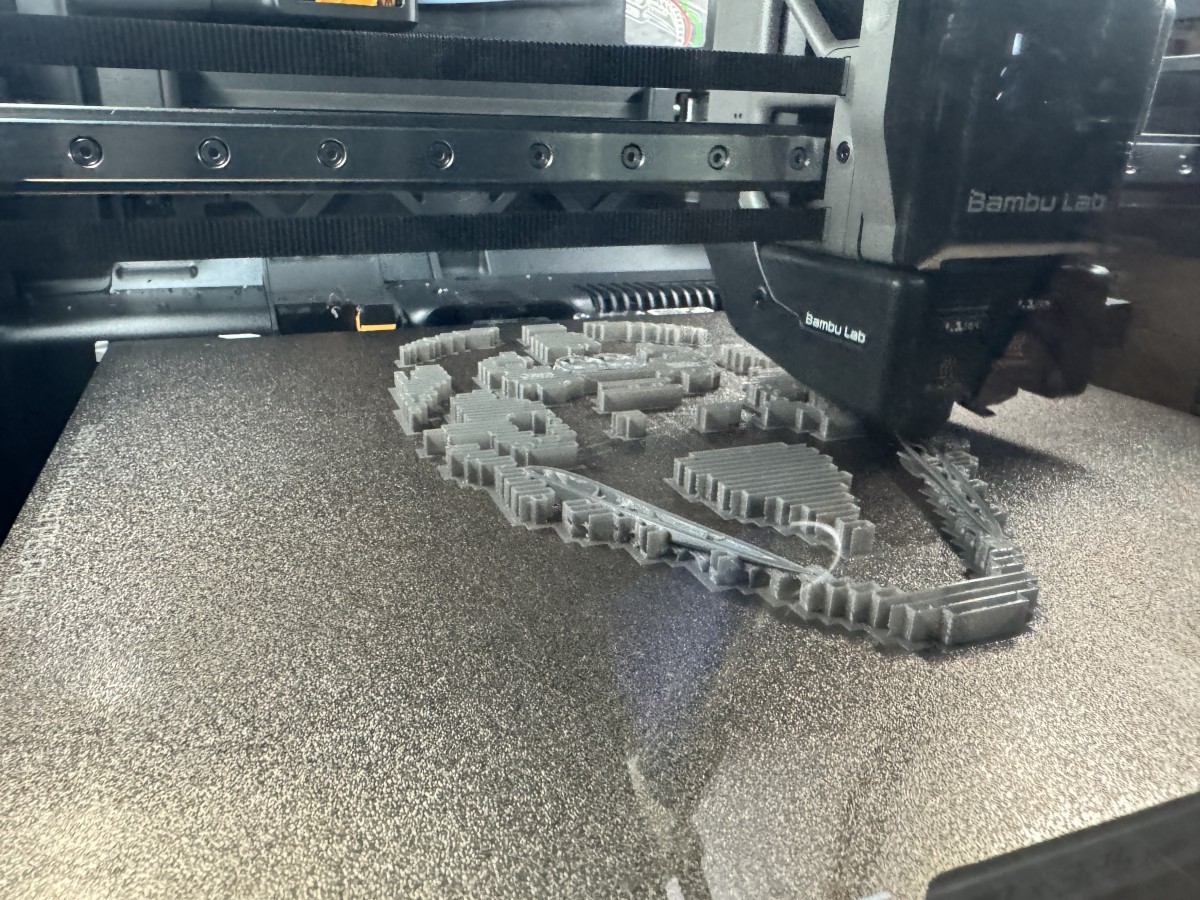

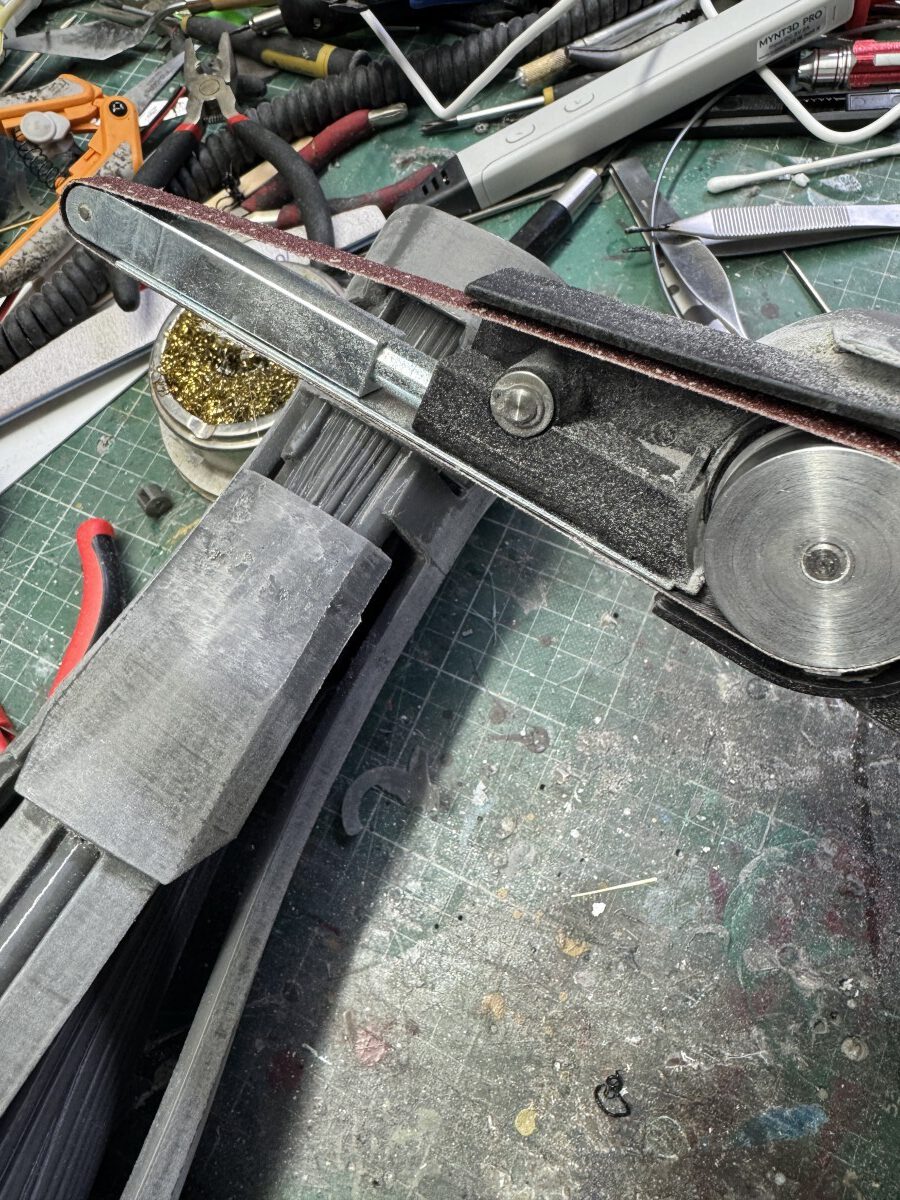

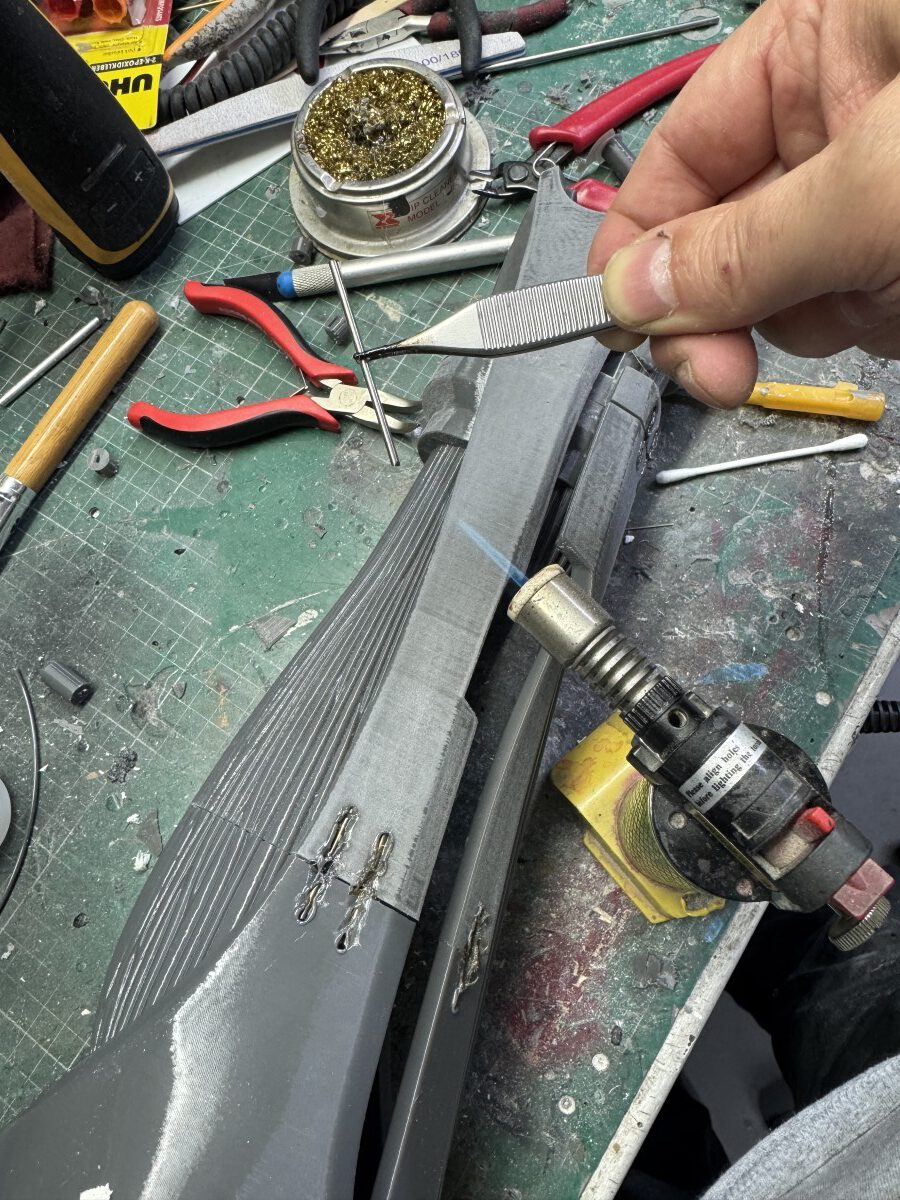

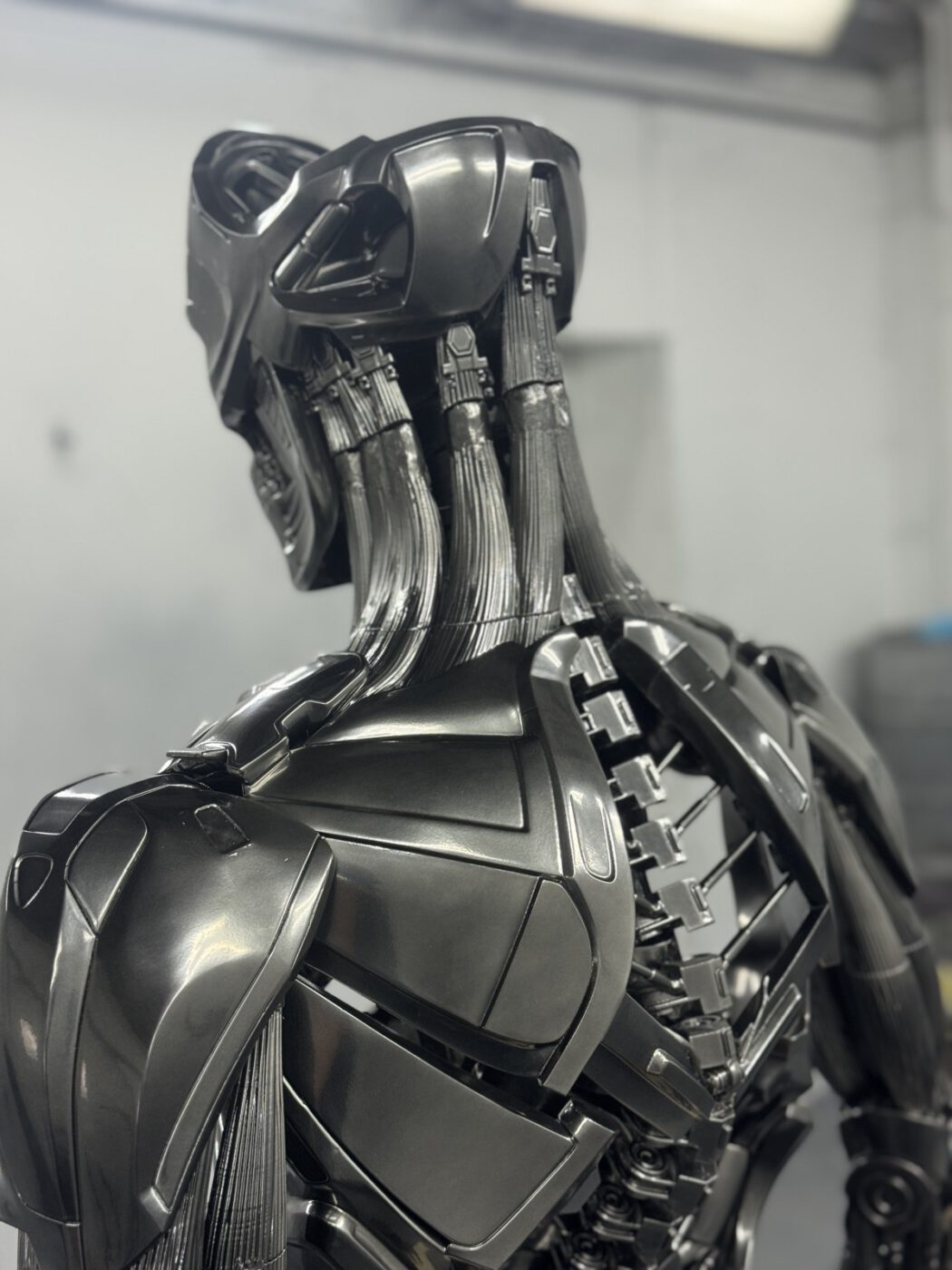

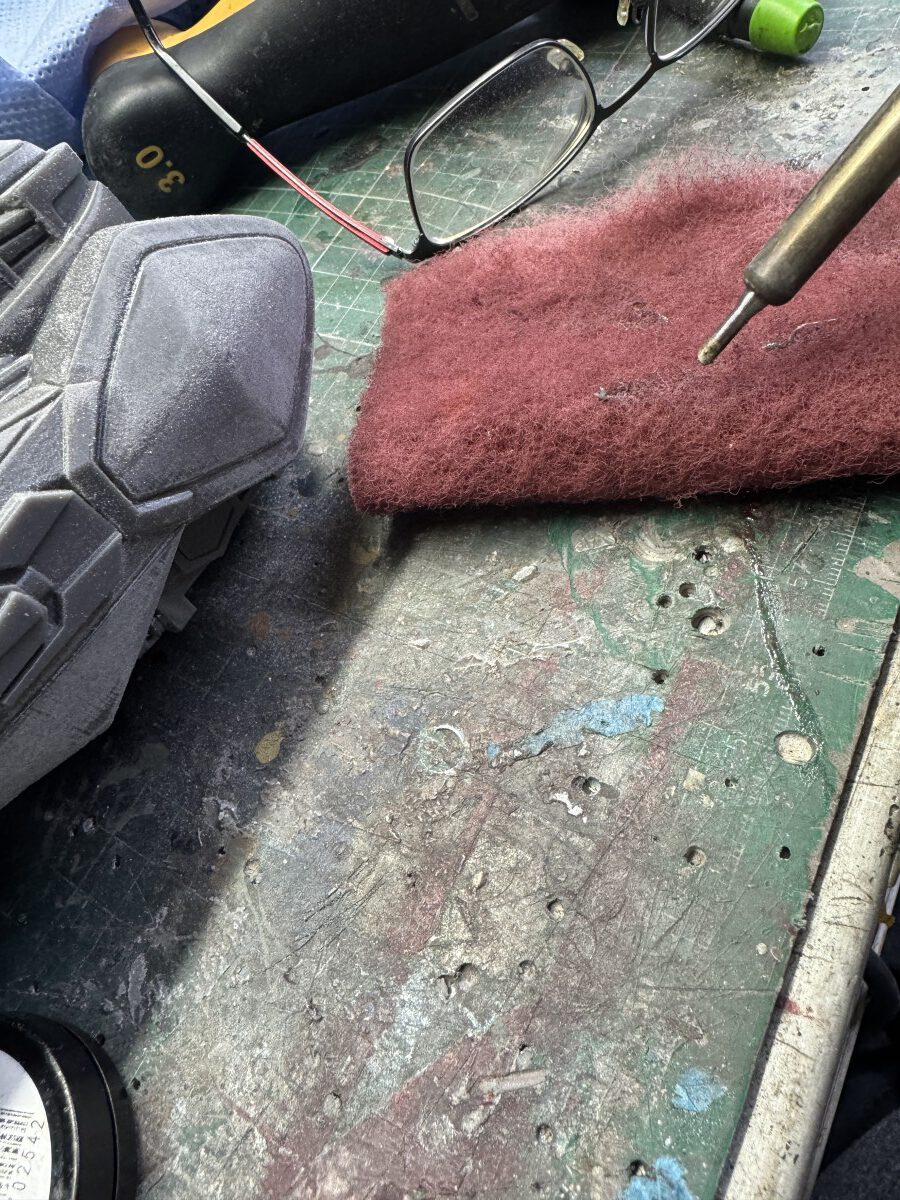

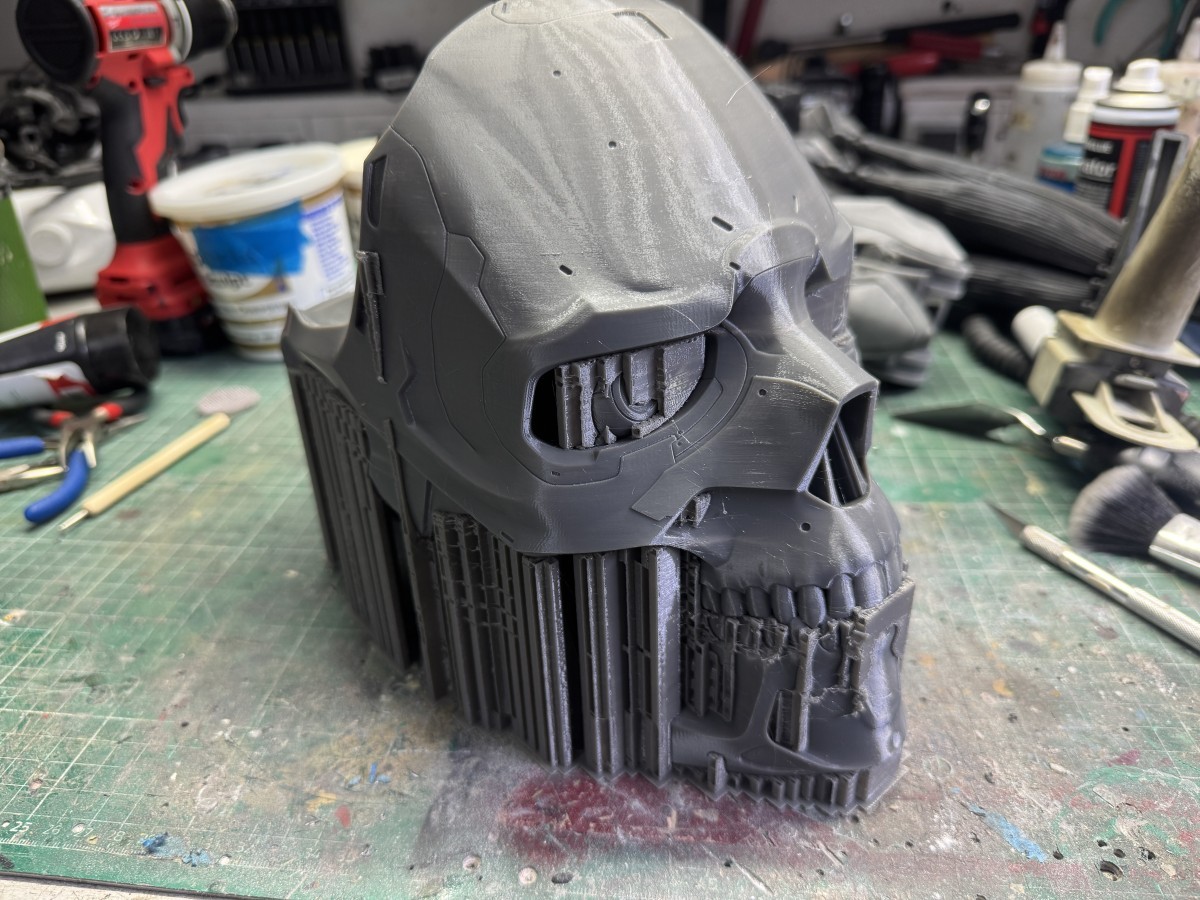

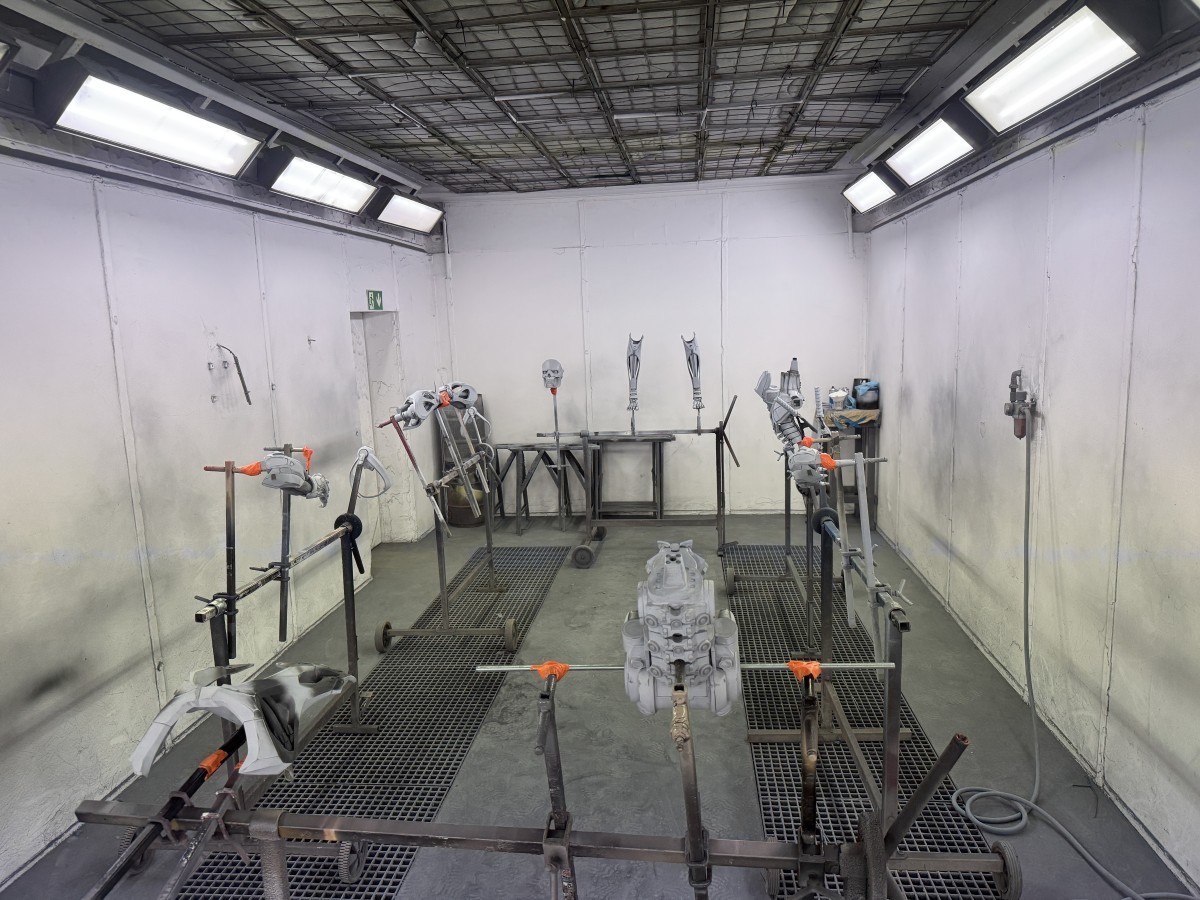

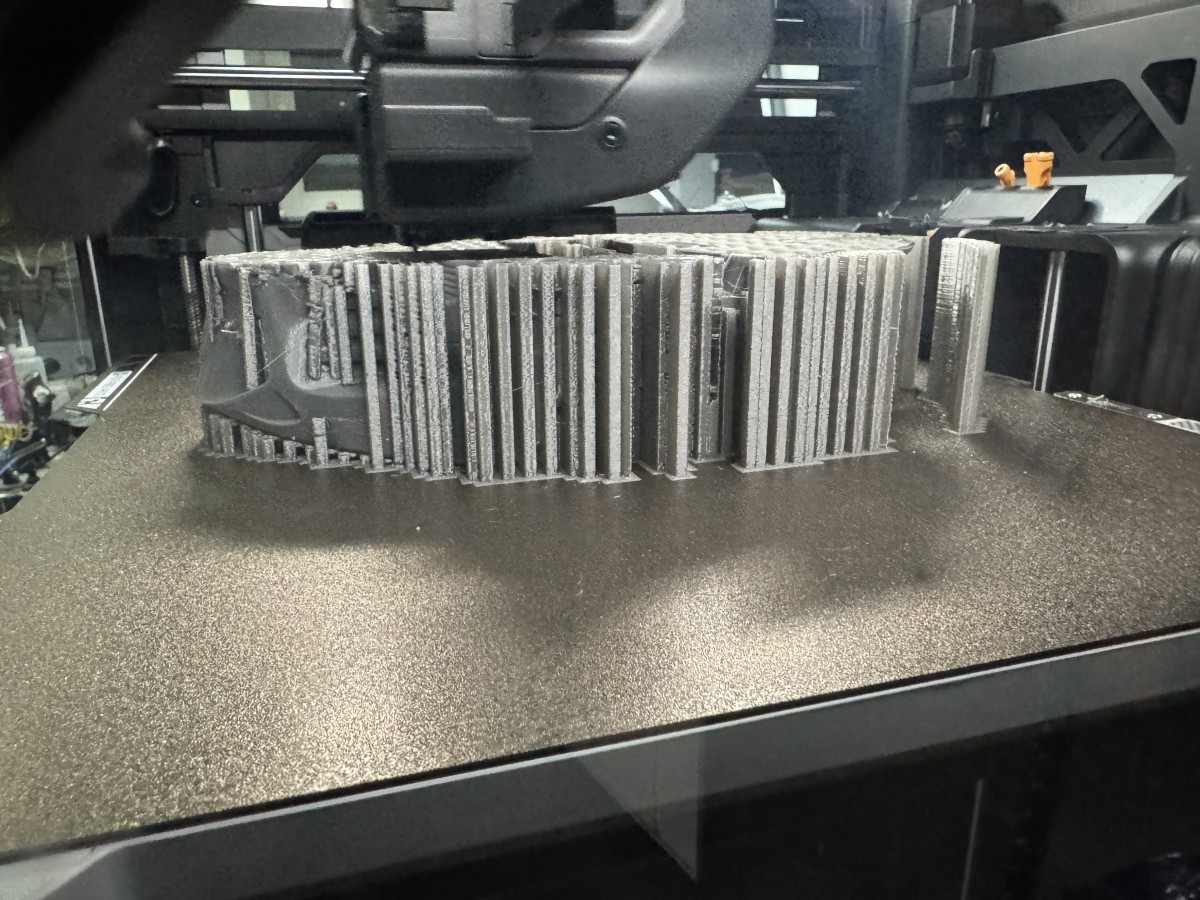

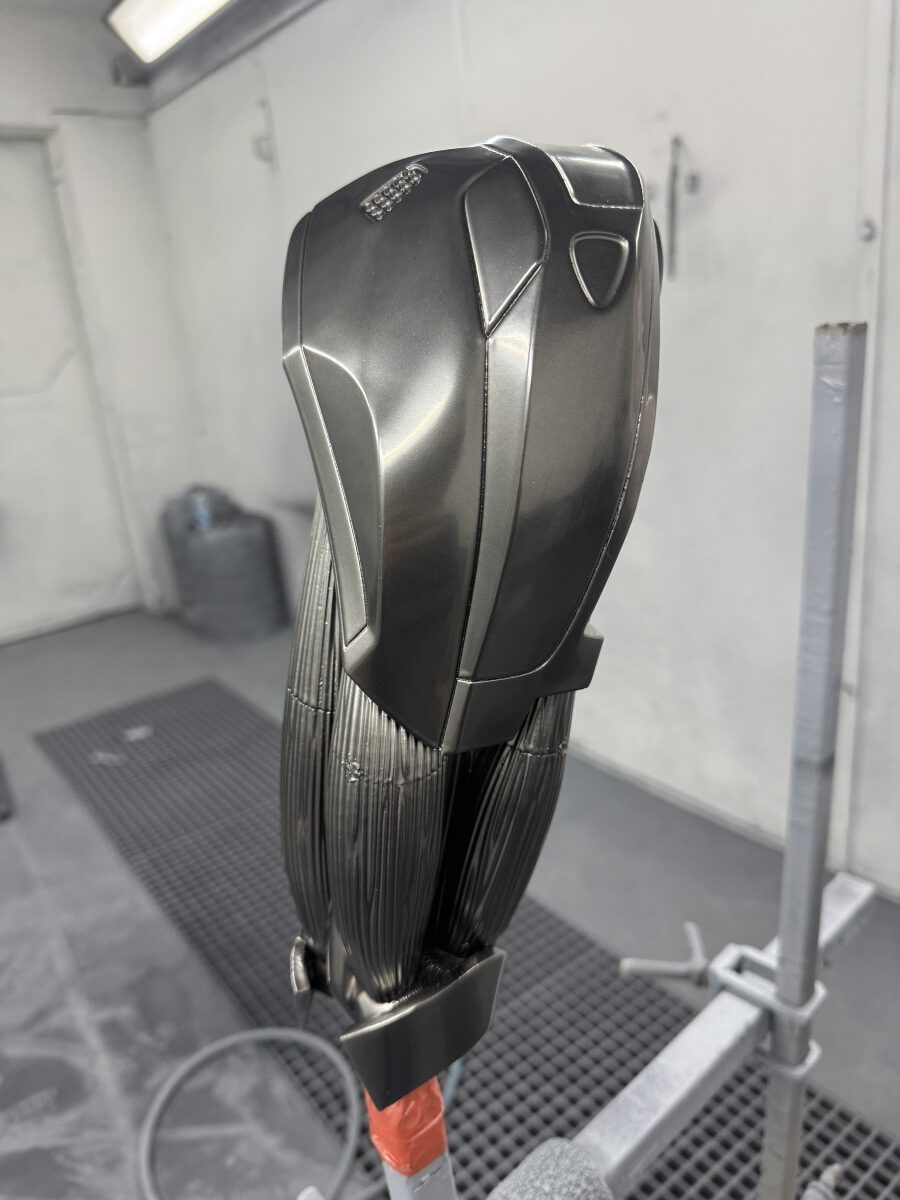

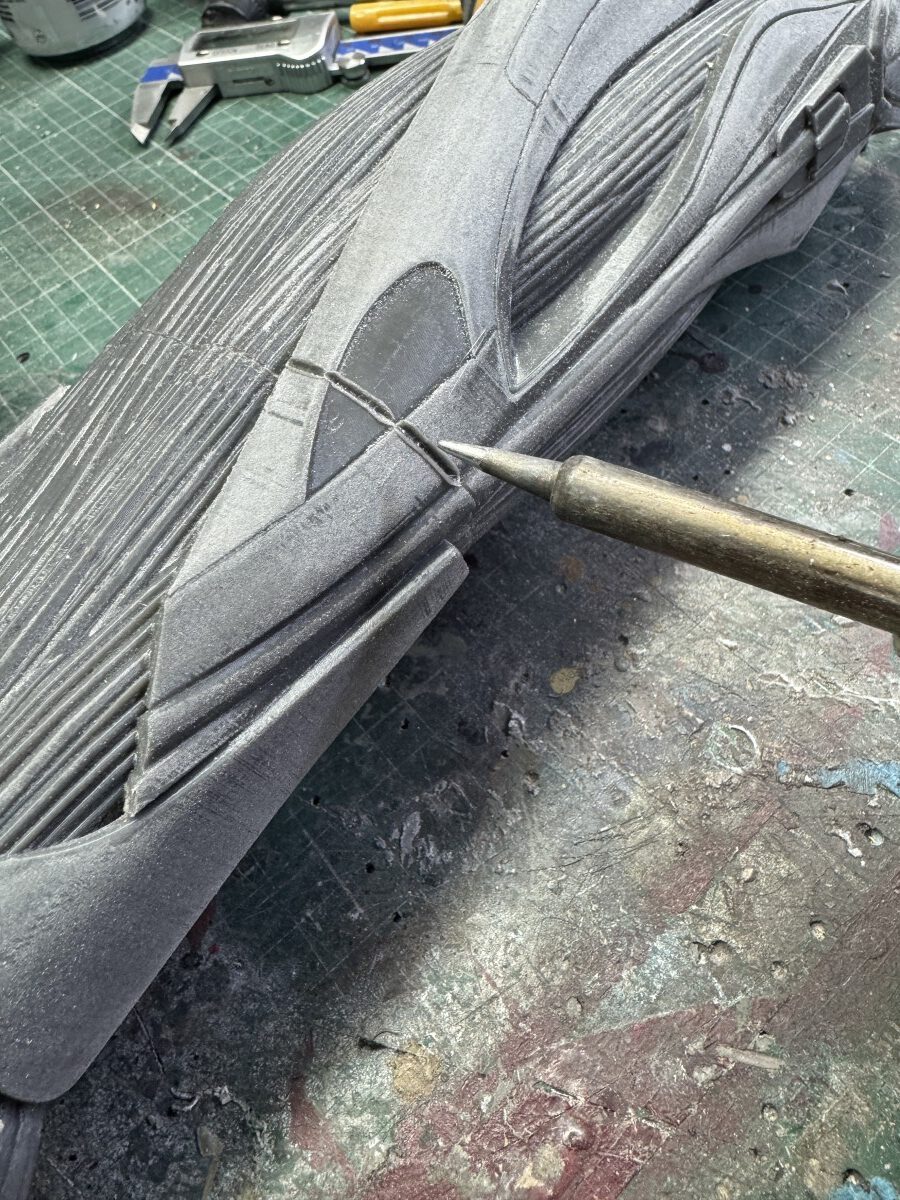

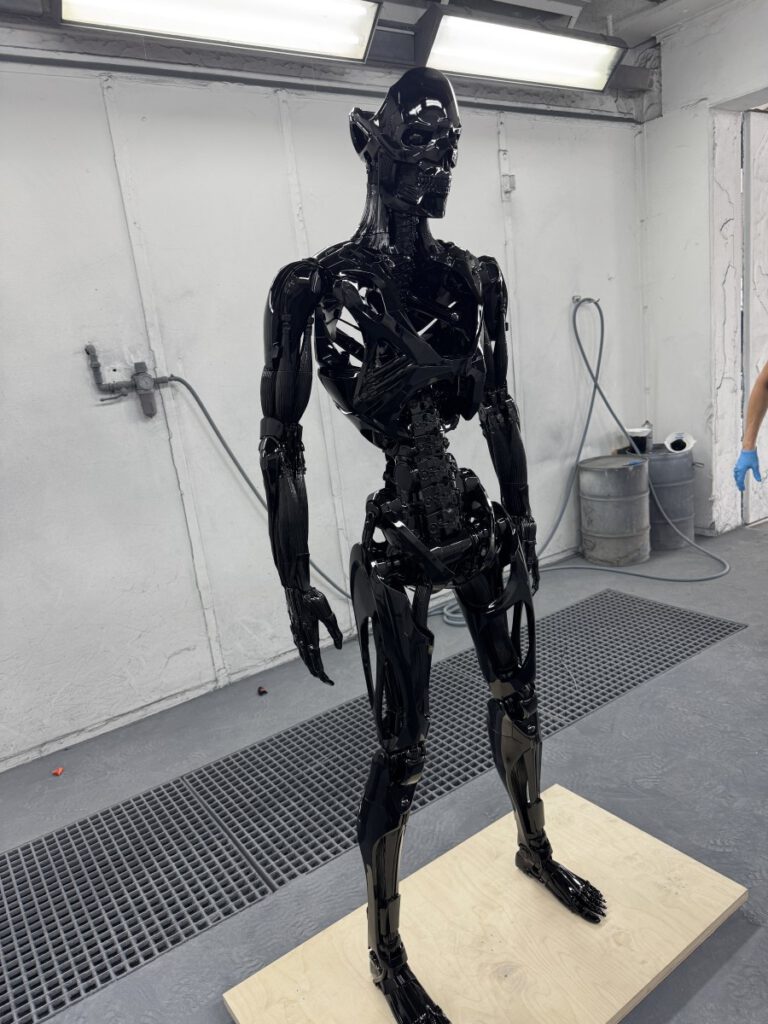

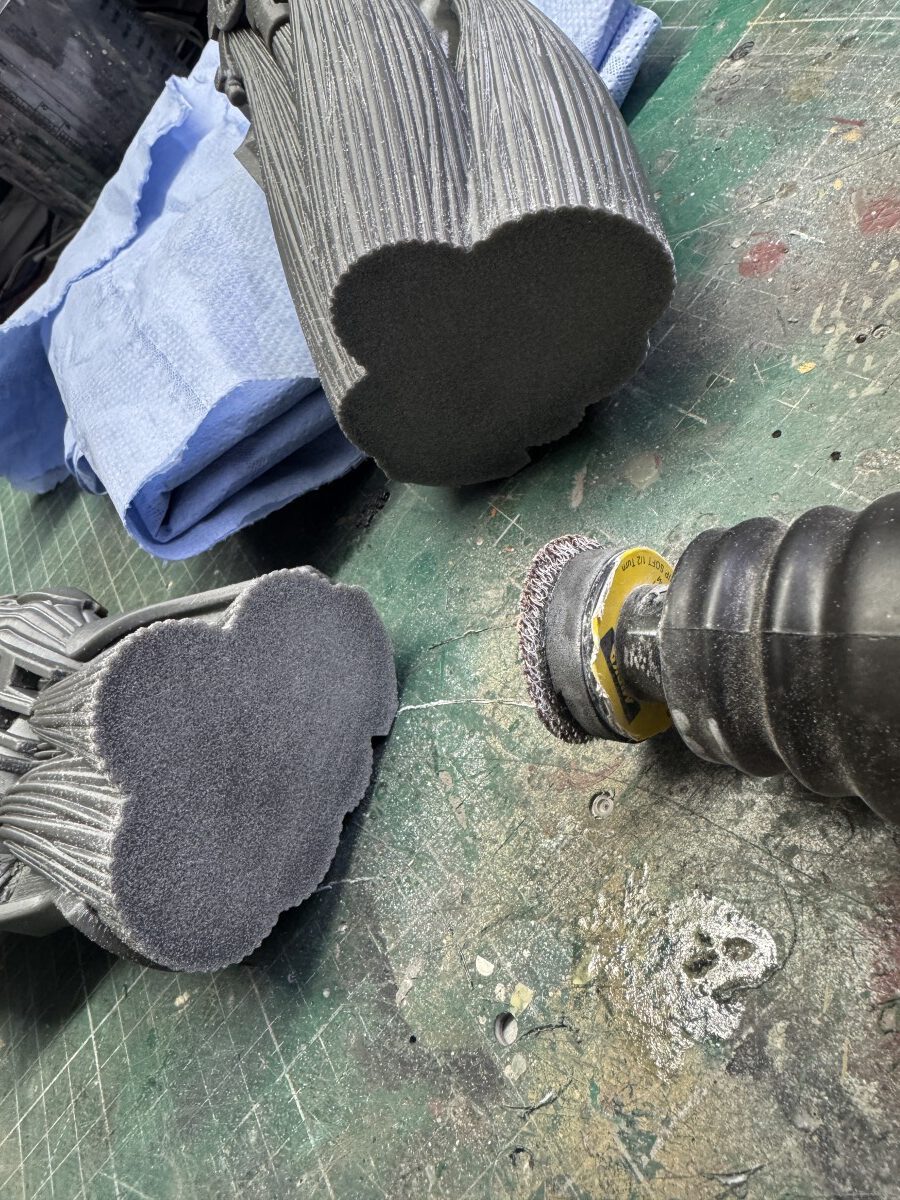

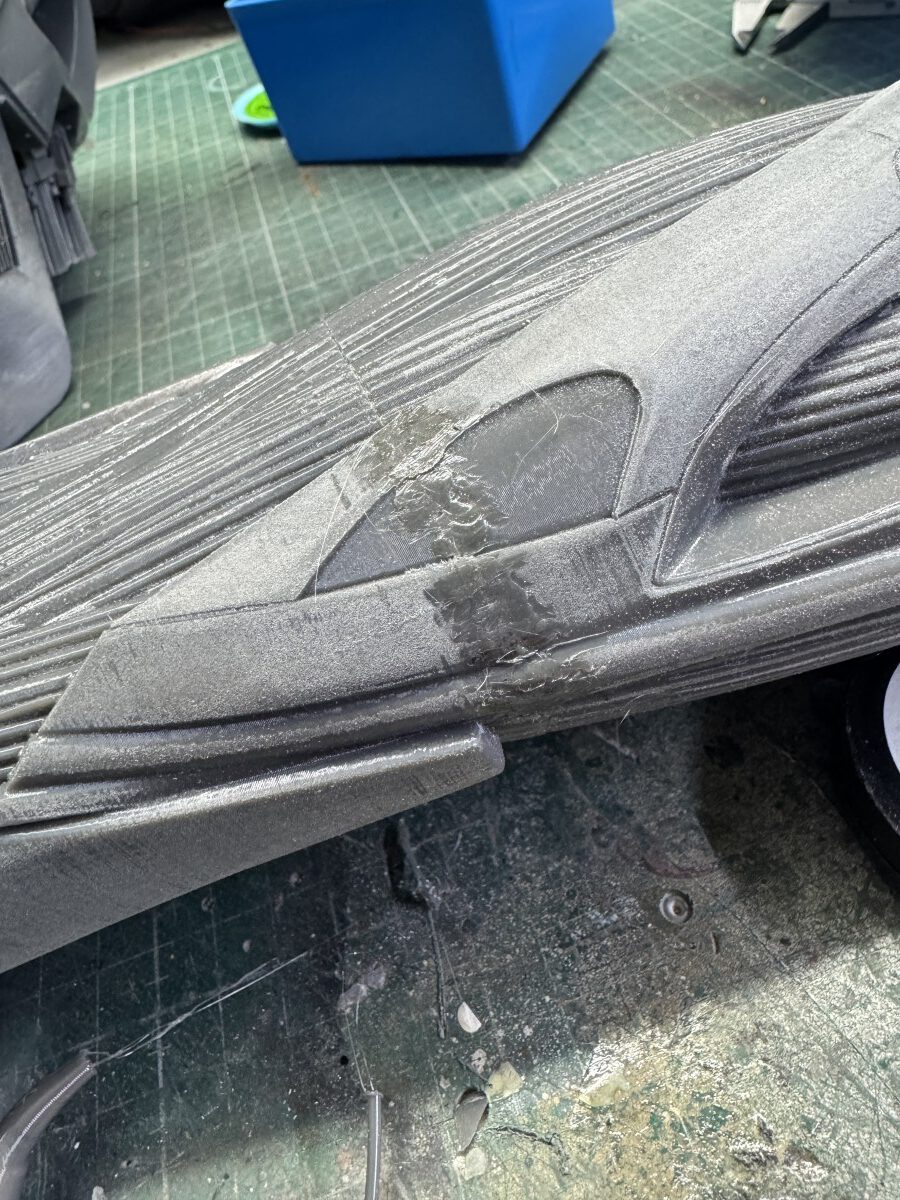

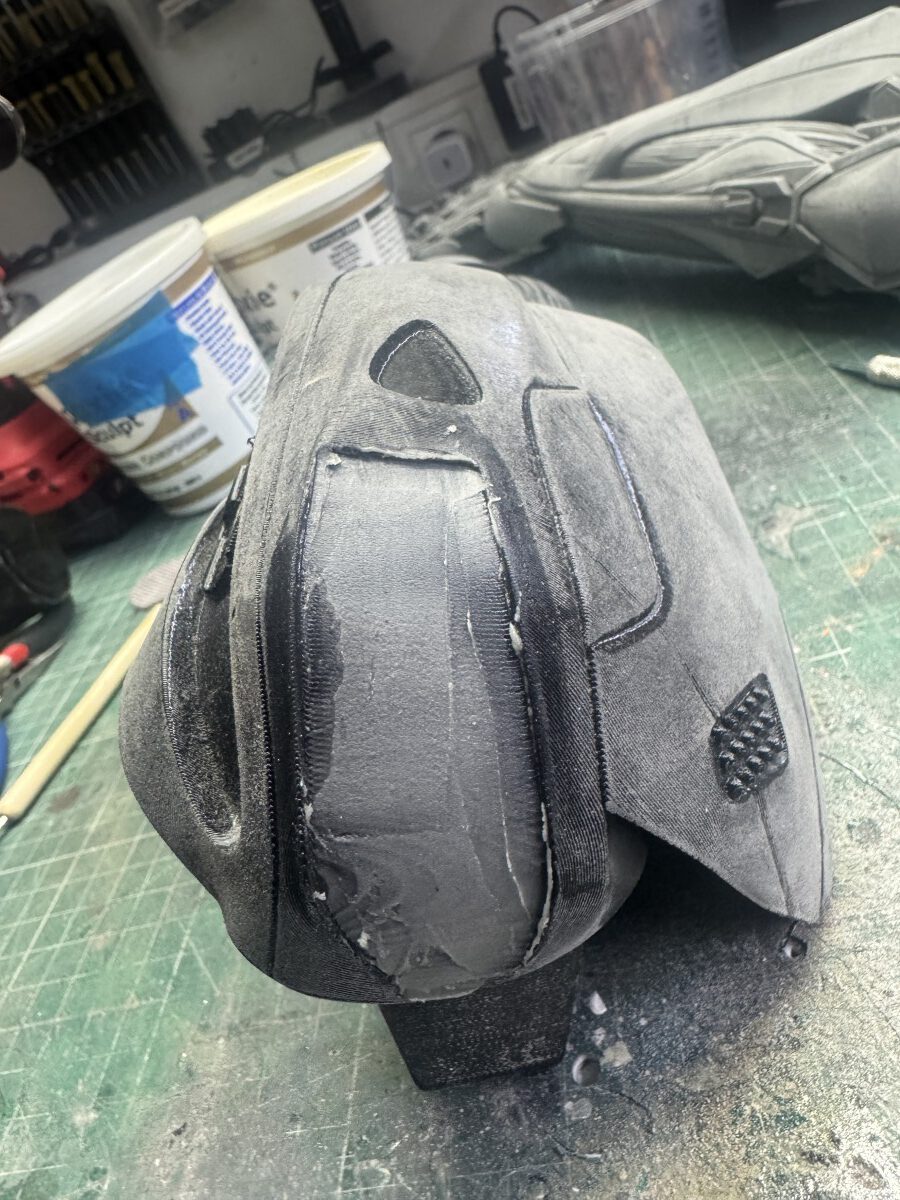

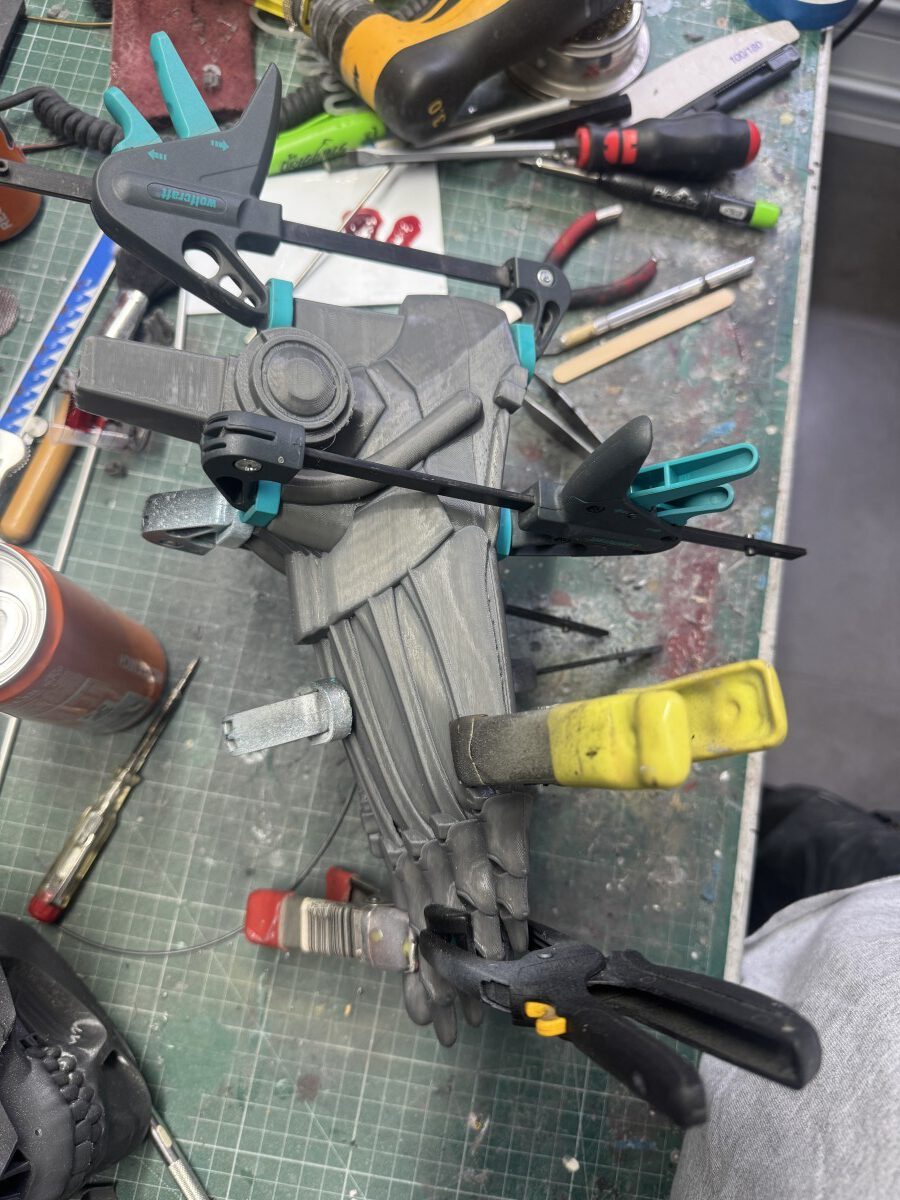

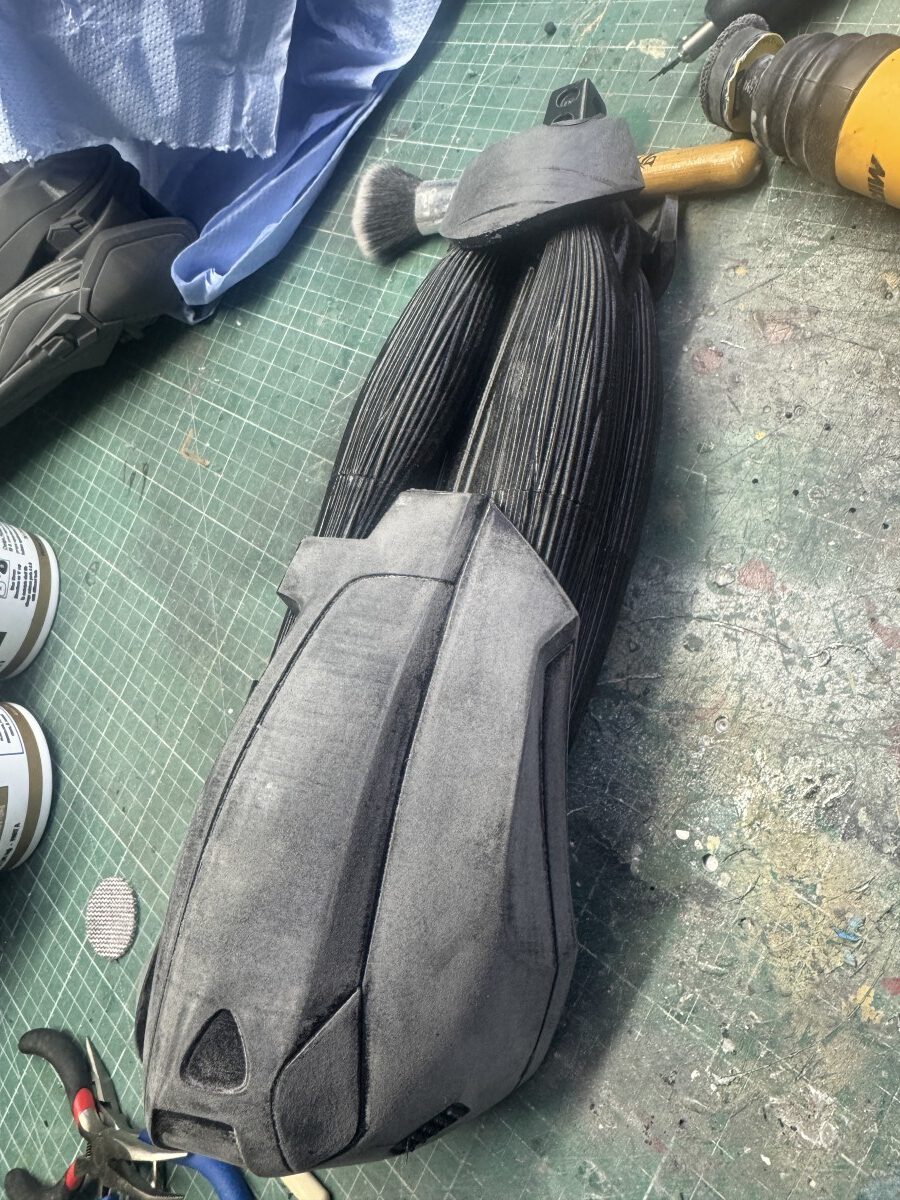

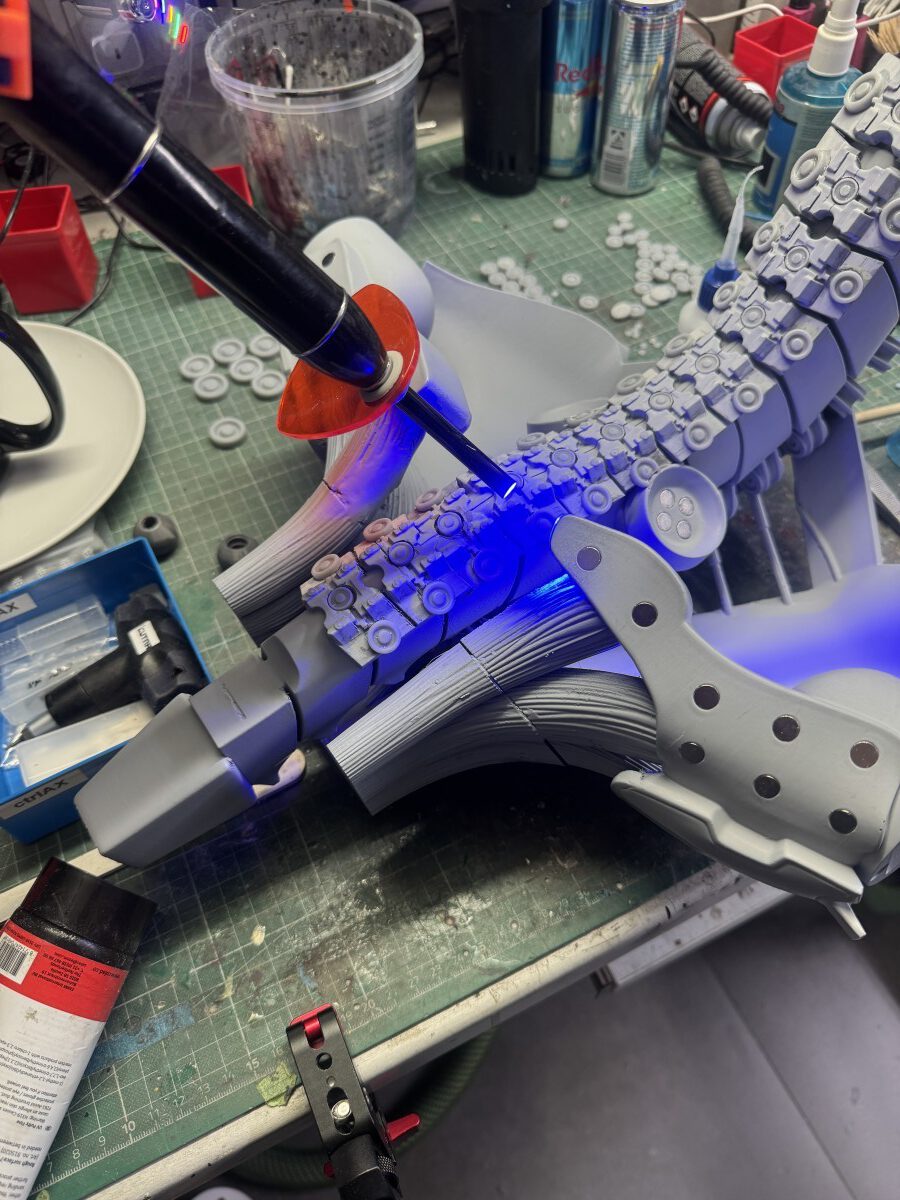

All parts were printed on my Bambu H2D in Jayo PETG, assembled with 2K epoxy and heat-fused using a soldering tool. After assembly, the model was sanded (120 & 180 grit), coated with Nexa 2K self-levelling primer, then lightly sanded again with 400 grit. It was finished with 2K clear gloss, followed by Klakumen Impact Glanz mixed with 7% 2K hardener.

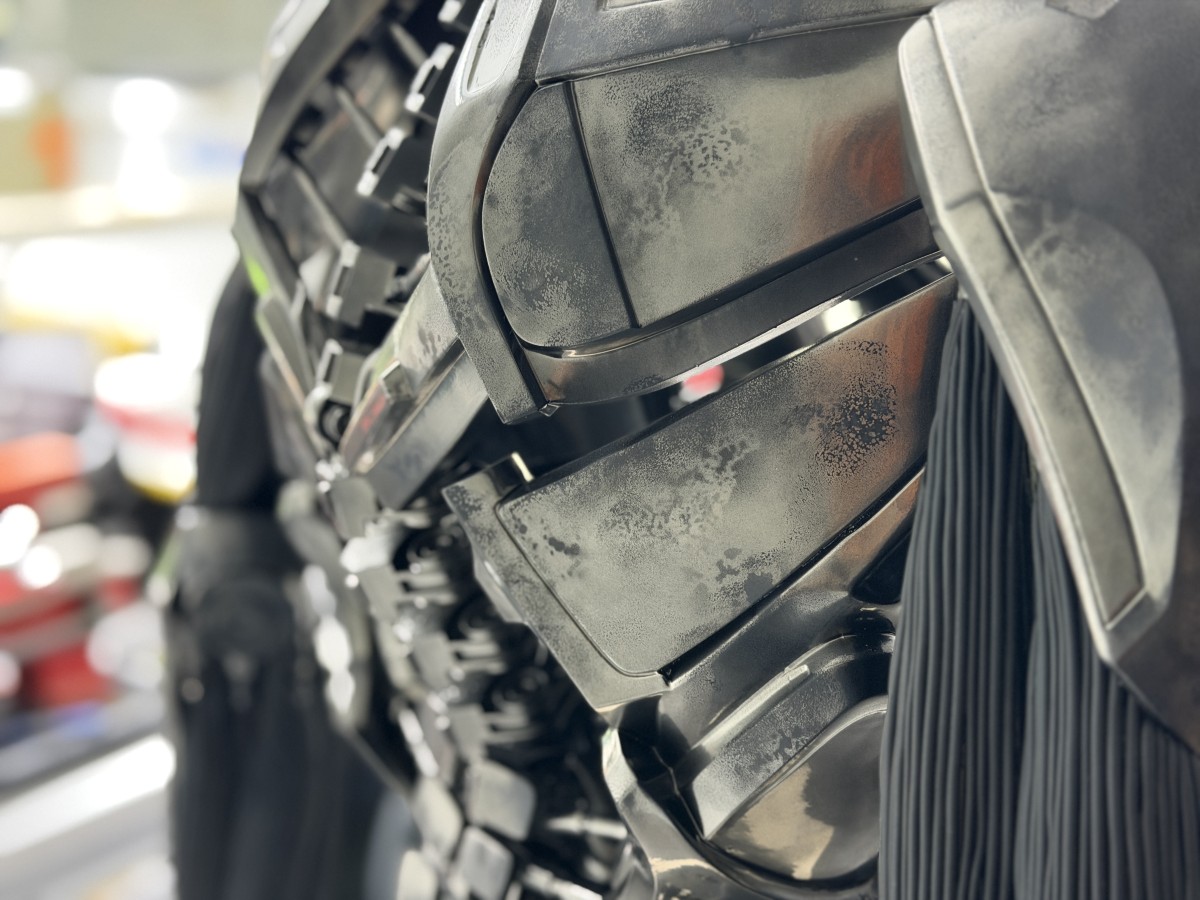

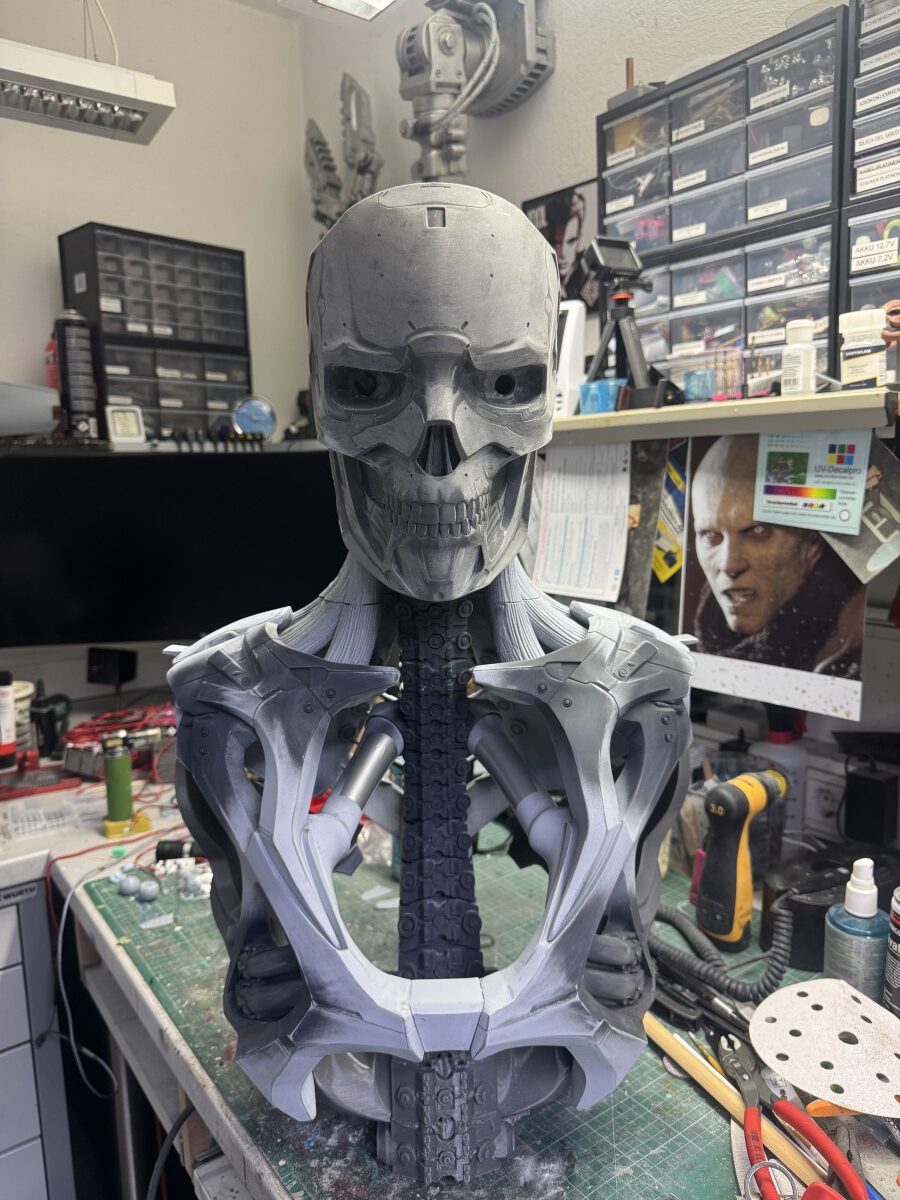

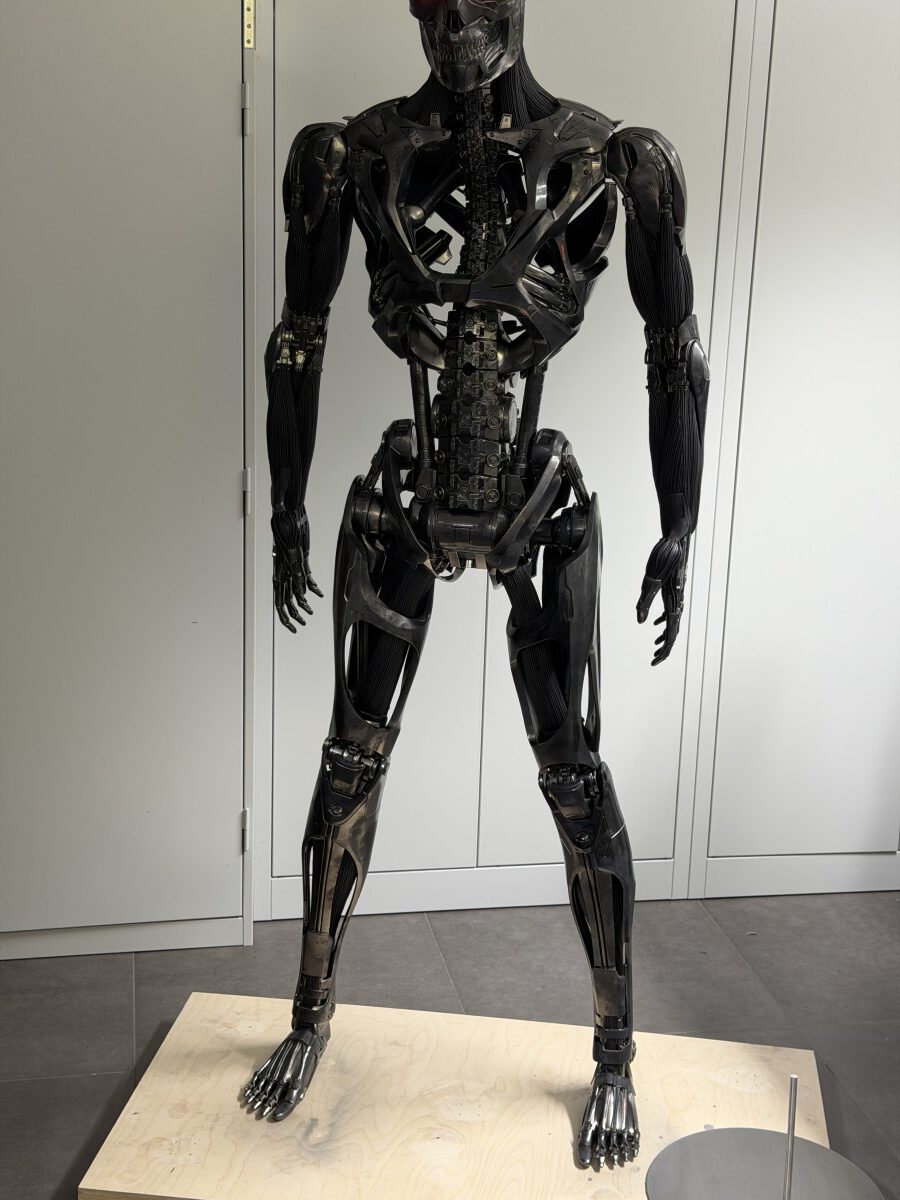

Weathering was straightforward — done with Vallejo Black and Grey Primers, applied using a combination of sponging, spotting, and airbrushing with stencils.

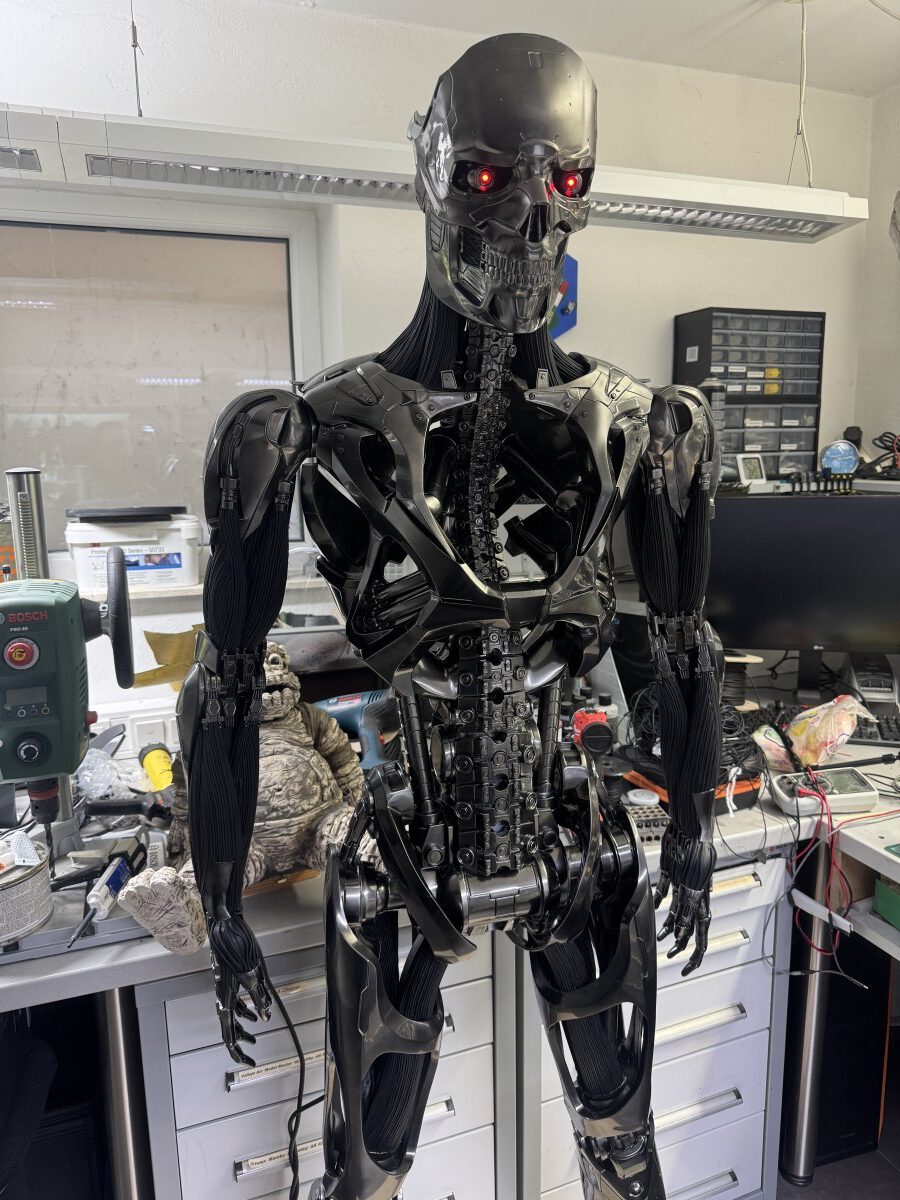

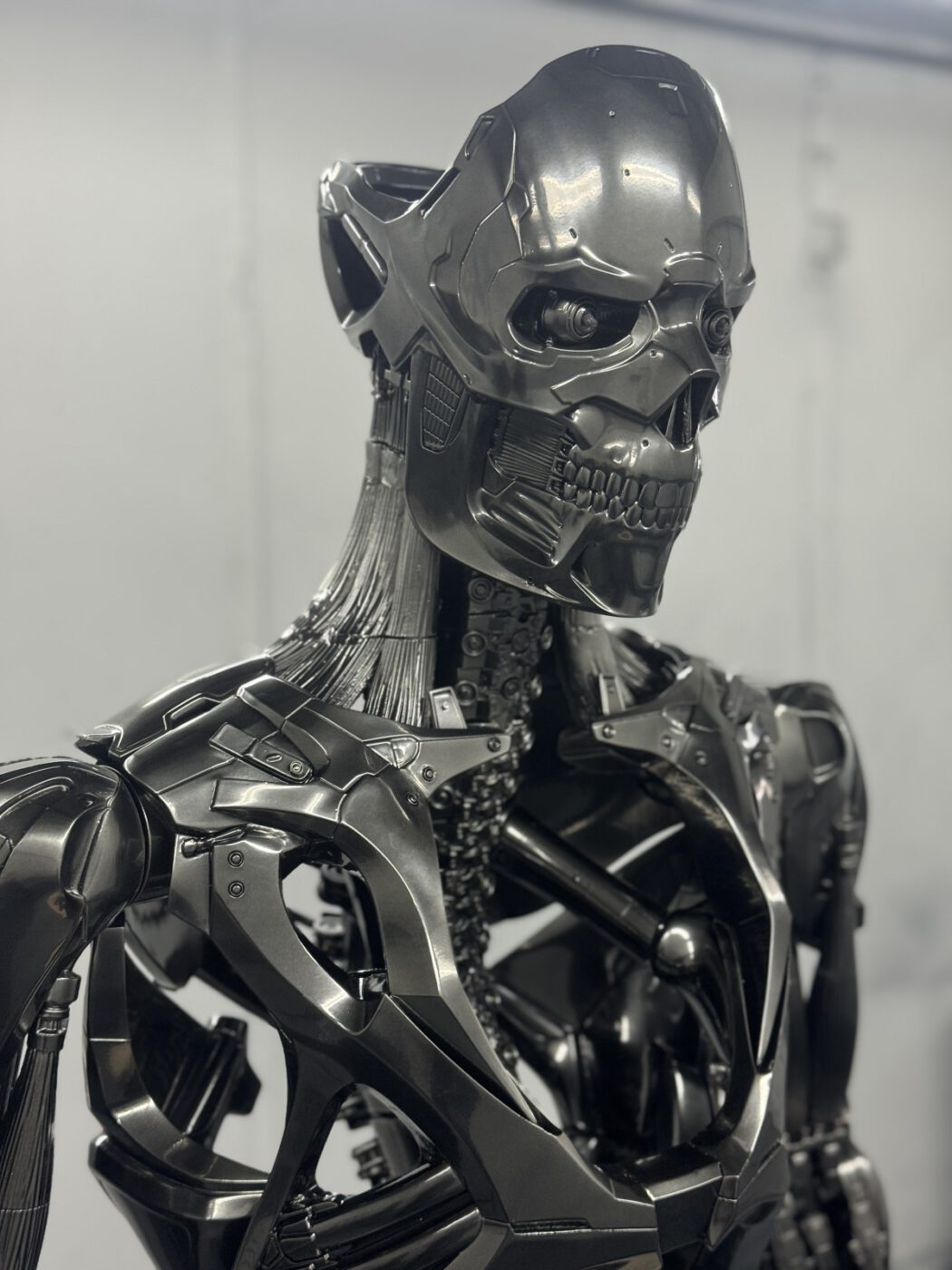

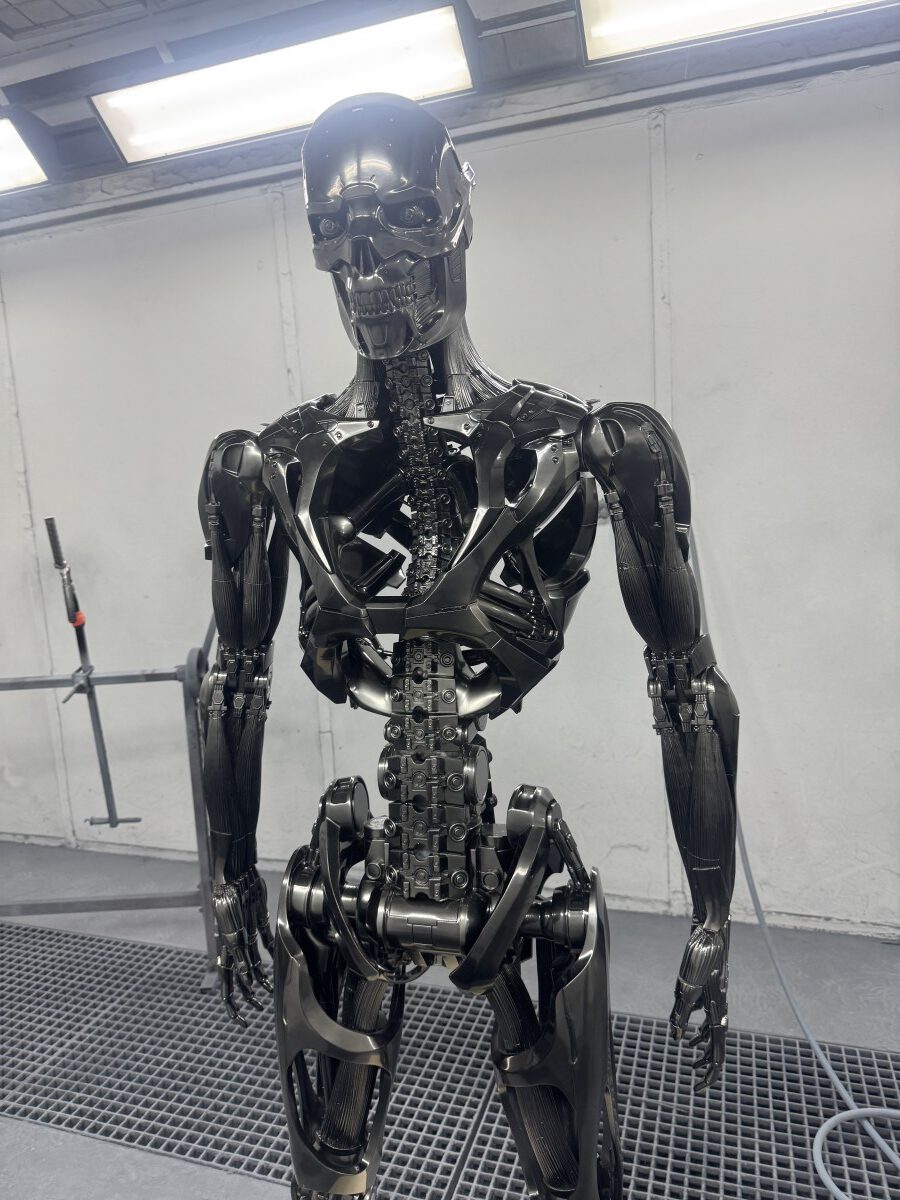

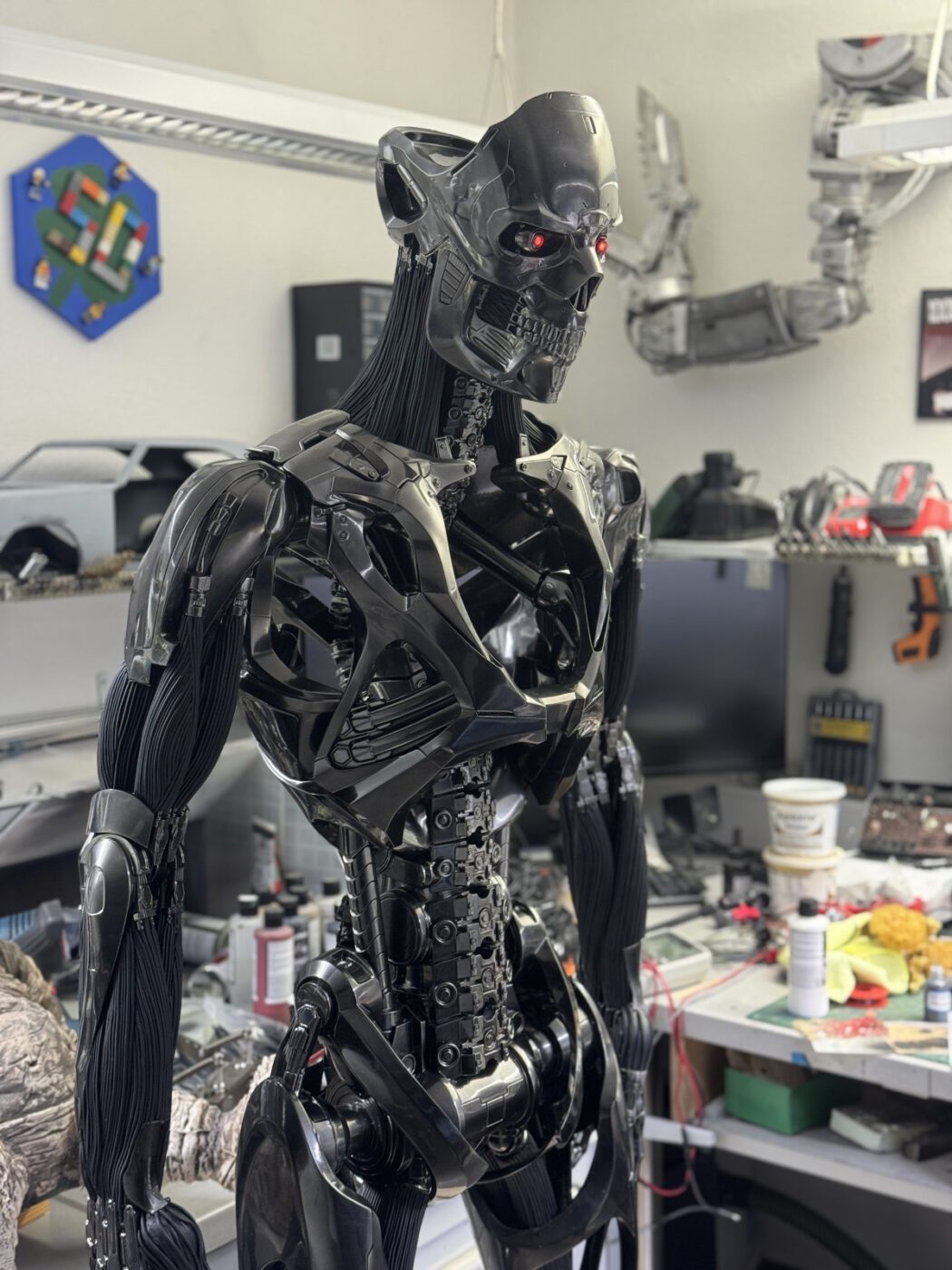

I’m proud of how it turned out — and I hope you enjoy it as much as I do.
